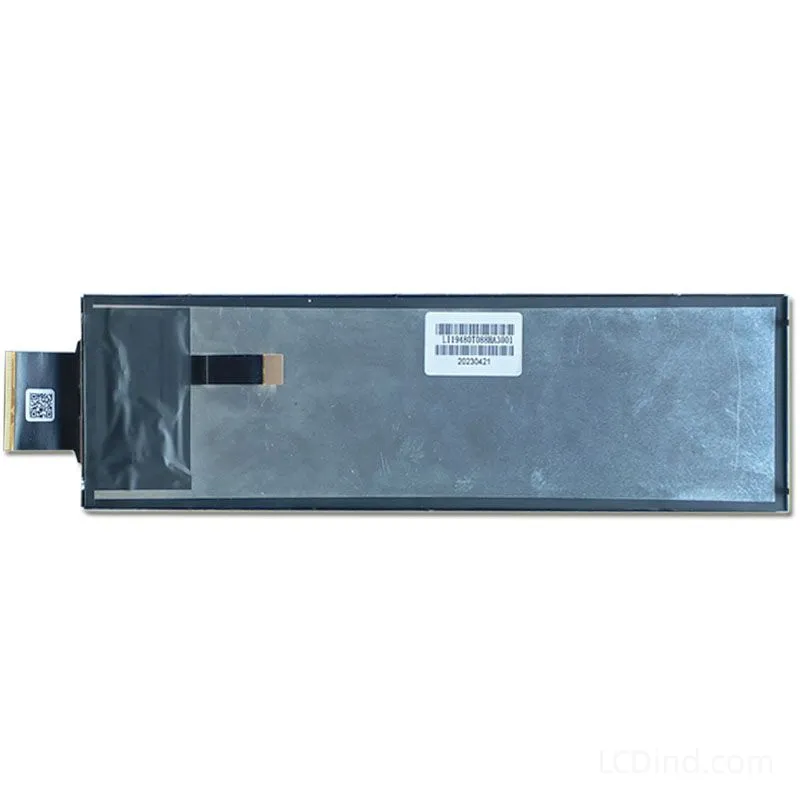

8.88 Inch 480×1920 MIPI Bar LCD Panel with PCAP Touch for Slim Dashboards

This 8.88 inch bar LCD panel is designed for slim equipment dashboards, smart terminals, compact medical devices and embedded Android/Linux interfaces that need a narrow portrait-style display. The public specification confirms 480×1920 resolution, MIPI interface, 600 nits brightness, capacitive touch, all viewing directions, -20 to +70°C operating temperature, -30 to +80°C storage temperature, 64.3×231.3×4.8 mm outline dimension, 54.72×218.88 mm active area, 800:1 contrast ratio, 3.3V power supply, 30000-hour LED lifetime and panel model 91-08901-HS1.

Confirmed Product Specifications

Slim Dashboard Application Fit

The 480×1920 format is useful for vertical status strips, compact dashboards, side control panels, equipment menus, access-control terminals and medical or laboratory devices with limited horizontal space. It should be treated as a purpose-built bar display, not as a cropped phone screen. Good UI design uses stacked modules, clear icons, vertical process status and short labels.

MIPI Interface Confirmation

The confirmed MIPI interface is suitable for embedded platforms, but exact lane count, pinout, initialization sequence, voltage and connector must be confirmed. Android and Linux boards can differ in MIPI DSI support. The RFQ should include host board model, kernel or firmware situation, cable length and whether LCDind should provide driver-board or software support.

PCAP Touch Integration

The page lists capacitive touch. Touch performance should be reviewed together with cover glass, bonding, grounding, ESD, glove requirement, wet-touch behavior and cable route. Slim vertical terminals often place the display near metal frames or batteries, so touch noise and grounding should be tested in the final mechanical assembly.

Brightness and Optical Stack

The 600-nit brightness is useful for bright indoor terminals and protected equipment. If the device is outdoor-facing or installed in direct sunlight, final readability still depends on cover reflection and optical bonding. If the panel is behind thick glass, smoked lens or protective film, brightness and contrast should be measured through the final stack.

Mechanical Design Notes

The 64.3×231.3×4.8 mm outline and 54.72×218.88 mm active area create a long, narrow mechanical design. Engineers should check bezel alignment, FPC exit, cable bend radius, adhesive support, panel twist and shock protection. Small misalignment is highly visible on a bar display, especially when the UI uses long vertical lines.

Industrial Environment Review

The -20 to +70°C operating range makes it relevant for industrial terminals and equipment panels. Still, thermal behavior should be tested when the display is installed in a sealed product or near a battery. Touch, backlight and adhesive performance can change with temperature, so sample testing should include the real enclosure.

Production Control

For repeat orders, lock panel model 91-08901-HS1, MIPI settings, touch controller, cable, cover stack, brightness target and inspection method. Bar panels are less interchangeable than standard 7 inch displays, so substitutes must be reviewed for active area, FPC, touch firmware and mechanical outline.

Buyer Decision Boundary

Choose this product when the equipment needs a slim high-density MIPI touch display. If the buyer needs HDMI input, wide landscape UI, sunlight-readable outdoor use or a no-touch bare panel, the RFQ should redirect to a different display or a custom assembly.

Android and Linux Bring-Up Notes

For MIPI panels, software bring-up can be the main schedule risk. The buyer should provide the processor platform, display driver status, device-tree or firmware constraints, expected orientation and whether LCDind needs to support initialization parameters. If the host board was designed for another panel, compare lane count, connector, reset line, backlight control and touch interface before ordering samples.

UI and Touch Acceptance

A narrow 480×1920 touch display should be tested with the real UI, not only with a color pattern. Check button size, vertical scrolling, status-strip readability, touch edge accuracy, gesture behavior and how the UI responds when the display is mounted left, right or vertical. If the product is used by operators wearing gloves or in wet environments, that requirement should be included in the touch stack review.

Production Documentation

For repeat production, document the panel model, MIPI settings, touch-controller firmware, cover glass, cable set, adhesive method and inspection standard. A slim bar display can be difficult to substitute because active area and mechanical outline are tightly connected to the enclosure design.

RFQ Checklist

• Confirm MIPI lane count, pinout, initialization, connector, cable length and host board support.
• Define PCAP touch interface, cover glass, bonding, grounding, ESD and glove/wet-touch requirements.
• Provide enclosure drawing, visible window, orientation, brightness environment and operating temperature.
• State quantity, forecast, sample stage, software support requirement and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is this a landscape display?

No. It is a bar-format 480×1920 display for slim vertical or dashboard-style layouts.

Does it include touch?

Yes. The public data lists capacitive touch.

Can it connect directly to HDMI?

Not from the panel data alone. It is listed as MIPI, so controller scope must be defined if HDMI is required.
