Industrial LCD Panel 10.1 Inch for Industrial Operator Panels LVDS

10.1 Inch 1280×800 LVDS Industrial LCD Panel for Operator Panels

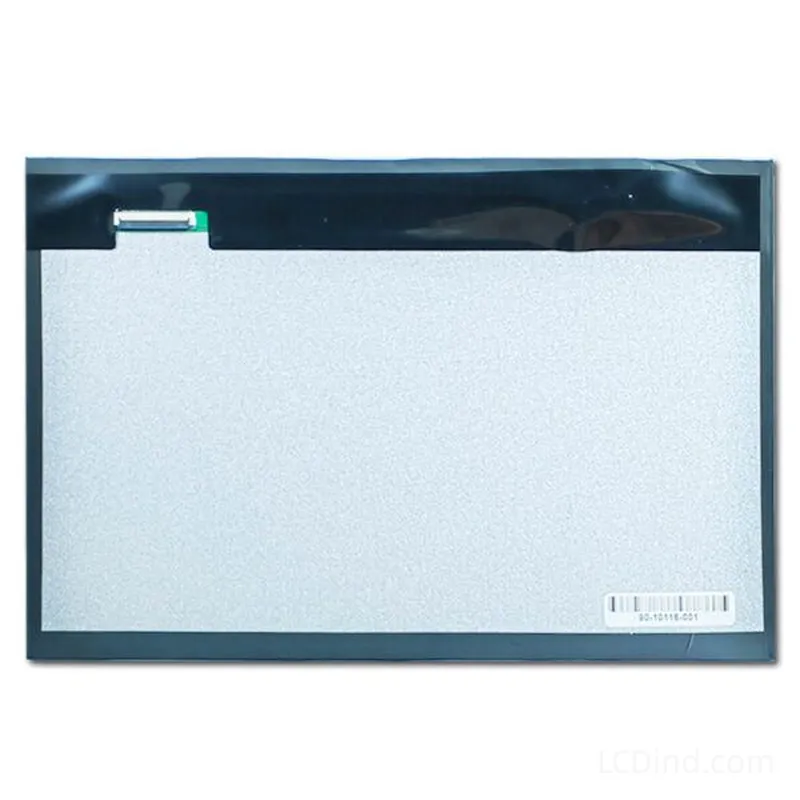

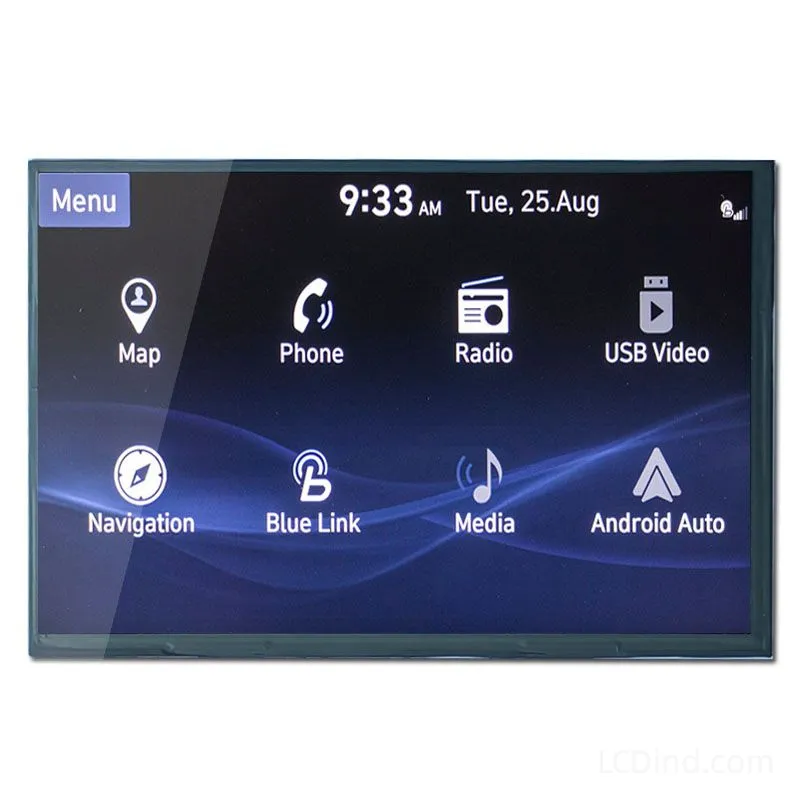

Model 90-10116-IH1 is a 10.1 inch industrial LCD panel for operator panels and embedded equipment that require 1280×800 resolution and LVDS interface. The public facts list 350 nits brightness, all viewing directions, no touch panel in the standard configuration, -20 to +70°C operation, -30 to +80°C storage, 229.46×149.1×2.5 mm outline, 216.96×135.6 mm active area, 800:1 contrast, 3.3V supply and 20000-hour LED lifetime. It is a controlled panel selection for industrial HMI programs, not a generic 10.1 inch display.

The LVDS interface must be reviewed with the host board. Confirm channel configuration, bit depth, voltage, timing, connector, cable length, grounding and backlight control. Another 10.1 inch LVDS panel may share resolution but use a different pinout, cable exit or initialization. If this is a replacement program, provide the old panel model, drawing, cable photos and controller details. If it is a new design, lock the panel before the mainboard and enclosure are finalized.

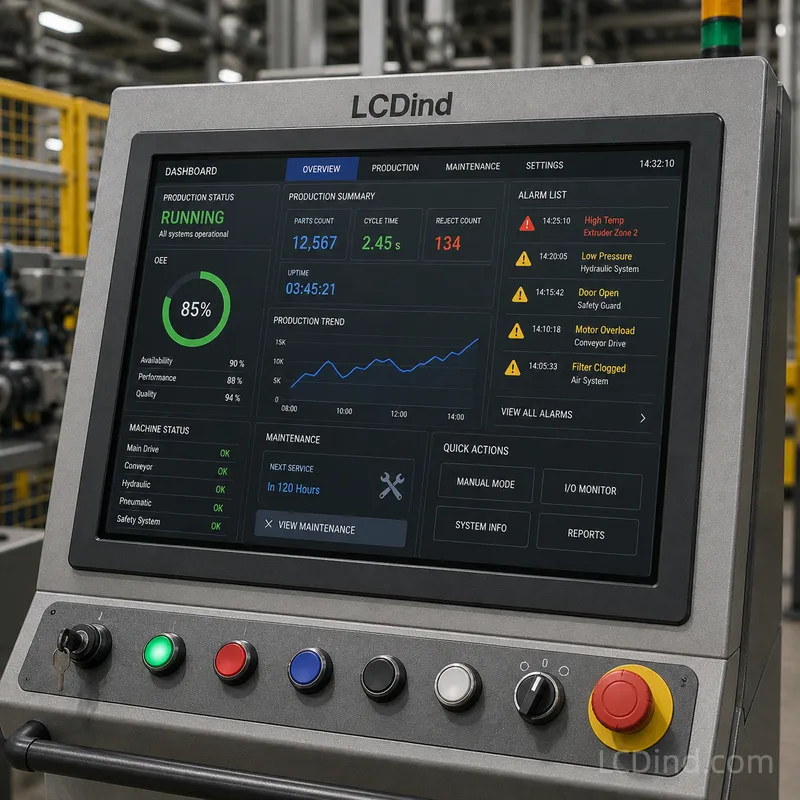

The 1280×800 format is suitable for industrial operator panels that need more working area than 800×480 screens. It can support parameter pages, machine status, alarm lists, service menus and graphical controls. The UI should still be designed for operators wearing gloves or working at a distance. Avoid small text and low-contrast layouts, especially if the display is behind a protective front layer.

The 350-nit brightness and all-direction viewing can be appropriate for indoor operator panels, control cabinets and equipment consoles. It is not a sunlight-readable configuration. If the product will be used outdoors, near large windows or under strong light, LCDind should review a higher-brightness or different optical stack. If a touch screen or cover glass is added, brightness and reflections must be tested again.

The no-touch baseline should be clearly stated. Many operator panels require touch, but the touch layer is not part of the public baseline. If touch is needed, define capacitive or resistive technology, cover lens, bonding, controller, glove behavior, water behavior and ESD requirement. For production, keep model 90-10116-IH1, drawing, LVDS settings, front stack, cable and inspection criteria together.

RFQ Checklist

• Host LVDS timing, channel configuration, connector and cable route.
• Operator-panel UI, viewing distance and alarm requirements.
• Enclosure drawing, active-area window, front lens and touch plan.
• Brightness requirement, installation lighting and duty cycle.
• Replacement panel data if this is service or second-source work.
• Sample quantity, forecast and production schedule.

Engineering FAQ

Can this replace any 10.1 inch LVDS panel? No. Drawing, connector, timing and pinout must be compared.

Is touch included? No touch panel is listed in the standard configuration.

Is it sunlight readable? No. It is listed at 350 nits.

Why is the model important? Model 90-10116-IH1 controls the approved drawing and supply reference.

What should be validated? Validate LVDS stability, front-window readability, thermal behavior, cable route and UI legibility.

Engineering Review Note

Use model 90-10116-IH1 when an industrial operator panel needs 10.1 inch 1280×800 LVDS display integration. Send LCDind host, drawing, touch and quantity details before quotation.

Prototype Validation and Operator-Panel Approval

For model 90-10116-IH1, operator-panel validation should include the full HMI workflow. Test boot screen, main machine page, alarms, parameter editing, maintenance menu, dimming, power cycling and cable movement. If the UI uses small text or dense tables, verify readability at the operator’s real distance. A 10.1 inch 1280×800 panel has useful space, but industrial operators still need clear hierarchy and high-contrast alarm treatment.

LVDS signal integrity should be checked with the production cable and grounding. If the display is mounted away from the controller board, confirm cable length and routing. If the enclosure includes a touch panel or protective glass, inspect optical loss, reflections and mounting pressure. The no-touch baseline should not be confused with a finished touch HMI assembly.

For long-term production, record the panel model, drawing, LVDS timing, cable, front stack, sample photos, brightness setting and incoming inspection criteria. If the buyer wants a second source, LCDind should compare drawing, connector, timing, active area and optical characteristics before suggesting a replacement. A different 10.1 inch LVDS panel can create firmware, cable or mechanical rework.

For operator-panel projects, the question is often whether the customer needs a bare panel or a display assembly. If touch, cover glass, controller board, cable or metal frame is expected, those should be listed in the RFQ. The public baseline is no touch. Treating a bare LVDS panel as a finished HMI can cause quotation and responsibility gaps.

For quality control, define acceptable pixel defects, backlight uniformity, cosmetic condition, connector damage and packing requirements. If the panel is used in a visible machine interface, cosmetic limits should be agreed before shipment, not after installation.

For operator panels, service and lifecycle planning matter. If the equipment will remain in the field for many years, define spare-panel demand, approved alternates and change-notification expectations. If a replacement panel is later required, LCDind can compare against the approved LVDS timing, drawing and front stack instead of starting from a vague 10.1 inch request.

For a 10.1 inch LVDS operator panel, the display is usually part of a larger industrial HMI architecture. Confirm the LVDS mapping, timing, supply voltage and backlight circuit with the controller board before sample approval. Also check whether the customer needs the bare panel, a bonded front assembly or a complete display kit with cable and mechanical support. These are different procurement cases, and treating them as the same RFQ can delay quotation or create an incomplete sample package.

If the operator panel will be stocked as a spare part, include expected service demand and packing requirements. This helps align the LCD quotation with lifecycle support, not only the first production build.
