10.1 Inch LCD Display for LVDS HMI Projects LVDS

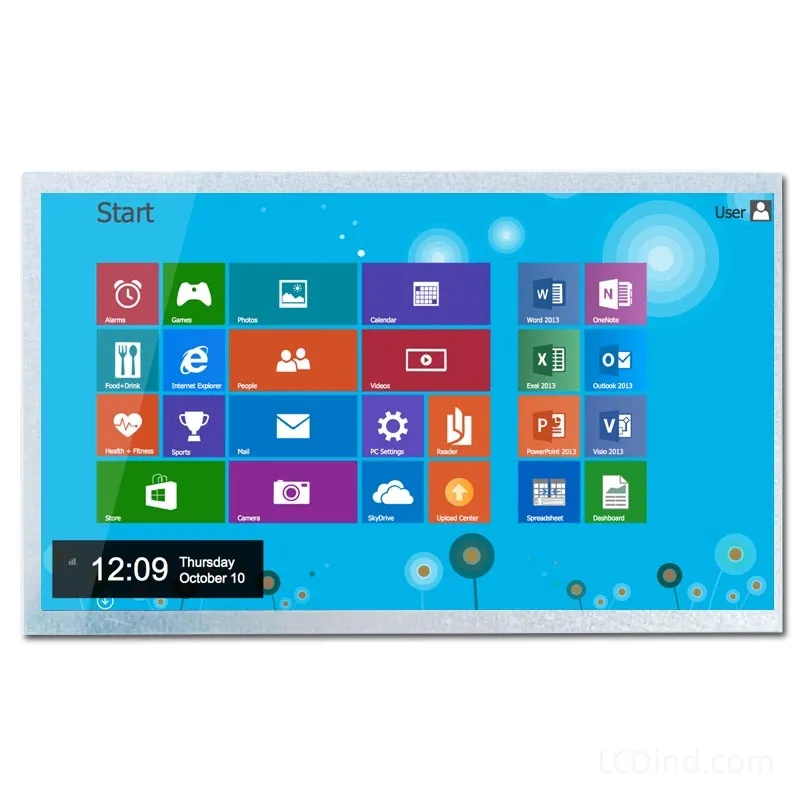

10.1 Inch 1024×600 LVDS LCD Display for HMI Projects and Embedded Controllers

This 10.1 inch LVDS LCD display is a display-only module for HMI projects, embedded controllers, and equipment panels that need stable 1024×600 output without a standard touch panel. The production table confirms 10.1 inch size, 1024×600 resolution, LVDS interface, 400 nits brightness, 6 o’clock viewing direction, no touch panel in standard configuration, -20 to +70°C operating temperature, -30 to +80°C storage temperature, 235 x 143 x 5.1 mm outline dimension, 222.72 x 125.28 mm active area, 600:1 contrast ratio, 3.3V power supply, 20000 hour LED lifetime, and panel model 90-10126-BH1.

Technical Specifications

Display-Only HMI Positioning

This product is best considered when the equipment already has buttons, keypad, rotary control, or a separate touch stack. The no-touch standard configuration can simplify integration and reduce risk in dusty, wet, gloved, or cost-sensitive environments. The 1024×600 resolution supports clear menus, numeric values, status pages, and compact dashboards, but it is not intended for high-density visualization or video-heavy interfaces.

LVDS Integration

The confirmed LVDS interface makes host-board matching important. Engineers should confirm pinout, voltage, JEIDA or VESA mapping if applicable, backlight power, cable length, connector locking, and startup timing. A controller board may be needed if the host outputs HDMI, eDP, or another signal type. This should be specified before sample quotation so the display path is tested as a complete system.

Mechanical and Optical Fit

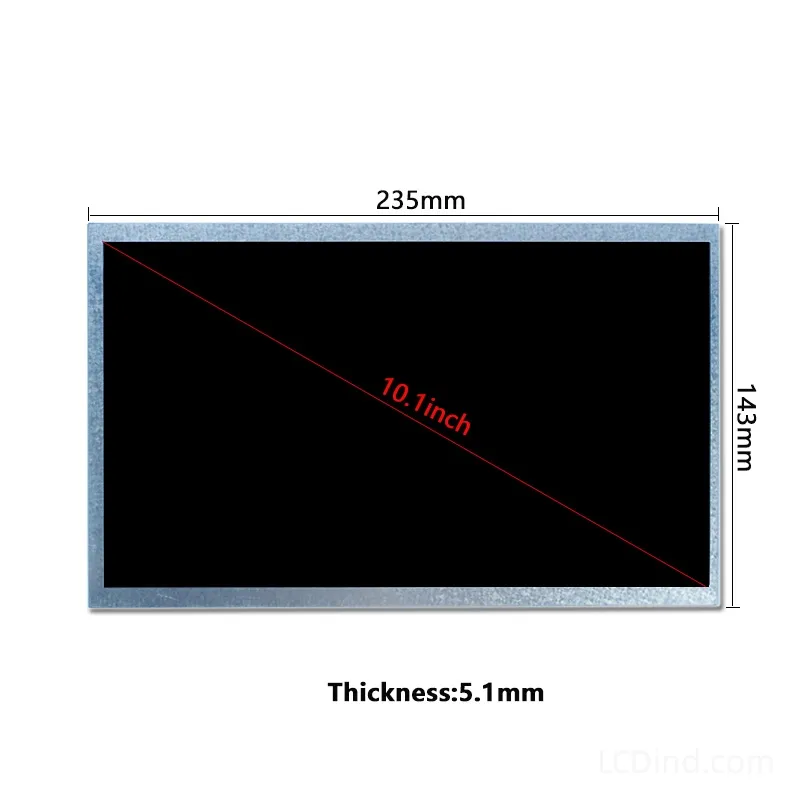

The 235 x 143 x 5.1 mm outline and 222.72 x 125.28 mm active area should be checked against the front opening, bezel, gasket, PCB support, and cable route. The 400 nits brightness is suitable for many indoor industrial environments, but final readability depends on lens tint, ambient light, viewing distance, and UI contrast. The 6 o’clock viewing direction should be considered when defining mounting orientation.

Application Fit

This module fits industrial controllers, machine panels, medical device sub-displays, power equipment interfaces, embedded terminals, access devices, and control boxes where a reliable 10.1 inch LVDS display is needed. It is also useful for OEM programs that want a lower-risk no-touch screen and plan to add their own front overlay or input method.

Procurement Notes

Use panel model 90-10126-BH1 together with the confirmed size, resolution, LVDS interface, brightness, active area, outline dimension, temperature range, power supply, and LED lifetime. If the project needs touch, higher brightness, optical bonding, cover lens, cable change, or controller-board matching, state those as customization requirements rather than assuming they are included in the standard display.

Sample Approval and Production Controls

Sample approval should confirm LVDS timing, mapping, cable route, backlight drive, viewing direction, operating temperature, and UI readability with the actual HMI software. Because the standard configuration has no touch panel, test the display together with the final buttons, keypad, or separate input method. Incoming inspection should compare active area, outline dimension, connector position, panel model, and brightness against the approved sample, especially if the project has a long production lifecycle.

How to Compare Alternatives

Compared with HDMI touch displays, this LVDS no-touch module is better for embedded controller designs where the equipment manufacturer controls the host board and input method. Compared with high-brightness or WUXGA modules, it offers a simpler 1024×600 display path for indoor HMI use. Choose it when stable LVDS supply, no-touch configuration, industrial temperature, and known panel model are more important than premium glass or touch features.

Project Risk Boundaries

The main risk is replacing this LVDS no-touch module with a visually similar 10.1 inch screen without checking mapping, panel model, viewing direction, and mechanical fit. In HMI projects, a display-only module is often locked into the control board and enclosure. Any later substitution can require firmware, cable, gasket, or UI changes. Keep the approved 90-10126-BH1 reference in the project documentation. If the display is used across several equipment models, also document which models share the same cable and firmware so purchasing does not accidentally mix validated and unvalidated variants.

Information LCDind Needs for a Reliable Quote

For quotation, send the host LVDS output, pin mapping requirement, cable length, mounting drawing, viewing direction requirement, operating environment, and annual quantity. If this is a replacement project, provide the existing panel label and photos. If touch may be added later, state whether it should be quoted as a separate cover/touch stack or whether the standard no-touch module is sufficient.

RFQ Checklist

• Product URL, model reference, and target application.
• Host interface, controller board, cable, firmware, and voltage requirements.
• Mechanical drawing, active area, outline, cover lens, mounting, and cable route.
• Brightness, touch, operating environment, thermal, and optical requirements.
• Sample schedule, annual quantity, packaging, inspection, and revision-control expectations.

Engineering FAQ

Is touch included?

No. The table states no touch panel in the standard configuration.

What is the confirmed brightness?

The technical table lists 400 nits.

What is the correct panel reference?

The table lists panel model 90-10126-BH1.

Engineering Review Note

For quotation, send the product URL, target quantity, application background, host platform, interface requirement, and any existing drawing or replacement panel details. LCDind will review whether the standard configuration fits or whether cable, controller board, touch, cover glass, optical bonding, brightness, packaging, or lifecycle customization should be quoted.
