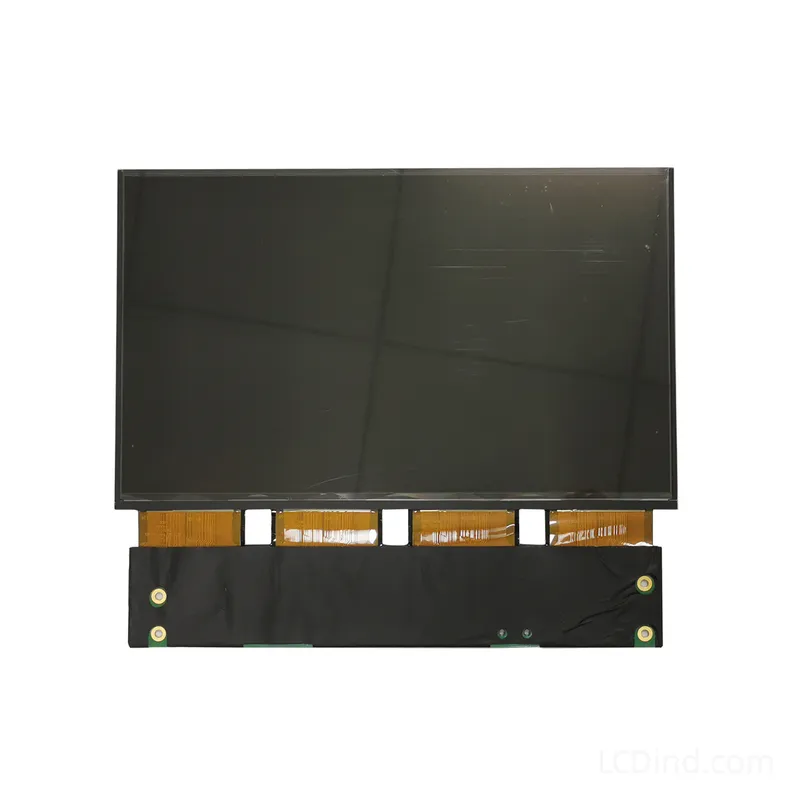

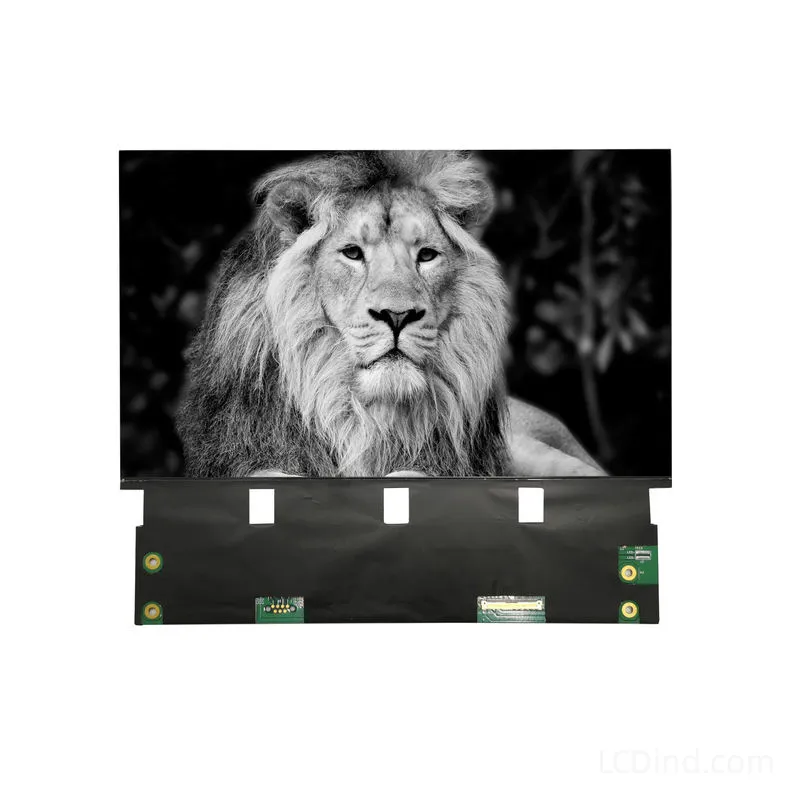

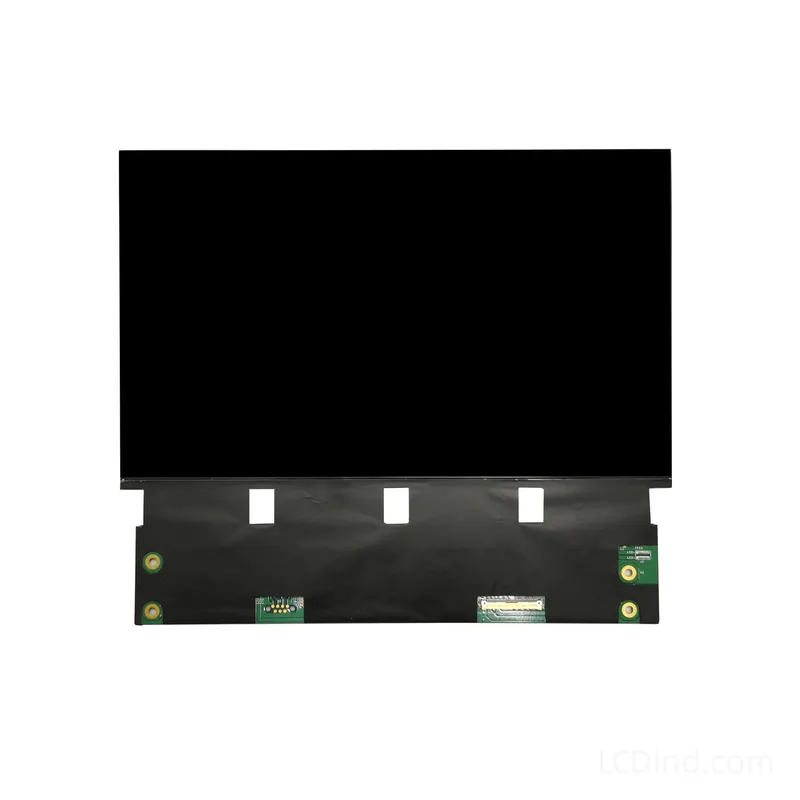

10.1 Inch 5K Mono LCD Screen | 4920×2880 eDP 3D Printer Display
10.1 Inch 5K Mono LCD is an ultra-thin, high-performance masking screen engineered for professional-grade resin 3D printing. Manufactured as an original BOE open-cell unit, this display packs a dense 4920×2880 resolution into its active area. With a precision 45×45 um pixel pitch and a total glass thickness of merely 1.070 mm, it minimizes light scattering and ensures incredibly sharp model details. Utilizing a robust 40-pin eDP interface for flawless signal transmission, it serves as the perfect foundation for custom builds, pairing seamlessly with specialized optical engines like the UVA-S64 matrix. Build with industrial precision. Click “Inquire Now” for eDP driver boards and custom specifications.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | |
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Resistive Touch (RTP) |
Hardware Superiority: 10.1 Inch 5K Mono LCD
Achieving perfect surface finishes on large resin prints requires a meticulous balance of scale and pixel density. The 10.1 Inch 5K Mono LCD delivers precisely this by projecting a massive 4920 x 2880 active pixel array across its 218.88 x 123.12 mm display zone. This specific physical footprint results in a 45 x 45 um pixel pitch. At this microscopic scale, horizontal layer lines and vertical voxel distortions are drastically minimized, allowing you to cure smooth, injection-molding quality prototypes and detailed tabletop miniatures right out of the vat.
Ultra-Thin Profile & Thermal Resilience
Light scattering is the enemy of sharp 3D prints. To combat this, this normally black mono display is manufactured with an exceptionally thin total profile of just 1.070 mm. By reducing the distance the UV light must travel through the glass, it ensures the masking pattern remains crisp. Furthermore, it operates flawlessly without a backlight up to 70°C, making it the ideal counterpart to high-power, active-cooled LED matrices like the UVA-S64 lens assembly.
High-Bandwidth eDP Architecture
Data bottlenecking can ruin large-format prints. Rather than relying on standard protocols, this panel is driven by a high-speed 40-Pin eDP (Embedded DisplayPort) interface. This robust connection standard guarantees that the immense 5K video feed from your printer’s motherboard is transmitted flawlessly, frame-by-frame, without signal degradation or screen tearing during long, multi-day printing cycles.
LCD Display Solution & Customization
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization Options:
- Customized packaging (Min. order: 1,000 pieces)
- Customized logo silk-screening (Min. order: 1,000 pieces)
- Graphic and cover glass customization (Min. order: 1,000 pieces)
Technical Specifications
| Product Type | TFT Mono LCD for 3D Printer |
| Model Name | RV101FBB-N02-V1 |
| Display Size | 10.1 Inch |
| Resolution | 4920 x 2880 (5K) |
| Active Area | 218.88(W) x 123.12(H) mm |
| Outline Dimension | 227.43(H) x 139.5(V) x 1.070(D) mm |
| Pixel Pitch | 45 x 45 um |
| Interface | eDP (40 Pins) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display Mode | Normal Black |
| Operating Temp | 0°C ~ 70°C |
| Storage Temp | -10°C ~ 80°C |
| Backlight | Without Backlight (Open Cell) |
Engineering FAQ
Q: Why does this screen use an eDP interface instead of MIPI?
A: The 40-pin eDP (Embedded DisplayPort) interface offers superior data bandwidth and signal stability over longer cable runs compared to standard MIPI. When pushing a native 4920×2880 (5K) resolution, eDP ensures your motherboard can deliver precise, artifact-free masking patterns without risking data loss during complex print jobs.
Q: What is the significance of the 1.070mm total thickness?
A: In MSLA printing, the LCD sits between the UV light source and your resin vat. A thinner glass panel (1.070mm) reduces the “light bleed” or refraction that occurs as UV light travels through the material. This physical thinness directly contributes to sharper edges and cleaner negative details on your printed models.

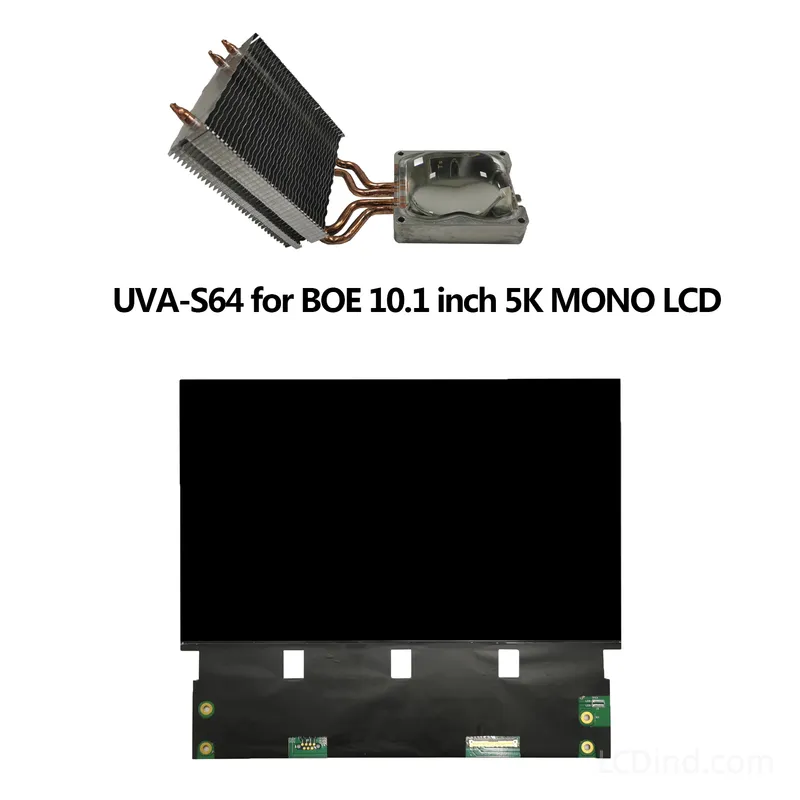

Q: Is this panel compatible with the UVA-S64 light source?
A: Yes. The BOE 10.1-inch 5K screen is highly compatible with the UVA-S64 specialized LED cooling and lens assembly. Using them together ensures optimal 405nm light distribution and prevents the LCD panel from overheating, maximizing the hardware’s lifespan.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | |
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Resistive Touch (RTP) |
Q: Why does this screen use an eDP interface instead of MIPI?
A: The 40-pin eDP (Embedded DisplayPort) interface offers superior data bandwidth and signal stability over longer cable runs compared to standard MIPI. When pushing a native 4920x2880 (5K) resolution, eDP ensures your motherboard can deliver precise, artifact-free masking patterns without risking data loss during complex print jobs.
Q: What is the significance of the 1.070mm total thickness?
A: In MSLA printing, the LCD sits between the UV light source and your resin vat. A thinner glass panel (1.070mm) reduces the "light bleed" or refraction that occurs as UV light travels through the material. This physical thinness directly contributes to sharper edges and cleaner negative details on your printed models.
Q: Is this panel compatible with the UVA-S64 light source?
A: Yes. The BOE 10.1-inch 5K screen is highly compatible with the UVA-S64 specialized LED cooling and lens assembly. Using them together ensures optimal 405nm light distribution and prevents the LCD panel from overheating, maximizing the hardware's lifespan.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
