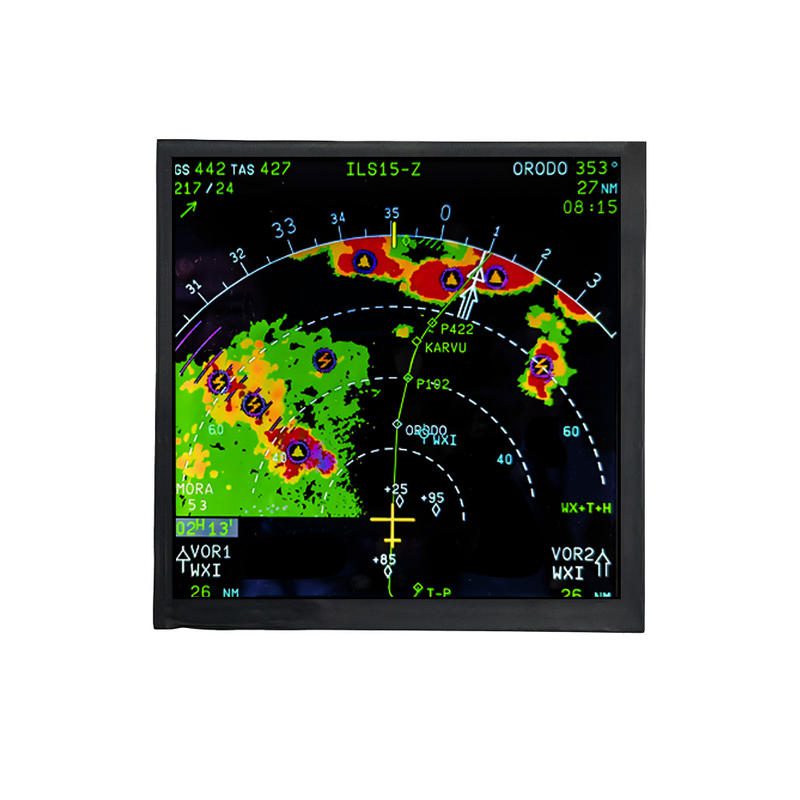

6.2 Inch Square TFT LCD Display Module (720×720)Flight Simulator Display
Sourcing a 6.2 Inch Square TFT LCD? Industrial grade 720×720 resolution, 500 nits IPS panel with LVDS interface. Ideal for avionics & gauges. Factory Direct Pricing.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 720×720 |
| Size | 6.2 inch |
| Operating Temp | Industrial (-20 to +70°C) |
Precision Engineered: 6.2 Inch Square TFT LCD Display
In the world of industrial design, standard rectangular screens don’t always fit the vision. For engineers developing flight simulators, marine instruments, or premium smart controls, the 6.2 Inch Square TFT LCD offers the perfect 1:1 aspect ratio solution.
This module is not just about shape; it is a high-performance visual interface designed to replace traditional analog gauges with crisp, digital precision.
Why Choose This 6.2 Inch Square Module?
1. Unique 1:1 Form Factor With an active area of 111.78 x 111.78 mm, this display is purpose-built for applications requiring symmetry. It eliminates the wasted “black bars” often seen when using rectangular screens for circular or square UI designs.
2. Crystal Clear IPS Technology Featuring Normally Black, Transmissive IPS mode, this [Link: IPS LCD Panel] ensures accurate color reproduction and ultra-wide viewing angles (85/85/85/85). Whether viewed from the pilot’s seat or a side angle on a medical cart, the image remains distortion-free.
3. High Brightness & Reliability Equipped with a 500 nits backlight, this module ensures readability in various ambient lighting conditions. If your project requires sunlight readability for outdoor kiosks, check our [Link: High Brightness Solutions] or contact us for a backlight upgrade to 1000 nits.
Technical Specifications
-
Part Number: [Model-62-SQ-720]
-
Panel Type: a-Si TFT-LCD, IPS
-
Resolution: 720(RGB) × 720
-
Pixel Density: High PPI for smooth curves and text
-

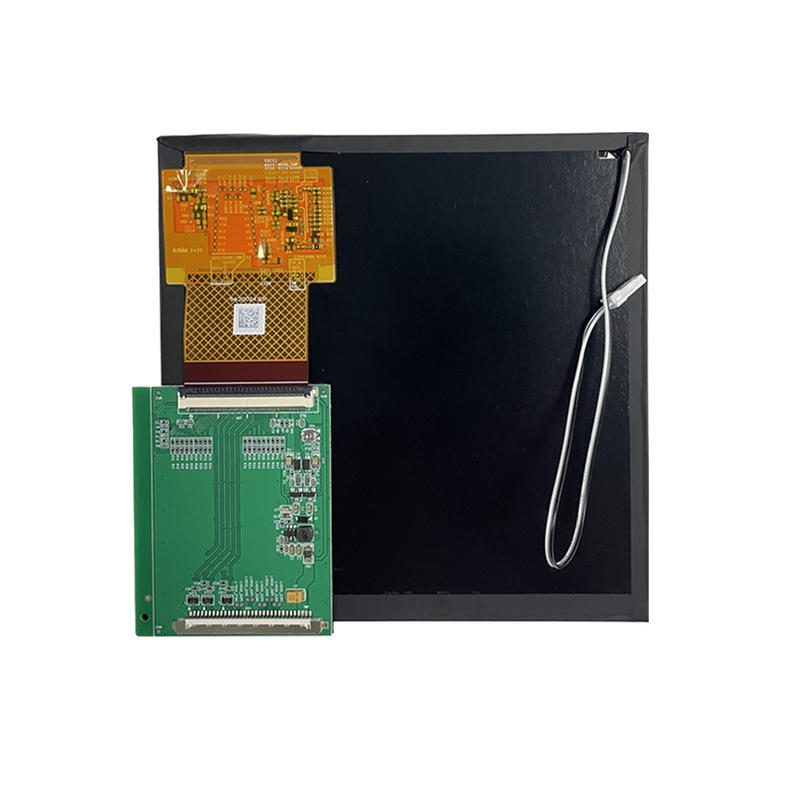

Interface: LVDS (40 pins), widely compatible with industrial mainboards
-
Operating Temp: -20 ~ 70 °C (Industrial Standard)
-
Touch Screen: Optional PCAP/Resistive Touch via [Link: Optical Bonding Service]
Applications: Where “Square” Fits Best
-

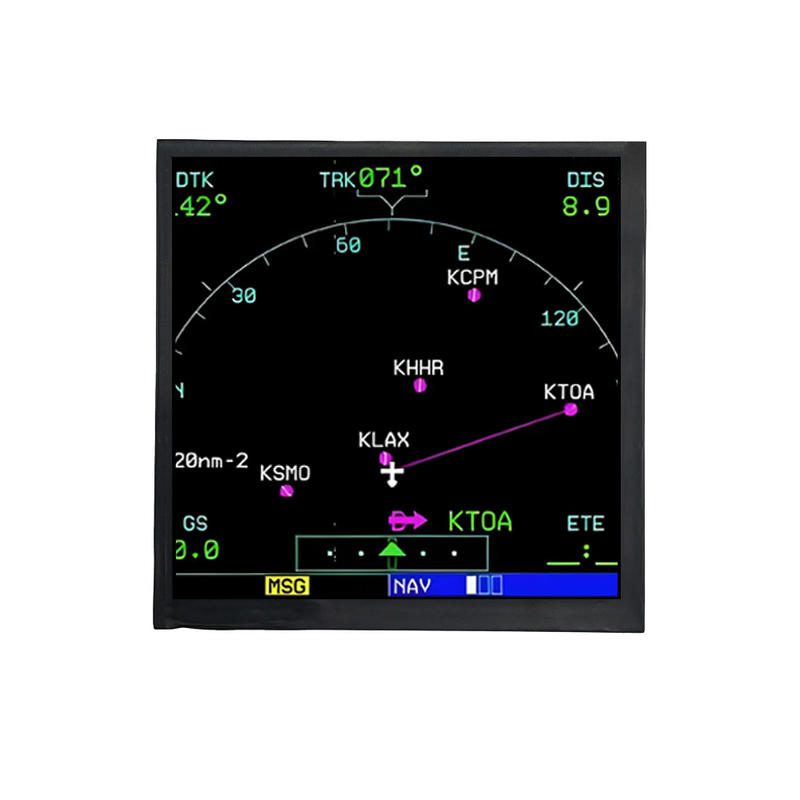

Avionics & Simulators: Primary Flight Displays (PFD) and attitude indicators.
-
Smart Home Knobs: High-end centralized control panels for HVAC and Audio.
-
Industrial Gauges: Digital replacement for voltage, pressure, and speed meters.
| Brand | OEM / ODM |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 720×720 |
| Size | 6.2 inch |
| Operating Temp | Industrial (-20 to +70°C) |
Common questions engineering teams ask about our 6.2 Inch Square TFT LCD.
What is the resolution of the 6.2 Inch Square TFT LCD?
The display features a 720x720 resolution. This high pixel density on a 6.2-inch screen delivers exceptionally sharp images, making it ideal for displaying intricate dials and small text in instrument clusters.
Can I get this display with a Touch Screen?
Yes. While the standard module is the TFT panel only, we offer custom Capacitive Touch Panels (PCAP) designed to match the square form factor perfectly. We support both Air Bonding and Optical Bonding to suit your ruggedness requirements.
Is this display suitable for outdoor use?
The standard model comes with 500 nits brightness, which is sufficient for bright indoor or shaded outdoor use. For direct sunlight applications (e.g., EV Chargers), we recommend customizing the backlight to 1000+ nits.
How do I connect this display to my board?

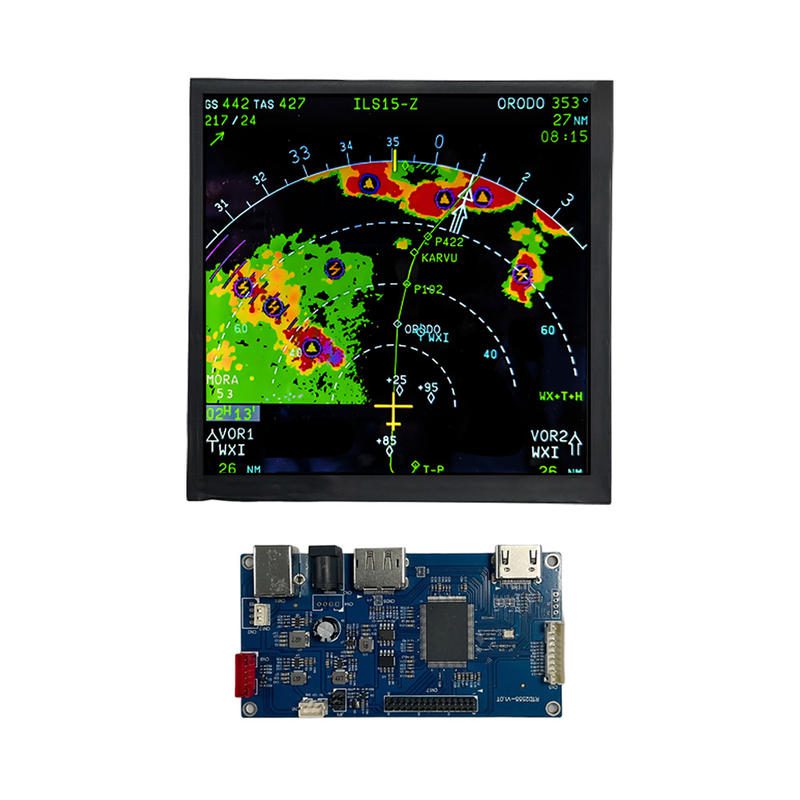

This module uses a standard LVDS interface. If your driving board uses HDMI or RGB, we can provide a compatible HDMI-to-LVDS driver board to speed up your prototyping process.
Ready to Integrate?
Don't compromise your design with a rectangular screen. Elevate your product with our 6.2 Inch Square TFT LCD.
