7 Inch Square LCD Display Kit (720×720) IPS | Open Cell HDMI Driver Board for Flight Simulator
Designed for simulation enthusiasts and custom HMI projects, this 7 Inch 720×720 Square LCD Display offers the perfect balance of performance and value. Featuring a sharp 125.8mm x 125.8mm active area and vivid IPS technology, it replicates flight instruments with clarity. This Open Cell style module comes as a complete kit with a dedicated HDMI Driver Board, allowing for immediate plug-and-play integration into your PC-based flight simulator setup.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 720×720 |
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Operating Temp | Industrial (-20 to +70°C) |
Budget-Friendly Precision: 7 Inch 720×720 Square LCD
Building a realistic flight simulator shouldn’t break the bank. This 7 Inch 720×720 Square LCD Display is engineered to provide professional-grade visuals for G1000, PFD, and MFD replicas at an accessible price point. With a true 1:1 aspect ratio and 125.82 x 125.82 mm active area, it fits perfectly into standard square instrument bezels.

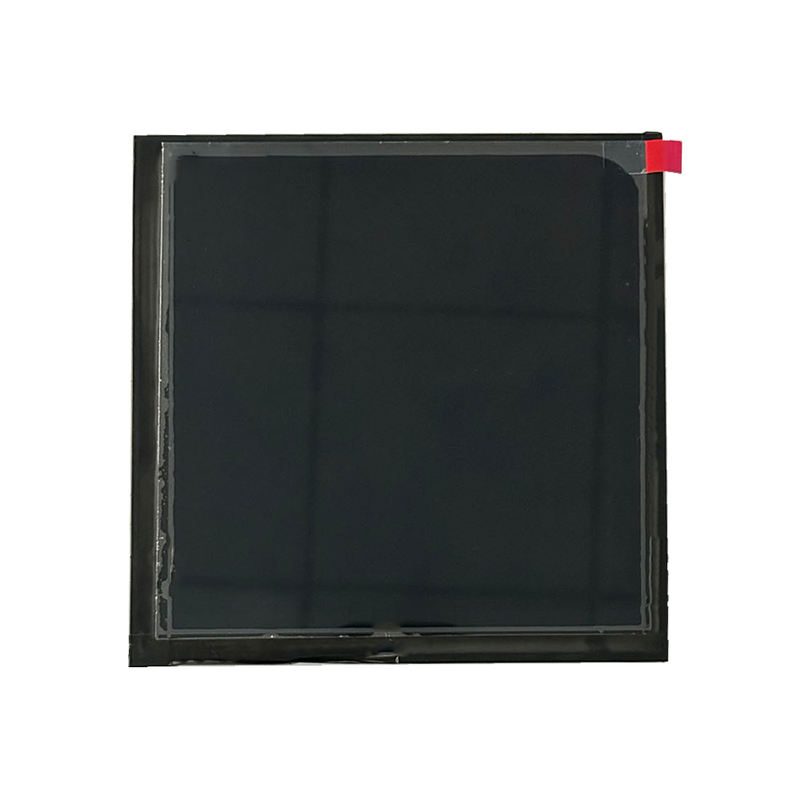

IPS Visuals & Open Cell Design
Despite its competitive pricing, this module does not compromise on quality. It utilizes an IPS Panel with wide viewing angles of 80/80/80/80, ensuring that colors remain consistent whether viewed from the pilot or co-pilot seat.
-

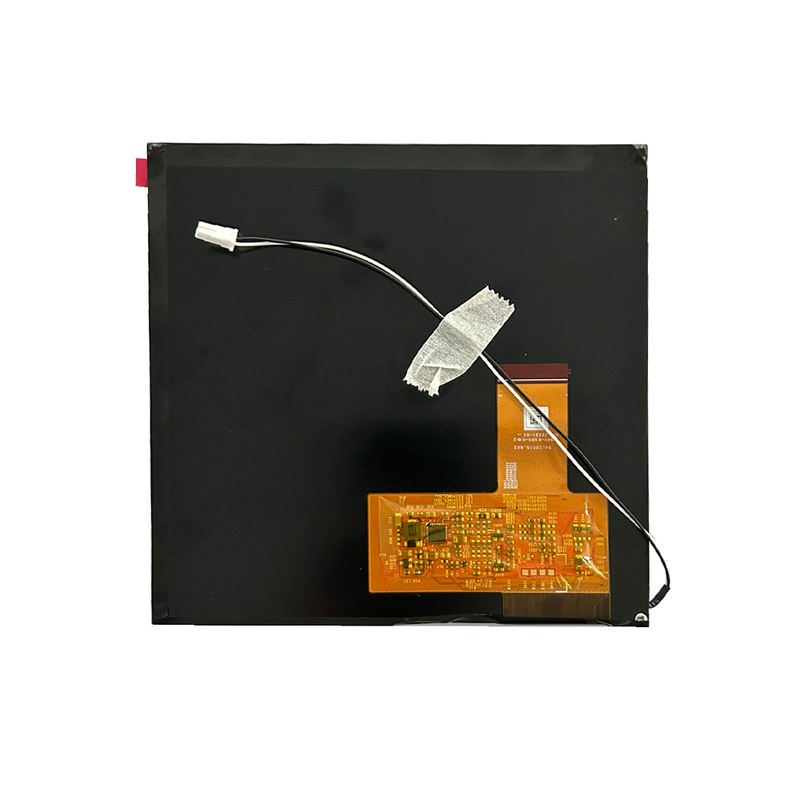

Open Cell Structure: The slim profile design allows for tighter integration behind custom faceplates, making it ideal for “Open Cell” style mounting where bezel space is limited.
Complete HDMI Driver Kit

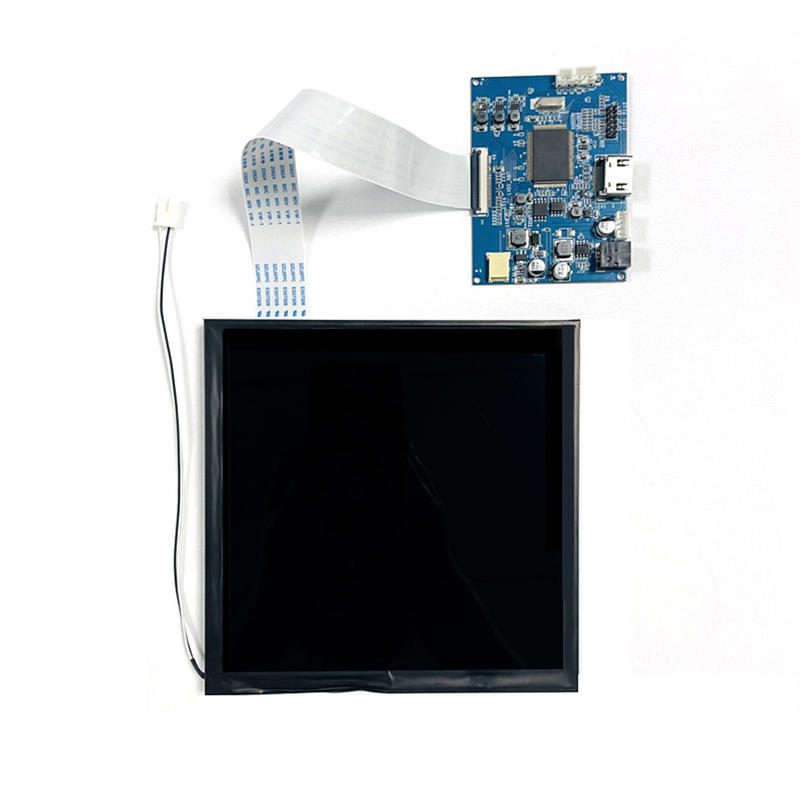

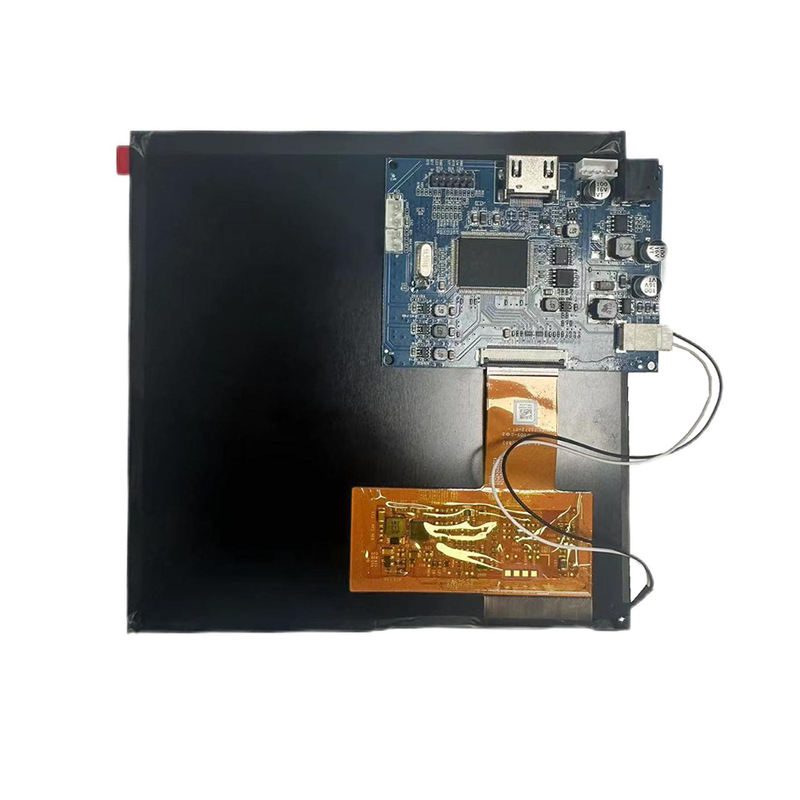

Forget about complex wiring. We ship this panel as a ready-to-run kit including a compact HDMI Driver Board.
-
Connectivity: Connects seamlessly to Windows PCs or Raspberry Pi via HDMI.
-
Resolution: Delivers a native 720×720 resolution, offering sharp text and smooth gauge animations.
Detailed Specifications
| Feature | Specification |
| Product Name | 7 Inch 720×720 Square LCD Kit |
| Resolution | 720 (RGB) × 720 |
| Active Area | 125.82 × 125.82 mm |
| Brightness | 500 cd/m² |
| Interface | LVDS (Panel) / HDMI (Board) |
| Operating Temp | -20°C ~ +70°C |

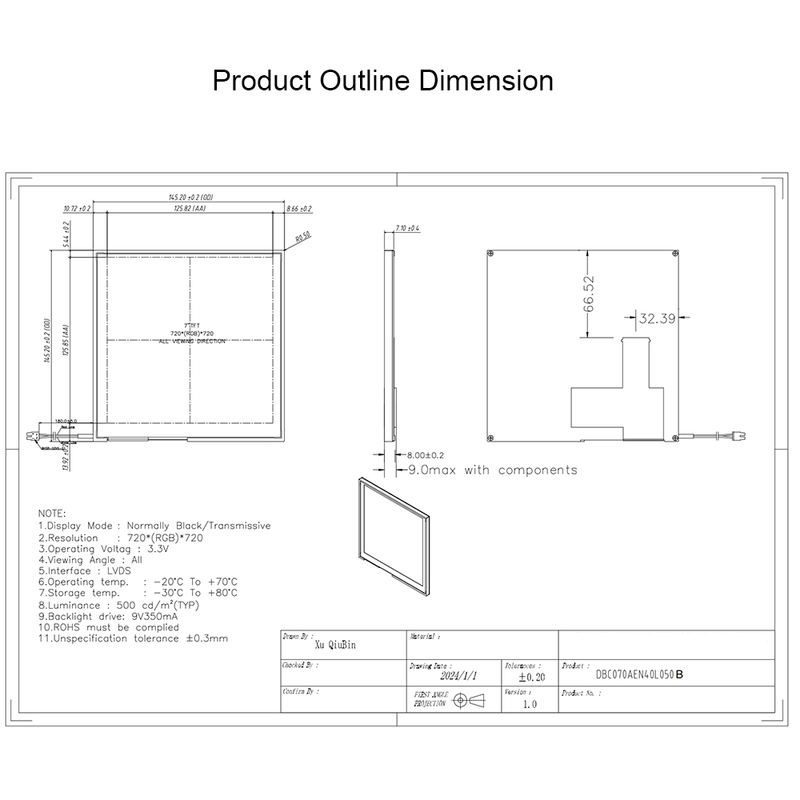

| Module Dimensions | 145.2 × 125.85 mm |
Ideal Applications
-

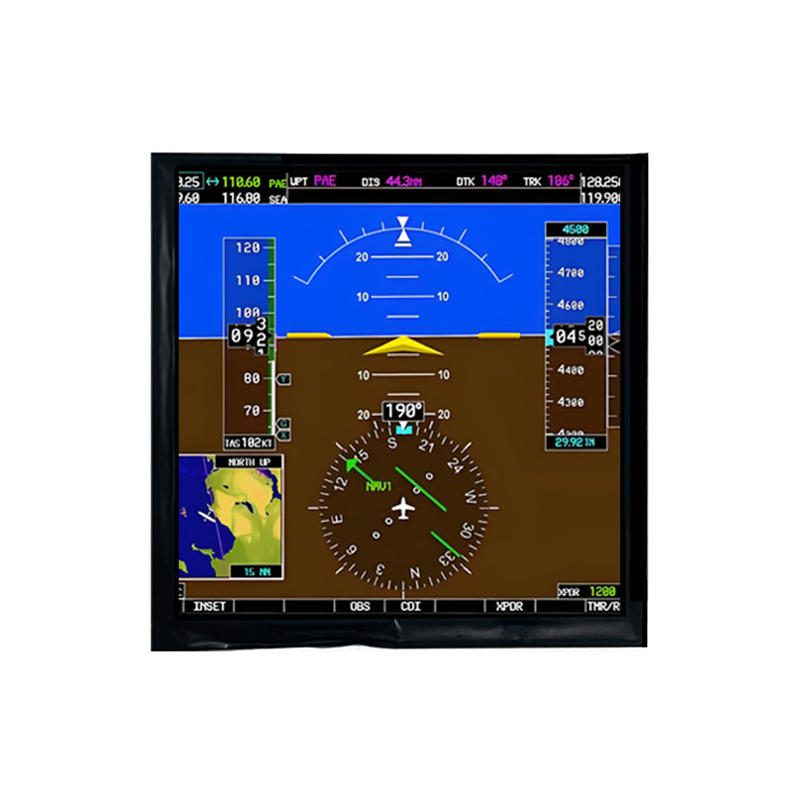

Flight Simulation: Affordable Primary Flight Displays (PFD) and Artificial Horizons.
-
Custom PC Stats: A unique square CPU/GPU monitoring screen inside PC cases.
-
Industrial Controls: Square touch interfaces for machinery (Touch overlay sold separately).
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 720×720 |
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Operating Temp | Industrial (-20 to +70°C) |
What is the difference between this 720x720 and the 768x768 model?
The 7 Inch 720x720 Square LCD has a slightly lower resolution and a marginally smaller active area (125.8mm vs 127.8mm) compared to the 768x768 version. This makes the 720p version a more cost-effective option for projects where ultra-high pixel density is not critical.
What does "Open Cell" mean in this context?
While this module includes a backlight and metal frame, the "Open Cell" designation often refers to its slim, raw module design intended for integration behind a bezel or glass, rather than being a finished monitor with a plastic housing. It is perfect for DIY cockpits.
Does the kit include the HDMI cable?
The kit includes the LCD Module and the HDMI Driver Board with the necessary internal ribbon cables. You will need to provide your own standard HDMI cable and a 12V power supply (refer to board specifications).
