Ultimate 7.5 Inch Square TFT LCD | 800×800 1000 Nits | Industrial Grade
pgrade your display with our 7.5 Inch Square TFT LCD. Featuring 800×800 resolution, 1000 nits sunlight readability, and industrial MIPI interface. Factory direct custom solutions available.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 800×800 |
| Size | 7.5 inch |
| Operating Temp | Industrial (-20 to +70°C) |
The 7.5 Inch Square TFT LCD module is engineered for specialized applications that demand a unique form factor without compromising on visual performance. Unlike standard 16:9 aspect ratios, this robust 1:1 square display provides the perfect canvas for avionics, marine instrumentation, and modern smart home controls.
Designed with a high-resolution 800×800 matrix and a powerful backlight system, this module ensures your user interface remains sharp, legible, and vibrant even in the most challenging lighting conditions.
Why Choose This 7.5 Inch Square Display?
Superior Sunlight Readability
Visibility is non-negotiable in outdoor or bright industrial environments. With a luminous intensity of 1000 cd/m² (nits), this panel qualifies as a true sunlight-readable display. Whether used in an open-cockpit flight simulator or an outdoor EV charging station, the content remains crystal clear, reducing glare and eye strain for the user.
Industrial Grade Durability
Reliability is at the core of our manufacturing process. This module operates efficiently in a wide temperature range from -20°C to 70°C, with storage capabilities reaching -30°C to 80°C. This makes it an ideal choice for harsh environments where consumer-grade screens would fail.
High-Performance MIPI Interface
Equipped with a standard MIPI interface, this display supports high-speed data transmission required for smooth UI transitions and video playback. The ILI9881C driver IC ensures broad compatibility and stable performance across various embedded platforms.
Wide Viewing Angles
Utilizing “Normally Black” display mode technology (Transmissive), this screen offers deep blacks and high contrast. This ensures that the information on the screen is legible from various angles, which is critical for dashboard and control panel instrumentation.
Technical Specifications
| Panel Size | 7.5 inch (Square) |
|---|---|
| Resolution | 800 x 800 pixels |
| Active Area | 135.36 (H) x 135.36 (V) mm |
| Pixel Pitch | 0.1692 (H) x 0.1692 (V) mm |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | High Contrast (Normally Black) |
| Interface | MIPI (Mobile Industry Processor Interface) |
| Driver IC | ILI9881C-0HT00GA |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
| Outline Dimension | 142.52 (H) x 148.20 (V) x 4.86 (D) mm |
Target Applications
This 7.5 Inch Square TFT LCD is versatile and specifically favored for:

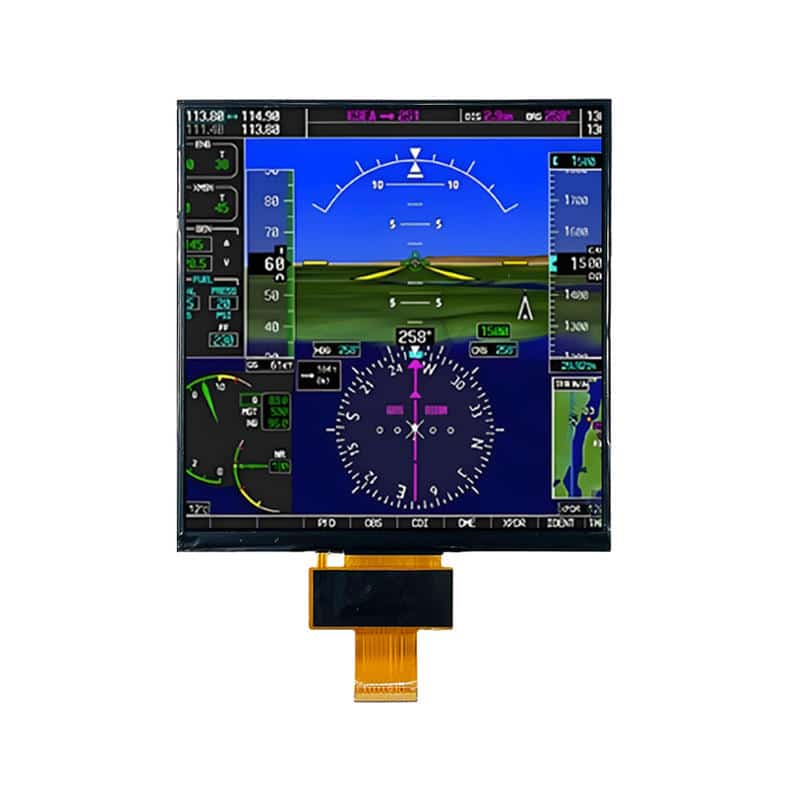

- Flight Simulators & Avionics: Perfect for displaying altitude, horizon, and navigation data in a square gauge format.
- Marine Navigation: High brightness ensures chart visibility under direct ocean sunlight.
- Smart Home Devices: Ideal for premium square wall thermostats and control hubs.
- Industrial Meters: Replaces traditional analog gauges with digital precision.
| Brand | OEM / ODM |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 800×800 |
| Size | 7.5 inch |
| Operating Temp | Industrial (-20 to +70°C) |
What is the operating temperature range of this 7.5 inch square LCD?
This module is designed for industrial use with a wide operating temperature range of -20°C to 70°C and a storage temperature of -30°C to 80°C.
Does this display support touch functionality?
The standard module ships without a touch panel, but we offer custom capacitive touch screen (PCAP) integration services upon request. Please contact our engineering team for customization.
Is the 1000 nits brightness adjustable?
Yes, the LED backlight brightness can be adjusted via PWM (Pulse Width Modulation) through the driver circuit, allowing for dimming in low-light environments (like night flying).
What is the lead time for mass production?
As a factory-direct supplier, we generally maintain stock for samples. Mass production orders typically have a lead time of 4-6 weeks depending on quantity and customization requirements.
