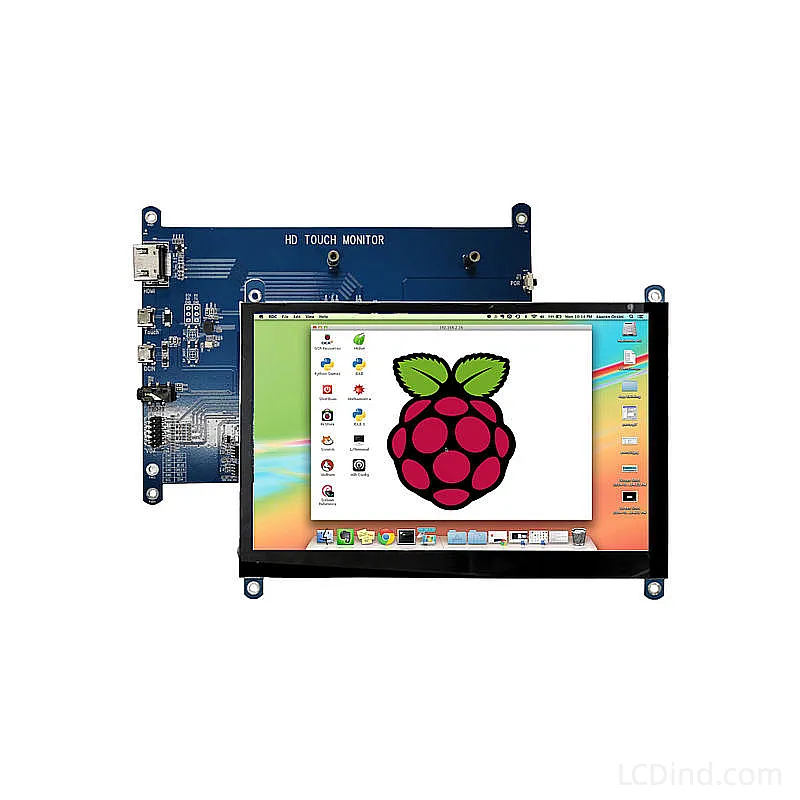

7 Inch Raspberry Pi Touch Screen 1280×768 IPS Monitor
Upgrade your project with this flagship 7 Inch Raspberry Pi Touch Screen. Unlike standard low-res screens, this module features a crisp 1280 × 768 resolution and an IPS Panel for vivid colors from any angle.
It is a complete HDMI monitor solution with a pre-assembled driver board. Compatible with Raspberry Pi 4/3B+, Windows 10/11, and Linux, it supports 5-point Capacitive Touch without needing drivers. Features built-in Audio Output and M2.5 mounting holes for easy integration.
Product Attributes
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
|---|---|
| Resolution | |
| Panel Type | IPS |
| Interface | HDMI |
| Touch Type | Capacitive Touch (5 Points) |
| Audio | 3.5mm Earphone Jack |
| Compatibility | Raspberry Pi, Windows, Linux, Android TV Box |
| Mounting | Mounting: |
7 Inch Raspberry Pi Touch Screen: Crystal Clear Control

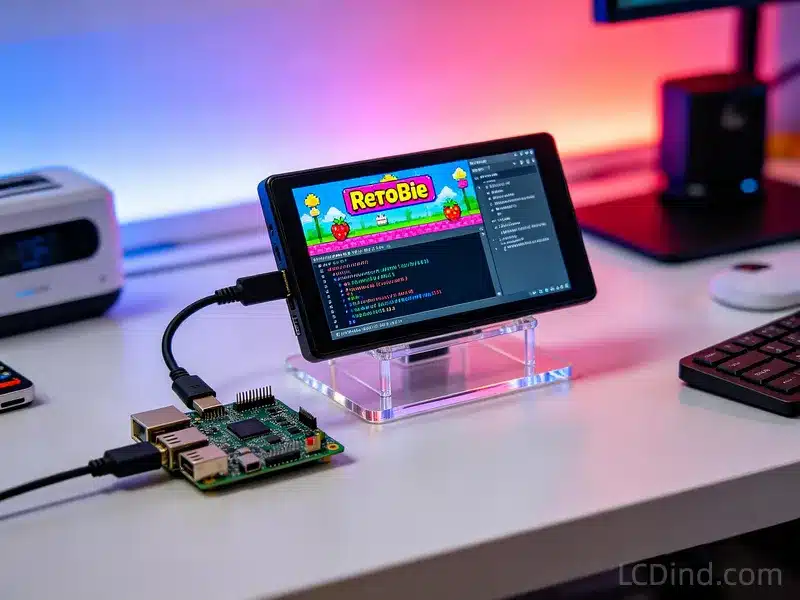

Whether you are building a retro gaming console, a home automation dashboard, or a secondary PC monitor, visual quality matters. Our flagship 7 Inch Raspberry Pi Touch Screen is engineered to deliver a superior visual experience compared to standard 1024×600 panels.
Why Choose This 7 Inch Raspberry Pi Touch Screen?
1. Superior 1280×768 Resolution
Most 7-inch screens are stuck at 1024×600. This model boosts the pixel count to 1280×768, offering sharper text and more screen real estate for your code or UI. The IPS technology ensures that colors remain accurate even when viewed from the side (80/80/80/80 degrees).
2. Universal HDMI & Audio Support
This is not just a raw panel; it is a fully functional HDMI monitor.
-

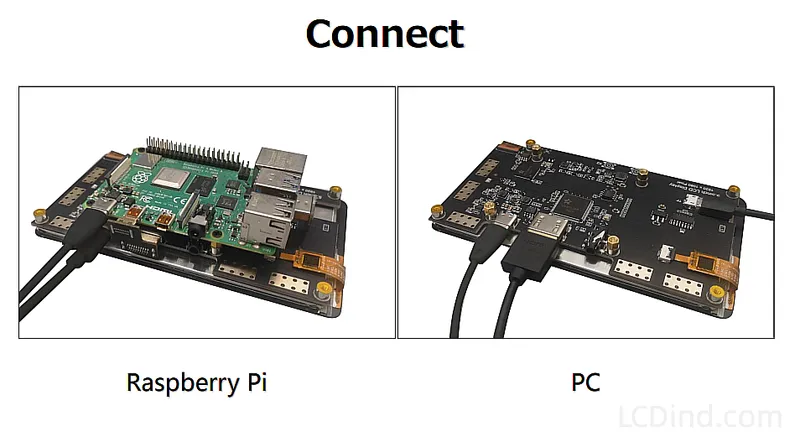

Video: Connects via standard HDMI to any device (Pi, PC, Laptop, TV Box).
-
Audio: Unlike many budget screens, this board features a 3.5mm Audio Jack, allowing you to output sound to headphones or external speakers directly from the HDMI signal.
3. Driver-Free Capacitive Touch
Forget about compiling complicated kernels. The Capacitive Touch Panel (CTP) uses a standard USB HID protocol.
-
Raspberry Pi: Works out of the box (requires simple config.txt edit for resolution).
-
Windows: Plug and play on Windows 10/8/7 with 5-point multi-touch support.
Designed for Makers & Integrators
-

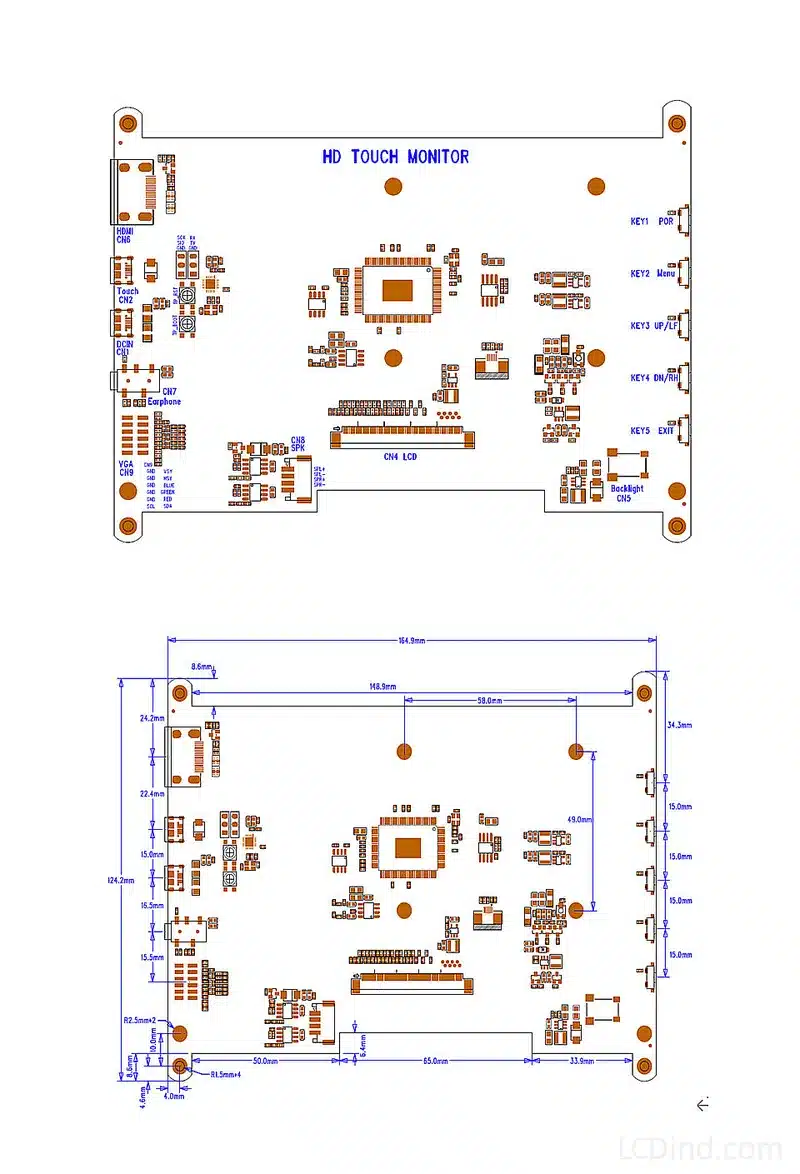

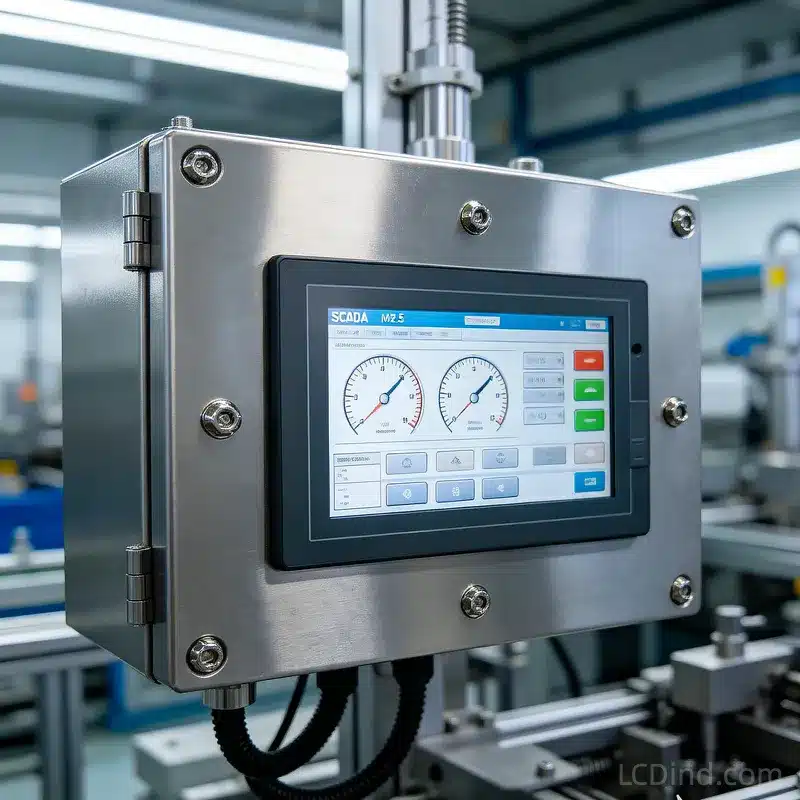

Easy Mounting: Four M2.5 screw holes on the PCB corners make it easy to fix into a 3D-printed case or industrial enclosure.
-

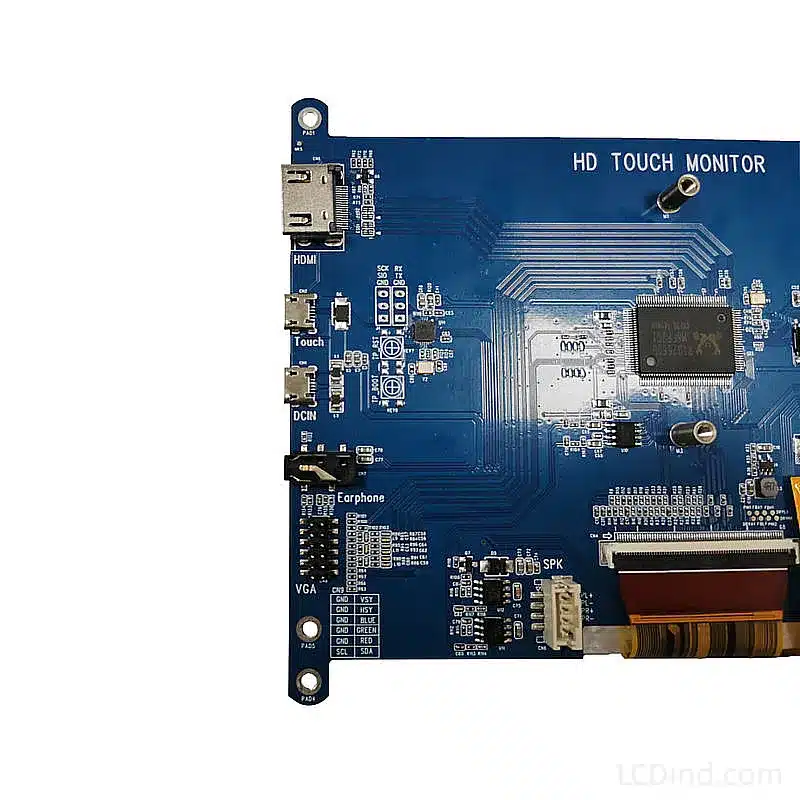

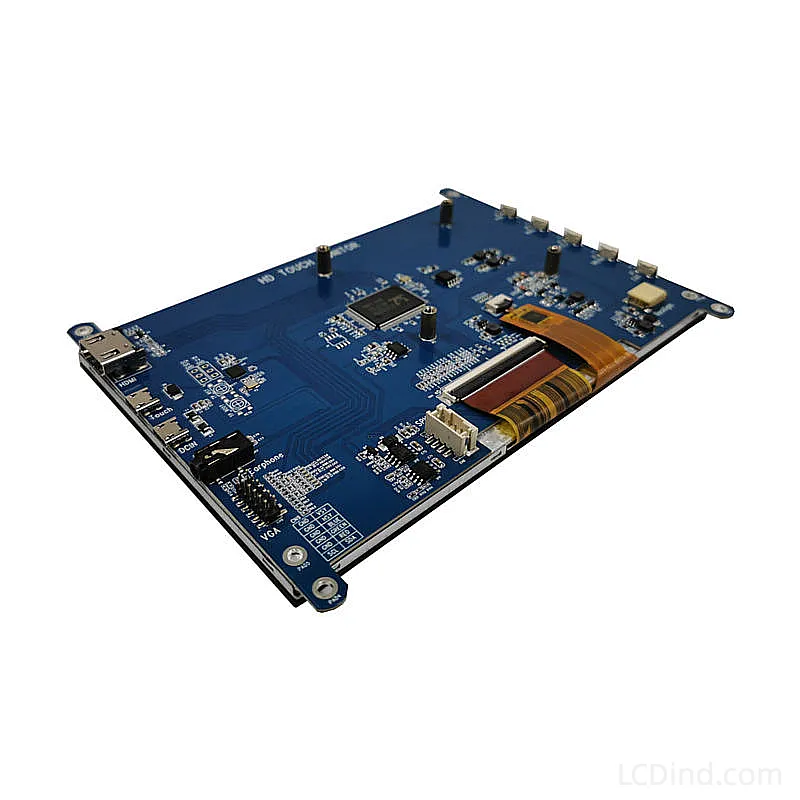

Robust PCB: The high-quality black/blue PCB integrates the Realtek scaler IC and power management, ensuring stable operation.
Detailed Specifications
| Feature | Specification |
| Product Name | 7 Inch Raspberry Pi Touch Screen |
| Resolution | 1280 (RGB) x 768 |
| Video Interface | HDMI |
| Touch Interface | Micro USB (Driver Free) |
| Touch Tech | Capacitive (5-Point) |
| Viewing Angle | IPS Full View |
| Audio Output | Yes (3.5mm Jack) |
| Operating Temp | -20°C ~ +70°C |
| Supported OS | Raspbian, Ubuntu, Windows, Android |
Technical FAQ
Q: Does this 7 Inch Raspberry Pi Touch Screen require a separate power supply? A: In most cases, the USB port from the Raspberry Pi or PC provides enough power (5V). However, if you are running max brightness with high CPU load, we recommend using a high-quality USB cable. The board has a “DCIN” port if external power is needed.
Q: How do I set the resolution on Raspberry Pi? A: To get the perfect 1280×768 display, you need to modify the /boot/config.txt file. We provide the exact HDMI timings in the datasheet. Generally, you need to set hdmi_group=2 and hdmi_mode=87 with custom CVT settings.
Q: Does the touch work on Android TV Boxes? A: It depends on the Android Box kernel. Most modern boxes support USB HID touch, but some stripped-down versions might not. It works perfectly on Windows and standard Linux distributions.
Q: Can I turn off the backlight? A: Yes, there are physical buttons on the board (Menu, Up, Down, Power) that allow you to control brightness and turn the screen on/off to save power.
Build Your Dream Project Today
Stock is stable and ready for shipping.
📥 Get Datasheet & Config.txt Settings
Includes mounting drawing and user manual.
