43 Inch Bar Type LCD Display 3840×720 V-by-One Ultra Wide
The Ultimate Ultra-Wide Digital Signage Solution.
This 43 Inch Bar Type LCD redefines commercial display possibilities with its panoramic 32:6 aspect ratio (approx). Featuring a stunning 3840 x 720 resolution, it delivers 4K-level horizontal clarity, ensuring text and graphics are razor-sharp even on wide route maps or shelf headers.
Built for demanding environments, it features an all-metal construction and an Antiglare surface to minimize reflections. With a native V-by-One interface and optional HDMI driver board support, it is ready for integration into modern public transport and retail systems.
Product Attributes
| Size | 43.0 inch |
|---|---|
| Resolution | |
| Interface | V-by-One |
| Brightness | Standard (200-450 nits) |
| Viewing Angle | 89/89/89/89 (IPS Free View) |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Surface | Antiglare (AG) |
43 Inch Bar Type LCD: Stretch Your Visual Impact
Standard 16:9 screens often waste space or block sightlines in narrow environments. The 43 Inch Bar Type LCD (Stretched Display) is engineered to fit where traditional monitors cannot. With its ultra-wide form factor and 3840×720 resolution, it is the industry standard for Intelligent Transportation Systems (ITS) and Smart Retail.
Why Choose This 43 Inch Bar Type LCD?
1. 4K Ultra-Wide Clarity

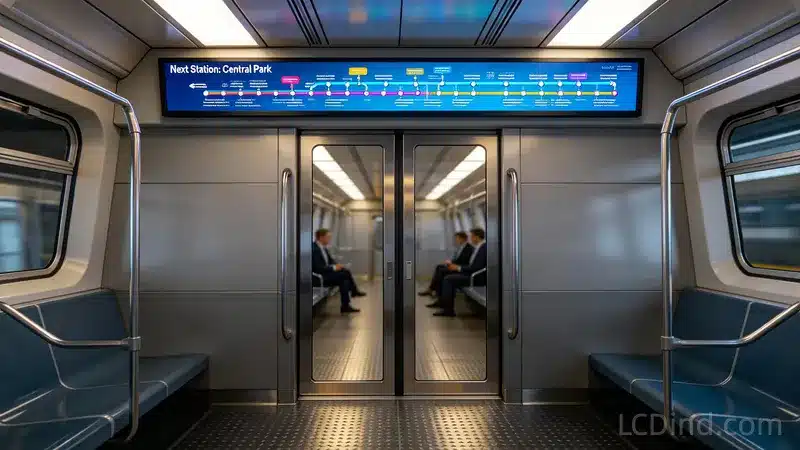

Don’t compromise on pixel density. This module retains the horizontal pixel count of a 4K UHD panel (3840 pixels), providing exceptional sharpness for displaying intricate subway route maps, scrolling text, or detailed product pricing. The 1200:1 contrast ratio ensures deep blacks and vibrant colors.
2. Industrial V-by-One Interface

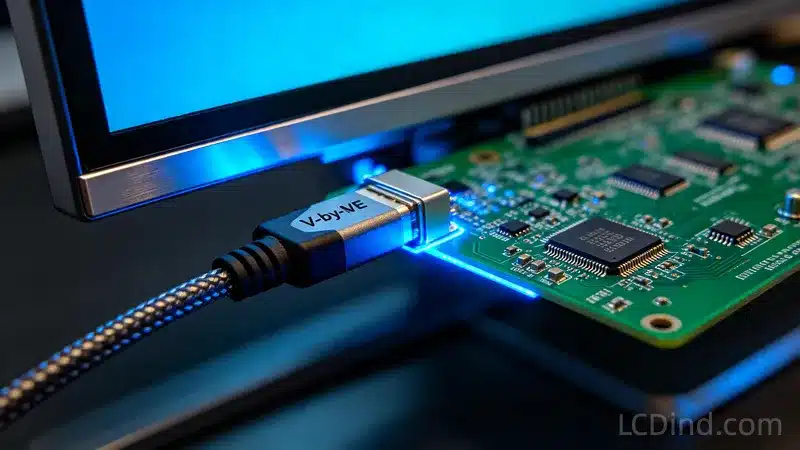

Driving 3840 pixels of width requires high bandwidth. We utilize the V-by-One interface, a high-speed serial video interface technology that is superior to LVDS for 4K signals.
-
For System Integrators: If your mainboard supports V-by-One, you can connect directly.
-

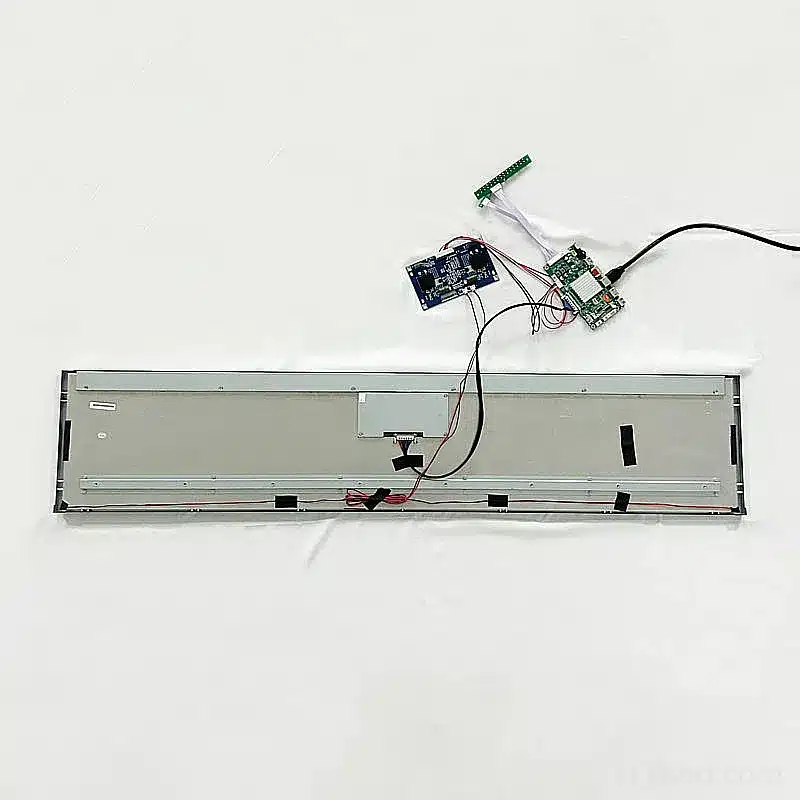

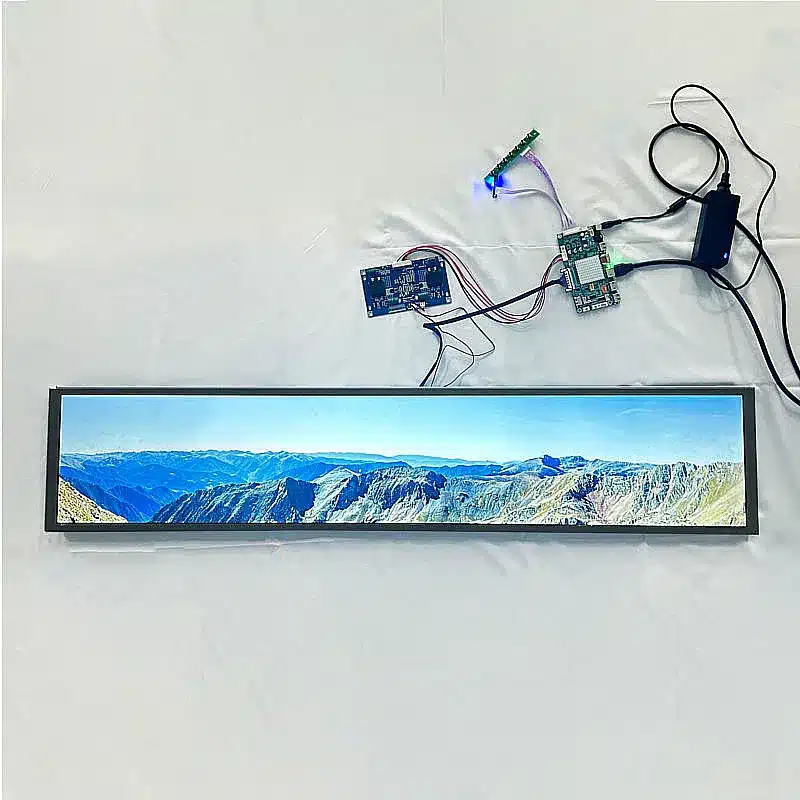

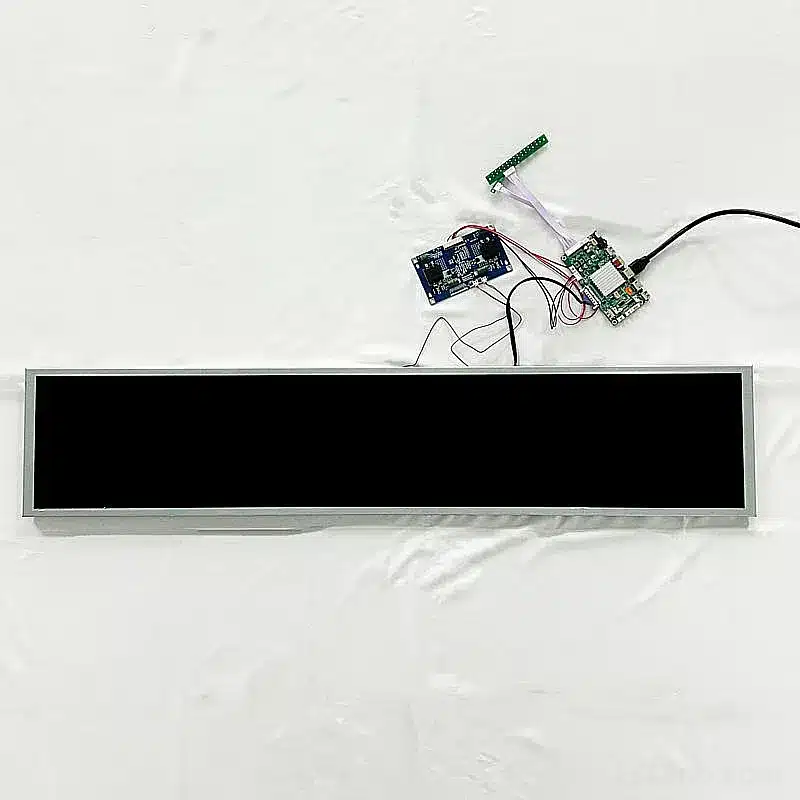

For General Use: We offer compatible HDMI / Android Driver Boards to convert standard signals to fit this unique resolution perfectly.
3. Built for Public Spaces
Reliability is non-negotiable. This module features:
-
All-Metal Construction: Protects against magnetic fields and electrical interference.
-

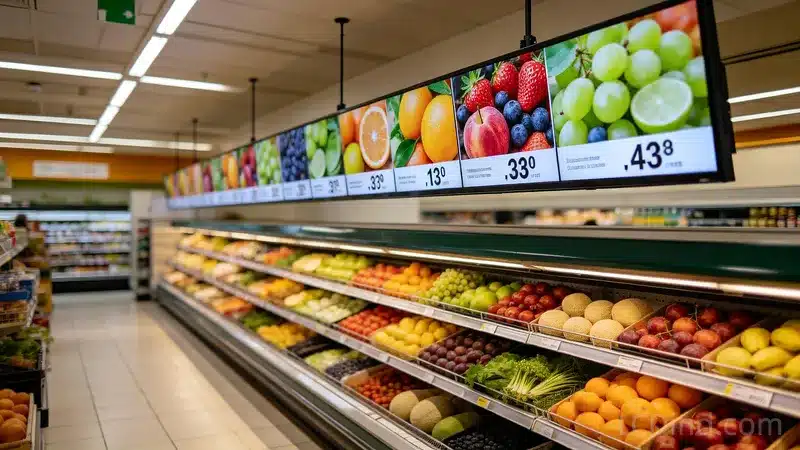

Antiglare (AG) Surface: Ensures readability even under bright station lights or supermarket overhead lighting.
-
IPS Wide Viewing: With 89/89/89/89 degree viewing angles, passengers or shoppers can see the content clearly from any side.
Detailed Specifications
| Feature | Specification |
| Model Name | 43 Inch Bar Type LCD |
| Resolution | 3840 (RGB) × 720 |
| Active Area | 1107.3 (H) × 201 (V) mm |
| Outline Dimension | 1092.2 × 54 × 4.8 mm (Check Drawing for precision) |
| Interface | V-by-One |
| Brightness | 400 cd/m² (Typ.) |
| Life Span | > 30,000 Hours |
| Backlight | LED |
Technical FAQ
Q: Is this screen cut from a larger panel?
A: Yes, this utilizes precision cutting technology from original 4K open cells (typically 43″ or larger mother glass) to achieve the 3840×720 resolution. The edge sealing and bonding are reinforced to ensure industrial-grade durability and prevent light leakage.
Q: How do I display content on a 3840×720 screen?
A: Most modern operating systems (Windows 10/11, Linux, Android) support custom resolutions.
-
PC: You can set a custom resolution in NVIDIA/Intel control panel.
-
Media Player: We recommend using our matched Android board which comes pre-configured with the correct resolution firmware to avoid image stretching.
Q: Can I install this vertically?
A: Yes, the IPS panel technology allows for both landscape and portrait orientation without color inversion. It is perfect for pillar-mounted digital signage.
Upgrade Your Signage System
Need the full mechanical drawing or a compatible driver board?
📥 Request 43″ Bar Type Datasheet & Quote
Custom brightness (High Brightness) versions available upon request.
