7 Inch IPS LCD Display Module (1024×600) – 500 nits RGB Interface

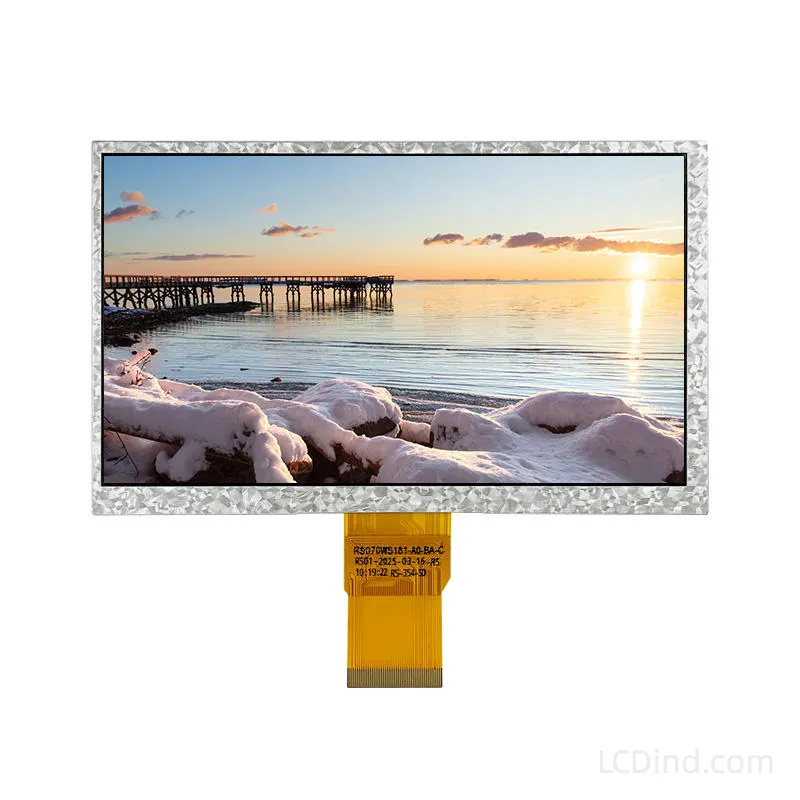

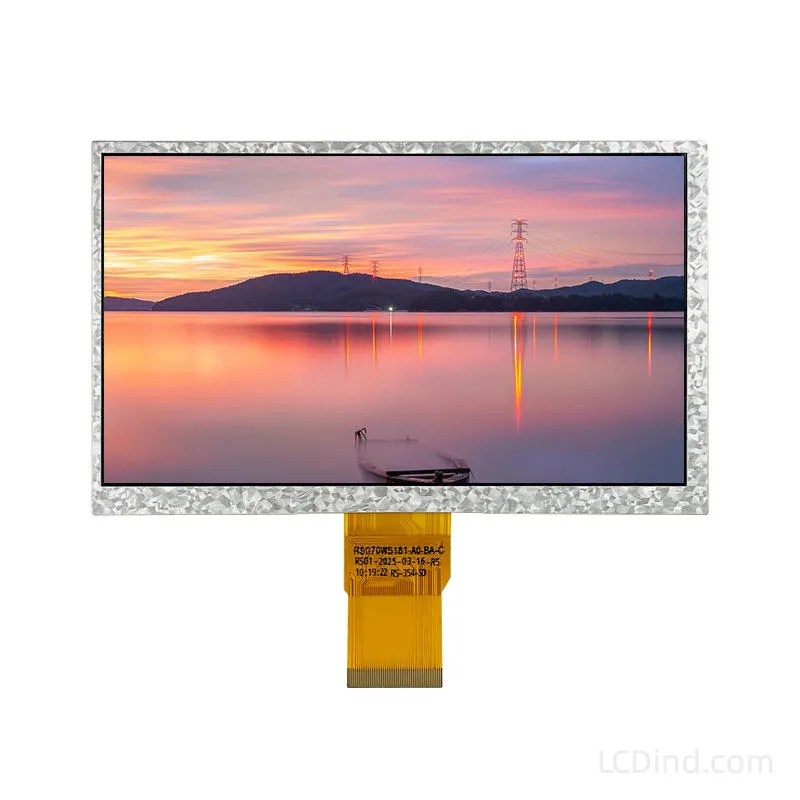

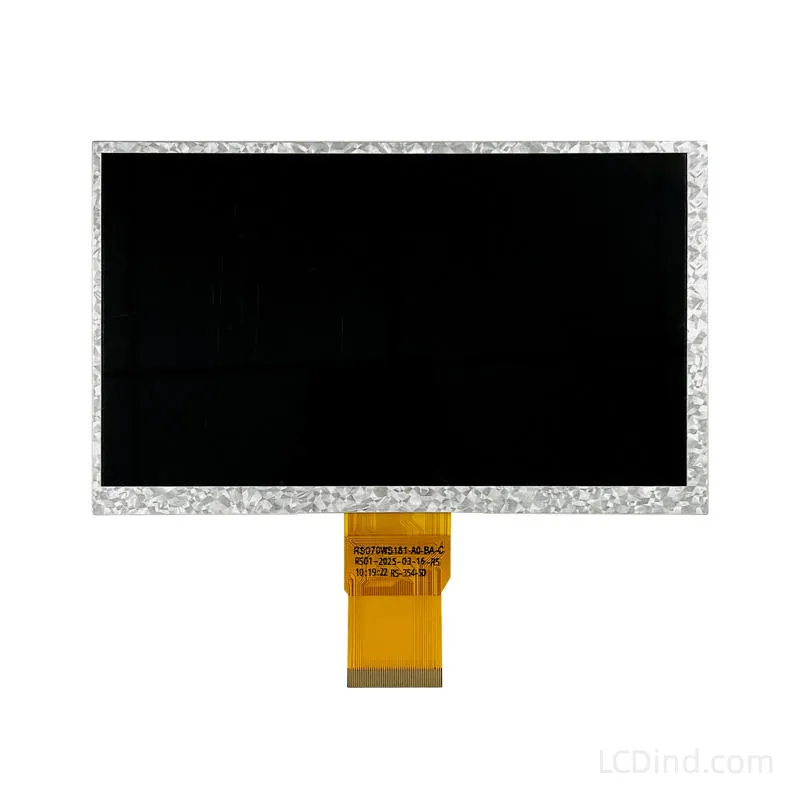

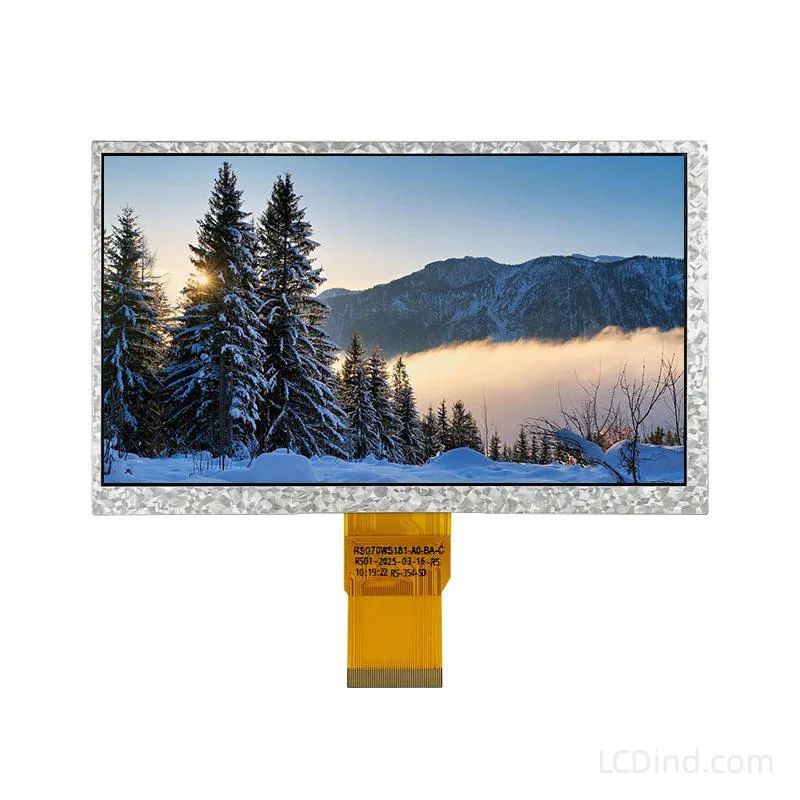

The 7 Inch IPS LCD Display (Model: DBT070BAN50R050A) is a high-definition industrial module designed to replace standard TN panels. It features a 1024×600 resolution and utilizes IPS technology to deliver full 80-degree viewing angles from all directions. Equipped with a 27-LED backlight generating 500 nits, it offers 2x the brightness of consumer-grade screens.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | |
| Panel Type | IPS |
| Resolution | 1024×600 |
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
Why Choose an IPS Panel for Your 7-Inch Application?
In the industrial display market, standard TN (Twisted Nematic) panels often suffer from color inversion when viewed from sharp angles. The LCDind 7 inch IPS LCD display solves this problem by using In-Plane Switching technology.
1. IPS Technology vs. TN Panels
When selecting a display for medical instruments or handheld devices, viewing angles are critical.
- The Problem: Standard TN screens have narrow viewing angles (e.g., 70/70/50/60), causing the image to look “washed out” or inverted when the device is tilted.
- The LCDind Solution: This IPS module provides 80/80/80/80 (All View) performance. This ensures operators can read data clearly from any position.
2. 500 nits High Brightness Configuration
Visibility is determined by luminance. While consumer tablets often use 250-300 nits, our industrial module uses a high-efficiency backlight array.

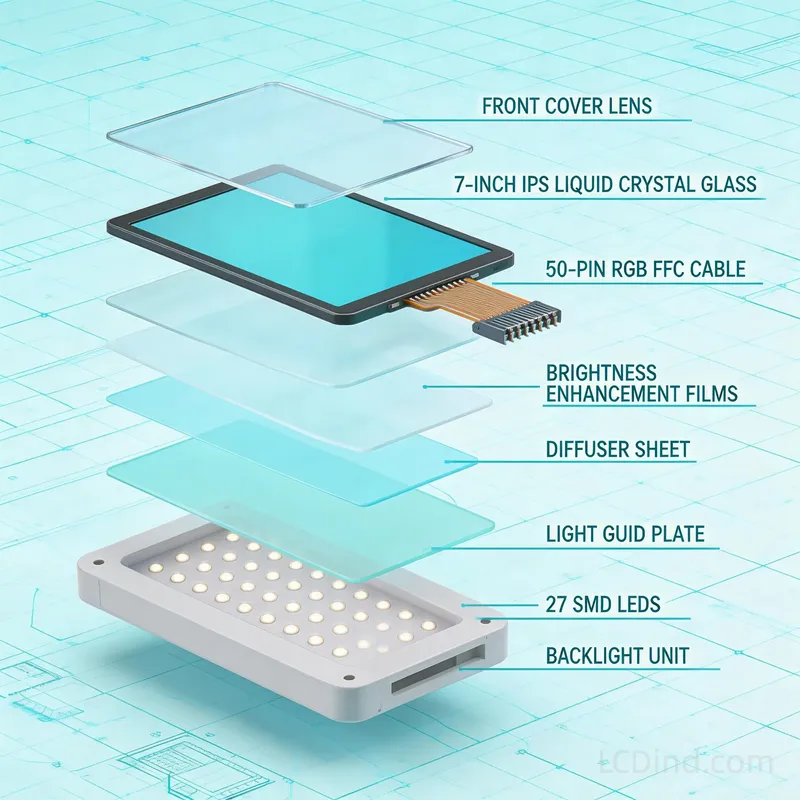

- Structure: It incorporates 27 white LEDs connected in series/parallel.
- Result: A typical brightness of 500 cd/m², making it readable even in brightly lit operating rooms or semi-outdoor kiosks.

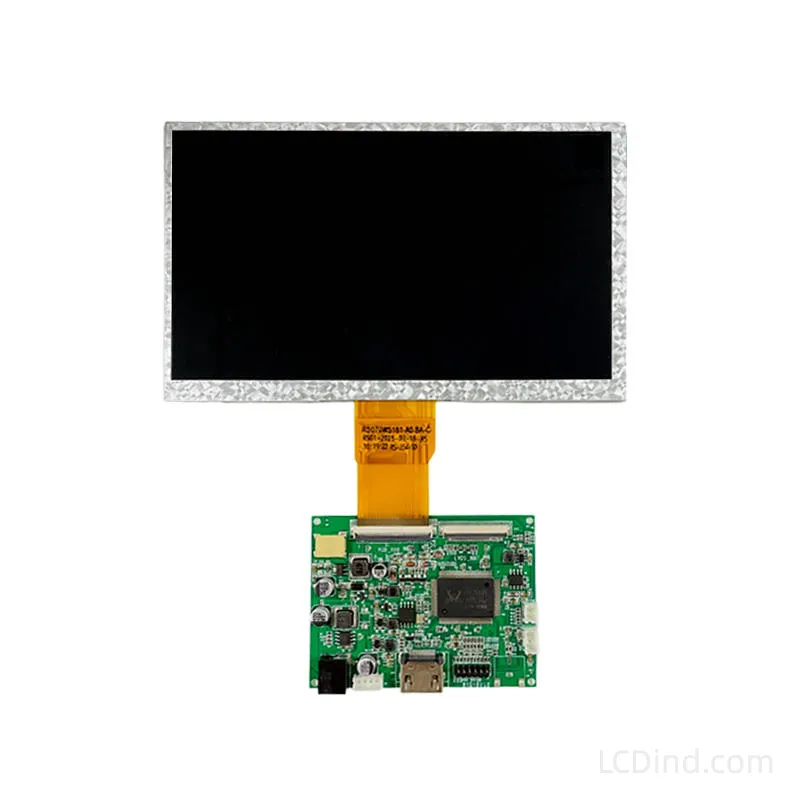

3. Universal Compatibility (50-Pin RGB)
Designed for easy integration into existing supply chains:
- Interface Standard: The 50-Pin RGB (TTL) interface is the industry standard for 7-inch to 10.1-inch displays. It supports 8-bit parallel data transmission for 16.7M colors.
- Driver IC: Powered by the reliable JD9165BA driver, ensuring broad compatibility with common MPUs (Micro Processing Units).

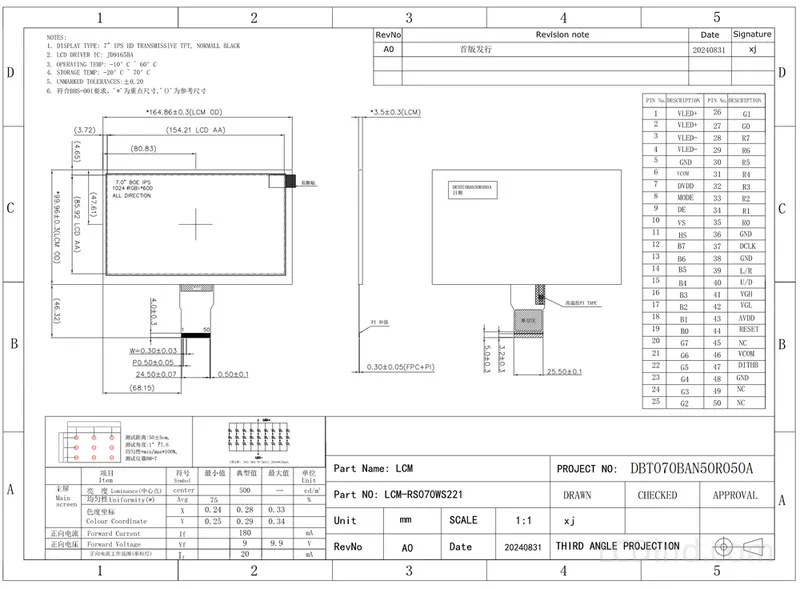

| Technical Specifications | |
|---|---|
| Panel Model | DBT070BAN50R050A |
| Panel Size | 7.0 Inch |
| Resolution | 1024 x 600 (WSVGA) |
| Panel Type | IPS (Normally Black) |
| Brightness | 500 cd/m² (Typ.) |
| Backlight | 27 LEDs (White) |
| Interface | RGB (50-Pin), 8-bit Parallel |
| Viewing Angle | 80/80/80/80 (All View) |
| Active Area | 154.21(H) x 85.92(V) mm |
| Outline Dimension | 164.9(H) x 100.0(V) x 3.5(D) mm |
| Driver IC | JD9165BA |
| Operating Temp | -10°C ~ +60°C |
Q: What is the difference between this 7-inch IPS display and a standard TN display?
The main difference is the viewing angle and color reproduction. This IPS display offers ultra-wide viewing angles (80/80/80/80), meaning the colors do not invert when viewed from the side. A standard TN display will look dark or distorted when tilted.
Q: Is the 50-pin RGB interface compatible with my controller board?
The 50-pin RGB (TTL) interface is a generic standard in the LCD industry for 1024×600 resolution screens. If your board supports parallel RGB output (8-bit) and has a 50-pin FPC connector, it is likely compatible.
Q: Can I use this screen outdoors?
With 500 nits brightness, this screen is visible in shade or bright indoor environments. For direct sunlight readability, we recommend upgrading to our 1000 nits version of this same model.
