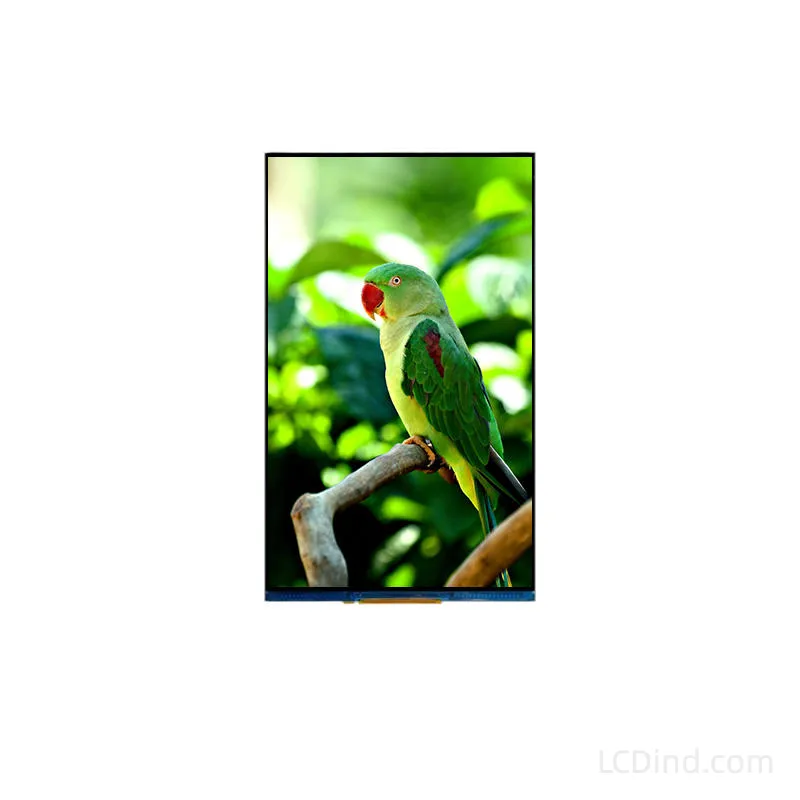

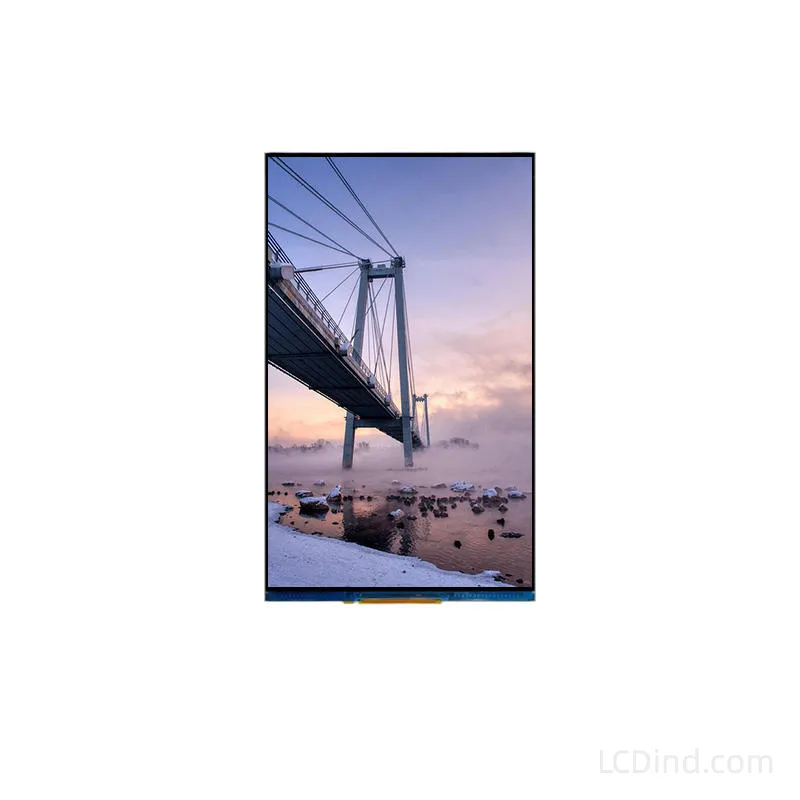

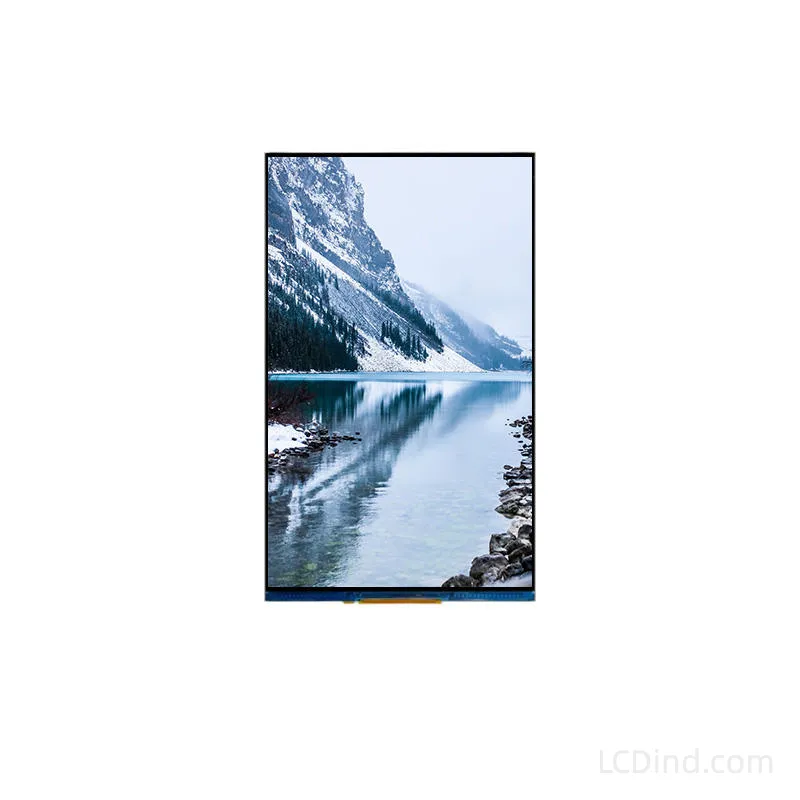

7 Inch MIPI LCD Display (800×1280) – IPS Portrait Mode 40-Pin
The 7 Inch MIPI LCD Display is a vertical IPS module engineered for Smart Home Controllers and Handheld Devices. It features a sharp 800×1280 portrait resolution and a high-speed 40-Pin MIPI interface. While supplied as a display module by default, it is fully compatible with Capacitive Touch (PCAP) integration, making it perfect for interactive thermostats and control panels.
Product Attributes
| Brightness | Standard (200-450 nits) |
|---|---|
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 800×1280 |
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Operating Temp | Industrial (-20 to +70°C) |
| Viewing Angle | All View / IPS |
| Brand | LCDind |
| Touchscreen | Optional Touchscreen |
Next-Gen Interface: 7″ MIPI IPS Display Module
As embedded systems upgrade to faster processors, the display interface must keep up. The LCDind 7 inch MIPI LCD display transitions from traditional RGB interfaces to the modern MIPI DSI (Mobile Industry Processor Interface) standard. This allows for higher resolutions and lower power consumption, making it perfect for battery-operated devices.
1. 800×1280 Portrait Resolution (Vertical Mode)
This panel is natively designed in portrait orientation (800 horizontal x 1280 vertical pixels).
- Sharpness: With a pixel density much higher than standard 800×480 screens, text appears razor-sharp, suitable for reading small fonts on medical or logistics devices.
- Application: Ideal for vertical applications like smart home wall controllers, handheld POS terminals, and 3D printer screens.
2. Industrial IPS Performance
Reliability is key for industrial applications.
- Wide Viewing Angles: The IPS panel offers 85/85/85/85 degrees visibility. Operators can view the screen from any angle without color shifts.
- Wide Temperature: Operates reliably from -20°C to +70°C, ensuring stability in cold warehouses or hot outdoor environments.
3. High-Speed MIPI Interface
- Why MIPI? Compared to RGB, the MIPI interface uses fewer pins (40 pins) to transmit high-bandwidth HD video signals. This reduces electromagnetic interference (EMI) and simplifies PCB layout.
- Driver IC: Powered by the JD9365DA-H3 driver, widely supported by STM32, Raspberry Pi (via adapter), and Rockchip platforms.
| Technical Specifications | |
|---|---|
| Panel Model | DBT070BEN40M040A |
| Panel Size | 7.0 Inch |
| Resolution | 800(RGB) x 1280 (Portrait) |
| Panel Type | IPS (Transmissive) |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 800:1 (Typ.) |
| Interface | MIPI (40-Pin) |
| Viewing Angle | 85/85/85/85 (IPS) |
| Driver IC | JD9365DA-H3 |

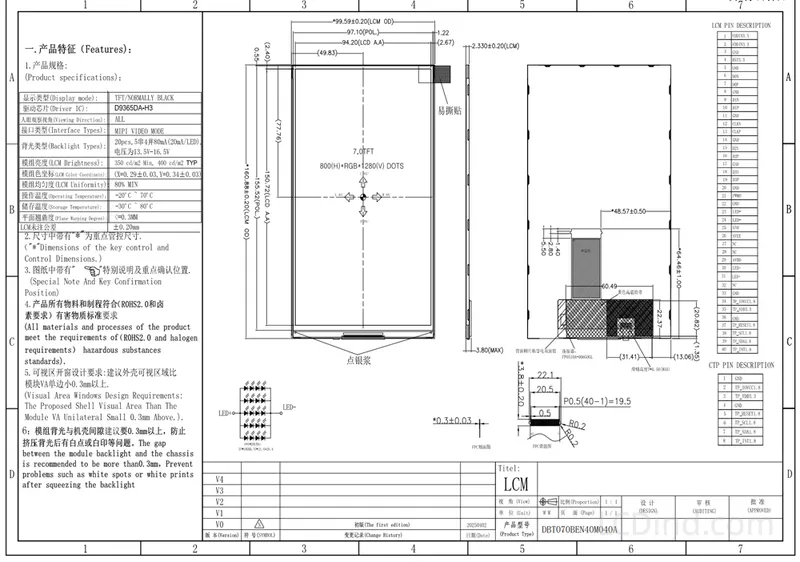

| Active Area | 94.20(H) x 150.72(V) mm |
| Outline Dimension | 99.59(H) x 160.88(V) x 2.33(D) mm |
| Operating Temp | -20°C ~ +70°C |
Q: Can I order this screen with a touch panel bonded?
Yes, absolutely. While the standard SKU is the LCD module only, we offer Optical Bonding services. We can pre-bond a Capacitive Touch Panel (PCAP) with your custom cover glass (AG/AR/AF coating) to create a complete HMI solution for smart home devices.
Q: Does the 40-pin MIPI cable support touch signals?
Please check the datasheet pin definition. Typically, MIPI interfaces handle video signals. For touch functionality, a separate I2C interface (usually 6-pin or 8-pin FPC from the touch panel) connects to your mainboard. We can provide the complete pinout diagram upon request.
| Brightness | Standard (200-450 nits) |
|---|---|
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 800×1280 |
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Operating Temp | Industrial (-20 to +70°C) |
| Viewing Angle | All View / IPS |
| Brand | LCDind |
| Touchscreen | Optional Touchscreen |
Q: Can I order this screen with a touch panel bonded?
Yes, absolutely. While the standard SKU is the LCD module only, we offer Optical Bonding services. We can pre-bond a Capacitive Touch Panel (PCAP) with your custom cover glass (AG/AR/AF coating) to create a complete HMI solution for smart home devices.
Q: Does the 40-pin MIPI cable support touch signals?
Please check the datasheet pin definition. Typically, MIPI interfaces handle video signals. For touch functionality, a separate I2C interface (usually 6-pin or 8-pin FPC from the touch panel) connects to your mainboard. We can provide the complete pinout diagram upon request.
