32 Inch 1000 Nits Touch Monitor | FHD Outdoor LCD Display
32 Inch 1000 Nits Touch Monitor is a massive, sunlight-readable display platform engineered for robust outdoor digital signage and industrial kiosks. Delivering a native 1920×1080 FHD resolution across a sprawling 698.4 x 392.85 mm active area, this module utilizes advanced ADS technology to ensure a flawless 89/89/89/89 wide viewing angle with zero color shift. To eliminate environmental reflections, the front polarizer is treated with an industrial AG (Anti-Glare) coating. Built for harsh climates, the capacitive touch screen operates securely from -20°C to 80°C, supported by a heavy-duty metal chassis equipped with dual active cooling fans. Driven via a 51-Pin LVDS interface, it is a complete integration-ready unit. Scale up your visual hardware. Click “Inquire Now” for datasheets and project pricing.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 32 inchMaximize impact with 32 inch industrial displays. Full HD/4K options, high brightness, and rugged enclosures for digital signage and factory dashboards. |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Capacitive Touch (PCAP) |
Sunlight Dominance: 32 Inch 1000 Nits Touch Monitor
Large-format outdoor displays face two primary enemies: screen glare and isotropic thermal failure. The 32 Inch 1000 Nits Touch Monitor neutralizes both. Pushing an intense 1000 nits of luminance, it effortlessly overpowers direct sunlight. Crucially, the LCD matrix utilizes a specialized Front Polarizer with AG (Anti-Glare) surface treatment. Instead of acting like a mirror in outdoor environments, the AG coating physically diffuses ambient light, ensuring that your 1920×1080 digital content remains perfectly readable to pedestrians and operators alike.
ADS Technology & Superior Contrast
Viewing angles are critical for large digital signage. This panel leverages advanced ADS (Advanced Super Dimension Switch) technology alongside a Z-inversion stripe pixel arrangement. This architecture provides an exceptional 1200:1 contrast ratio and true 8-bit color depth (16.7M colors) without the color shifting or image washing out associated with older TN panels. Whether viewed from extreme side angles or from below, the normally black transmissive screen maintains absolute visual fidelity across a massive 89/89/89/89 viewing cone.
Thermal Resilience & Active Cooling Chassis

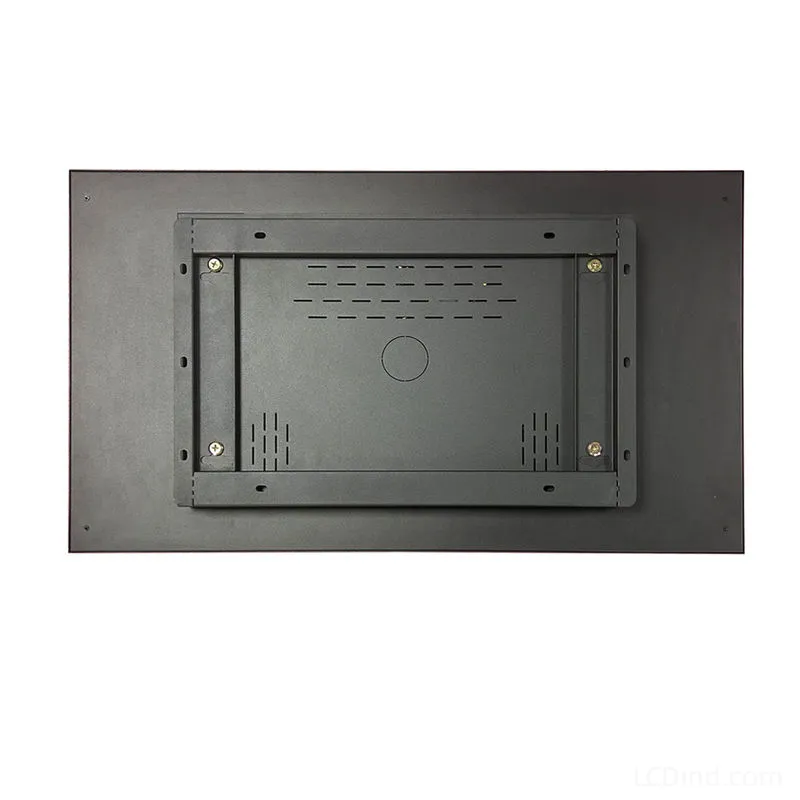

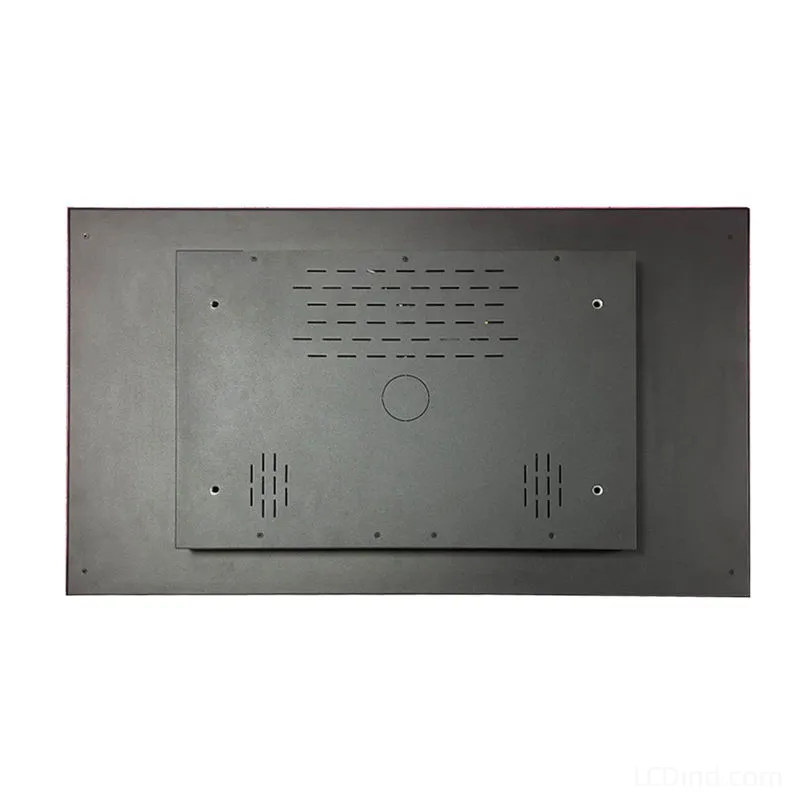

A 32-inch panel absorbing UV light generates immense internal heat, which can cause standard liquid crystals to boil and turn black. Engineered for extreme endurance, this module boasts an operating temperature threshold of -20°C to 80°C. To actively safeguard the electronics, the ruggedized metal backplate is integrated with dual high-RPM cooling fans. This active thermal management system continuously exhausts heat away from the logic boards and backlight arrays.
Plug-and-Play Integration Ecosystem

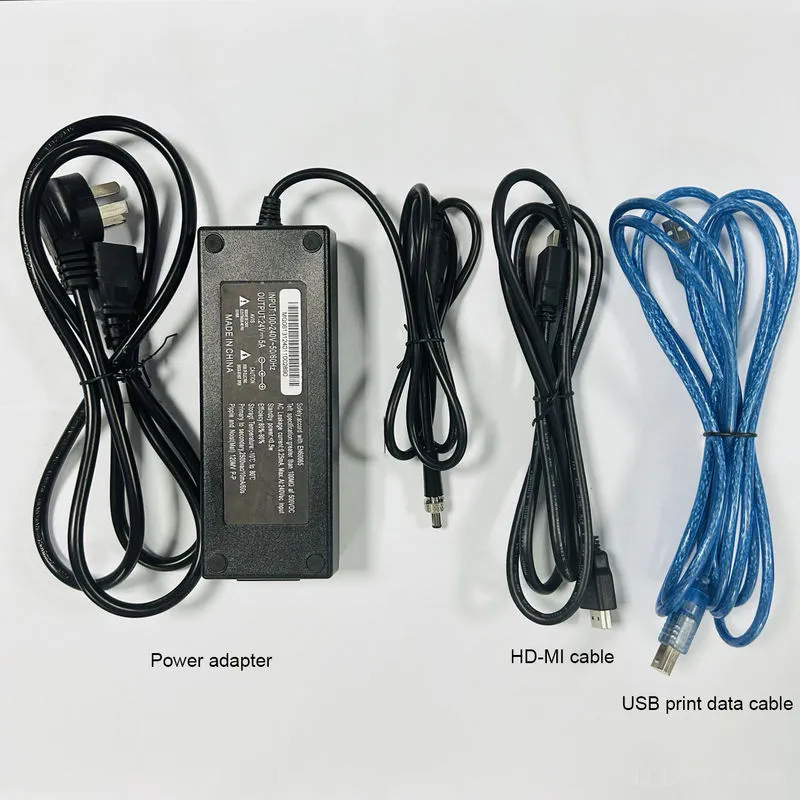

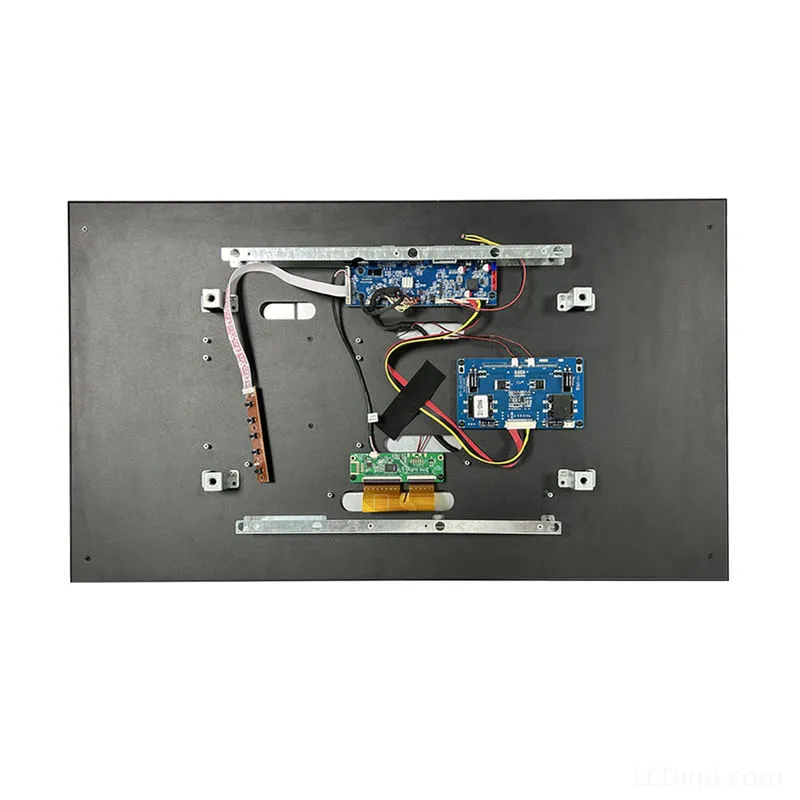

We dramatically reduce your engineering timeline. The raw panel operates on a high-bandwidth 51-Pin LVDS interface. However, the complete monitor assembly features internal cable routing to an integrated video driver board. It ships ready to deploy with standard VESA mounting points, a heavy-duty 24V power supply, and a dedicated USB print data cable to seamlessly pass capacitive touch data to your host operating system.
Technical Specifications
| Model Number | DBT320BHC51L100A |
| Display Size / Active Area | 32 Inch / 698.4(H) x 392.85(V) mm |
| Resolution | 1920 x 1080 (FHD) |
| Brightness | 1000 nits |
| Touch Panel | Capacitive Touch Panel (CTP) |
| Surface Treatment | Front Polarizer: AG (Anti-Glare) / Bottom Polarizer: Clear |
| Panel Interface | LVDS (51 Pins) |
| Display Colors / Mode | 16.7M (8-bit) / Transmission mode, Normally Black |
| Contrast Ratio | 1200:1 |
| Viewing Angle | 89/89/89/89 (ADS Technology) |
| Open Cell Transmittance | 4.2% (MIN), 4.8% (TYP.) |
| Operating Temperature | -20°C ~ 80°C |
| Thermal Management | Integrated Dual Active Cooling Fans |
Engineering FAQ
Q: How does the cooling system work on this large monitor?
A: The rear metal enclosure is specifically designed for thermal dissipation and features two built-in active cooling fans. When operating in hot outdoor environments (up to 80°C), these fans ensure continuous airflow across the internal driver boards and the back of the LCD matrix, preventing the liquid crystals from overheating and turning black.
Q: What is the purpose of the AG (Anti-Glare) front polarizer?
A: For a 32-inch screen used in digital signage, a glossy surface would reflect buildings, cars, and the sun, obscuring the image. The AG (Anti-Glare) front polarizer features a micro-etched surface that diffuses incoming ambient light. Combined with the 1000 nits backlight, this guarantees the screen remains readable from multiple angles in bright daylight.
Q: How do I connect the capacitive touch screen to my media player?
A: The touch data is routed through a standard USB protocol. The monitor kit includes a USB print data cable. You simply plug the square end into the monitor’s touch controller port, and the standard USB-A end into your Windows, Android, or Linux host device. It functions as a plug-and-play HID (Human Interface Device).
| Brand | LCDind |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 32 inchMaximize impact with 32 inch industrial displays. Full HD/4K options, high brightness, and rugged enclosures for digital signage and factory dashboards. |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Capacitive Touch (PCAP) |
Q: How does the cooling system work on this large monitor?
A: The rear metal enclosure is specifically designed for thermal dissipation and features two built-in active cooling fans. When operating in hot outdoor environments (up to 80°C), these fans ensure continuous airflow across the internal driver boards and the back of the LCD matrix, preventing the liquid crystals from overheating and turning black.
Q: What is the purpose of the AG (Anti-Glare) front polarizer?
A: For a 32-inch screen used in digital signage, a glossy surface would reflect buildings, cars, and the sun, obscuring the image. The AG (Anti-Glare) front polarizer features a micro-etched surface that diffuses incoming ambient light. Combined with the 1000 nits backlight, this guarantees the screen remains readable from multiple angles in bright daylight.
Q: How do I connect the capacitive touch screen to my media player?
A: The touch data is routed through a standard USB protocol. The monitor kit includes a USB print data cable. You simply plug the square end into the monitor's touch controller port, and the standard USB-A end into your Windows, Android, or Linux host device. It functions as a plug-and-play HID (Human Interface Device).
