12.3 Inch Automotive LCD Display (1920×720) 1000 nits
This 12.3 Inch Automotive LCD Display sets the benchmark for modern vehicle dashboards. Featuring a panoramic 1920×720 resolution and integrated In-Cell Touch technology, it offers a sleek, bezel-free aesthetic perfect for premium EV and retrofit projects.
Manufactured by AUO, this module delivers 1000 nits of brightness for flawless sunlight readability. With a robust -30°C to +85°C operating range and a standard 60-Pin LVDS interface, it is engineered for reliability in all driving conditions.
Product Attributes
| Brand | AUO |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Resolution | 1920×720 |
| Size | 12.3 inchDiscover rugged 12.3 inch industrial displays. Ultra-wide aspect ratios, high brightness, and durable designs ideal for automotive and marine dashboards. |
| Contrast Ratio | 1100:1 |
| Active Area | 292.032 × 109.512 mm |
Redefining the Dashboard: 12.3″ In-Cell Automotive Display
As the automotive industry shifts from analog gauges to fully digital cockpits, the 12.3 Inch Automotive LCD Display has become the preferred choice for Tier 1 manufacturers and high-end retrofitters. This AUO-manufactured module combines a wide “Bar Type” aspect ratio with cutting-edge In-Cell Touch technology.
In-Cell Touch: The “Invisible” Sensor
Unlike traditional screens that add a thick glass layer for touch, this display integrates the touch sensor directly into the LCD structure.
-
Superior Optics: Removing the extra glass layer minimizes internal reflection, resulting in higher contrast (1100:1) and a “floating image” effect.
-
Thinner Design: The total module thickness is just 1.024mm (panel cell), allowing for ultra-slim dashboard designs.
Performance in Any Light
Driving conditions change instantly. Your display must adapt.
-
1000 Nits Brightness: Whether in a convertible at noon or driving through a tunnel, the 1000 cd/m² backlight ensures the speedometer and maps are always visible.
-
Wide Viewing Angle: IPS technology ensures that both the driver and the passenger see accurate colors from up to 85 degrees off-axis.
Automotive Reliability
This is not a consumer tablet screen. It is built to withstand the rigors of the road.
-
Temperature: Verified operation from -30°C to +85°C.
-
Interface: Uses a robust 60-Pin LVDS connection, a standard in automotive electronics for stable data transmission.
Detailed Specifications
| Feature | Specification |

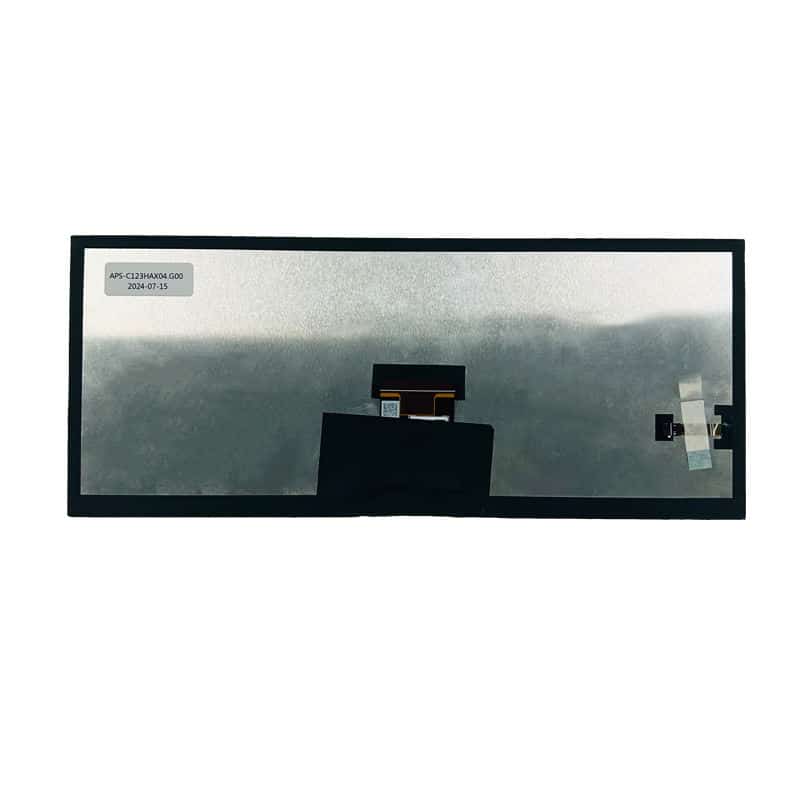

| Model | AUO APS-C123HAX04 |
| Resolution | 1920 (RGB) × 720 |
| Active Area | 292.032 × 109.512 mm |

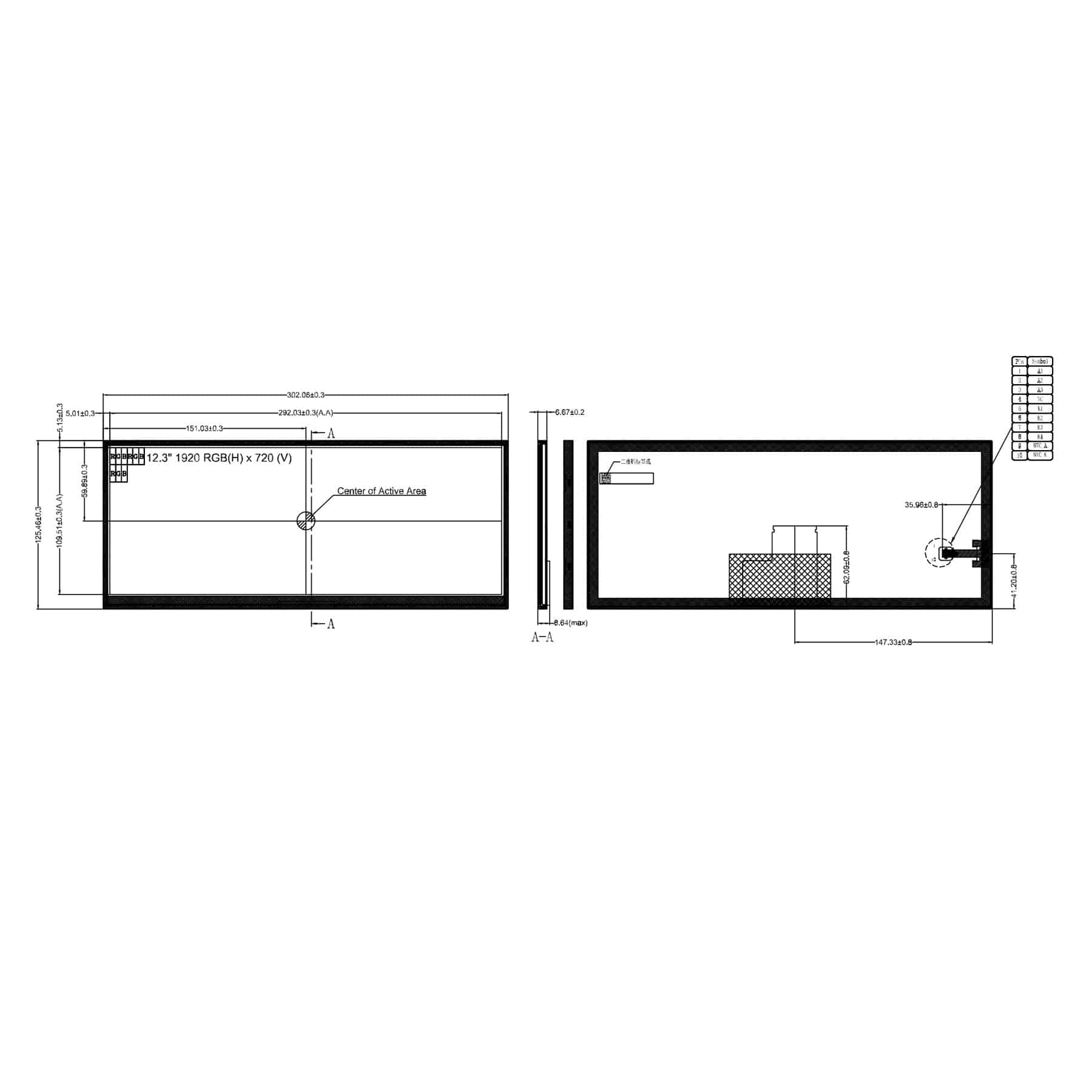

| Outline Dimension | 302.06 × 125.46 mm |
| Interface | 60-Pin LVDS |
| Brightness | 1000 nits |
| Touch Type | In-Cell Capacitive (CTP) |
| Surface Treatment | Hard Coating (H) |
| Brand | AUO |
|---|---|
| Brightness | Sunlight Readable (1000+ nits) |
| Interface | LVDS |
| Resolution | 1920×720 |
| Size | 12.3 inchDiscover rugged 12.3 inch industrial displays. Ultra-wide aspect ratios, high brightness, and durable designs ideal for automotive and marine dashboards. |
| Contrast Ratio | 1100:1 |
| Active Area | 292.032 × 109.512 mm |
Q: What is the difference between this 12.3" and the 10.25" model?
Both feature 1920x720 resolution and 1000 nits brightness with In-Cell touch. The main differences are the Active Area size (292mm width vs 243mm width) and the Interface. This 12.3-inch model uses a 60-Pin LVDS connector, whereas the 10.25-inch model uses an 80-Pin LVDS. Please check your driver board compatibility.
Q: Does "In-Cell" mean I don't need a touch controller?
No, In-Cell refers to the sensor structure. You still need a compatible Touch IC/Controller to process the signals. This module supports TDDI (Touch and Display Driver Integration) via the LVDS interface.
Q: Can I use this for a dual-screen setup?
Absolutely. The slim bezel and bar-type aspect ratio make it ideal for placing two units side-by-side (one for the instrument cluster, one for infotainment), similar to modern luxury vehicle designs.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
