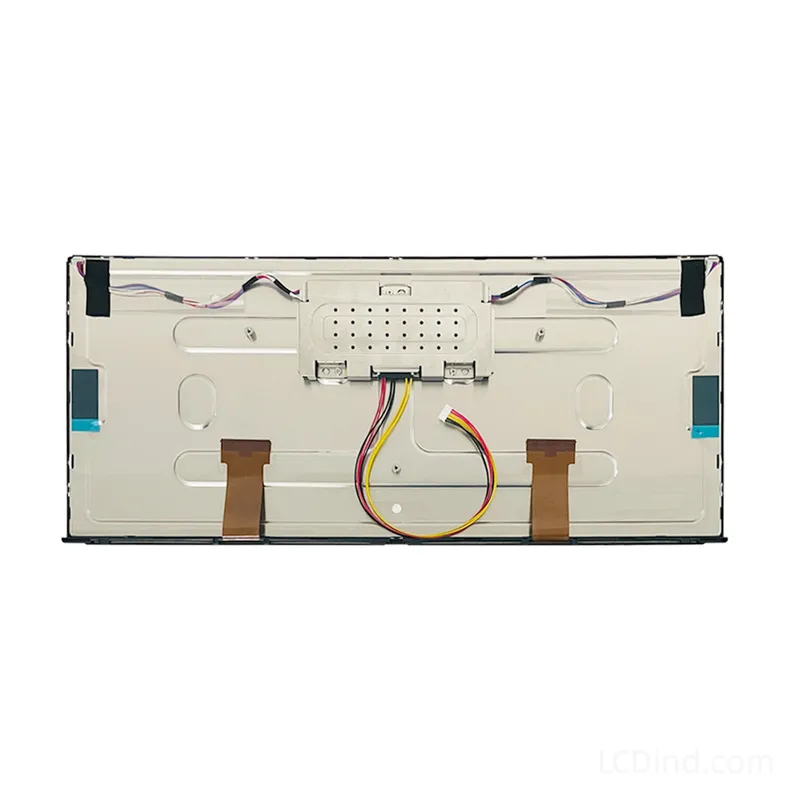

21.5 Inch 2560×1024 LCD Kit 900 Nits Dual View Bar Display
The 21.5 Inch 2560×1024 LCD Display Kit is a specialized visual solution engineered for defense, marine, and high-end security applications. Unlike standard monitors, this Bar Type LCD offers a unique 2560×1024 resolution, effectively combining two 1280×1024 displays into a single seamless bezel. With a sunlight-readable brightness of 900 nits and an ultra-wide operating temperature range of -30°C to 70°C, it guarantees mission-critical performance in the harshest environments. Optimize your control console today. Click “Inquire Now” for technical datasheets and military-grade customization options.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | LVDS |
| Panel Type | IPS |
| Resolution | 2560×1024 |
| Size | 21.5 inchHigh-performance 21.5 inch industrial displays. Full HD 1080p, 1000+ nits sunlight readable, and open frame designs perfect for outdoor kiosks and signage. |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Mission-Critical Clarity: 21.5 Inch Dual View Display
The 21.5 Inch 2560×1024 LCD redefines information density. By offering a 2560×1024 pixel array, this module eliminates the physical gap found in traditional dual-monitor setups. It is ideal for “Dual View” applications where operators need to monitor separate data streams (e.g., Radar + Navigation) side-by-side on a single continuous glass surface.
Extreme Environment Reliability
Built for the field, not just the office. This display features rugged specifications tailored for outdoor and defense use:
- High Brightness: Rated at 900 cd/m², ensuring readability under direct sunlight or intense bridge lighting.
- Wide Temperature: Operates flawlessly from -30°C to 70°C, surpassing standard industrial limits for cold-start performance.
Advanced Interface & Kit Support
The module utilizes a 2-port LVDS interface to handle the high-bandwidth data transmission required for its high resolution. We provide complete driver board kits capable of driving this unique resolution, ensuring easy integration into your existing systems.
LCD display solution
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization options
- Customized packaging (Min. order: 500 pieces)
- Customized logo (Min. order: 500 pieces)
- Graphic customization (Min. order: 500 pieces)
Technical Specifications
| Display Size | 21.5 Inch (Bar Type) |
| Resolution | 2560 x 1024 |
| Brightness | 900 cd/m² (High Brightness) |
| Panel Type | IPS / AHVA (Normally Black) |
| Active Area | 507.648(H) x 203.059(V) mm |
| Outline Dimension | 545.00(H) x 240.00(V) x 29.1(D) mm |
| Viewing Angle | 80/80/80/80 (Deg.) |
| Interface | 2 Port LVDS |
| Display Colors | 16.7M (24-bit) |
| Pixel Pitch | 545.00 x 240.00 um (Note: Refer to datasheet for specific dot pitch) |
| Operating Temp | -30°C ~ 70°C |
| Contrast Ratio | 1000:1 |
Engineering FAQ
Q: What does “Dual View” mean for this 21.5 inch display?
A: The 2560×1024 resolution is mathematically equivalent to two 1280×1024 screens placed side-by-side. This allows your software or controller to treat the display as a seamless dual-monitor surface, perfect for displaying two distinct applications (like maps and data) without a bezel gap.
Q: Can this screen withstand freezing temperatures?
A: Yes. It is designed with an ultra-wide operating temperature range of -30°C to 70°C, making it suitable for defense vehicles, marine vessels, and unheated outdoor enclosures.

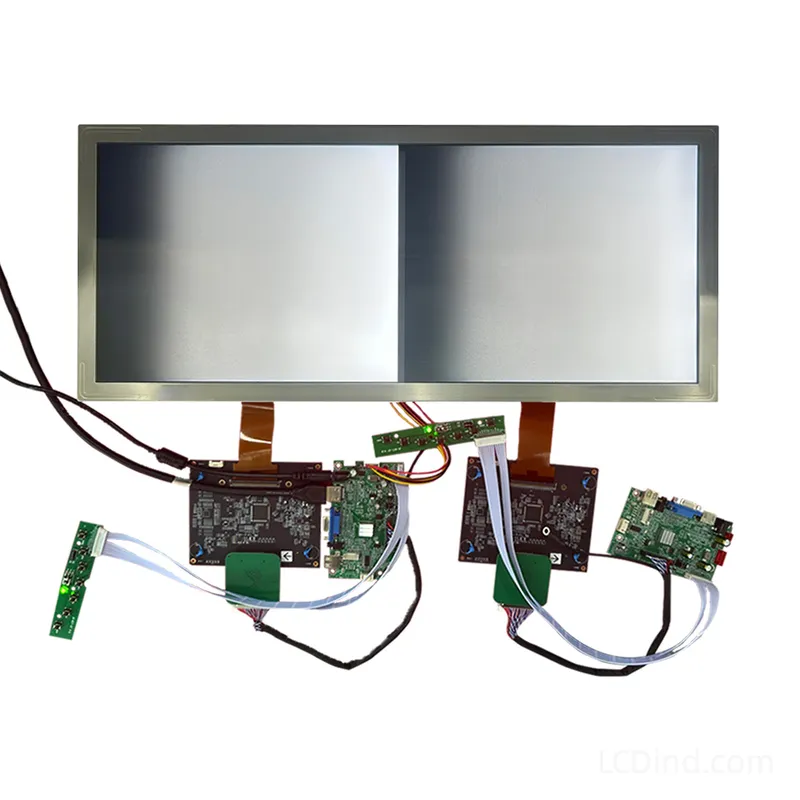

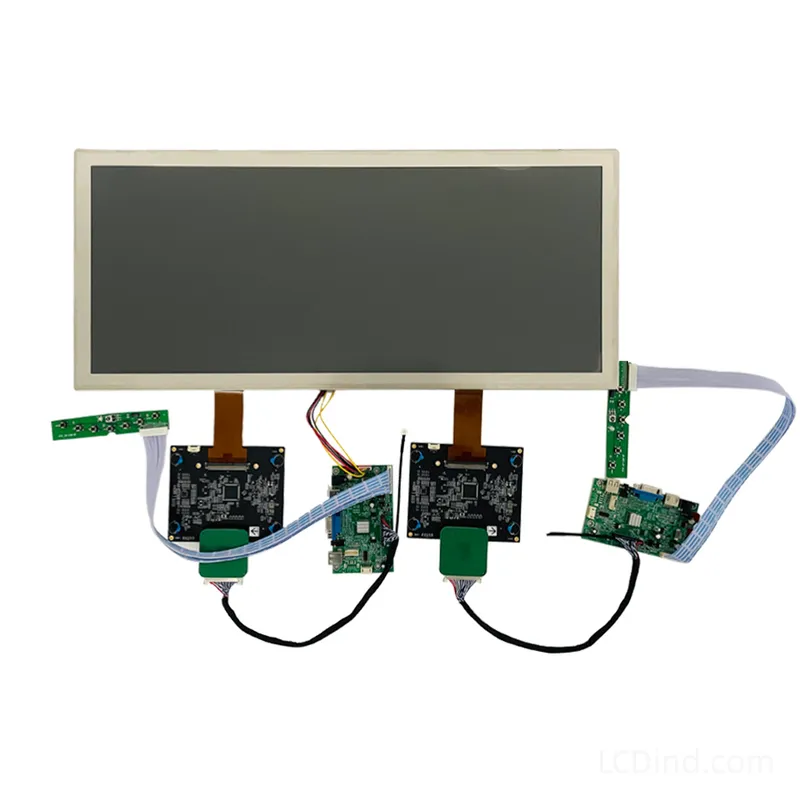

Q: Does the kit include the driver board?
A: Yes, we offer full kits that include the LCD panel and compatible controller boards. Since 2560×1024 is a non-standard resolution, using our tuned driver board ensures correct EDID recognition and display timing.
Q: Is the 900 nits brightness adjustable?
A: Yes, the LED backlight supports dimming. If you require automatic dimming (e.g., for night mode in naval applications), we can integrate an ambient light sensor into the solution upon request.
