3.71 Inch Bar Type LCD Module 240×960 IPS | Stretched Bar RGB

3.71 Inch 240×960 IPS Stretched Bar LCD Module with RGB Interface

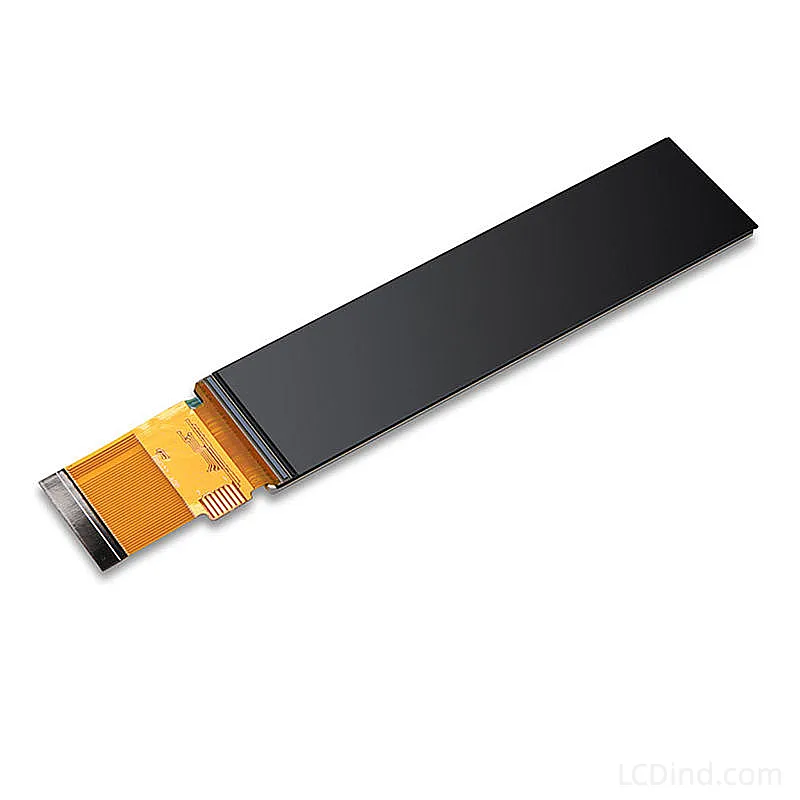

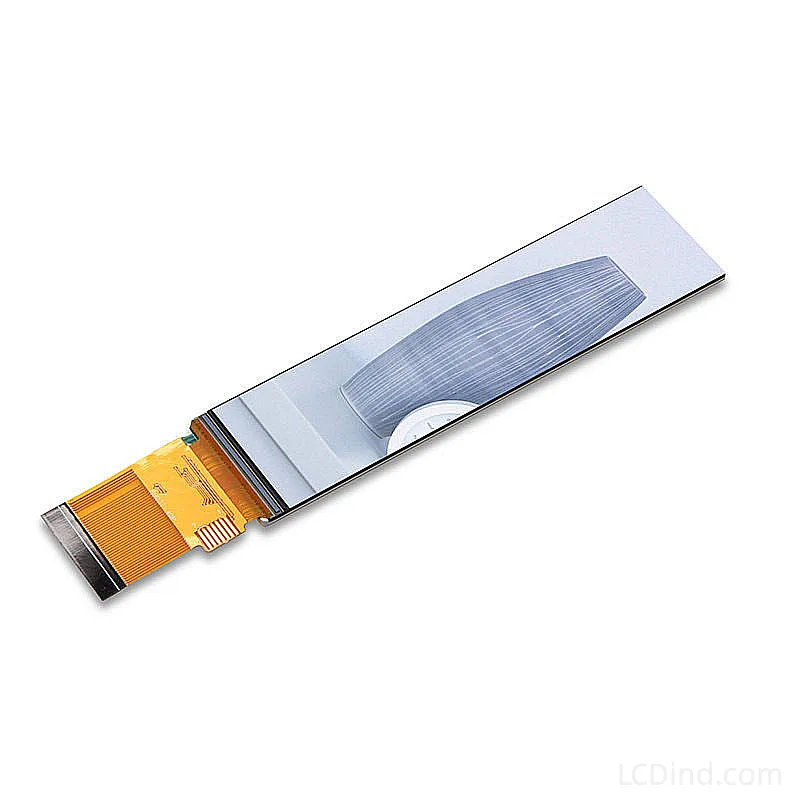

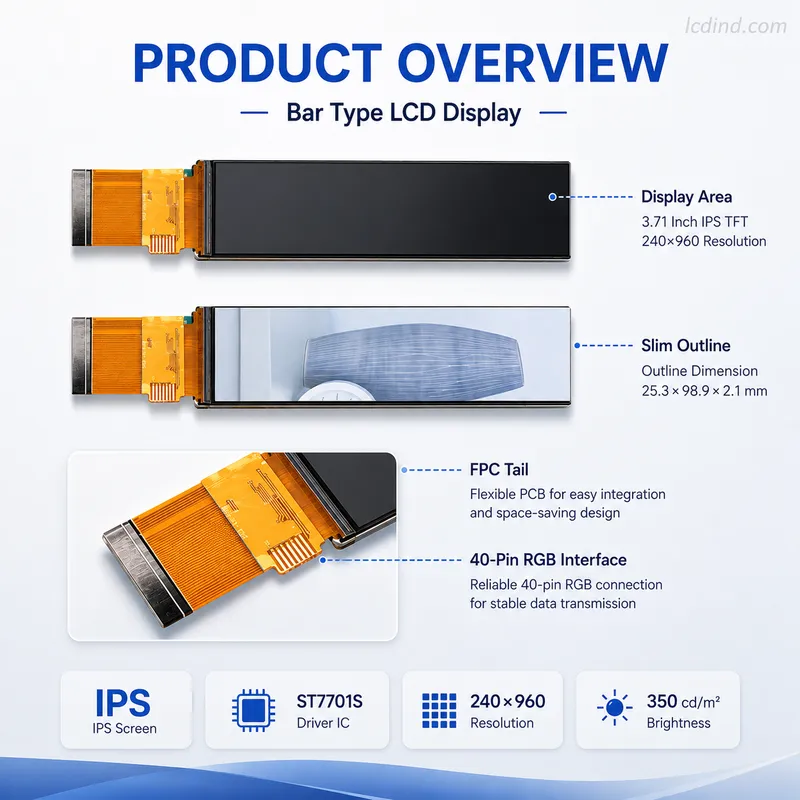

This 3.71 inch bar type LCD module is a slim stretched display for compact products that need a long information strip. The confirmed specification lists 3.71 inch bar type LCD, 240 RGB x 960 resolution, 25.3 x 98.9 x 2.1 mm module dimensions, 22.96 x 91.44 mm active area, RGB 24-bit interface, ST7701S driver IC, 350 cd/m² typical brightness, IPS normally black display mode, 85/85/85/85 viewing angle, and -20 to +70°C industrial operating range in the attribute table.

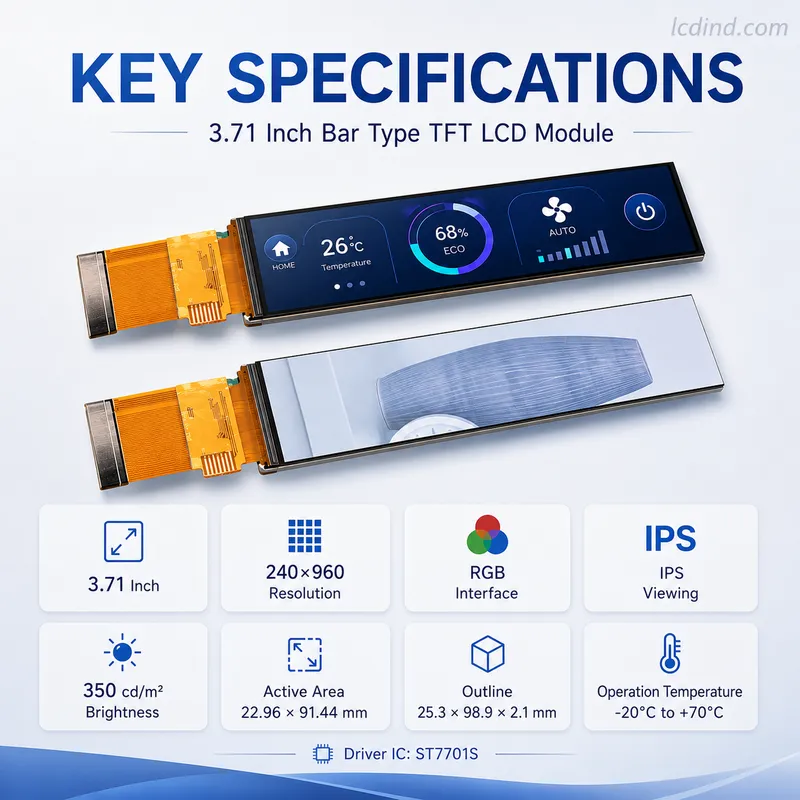

Confirmed Product Specifications

Stretched Product Fit

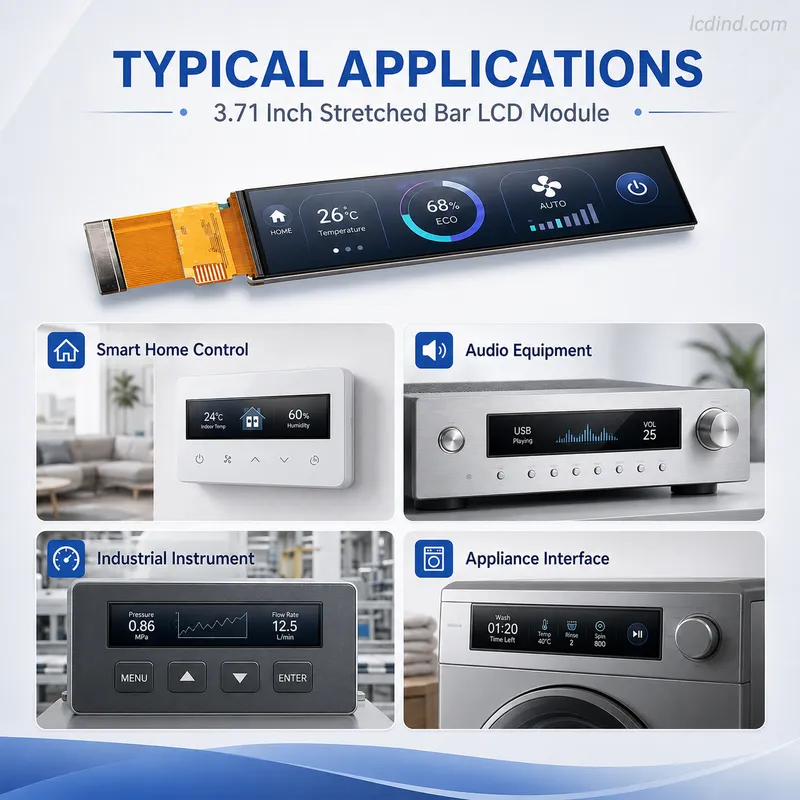

This module is useful for handheld instruments, narrow control strips, smart appliance indicators, access devices, elongated status windows, and compact terminals where a rectangular display would be too wide. The 240×960 resolution is suitable for vertical lists, progress bars, status columns, mode indicators, and brand-specific interface shapes.

RGB and ST7701S Review

The page confirms RGB 24-bit interface and ST7701S driver IC. Host electronics should be checked for RGB timing, pinout, voltage, initialization sequence, and available driver support. A stretched LCD requires UI and firmware planning; it should not be selected only because it physically fits a narrow space.

IPS Viewing and Brightness

IPS normally black display mode and 85-degree viewing angles support installations where the operator may view the strip from different positions. The confirmed 350 cd/m² brightness is better suited to indoor or protected equipment than direct sunlight. Cover lens and angle can still affect readability.

Mechanical Design

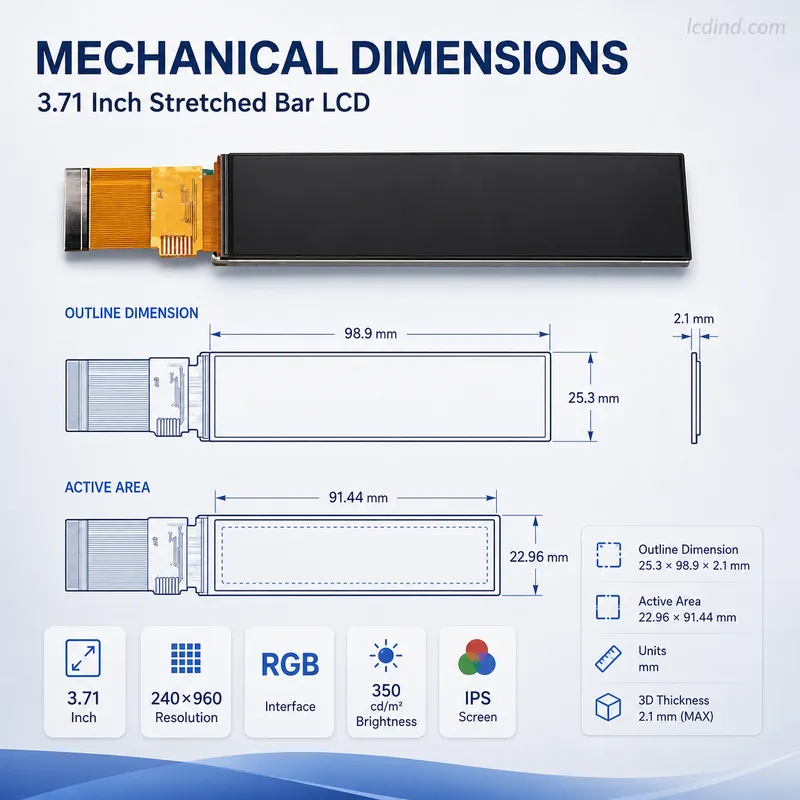

The 25.3 x 98.9 x 2.1 mm module is long and narrow. Mechanical support must avoid bending, torsion, and pressure near the edge. The active area of 22.96 x 91.44 mm should be aligned carefully with the front window, especially if the product uses printed borders or a narrow slot opening.

UI Design Guidance

The 1:4 style ratio should use purpose-built graphics. Good content includes vertical menus, indicator bars, short labels, and stacked values. Avoid shrinking normal portrait pages into the bar; text will become difficult to read. Prototype the UI at real size and review it from the intended viewing distance.

Production Acceptance

Sample approval should include RGB timing, startup behavior, display rotation, color bars, brightness, cover-lens readability, and mechanical stress testing. If the display is part of a premium-looking device, cosmetic inspection and active-area centering should be included in the purchase specification.

Procurement Decision Summary

This 3.71 inch module is useful when the product requires a very narrow but high-resolution strip. It should be selected for a purpose-built bar UI, not as a replacement for a normal rectangular screen. If the interface needs readable long text or large touch targets, a wider 3.99 inch or standard portrait display may be more practical.

Common Mismatch Risks

The risk is forcing a normal UI into a 240-pixel-wide display. Even with 960 pixels of length, the narrow width limits text and icon design. Another risk is treating ST7701S RGB modules as plug-and-play. The host must support the initialization and RGB data path. Mechanical stress is also a concern because the module is long, thin, and easy to bend during assembly.

Production Acceptance Tests

Test the actual vertical or horizontal orientation, RGB timing, ST7701S initialization, brightness, viewing angle, active-area alignment, cover-lens fit, and cable strain. Review the UI at real size from the actual operator distance. For batch production, define cosmetic limits for edge pressure, bright spots, scratches, and active-area centering because defects are highly visible on slim strip displays.

RFQ Interpretation

The RFQ should explain the intended display orientation and information type. A buyer using this for a status strip needs different validation from a buyer using it for a handheld menu. Send the industrial design drawing, proposed UI mockup, host interface plan, and expected mounting method. If the UI requires many words or large icons, ask LCDind to compare the wider 3.99 inch 400×960 bar LCD before committing to this narrow module.

Alternative Selection Boundary

Choose this 3.71 inch module when the front panel is extremely narrow and the UI can stay concise. Choose the 3.99 inch 400×960 option when more width is needed for readable labels. Choose a standard portrait TFT when the product needs normal menu pages. This boundary should be decided before firmware and front-lens drawings are finalized.

RFQ Checklist

• Host RGB timing, ST7701S driver support, voltage, connector, FPC direction, and display orientation.
• Mechanical drawing with slot opening, active-area alignment, support structure, and cover-lens plan.
• Brightness environment, viewing direction, UI layout, operating temperature, and expected duty cycle.
• Sample quantity, annual forecast, cosmetic standard, packaging, and revision-control requirement.

Engineering Review Note

The specifications above are taken from the current public product page and should be used as selection inputs, not as final system approval. Before sample purchase or production order, LCDind should review the host interface, drawing, optical stack, operating environment, accessory requirement, and quantity plan. This avoids selecting a display that matches the headline but fails the enclosure, firmware, brightness, thermal, or supply requirements of the finished equipment.

Engineering FAQ

What interface is confirmed?

The specification table lists RGB 24-bit interface.

What driver IC is used?

The public specification lists ST7701S.

Is this suitable for sunlight?

The confirmed brightness is 350 cd/m², so it is mainly for indoor or protected equipment unless the full optical stack is validated.
