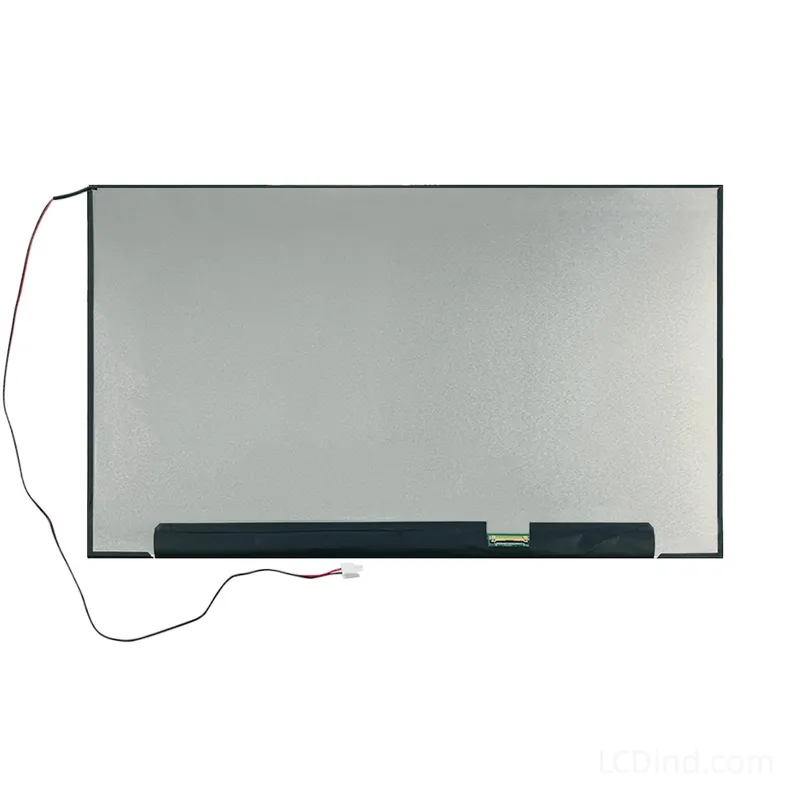

15.6 Inch FHD LCD Module 600 Nits 1920×1080 IPS eDP
The LCDind 15.6 Inch FHD LCD Module is a high-luminance visual solution engineered for rigorous industrial monitoring and automated production lines. With a verified brightness of 600 nits and a crisp 1920×1080 IPS panel, this display ensures critical data remains visible even under bright factory lighting. Featuring a modern 30-pin eDP interface for high-speed signal transmission, it offers a seamless upgrade for legacy LVDS systems. Ensure your production never stops. Click “Inquire Now” for bulk volume discounts and driver board compatibility.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 15.6 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Optional Touchscreen |
High-Visibility Monitoring: 15.6 Inch 600 Nits Display
In fast-paced factory environments, clarity is key. The 15.6 Inch FHD LCD Module stands out with a 600 nits brightness rating, providing superior visibility compared to standard 250-nit consumer screens. Whether installed in a dimly lit warehouse or a sunlit inspection station, the Anti-Glare surface treatment ensures operators can read detailed schematics and production metrics without eye strain.
Precision IPS Technology
This module employs Normally Black IPS technology, delivering an expansive viewing angle and accurate color reproduction.
- Resolution: 1920(RGB) x 1080 (FHD) for pixel-perfect detail on a 15.6-inch canvas.
- Color Depth: RGB Vertical Stripe arrangement supports 16.7M colors, essential for color-coded warning systems and HMI dashboards.
Next-Generation eDP Interface
Designed for modern industrial controllers, the screen utilizes a 30-pin eDP (Embedded DisplayPort) interface. Unlike older LVDS connections, eDP uses fewer wires while supporting higher bandwidths, reducing EMI (Electromagnetic Interference) and simplifying cable routing in compact enclosures.
LCD display solution
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization options
- Customized packaging (Min. order: 500 pieces)
- Customized logo (Min. order: 500 pieces)
- Graphic customization (Min. order: 500 pieces)
Technical Specifications
| Display Size | 15.6 Inch |
| Resolution | 1920 x 1080 (FHD) |
| Panel Type | IPS (Normally Black) |
| Brightness | 600 cd/m² (High Brightness) |
| Interface | eDP (30 Pins) |
| Active Area | 344.16(H) x 193.59(V) mm |
| Outline Dimension | 360(H) x 212.3(V) x 6.4(D) mm |
| Pixel Pitch | 0.17925 x 0.17925 mm |
| Operating Temp | 0°C ~ 50°C |
| Storage Temp | -20°C ~ 60°C |
| Surface Treatment | Anti-Glare |
Engineering FAQ
Q: What makes this 15.6 inch display suitable for factory environments?
A: Its primary advantage is the 600 nits brightness, which is significantly higher than standard monitors. Combined with an Anti-Glare surface, it cuts through reflections caused by overhead factory lighting, ensuring operators can always see the screen clearly.
Q: My current system uses LVDS. Can I use this eDP screen?

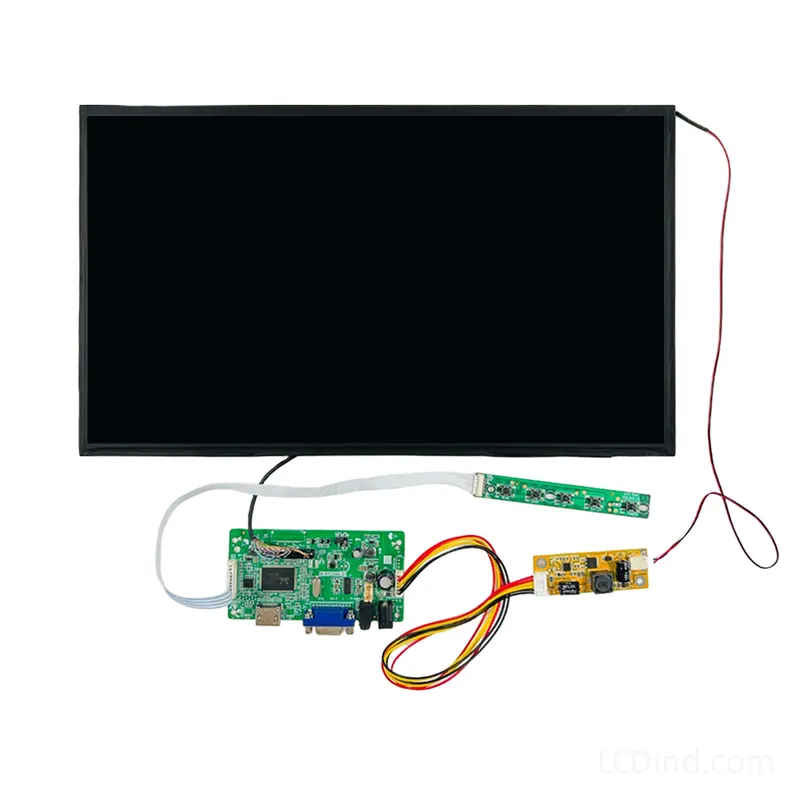

A: Direct connection is not possible as the protocols are different. However, we provide “One Stop Service” and can supply a compatible HDMI/VGA-to-eDP driver board or an LVDS-to-eDP signal converter board to bridge the gap.
Q: What is the pin definition of the 30-pin connector?
A: It follows the standard eDP pinout (2-lane usually for 1080p). We can provide the full datasheet and FPC pin definition diagram upon request to help with your PCB design.
Q: Does the module include a touch panel?
A: The base module is a non-touch display. However, we can optically bond a Capacitive Touch Panel (PCAP) to the surface as part of our customization services for interactive HMI applications.
| Brand | LCDind |
|---|---|
| Brightness | High Brightness (500-900 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 15.6 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Q: What makes this 15.6 inch display suitable for factory environments?
A: Its primary advantage is the 600 nits brightness, which is significantly higher than standard monitors. Combined with an Anti-Glare surface, it cuts through reflections caused by overhead factory lighting, ensuring operators can always see the screen clearly.
Q: My current system uses LVDS. Can I use this eDP screen?
A: Direct connection is not possible as the protocols are different. However, we provide "One Stop Service" and can supply a compatible HDMI/VGA-to-eDP driver board or an LVDS-to-eDP signal converter board to bridge the gap.
Q: What is the pin definition of the 30-pin connector?
A: It follows the standard eDP pinout (2-lane usually for 1080p). We can provide the full datasheet and FPC pin definition diagram upon request to help with your PCB design.
Q: Does the module include a touch panel?
A: The base module is a non-touch display. However, we can optically bond a Capacitive Touch Panel (PCAP) to the surface as part of our customization services for interactive HMI applications.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
