7 Inch Round LCD Display | 1080×1080 IPS RGB Interface Module

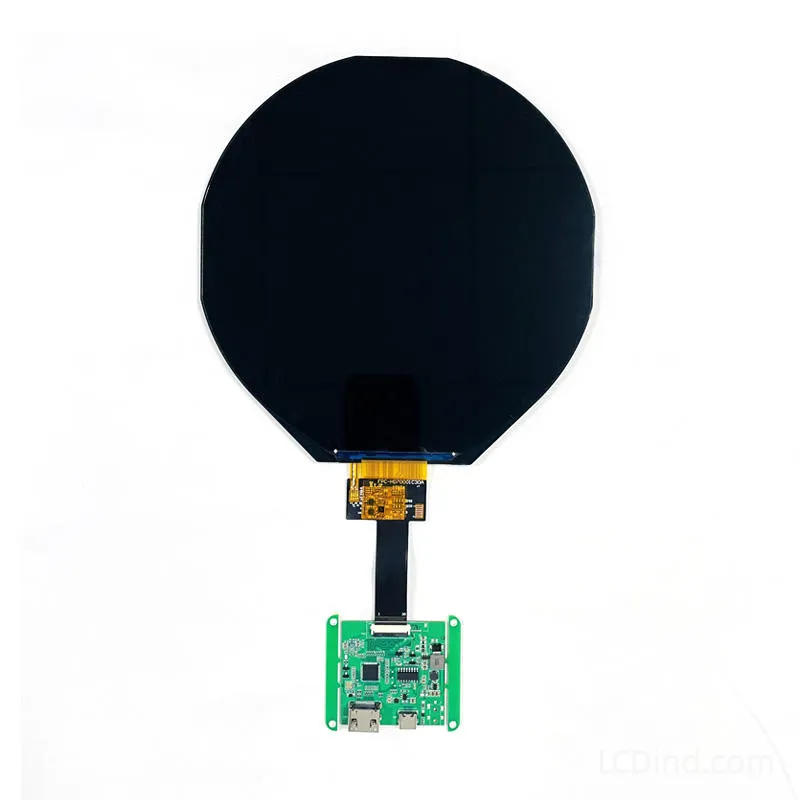

7 Inch Round LCD Display delivers a massive, unbroken circular viewing area engineered for next-generation central control hubs and automotive dashboard designs. Projecting a razor-sharp 1080×1080 resolution, this perfectly round TFT module utilizes advanced IPS technology to guarantee vibrant color reproduction and complete 80/80/80/80 viewing angles from any mounting perspective. Operating natively via a high-speed 30-Pin RGB interface, it integrates seamlessly into custom industrial microcontrollers. For rapid prototyping and PC/Raspberry Pi integration, an optional plug-and-play HDMI Driver Board Kit is available, providing instant video signal conversion. Design without corners. Click “Inquire Now” to secure your bare panel or complete HDMI developer kit today.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | |
| Panel Type | IPS |
| Size | 7.0 inchDiscover premium 7.0 inch industrial displays. Featuring wide temperature ranges, high brightness, and custom touch panels for compact HMI and medical devices. |
| Resolution | |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Large Scale Circular Innovation: 7 Inch Round LCD Display
Moving beyond small wearable screens, the 7 Inch Round LCD Display provides a substantial digital canvas for high-impact visual interfaces. Pushing a true 1:1 aspect ratio with a dense 1080 x 1080 pixel matrix, this module renders intricate gauges, rotating dials, and high-definition video with impeccable smoothness. The native IPS (In-Plane Switching) architecture ensures that contrast and color saturation remain entirely consistent, regardless of whether the user is viewing the screen from extreme top, bottom, or side angles.
Premium Application Scenarios
The commanding 7-inch diagonal size unlocks specialized architectural and automotive applications that smaller circular screens simply cannot fulfill:
- EV & Automotive Consoles: Perfect for recreating iconic center-dash circular infotainment systems (similar to modern luxury compact cars) or custom digital instrument clusters.
- Smart Home Central Hubs: Acts as a breathtaking, wall-mounted central control thermostat and security interface for luxury smart homes.
- Casino & Arcade Gaming: An ideal visual centerpiece for interactive roulette wheels, premium button decks, and custom arcade cabinet modifications.
30-Pin RGB & HDMI Prototyping Ecosystem

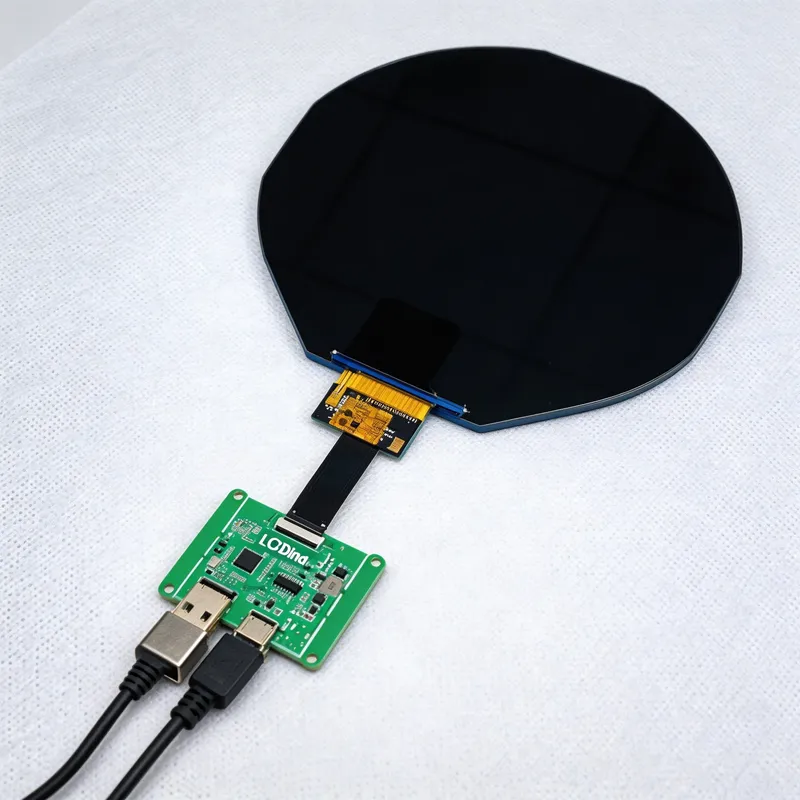

For high-volume manufacturing, the raw LCD module communicates via a robust 30-Pin Parallel RGB interface, allowing direct, low-latency integration with your proprietary ARM processors or microcontrollers. However, hardware development shouldn’t be stalled by signal translation. We offer a complete, tailored HDMI Driver Board Kit (including the HDMI controller board, matched FPC LCD cable, and power connector). This allows you to plug the 7-inch round screen directly into a standard PC, Raspberry Pi, or media player to immediately begin UI software testing and evaluation.
LCD Display Solution & Customization
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization Options:
- Customized packaging (Min. order: 500 pieces)
- Customized logo silk-screening (Min. order: 500 pieces)
- Graphic and cover glass customization (Min. order: 500 pieces)

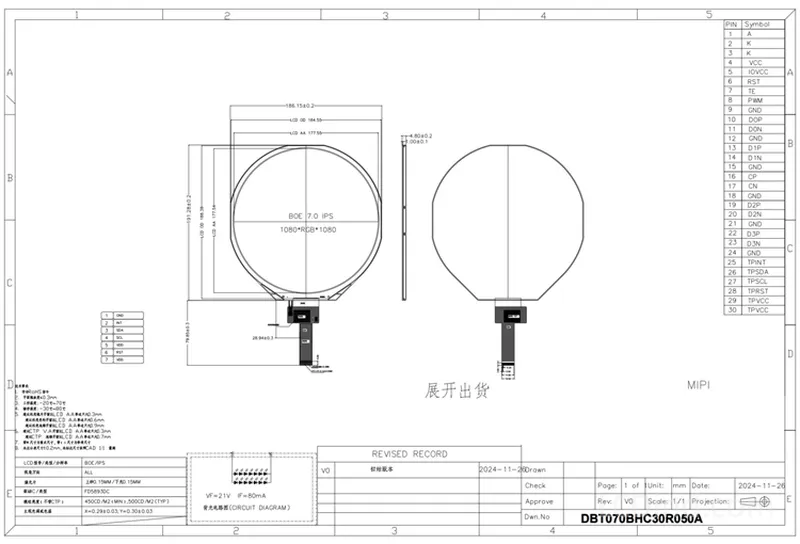

Technical Specifications
| Product Type | TFT Circular / Round LCD Module |
| Display Size | 7.0 Inch (Diagonal) |
| Resolution | 1080 x 1080 |
| Display Shape | Perfect Circle / Round |
| Native Interface | RGB (30 Pins) |
| Optional Interface | HDMI (Via optional driver board kit) |
| Panel Technology | IPS (In-Plane Switching) |
| Viewing Angle | 80/80/80/80 (Full / Free Viewing Angle) |
| Display Mode | Normally Black, Transmissive |
| Applications | Automotive, Smart Home Hub, Industrial Gauges |
Engineering FAQ
Q: How do I output a standard Windows or Raspberry Pi desktop to a round screen?
A: When you purchase this screen with our optional HDMI Driver Board Kit, your PC or Raspberry Pi will recognize it as a standard 1080×1080 square monitor. The physical LCD simply masks the corners. You will need to design your software UI (using a black background in the corners) to ensure your dials, videos, and buttons stay within the visible circular boundary of the screen.
Q: Is the HDMI driver board included in the standard price?
A: The base product is the raw 30-Pin RGB LCD module, ideal for engineers who have their own motherboards. If you require the plug-and-play HDMI integration, please specifically select the “HDMI Board Kit” option (which includes the board, flat cable, and connectors) when requesting your quote.
Q: Can this 7-inch round display be equipped with a touch screen?
A: Yes. A central control hub of this size highly benefits from touch interactivity. While this listing is for the standard non-touch module, we provide deep customization services and can bond a multi-point Capacitive Touch Panel (CTP) specifically designed for this 7-inch circular glass. Please mention this requirement in your inquiry.
