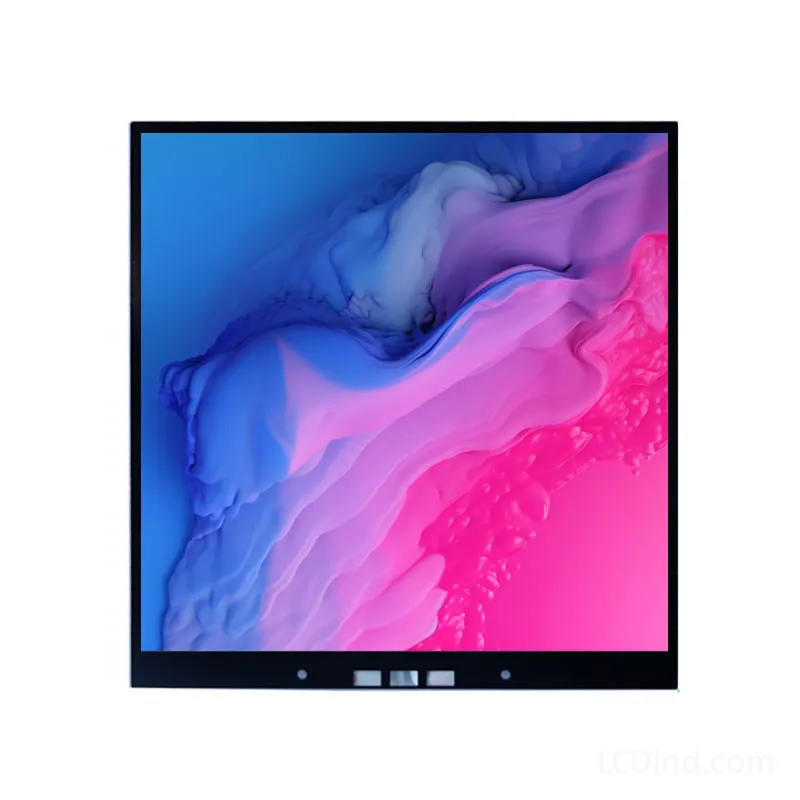

Wide Temperature LCD Display for Compact Industrial HMI 3.95 inch MIPI
Wide Temperature LCD Display for factory-direct OEM/ODM display programs with 3.95 inch, MIPI, 300 nits, Witout. Designed for smart terminals, compact medical devices, embedded Android/Linux equipment, and high-density touch interfaces, with LCDind support for samples, customization, and repeat production.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 3.95 inch |
| Resolution | 720×720 |
| Interface | MIPI |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Viewing Direction |
Wide Temperature LCD Display for Factory Direct OEM/ODM Programs
Wide Temperature LCD Display from LCDind is prepared for engineering teams and procurement managers that need a production-ready display source for commercial equipment programs with 3.95 inch, 720×720, MIPI, 300 nits. It is built for OEM/ODM programs that need factory-direct LCD sourcing, engineering confirmation, customization options, and repeatable delivery for commercial products. Before sample approval, LCDind helps confirm the display size, host interface, brightness target, touch stack, operating temperature, and repeat-supply plan.
Key Specifications
| Size | 3.95 inch |
|---|---|
| Resolution | 720×720 |
| Interface | MIPI |
| Brightness | 300 nits |
| Viewing Direction | All viewing directions |
| Touchscreen | Witout |
| Operating Temp | -30 to +80°C |
| Storage Temp | -30 to +85°C |
| Outline Dimension | 74.83*78.89*1.95 mm |
| Active Area | 71.93*71.93 mm |
| Contrast Ratio | 1200:1 |
| Power Supply | 3.3V |
| LED Lifetime | 30000 hours |

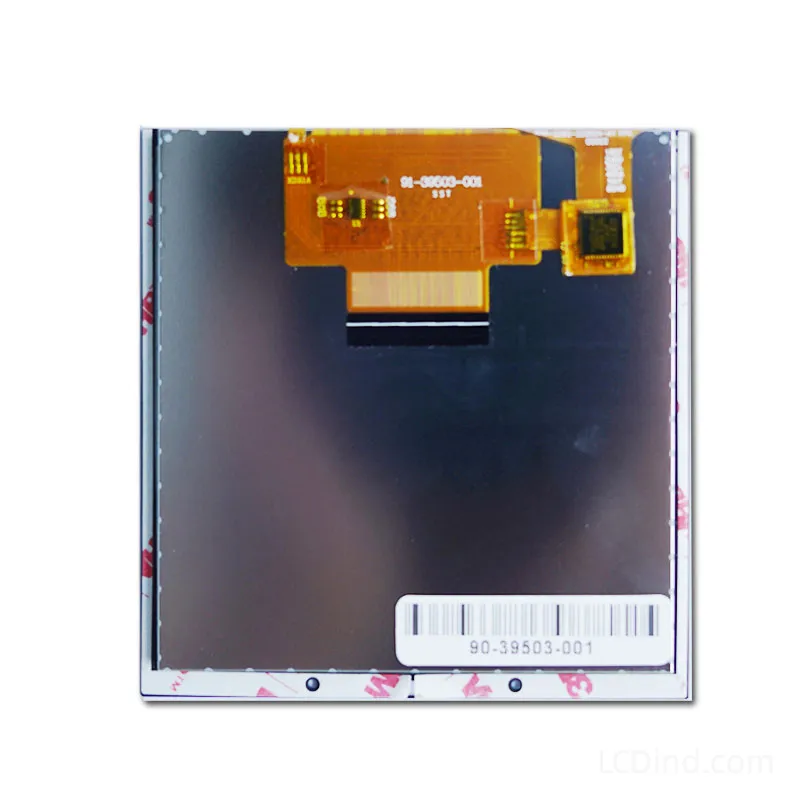

| Panel Model | 90-39503-001 |
Size, Interface, Brightness & Touch Fit
The 3.95 inch active format gives OEM teams a practical display area for compact HMIs, access terminals, handheld controllers, and small equipment dashboards. The MIPI interface fits compact embedded platforms that need high-density signaling, low cable count, and careful confirmation of lane count, connector direction, and initialization code. The 300 nits brightness level is best positioned for indoor equipment, control panels, and embedded terminals used in controlled lighting. The touch configuration is listed as Witout, so LCDind can review cover glass, optical bonding, coating, FPC, and controller matching for repeat production.
Application Fit
This wide temperature LCD display is a good candidate for smart terminals, compact medical devices, embedded Android/Linux equipment, and high-density touch interfaces. LCDind can support project review for enclosure constraints, target annual quantity, interface compatibility, backlight lifetime, cover glass, touch integration, and production schedule.
Factory Customization & Procurement Support
For OEM/ODM projects, LCDind factory support may include brightness adjustment, optical bonding, AG/AR/AF cover glass, FPC or cable adjustment, capacitive or resistive touch matching, controller-board matching, and lifecycle review. Share the application, forecast quantity, target price range, schedule, host platform, and any existing panel model when requesting a quotation.
| Brand | OEM / ODM |
|---|---|
| Size | 3.95 inch |
| Resolution | 720×720 |
| Interface | MIPI |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | No Touch |
| Viewing Direction |
Q: What type of equipment project is this 3.95 inch TFT LCD Module 720x720 MIPI suitable for?
A: This wide temperature LCD display is best considered for smart terminals, compact medical devices, embedded Android/Linux equipment, and high-density touch interfaces. LCDind recommends confirming annual quantity, enclosure design, host interface, brightness target, and operating environment before moving from samples to batch orders.
Q: What interface should the OEM mainboard support?
A: The MIPI interface fits compact embedded platforms that need high-density signaling, low cable count, and careful confirmation of lane count, connector direction, and initialization code. Please confirm pin assignment, connector type, voltage, timing, cable direction, and controller-board requirements during engineering review.
Q: Is this display suitable for outdoor or high-ambient-light equipment?
A: The 300 nits brightness level is best positioned for indoor equipment, control panels, and embedded terminals used in controlled lighting. For demanding outdoor or sunlight-readable equipment, LCDind can review target nits, AG/AR cover glass, optical bonding, thermal design, and backlight lifetime for the production environment.
Q: Can LCDind support touch, cover glass, or module customization for batch production?
A: The touch configuration is listed as Witout, so LCDind can review cover glass, optical bonding, coating, FPC, and controller matching for repeat production. LCDind can evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, coating, FPC changes, cable length, and production consistency requirements.
Q: What information should procurement provide for a factory quotation?
A: Please share target application, annual forecast, first order quantity, host interface, mechanical drawing, brightness requirement, operating temperature -30 to +80°C, certification needs, delivery schedule, and whether pre-production samples are required.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
