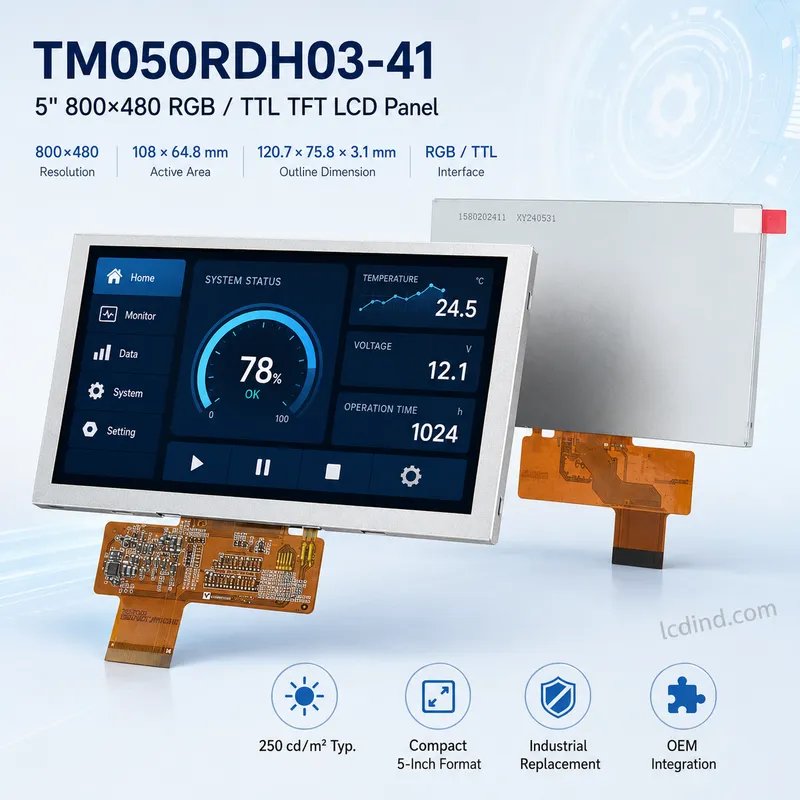

Tianma TM050RDH03-41 5 Inch 800×480 RGB / TTL TFT LCD Panel
Tianma TM050RDH03-41 for industrial replacement and OEM integration, with 800×480, RGB / TTL and 250 cd/m² (Typ.). Confirm the exact revision, connector, timing and mechanical fit before ordering.
Product Attributes
| Brand | Tianma |
|---|---|
| Size | 5 inch |
| Resolution | 800×480 |
| Brightness | Standard (200-450 nits) |
| Interface | RGB / TTL |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
| Panel Type | IPS |
Tianma TM050RDH03-41 Overview
This Tianma TFT LCD panel draft is based on captured supplier evidence for engineering review. The exact model revision and integration constraints must be verified before procurement.
Key Features
- Panel model: TM050RDH03-41
- Diagonal size: 5 Inch
- Resolution: 800×480
- Interface: RGB / TTL
- Brightness: 250 cd/m² (Typ.)
Technical Specifications

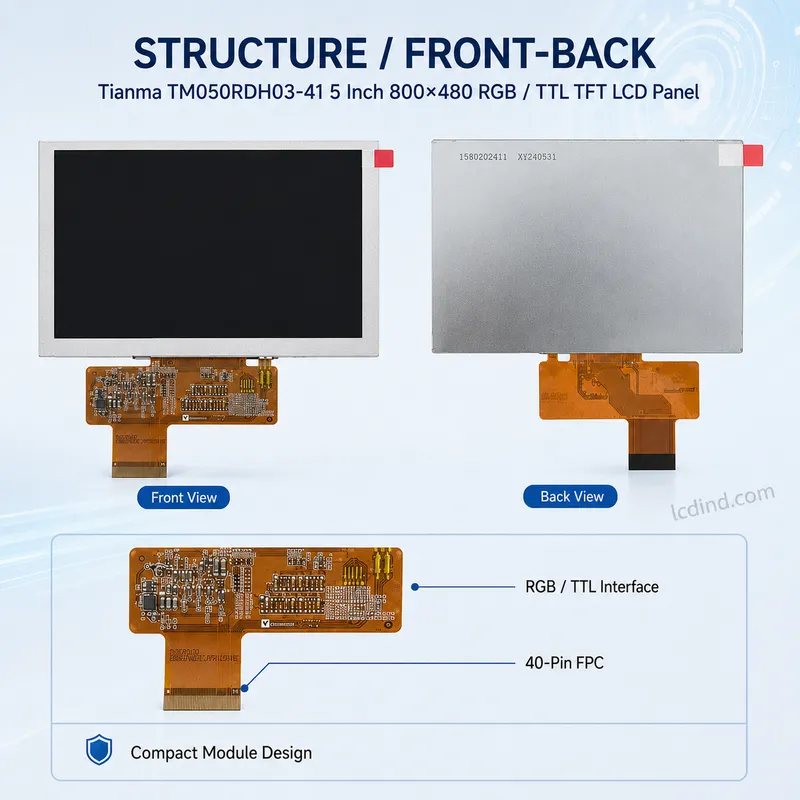

| Type | IPS |
|---|---|
| Resolution | 800X480 |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 250 cd/m² (Typ.) |
| Display Size | 5inch |
| Operating Temperature | -20 ~ 70 °C |
| Screen Size | 5.0″ |
| Communication Interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |

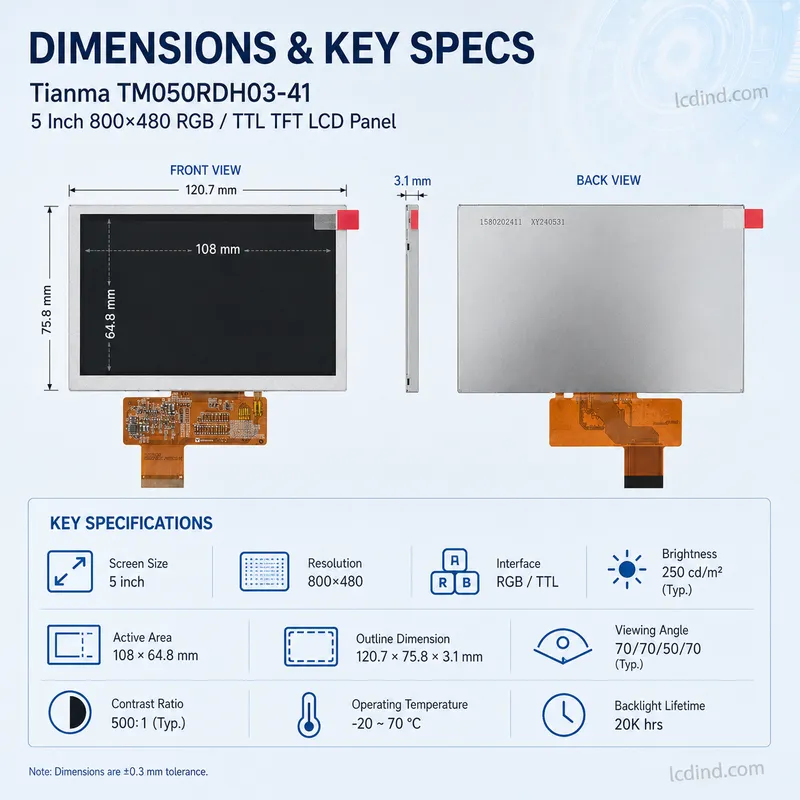

| Active Area | 108(W)*64.8(H) mm |

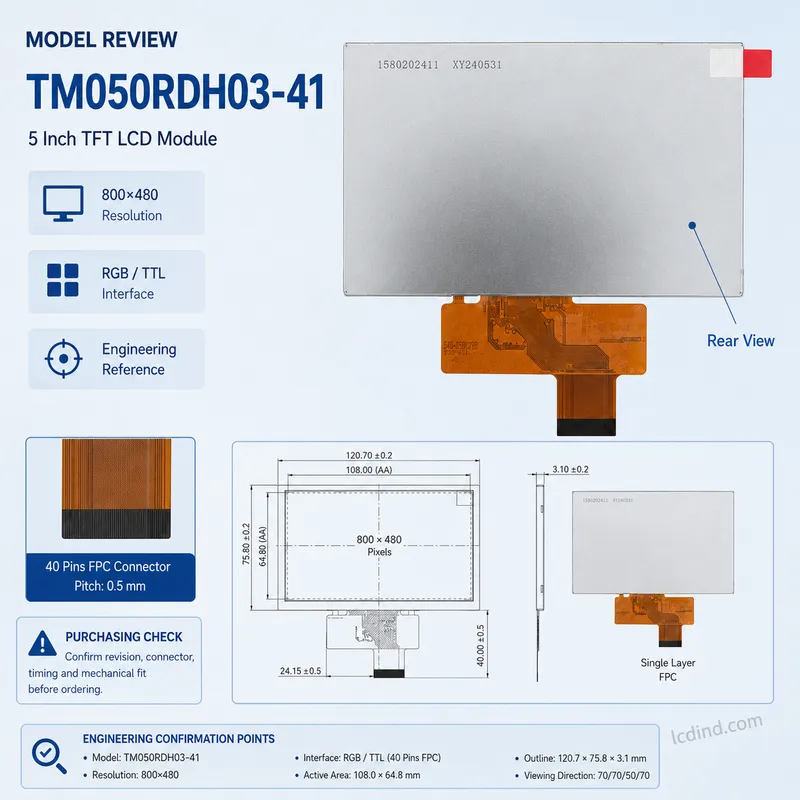

| Outline Dimension | 120.7(W)*75.8(H)*3.1(D) mm |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 |
| Backlight | WLED [7S2P] , 20K hours , W/O Driver |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Response Time | 20 (Typ.)(Tr+Td)ms |
| Total Consumption | 1.165W (Typ.) |
| Selling Units | Single item |
| Single package size | 25X15X10 cm |
| Single gross weight | 0.35 kg |
Integration Notes
Confirm the active area, outline dimensions, mounting points, connector location, pin definition, timing, power rails, backlight driver and host-board compatibility against the current datasheet or an approved sample.
Engineering FAQ
What is the resolution of TM050RDH03-41?
The captured supplier evidence states 800×480. Confirm the exact model revision and current datasheet before design-in.
Which interface does TM050RDH03-41 use?
The captured supplier evidence indicates RGB / TTL. Confirm channel count, bit depth, connector and pin assignment before board design.
Is touch or a controller board included?
This draft treats the selected configuration as the LCD panel only unless the source evidence explicitly states an integrated touch assembly or controller option.
What should engineers confirm before ordering TM050RDH03-41?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 1.
