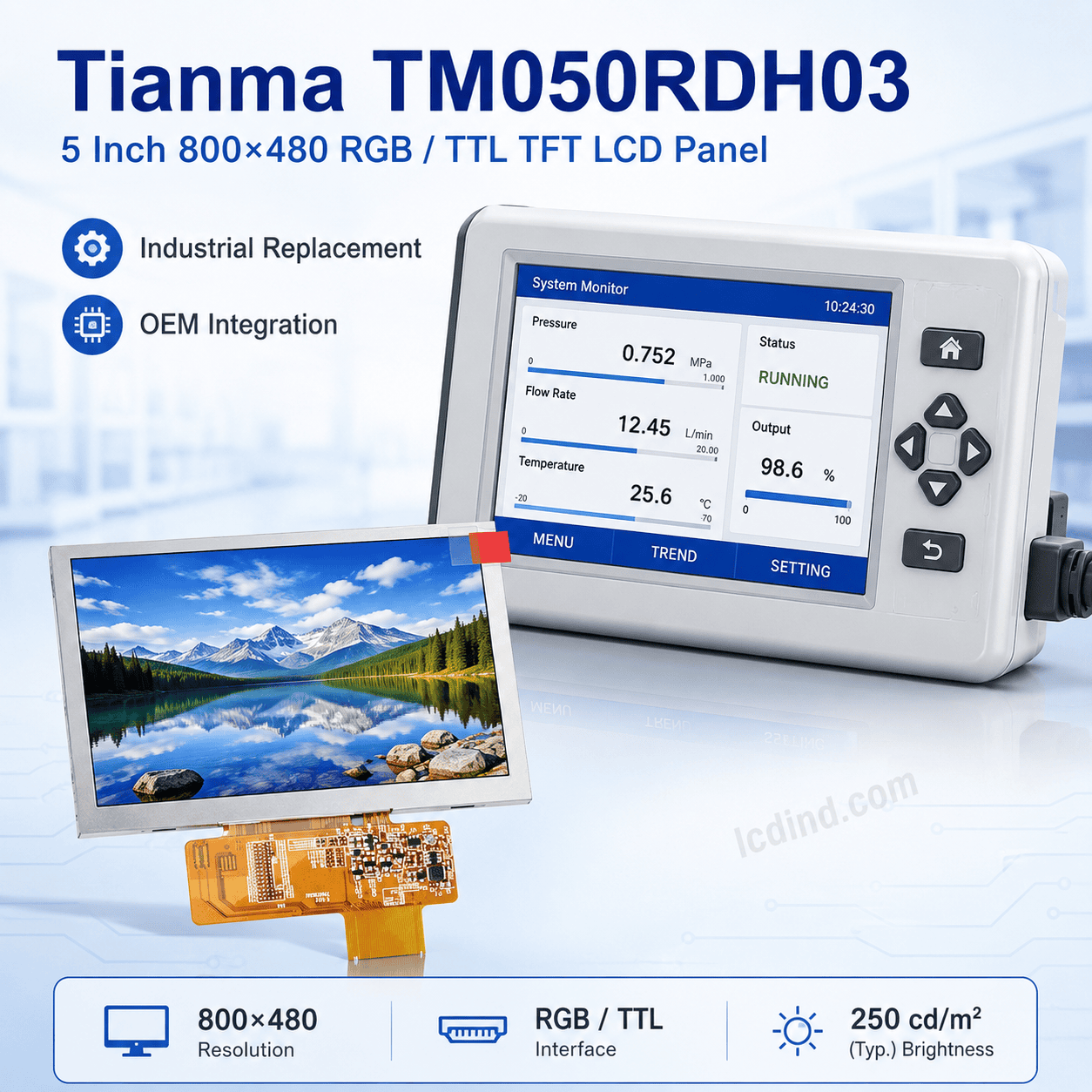

Tianma TM050RDH03 5 Inch 800×480 RGB / TTL TFT LCD Panel

Tianma TM050RDH03 5 Inch WVGA RGB/TTL TFT Panel

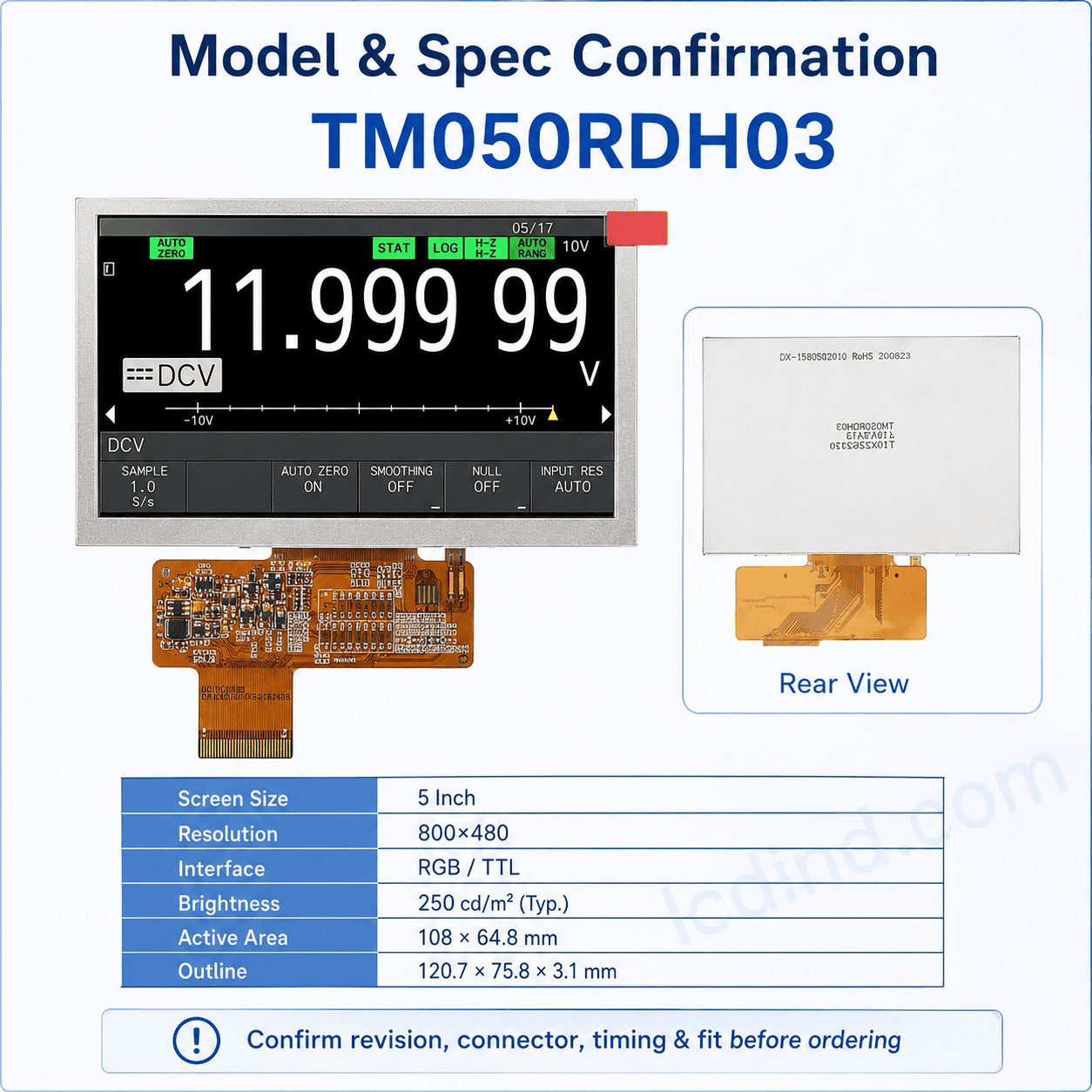

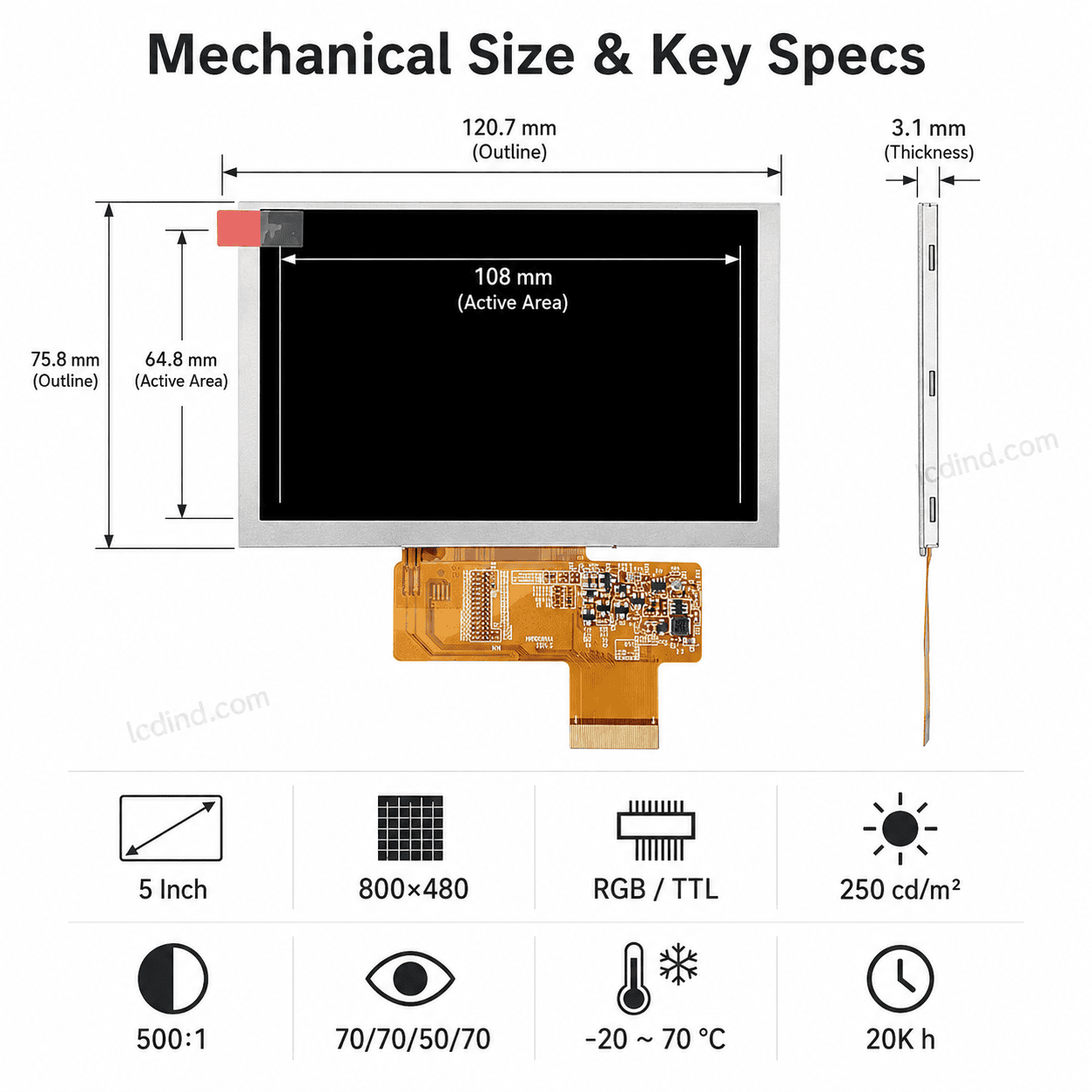

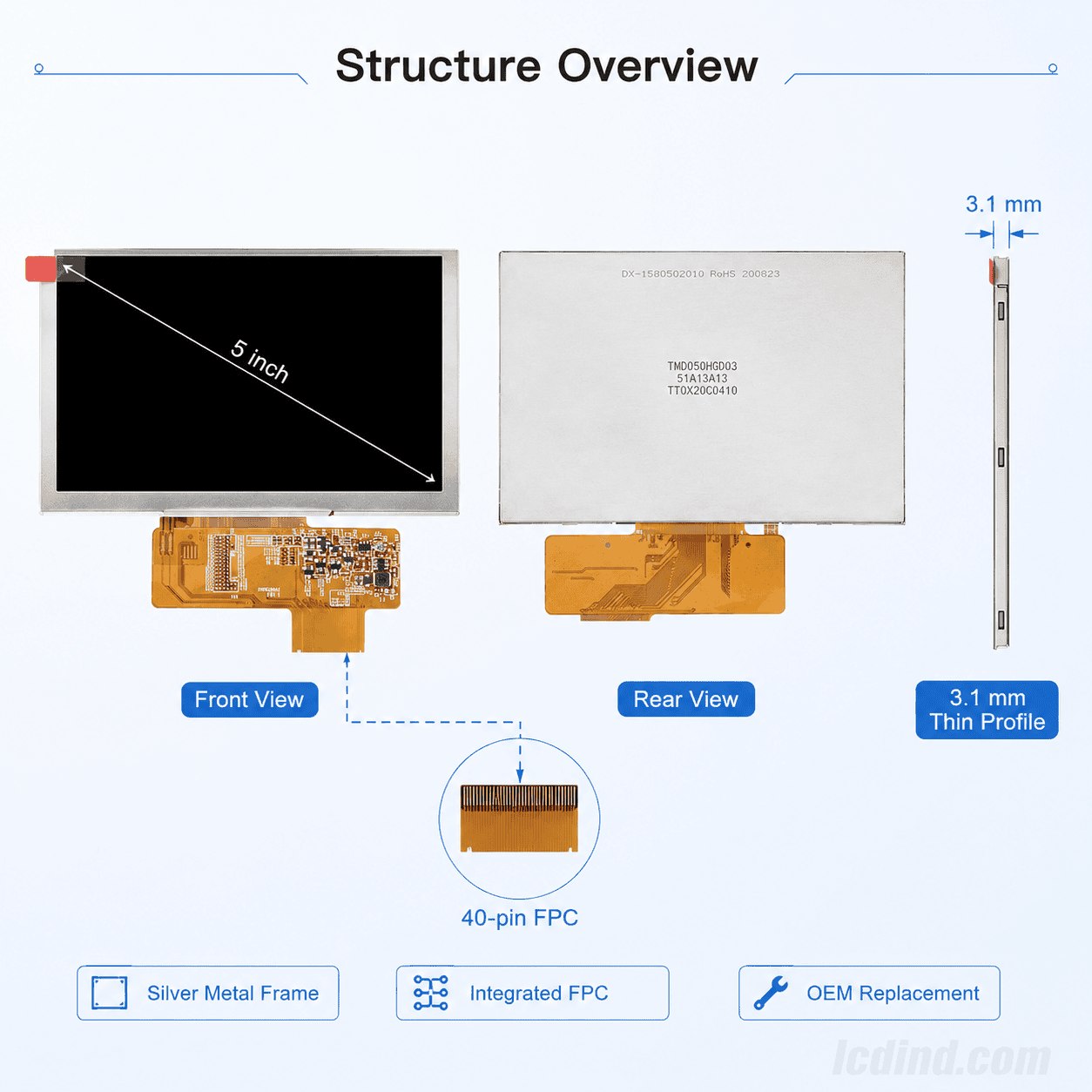

Tianma TM050RDH03 is a 5 inch WVGA TFT display for industrial equipment, service replacement and embedded controller projects that require 800×480 resolution and a parallel RGB/TTL interface. The public data lists 250 cd/m² typical brightness, parallel RGB one-channel 8-bit interface, 40-pin FPC, -20 to 70 °C operation, 108×64.8 mm active area, 120.7×75.8×3.1 mm outline, 500:1 contrast, TN normally white transmissive work mode, WLED 7S2P backlight without driver, 20K-hour backlight life, 16.7M colors at 50% NTSC, 20 ms response and 1.165W typical consumption. It is a practical candidate for equipment designed around traditional RGB timing, not for systems expecting MIPI, LVDS or eDP input.

The product should be evaluated as a controlled Tianma suffix, not as a generic 5 inch LCD. TM050RDH03 and TM050RDH03-41 are close, but procurement should not assume they are identical without comparing the latest drawing, FPC layout, packing and supply status. In industrial replacement work, even small suffix differences can affect cable exit, tolerances, backlight details or approved sourcing records. If the project permits an alternate, document the allowed differences before purchasing samples.

RGB/TTL integration requires a host controller that can provide the correct timing, voltage, sync signals and data width. A 40-pin FPC does not guarantee pin compatibility. Sample testing should verify image stability, color order, orientation, reset recovery, warm restart and display behavior after long operation. If the equipment uses a long cable or noisy power environment, include signal-integrity and EMI checks in the validation plan.

Since the WLED backlight has no listed driver, the system must provide the LED driver. Confirm LED current, backlight voltage range, dimming method, thermal behavior and failure protection. If the old product failed due to dim backlight or intermittent illumination, do not assume replacing the LCD alone solves the issue; the driver circuit and cable should also be inspected.

The 250 cd/m² brightness and TN viewing behavior are suitable for defined indoor equipment. If the panel is behind a front membrane, resistive touch sheet or smoked window, readability should be checked with the complete assembly. The operator’s normal angle matters because TN viewing can shift contrast when installed high, low or in a tilted handheld device.

RFQ Checklist

• Exact Tianma model and whether suffix alternates are acceptable.
• RGB/TTL timing, 40-pin FPC pinout, voltage and cable route.
• Backlight-driver details and dimming method.
• Mechanical drawing, active-area window, front lens and touch overlay if used.
• Indoor lighting condition, viewing orientation and service access.
• Prototype quantity, forecast, repair-stock need and approval schedule.

Engineering FAQ

Is TM050RDH03 the same as TM050RDH03-41? Not automatically. The latest drawings and approval records must be compared.

Can it work with HDMI? Not directly. HDMI requires a controller that outputs the required RGB/TTL timing.

Is the backlight driver included? The public record lists WLED without driver.

Is it suitable for sunlight? No. The brightness is 250 cd/m² typical.

What should be tested before volume purchase? Test host timing, FPC mapping, backlight drive, mechanical fit and final-window readability.

Engineering Review Note

Use TM050RDH03 for 5 inch WVGA RGB/TTL projects where the exact host timing and backlight circuit are known. Send LCDind the current drawing, controller details and replacement context before quotation.

Prototype Validation and Service-Control Notes

For TM050RDH03, validation should include the exact product condition: old cable or new cable, old front window or new housing, and old controller or redesigned electronics. If the project is a service repair, the safest path is to test the panel in the actual equipment. If the project is a new OEM design, the engineering team should freeze the host timing, backlight driver and FPC route before enclosure tooling.

Service-control records should identify the display as TM050RDH03, 5 inch WVGA, RGB/TTL, 40-pin FPC and WLED without driver. Those details help technicians avoid installing a display with the same diagonal but a different interface. For a long-life product, keep one approved working sample and a matching cable so future failures can be compared against a known-good reference.

Application boundaries are important for this model. The 250 cd/m² brightness and TN viewing behavior make it a controlled-light industrial panel, not a public kiosk or outdoor display. If the equipment needs better viewing angle, higher brightness or touch integration, define those requirements before using TM050RDH03 as the baseline. Otherwise the product team may spend time adapting a panel that is not aligned with the end-use environment.

For repeat production, the inspection plan should include display image, color order, backlight response, FPC damage, cosmetic condition and packing. If the product has a front overlay, keep one finished front assembly as the visual reference. For field repair, add the display model and cable orientation to service documentation so technicians do not rotate or stress the FPC during replacement.

For engineering comparison, keep TM050RDH03 in a separate line from TM050RDH03-41. If the two are both acceptable, that approval should be written explicitly after drawing and sample review. If only one suffix is approved, purchasing should not substitute the other during shortages. Include FPC photos, active-area measurements and backlight settings in the approval file.

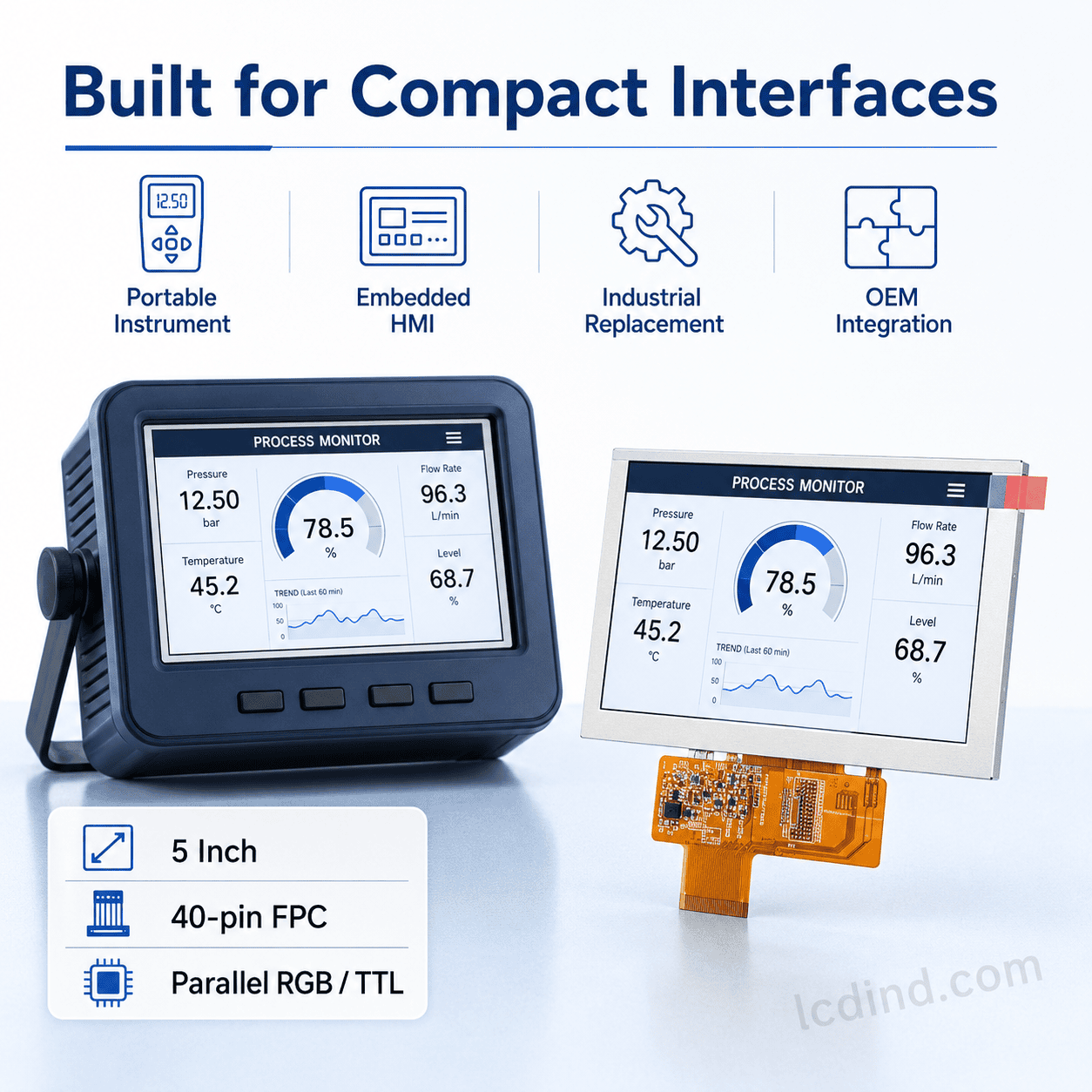

Use this panel where a simple indoor machine interface is enough. If the buyer expects modern tablet-like viewing or outdoor readability, LCDind should review a different display class before samples are ordered.

If the replacement is urgent, LCDind should still verify the suffix and cable before shipment. Speed should not override interface control, because a wrong RGB/TTL panel can delay repair longer than a careful confirmation.
