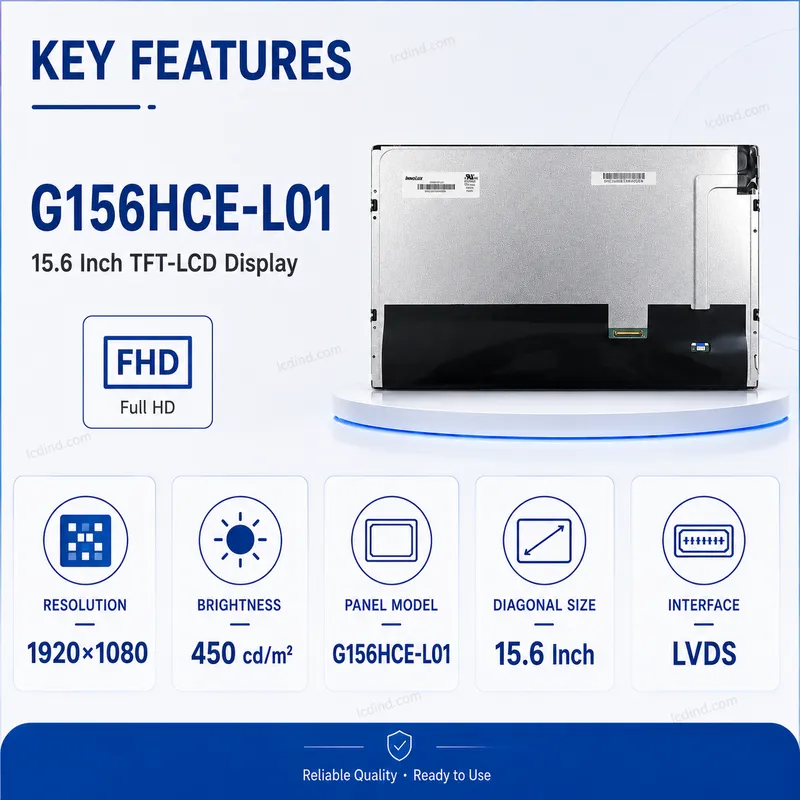

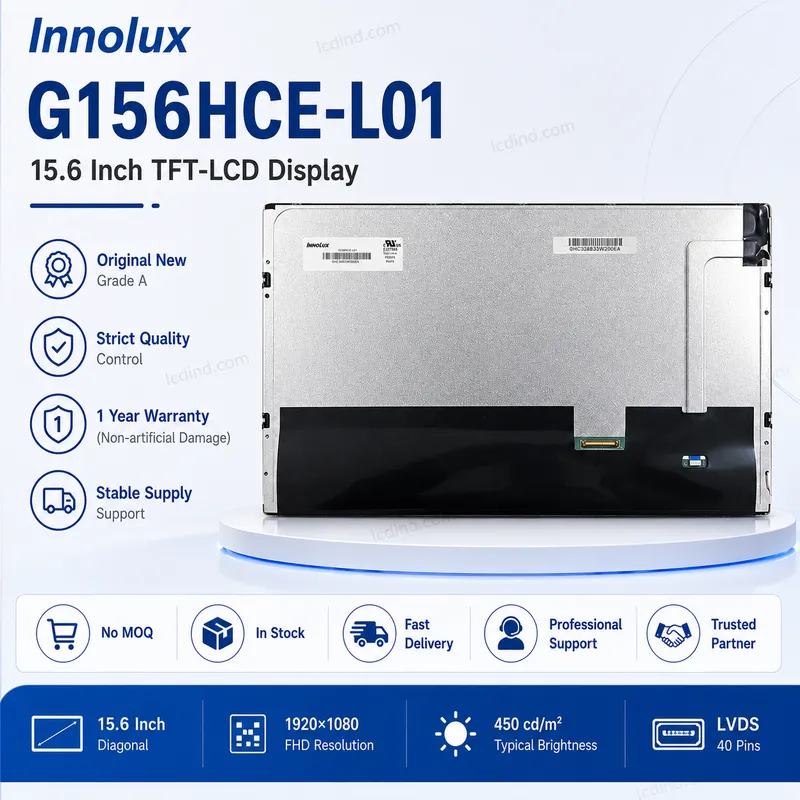

Innolux G156HCE-L01 15.6 Inch 1920×1080 LVDS TFT LCD Panel

Innolux G156HCE-L01 15.6 Inch FHD LVDS IPS Panel

Innolux G156HCE-L01 15.6 Inch FHD LVDS IPS Panel is prepared for B2B industrial display replacement and OEM integration. 15.6 inch FHD wide-temperature panel for industrial display replacement and OEM monitors. Use the current public page as a selection input, then confirm exact revision, drawing, interface, cable, optical stack, supply scope and sample approval criteria before production order.

Confirmed Product Specifications

Application Fit

This panel fits rugged laptops, transport terminals, industrial PCs, open-frame monitors and machine interfaces needing FHD resolution with wider temperature capability than standard indoor panels.

Interface and Controller Review

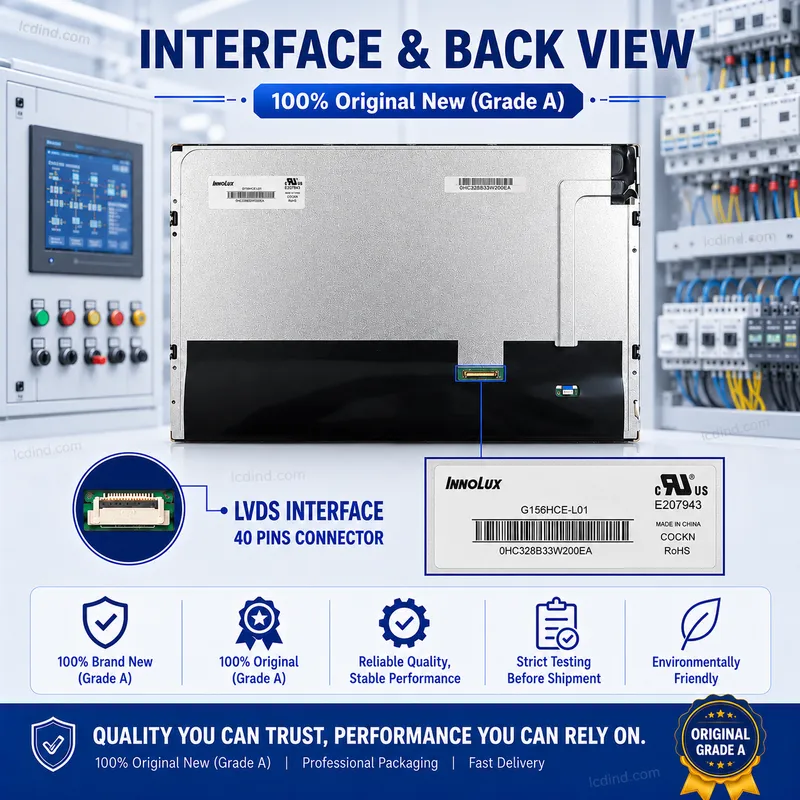

The detailed table lists LVDS 2-channel 8-bit with 40-pin connector. Confirm mapping, voltage, cable, backlight drive and controller board before ordering.

Optical and Environmental Boundary

450 cd/m² brightness, antiglare hard coating and 85/85/85/85 viewing are useful for industrial indoor and protected environments, but not a complete sunlight-readable guarantee.

Mechanical Replacement Checks

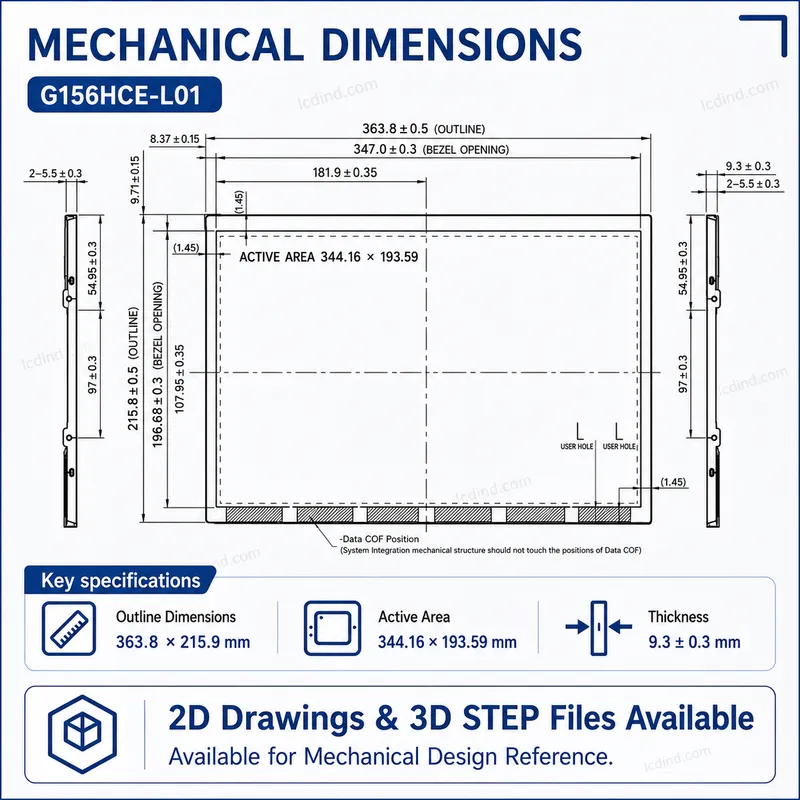

Compare active area, outline, depth, connector side, FPC or cable direction, mounting pressure and bezel opening with the original equipment. Same-size panels can still differ in mechanical fit. Replacement buyers should provide label photos, rear photos and controller details.

Touch and Front Stack

Unless touch is explicitly confirmed, treat the panel as a bare LCD. If touch, cover glass or bonding is required, define touch type, controller interface, glass thickness, optical loss, ESD, grounding and final stack thickness in the RFQ.

Procurement Control

For repeat orders, lock exact Innolux model, revision, cable, backlight driver or driver scope, approved drawing, inspection limits and substitute approval rules. Substitutes should be reviewed by engineering before shipment.

Sample Validation

Test image lock, brightness, backlight uniformity, viewing angle, pixel defects, hot/cold start, cable movement, UI readability and mechanical fit in the real enclosure. If used as a service replacement, compare the sample with the original display assembly.

Wide-Temperature FHD Use

This model is suitable when the project needs 15.6 inch FHD, LVDS, antiglare surface and -30 to 85 °C operation without moving to a very high-brightness 1000+ nit panel. It can fit rugged laptops, transport terminals, industrial PCs and open-frame equipment displays.

Controller and Power Review

The public table lists LVDS 2-channel 8-bit with a 40-pin connector and 16W typical power consumption. Confirm controller output, LVDS mapping, cable, backlight setting and power budget. If the host expects eDP, this panel is not a direct electrical replacement.

Front Stack and Environment

Antiglare hard coating helps in industrial lighting, but sunlight readability is not guaranteed at 450 cd/m². If the device uses cover glass, PCAP touch or optical bonding, test contrast, glare, heat and touch performance in the final enclosure.

When Not to Use This Panel

Do not use this model when the requirement is direct sunlight readability, HDMI input without a controller board, or eDP connection. It is best treated as an LVDS panel for industrial assemblies that can handle its 40-pin interface and wide-temperature requirements.

Approval Records

For repeat production, record the LVDS cable, controller configuration, antiglare front-stack result, power budget and hot/cold test. If touch is later added, rerun optical and thermal checks because the front stack changes.

Final Buyer Check

Before volume purchase, confirm whether the application is indoor rugged use, vehicle-adjacent use or outdoor-facing use. The answer decides whether 450 cd/m² is sufficient or whether a higher-brightness model should be quoted. Keep the approved controller configuration and thermal test result with the purchasing file.

Quote Scope

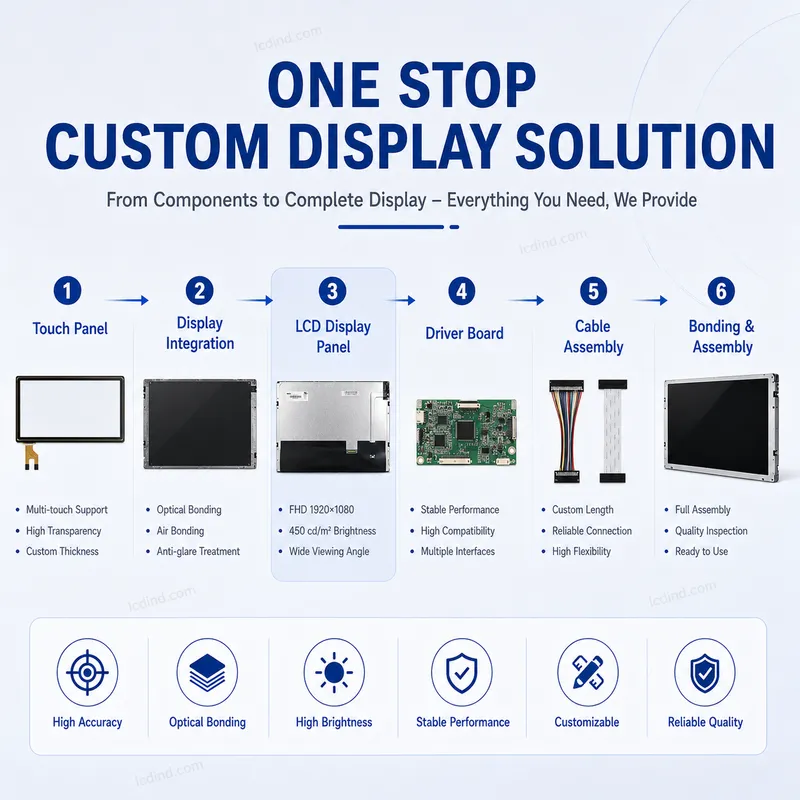

For quotation, state whether the customer needs panel-only sourcing, a controller-board kit, an open-frame monitor or touch/cover-glass integration. If the final equipment is used in transport or rugged environments, include vibration, temperature and service-access requirements in the RFQ.

Final Approval Record

Final approval should also record accepted package label, display orientation and whether the customer allows equivalent Innolux suffixes after engineering review.

RFQ Checklist

• Confirm exact model revision, interface mapping, connector, voltage, timing and cable requirement.
• Provide original panel photos, host controller, enclosure drawing, visible window and front-stack requirement.
• Define panel-only, cable, controller-board, touch assembly or complete display-set scope.
• State sample quantity, annual forecast, inspection criteria, packaging and substitute approval process.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Can it replace any same-size panel?

No. Interface, connector, timing, outline and backlight must be checked.

Should touch be assumed?

No. Touch must be confirmed or quoted separately.

What should be supplied for RFQ?

Model/revision, host controller, drawing, cable route, quantity and target application.

For procurement approval, G156HCE-L01 should be positioned as an industrial FHD panel where suffix control and mechanical fit are more important than a generic 15.6 inch size match. The RFQ should identify the exact L01 suffix, LVDS cable plan, mounting clearance, expected enclosure temperature, and whether the project requires only the bare panel or an LCD assembly with cover glass and controller board.
