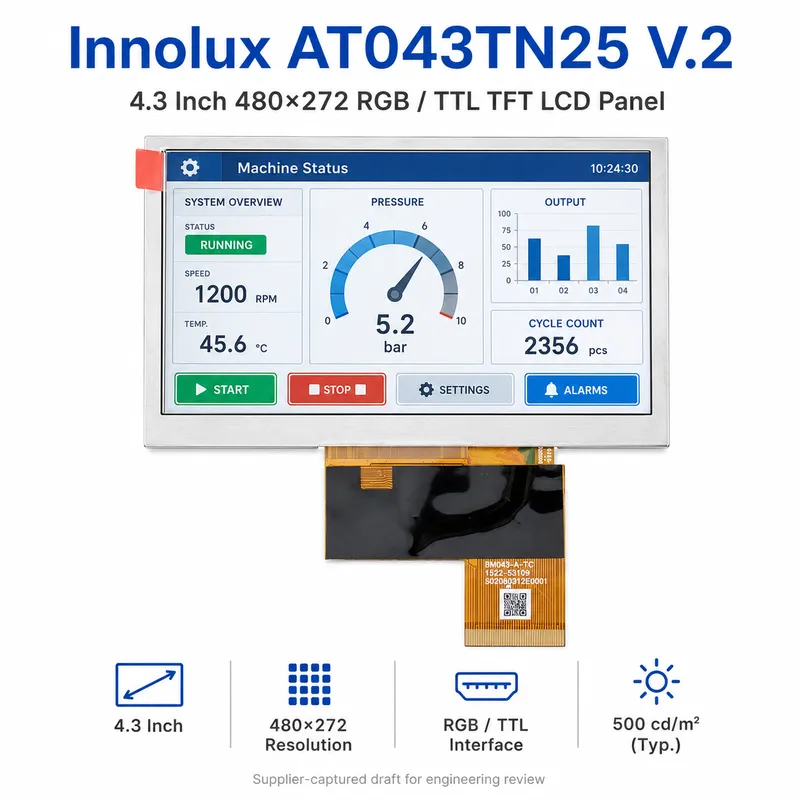

Innolux AT043TN25 V.2 4.3 Inch 480×272 RGB / TTL TFT LCD Panel
Innolux AT043TN25 V.2 LCD panel is prepared for industrial display replacement and OEM integration, with 480×272, RGB / TTL and 500 cd/m² (Typ.). Confirm the exact revision, connector, timing and mechanical fit before ordering.
Product Attributes
| Brand | Innolux LCD Panels |
|---|---|
| Size | 4.3 inch |
| Resolution | 480×272 |
| Brightness | High Brightness (500-900 nits) |
| Interface | RGB / TTL |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
| Panel Type | TN |
Innolux AT043TN25 V.2 LCD panel Overview
This Innolux TFT LCD panel draft is based on captured supplier evidence for engineering review. The exact model revision and integration constraints must be verified before procurement.
Key Features

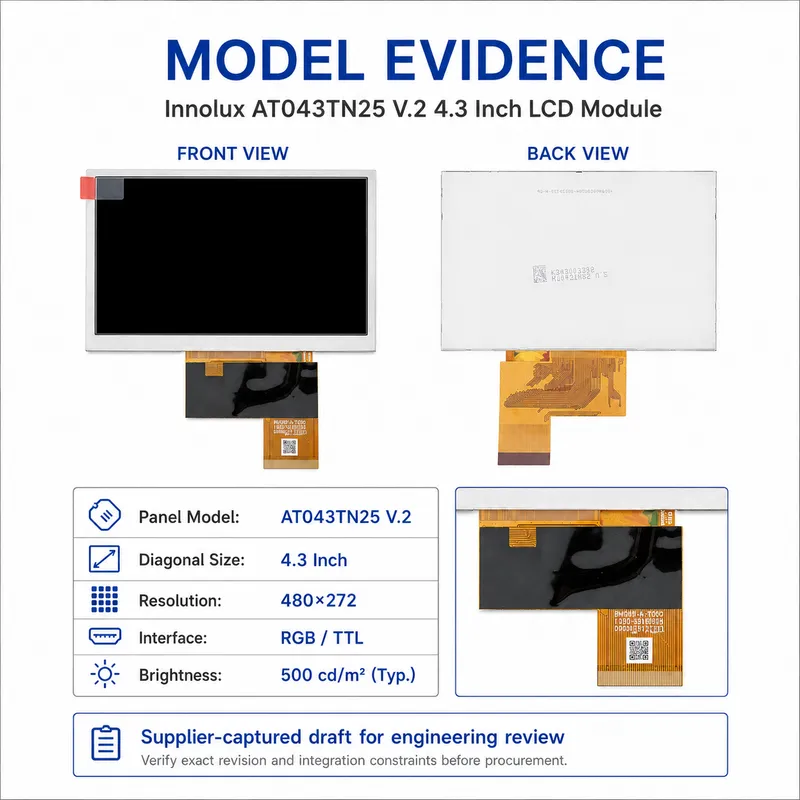

- Panel model: AT043TN25 V.2
- Diagonal size: 4.3 Inch
- Resolution: 480×272
- Interface: RGB / TTL
- Brightness: 500 cd/m² (Typ.)
Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 480×272, WQVGA 128PPI |
| Display Type | TFT |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 500 cd/m² (Typ.) |
| Display Size | 4.3inch |
| Operating Temperature | -20 ~ 70 °C |
| Screen Size | 4.3″ |
| Communication Interface | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| Active Area | 1095.84(H)*616.41(V) Mm |
| Outline(mm) | 105.5(W)x67.2(H)x3.1(D)mm |
| Viewing Angle | 89/89/89/89 |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Backlight | 8S1P WLED , 20K hours , No Driver |
| Response time | 10/15 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Total Consumption | 0.57W |
| Selling Units | Single item |
| Single package size | 25X15X10 cm |
| Single gross weight | 0.3 kg |
Integration Notes
Confirm the active area, outline dimensions, mounting points, connector location, pin definition, timing, power rails, backlight driver and host-board compatibility against the current datasheet or an approved sample.
Engineering FAQ
What is the resolution of AT043TN25 V.2?
The captured supplier evidence states 480×272. Confirm the exact model revision and current datasheet before design-in.
Which host interface does AT043TN25 V.2 use?
The captured supplier evidence indicates RGB / TTL. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering AT043TN25 V.2?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 1 piece.
Request Engineering Review
Send the exact target model, required quantity, host interface, mechanical drawing and application environment for compatibility review and quotation.
