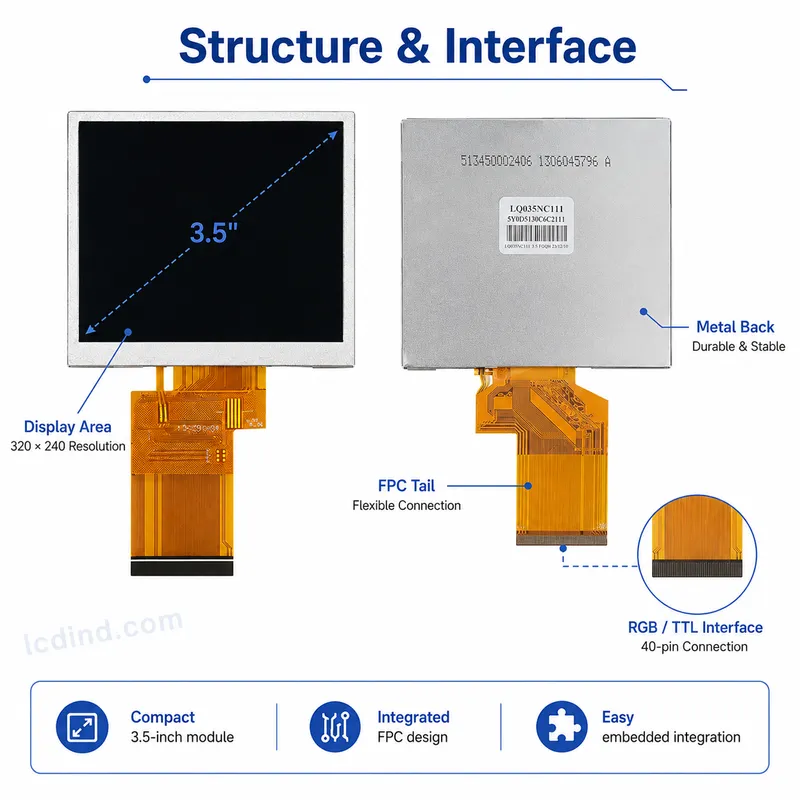

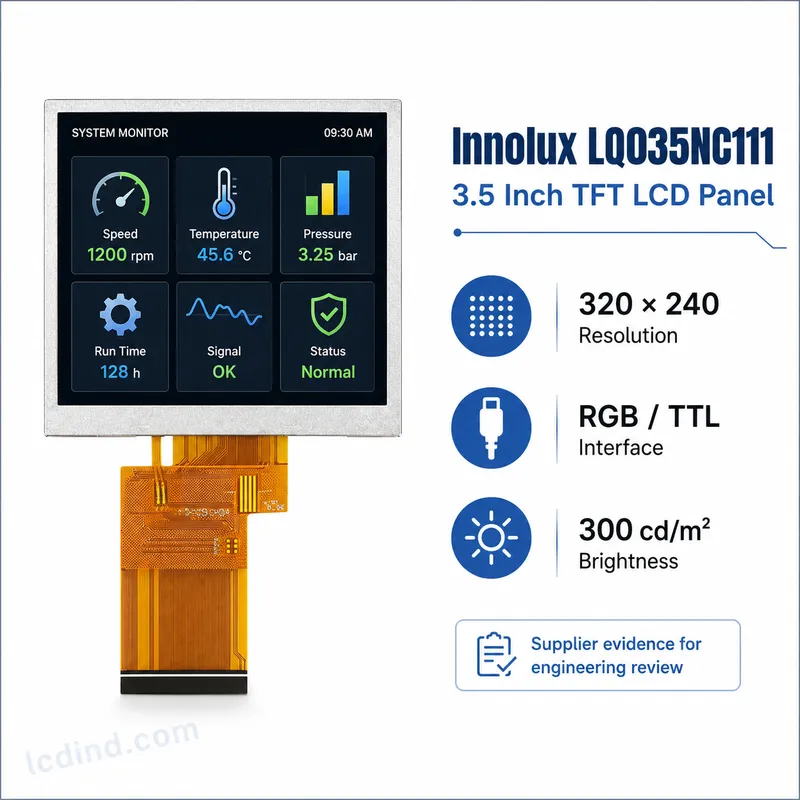

Innolux LQ035NC111 3.5 Inch 320×240 RGB / TTL TFT LCD Panel
Innolux LQ035NC111 LCD panel is prepared for industrial display replacement and OEM integration, with 320×240, RGB / TTL and 300 cd/m² (Typ.). Confirm the exact revision, connector, timing and mechanical fit before ordering.
Product Attributes
| Brand | Innolux LCD Panels |
|---|---|
| Size | 3.5 inch |
| Resolution | 320×240 |
| Brightness | Standard (200-450 nits) |
| Interface | RGB / TTL |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Angle | Standard Viewing |
Innolux LQ035NC111 LCD panel Overview

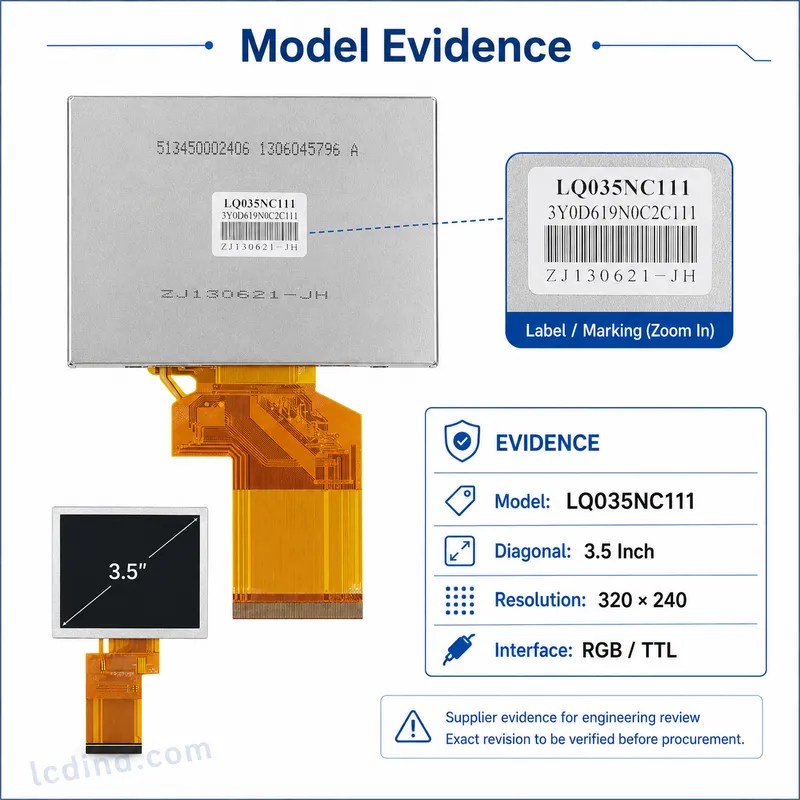

This Innolux TFT LCD panel draft is based on captured supplier evidence for engineering review. The exact model revision and integration constraints must be verified before procurement.
Key Features
- Panel model: LQ035NC111
- Diagonal size: 3.5 Inch
- Resolution: 320×240
- Interface: RGB / TTL
- Brightness: 300 cd/m² (Typ.)
Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 320×240, QVGA 115PPI |
| Display Type | TFT |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 300 cd/m² (Typ.) |
| Display Size | 3.5 inch |
| Operating Temperature | -20 ~ 70 °C |
| Screen Size | 3.5″ |
| Communication Interface | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pin |
| Contrast Ratio | 500:1 |
| Light Source | WLED [6S1P] , 10K hours , W/O Driver |
| Viewing Angle | 70/70/70/60 (L/R/U/D) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 16.7M 60% NTSC |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Weight | 0.2KG |
| Total Consumption | 0.43W |
| Selling Units | Single item |
| Single package size | 12X11X5 cm |
| Single gross weight | 0.2 kg |
Integration Notes

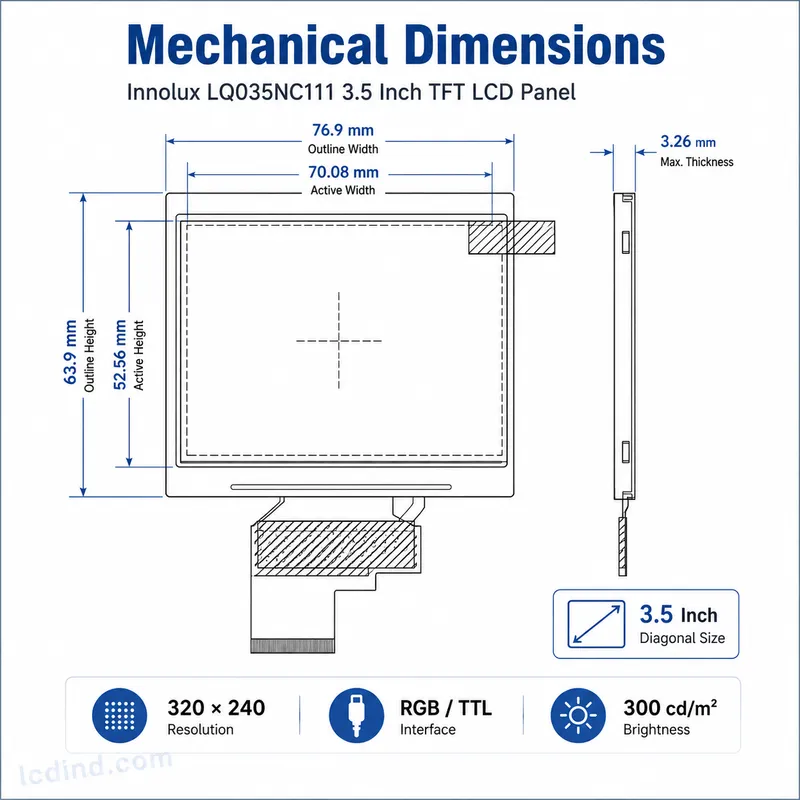

Confirm the active area, outline dimensions, mounting points, connector location, pin definition, timing, power rails, backlight driver and host-board compatibility against the current datasheet or an approved sample.
Engineering FAQ
What is the resolution of LQ035NC111?
The captured supplier evidence states 320×240. Confirm the exact model revision and current datasheet before design-in.
Which host interface does LQ035NC111 use?
The captured supplier evidence indicates RGB / TTL. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering LQ035NC111?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 10 pieces.
Request Engineering Review
Send the exact target model, required quantity, host interface, mechanical drawing and application environment for compatibility review and quotation.
| Brand | Innolux LCD Panels |
|---|---|
| Size | 3.5 inch |
| Resolution | 320×240 |
| Brightness | Standard (200-450 nits) |
| Interface | RGB / TTL |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Angle | Standard Viewing |
What is the resolution of LQ035NC111?
The captured supplier evidence states 320x240. Confirm the exact model revision and current datasheet before design-in.
Which host interface does LQ035NC111 use?
The captured supplier evidence indicates RGB / TTL. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering LQ035NC111?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 10 pieces.
