High Brightness LCD Display for Outdoor Control Consoles 13.4 inch MIPI

13.4 Inch 1200×1920 1000-Nit MIPI LCD for Outdoor Control Consoles

This 13.4 inch high-brightness MIPI LCD is prepared for outdoor control consoles, machine-side panels and daylight-readable industrial display programs. The detailed public table confirms 1200×1920 resolution, MIPI interface, 1000 nits brightness, all viewing directions, no touch panel in the standard configuration, -30 to +80°C operating temperature, -30 to +80°C storage temperature, 193.65×299.9×5.51 mm outline, 179.82×287.71 mm active area, 1000:1 contrast ratio, 3.3V power supply, 20000-hour LED lifetime and panel model ZC-134001-1001.

Confirmed Product Specifications

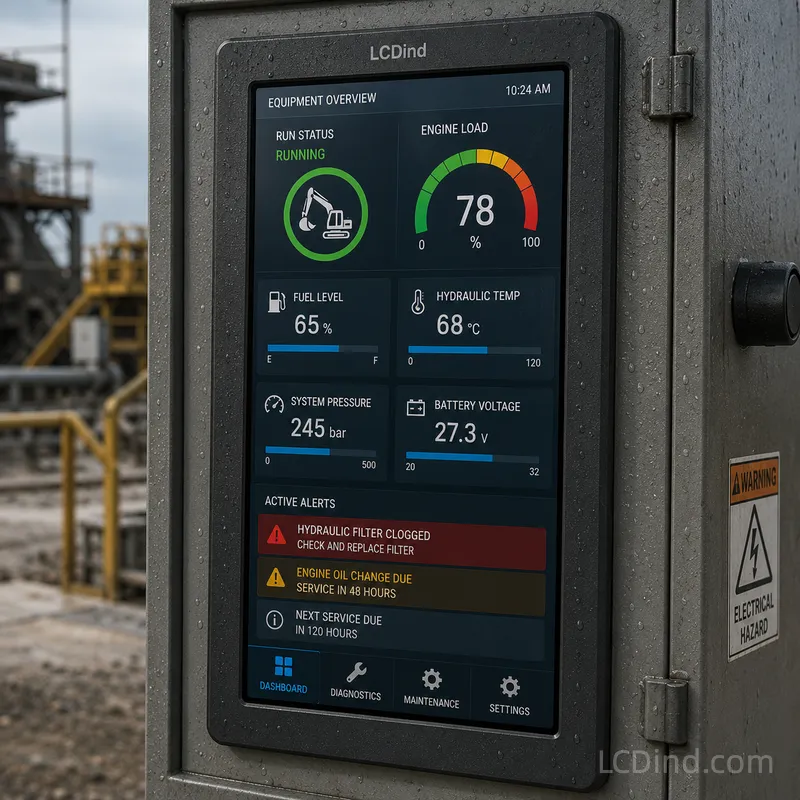

Outdoor Console Application Fit

The 13.4 inch portrait-format screen is relevant for EV charging stations, outdoor kiosks, transport terminals, industrial command panels and machine-side control consoles that need more vertical information than smaller bar displays. The high pixel count supports maps, status lists, service instructions and multi-section dashboards.

MIPI Bring-Up Requirement

MIPI display projects require host-platform review. Engineers should confirm lane count, pinout, initialization sequence, voltage, reset line, backlight control and software driver support. If the customer uses Android or Linux, provide board model and firmware constraints during RFQ.

No-Touch Standard Scope

The public table lists no touch panel in the standard configuration. If the outdoor console requires PCAP touch, LCDind should quote touch sensor, cover glass, bonding, ESD, grounding and glove or wet-touch requirements separately. Touch and cover glass can reduce brightness and change mechanical thickness.

Sunlight-Readable Stack

1000 nits is useful, but sunlight readability depends on cover reflection, optical bonding, anti-glare/anti-reflection treatment and UI contrast. The final assembly should be evaluated outdoors or under simulated high ambient light, not only by panel brightness.

Thermal Design

Outdoor consoles can face direct sun, sealed enclosures and high internal electronics heat. The -30 to +80°C panel range is helpful, but the complete assembly must handle heat, condensation, cable stress and adhesive behavior. Dimming strategy and thermal path should be part of the design.

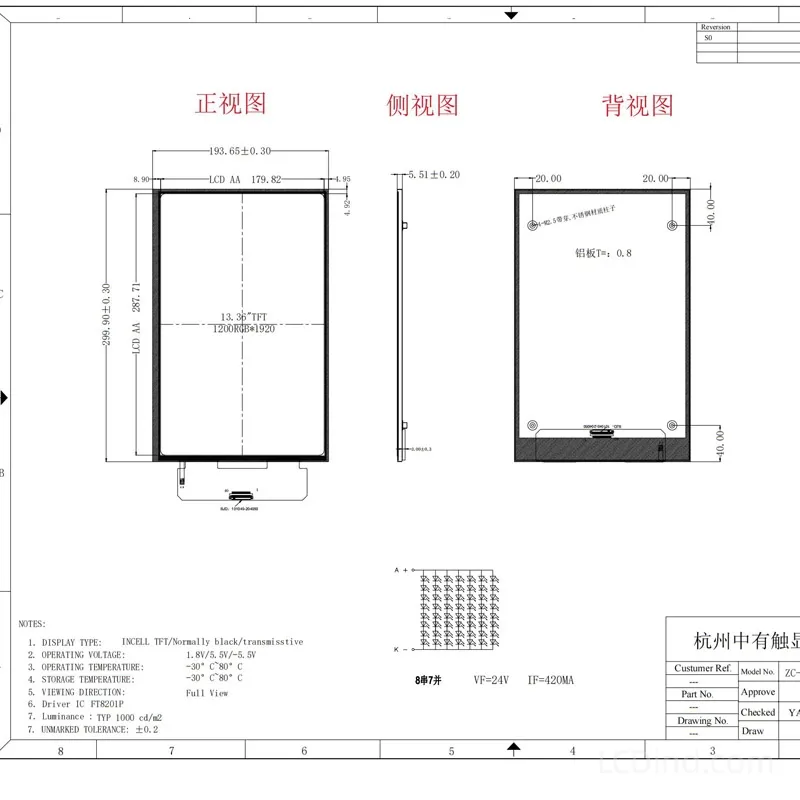

Mechanical Review

The tall 193.65×299.9 mm outline requires careful bezel alignment, cable routing and frame support. If the display is mounted in a public terminal, define vandal resistance, sealing, service access and glass stack before ordering samples.

Production Control

Lock panel model ZC-134001-1001, MIPI settings, cable, brightness target, front stack and inspection criteria for repeat orders. Substitutes should require engineering approval because outline, active area and initialization can differ.

Control Console UI Planning

A 13.4 inch 1200×1920 portrait display gives enough space for layered control screens, fault logs, diagrams and guided maintenance instructions. The UI should be planned around portrait use, with large touch targets if touch is added, clear warning hierarchy and readable text under bright light. Simply rotating a desktop interface can produce small controls and poor operator flow.

Outdoor Console Validation

Outdoor control consoles should be tested for day and night readability, dimming behavior, heat rise under sun load, condensation, cover-glass reflection and cable reliability. If the unit is part of an EV charger or public terminal, include vandal protection, service access and user-facing ESD in the assembly review. The panel brightness is only one part of the final equipment performance.

MIPI Software Risk

The 1200×1920 MIPI panel needs host driver support. If the buyer uses an embedded Android board, Linux SBC or custom processor, driver bring-up should be scheduled before mechanical tooling. Provide LCDind with the host board, OS version, display orientation and initialization requirement so the display path can be checked early.

Procurement Scope

For quotation, separate panel-only supply from a display assembly that includes cable, touch, cover lens, bonding, controller bridge or mechanical frame. Outdoor equipment programs often compare suppliers incorrectly when one quote is for a panel and another is for a tested assembly. Scope clarity protects the project schedule.

Engineering Quote Boundary

For this 13.4 inch console display, the RFQ should separate the base MIPI panel from any outdoor-ready assembly. A complete console display may need PCAP touch, chemically strengthened cover glass, optical bonding, sealing gasket, mounting frame, controller bridge, cable set and brightness-control firmware. If the buyer needs only the panel, the host-side MIPI bring-up remains the buyer's responsibility. Defining this boundary early prevents quotation mismatch and makes the sample stage measurable.

Field Acceptance for Control Consoles

Before volume approval, test the console display with the actual cabinet angle, cover glass, UI theme and dimming method. Include alarm screens, service menus, QR codes if used, and a long-duration high-brightness run. For outdoor consoles, also check whether operators can read the screen while standing, wearing gloves or viewing from the side. These field checks give better approval evidence than a brightness value alone.

RFQ Checklist

• Confirm MIPI lane count, pinout, initialization, connector, cable length and host platform.
• Define no-touch or PCAP touch/cover-glass/bonding scope, including ESD and wet/glove use.
• Provide enclosure drawing, outdoor lighting, operating temperature and duty-cycle requirement.
• State quantity, sample stage, forecast, inspection criteria and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is touch included?

No. The standard configuration is listed as no touch.

Is resolution confirmed?

The detailed table lists 1200×1920.

Does 1000 nits alone guarantee sunlight readability?

No. The cover stack and reflection control must also be validated.
