High Brightness LCD Display for Transport Dashboards 12.3 inch MIPI

12.3 Inch 720×1920 1000-Nit MIPI LCD for Transport Dashboards

This 12.3 inch high-brightness MIPI LCD is prepared for transport dashboards, EV charging interfaces, outdoor kiosks and machine-side panels that need a wide portrait-style 720×1920 display. The public table confirms 720×1920 resolution, MIPI interface, 1000 nits brightness, all viewing directions, no touch panel in the standard configuration, -25 to +75°C operating temperature, -30 to +80°C storage temperature, 123.5×304.7×5.51 mm outline, 109.51×292.03 mm active area, 1000:1 contrast ratio, 3.3V power supply, 20000-hour LED lifetime and panel model ZC-123001-1001.

Confirmed Product Specifications

Transport Dashboard Fit

The 12.3 inch size and 720×1920 resolution fit transport dashboards, vehicle status panels, charging equipment, outdoor service terminals and industrial consoles that need vertical information density. It can show status groups, warnings, route or equipment data and service menus in a narrow enclosure.

MIPI System Review

MIPI integration requires host confirmation. Provide processor platform, lane count, pinout, initialization sequence, orientation, reset, backlight control and software support. If the host is HDMI or LVDS, a controller or bridge solution should be quoted separately.

Brightness and Front Stack

The 1000-nit brightness supports daylight-readable use, but final performance depends on cover reflection, optical bonding and UI contrast. For transport dashboards, test through the actual front lens under sun, shade and night conditions. Dimming is important for operator comfort.

No-Touch Standard Scope

No touch is listed in the standard configuration. If touch is required, quote PCAP sensor, cover glass, bonding, ESD, grounding and glove/wet behavior separately. Touch design is especially important in vehicles and public terminals where noise and moisture conditions vary.

Environmental Review

The detailed table lists -25 to +75°C operation, while the attribute grouping labels ultra-wide/automotive. Use the detailed value for engineering review and confirm final requirement in RFQ. Complete dashboard assemblies should also consider vibration, condensation, sealing and power transients.

Mechanical Integration

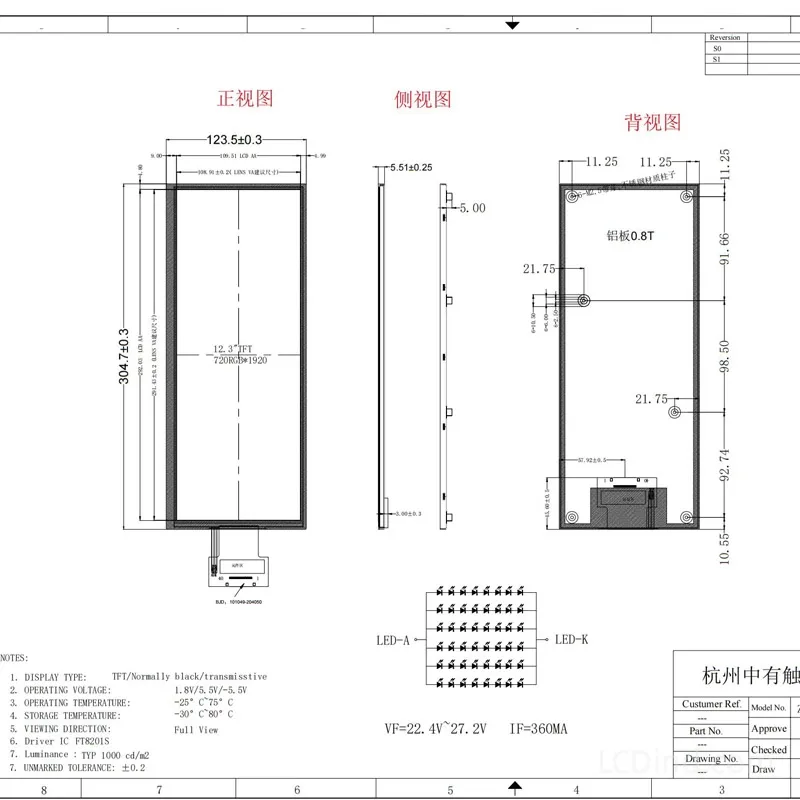

The 123.5×304.7×5.51 mm outline requires careful support in a long display window. Review bezel alignment, active area, FPC exit, cable bend, mounting pressure and service access before tooling.

Production Control

Lock panel model ZC-123001-1001, MIPI initialization, cable set, brightness target, front stack and inspection criteria. Substitutes should be checked for active area, outline and driver behavior.

Dashboard Information Architecture

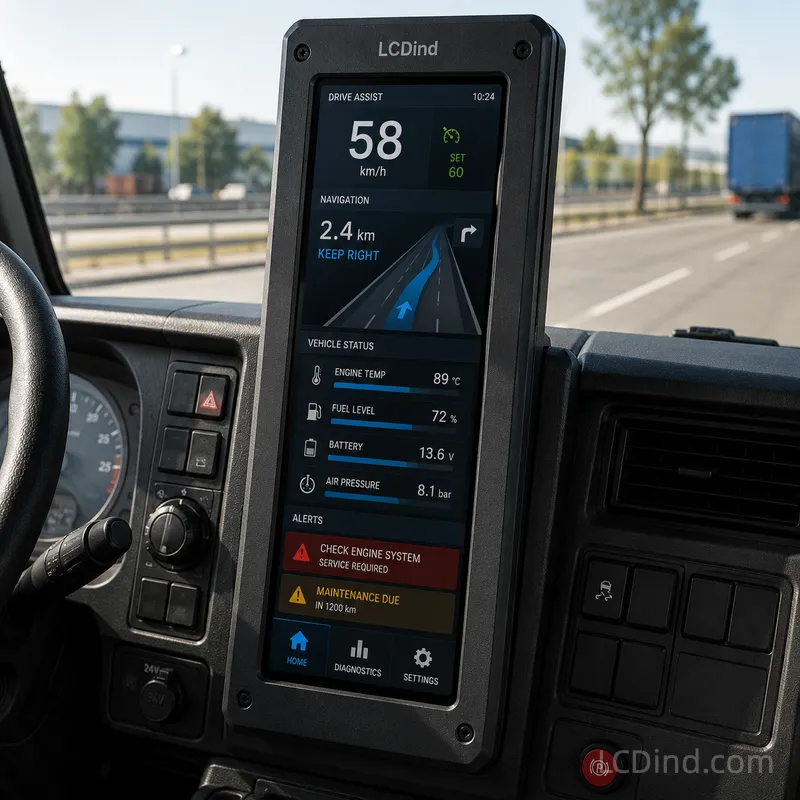

A 12.3 inch 720×1920 dashboard can display more than simple status. It can support warnings, route status, energy data, equipment state and service prompts in separate vertical zones. Engineers should define what must be visible at a glance and what can sit behind menus. Good information hierarchy reduces operator distraction and makes better use of the portrait format.

Transport Validation Items

Transport dashboards should be checked for vibration, temperature cycling, cold start, hot sun exposure, brightness dimming, optical reflection and cable retention. If the dashboard includes safety warnings, test the warning colors and text size under day, dusk and night lighting. The display should be validated in its intended mounting angle.

MIPI and Controller Scope

The buyer should specify whether the host outputs native MIPI or needs a bridge board. If the dashboard controller is already defined, provide its processor, MIPI lane count, connector and firmware status. If LCDind is expected to support controller selection, quote that scope separately.

Touch Decision

The base configuration is no touch. If a dashboard needs touch, review whether touch is appropriate for the operating environment, glove use, vibration and distraction risk. PCAP design must include cover glass, grounding, ESD and bonding method, and should be tested with the actual dashboard housing.

Transport Dashboard Quote Inputs

A useful RFQ should include dashboard drawing, display orientation, host processor, MIPI lane count, boot sequence, brightness-control method, target vehicle or equipment type and whether the display is safety-information related. If the screen shows warnings, the sample review should include warning text size, color contrast and readability from the actual driver or operator position. These are more important than a catalog brightness number alone.

Pilot Dashboard Approval

For pilot production, install the display in the dashboard mockup and test route/status screens, warning pages, brightness transitions and boot recovery. Transport dashboards are viewed while the operator is focused on other tasks, so information hierarchy and glare control matter. The buyer should approve the display with the final mechanical angle and cover lens before ordering volume parts.

RFQ Checklist

• Confirm MIPI lane count, pinout, initialization, connector, cable length and host platform.
• Define dashboard environment, temperature, vibration, dimming, front glass and touch requirement.
• Provide enclosure drawing, visible window, orientation, cable route and operating duty cycle.
• State sample quantity, forecast, validation criteria and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

What is the confirmed resolution?

720×1920.

Is touch included?

No. The public table lists no touch panel in the standard configuration.

Which temperature value should be confirmed?

The detailed table lists -25 to +75°C operation; final requirement should be confirmed in RFQ.
