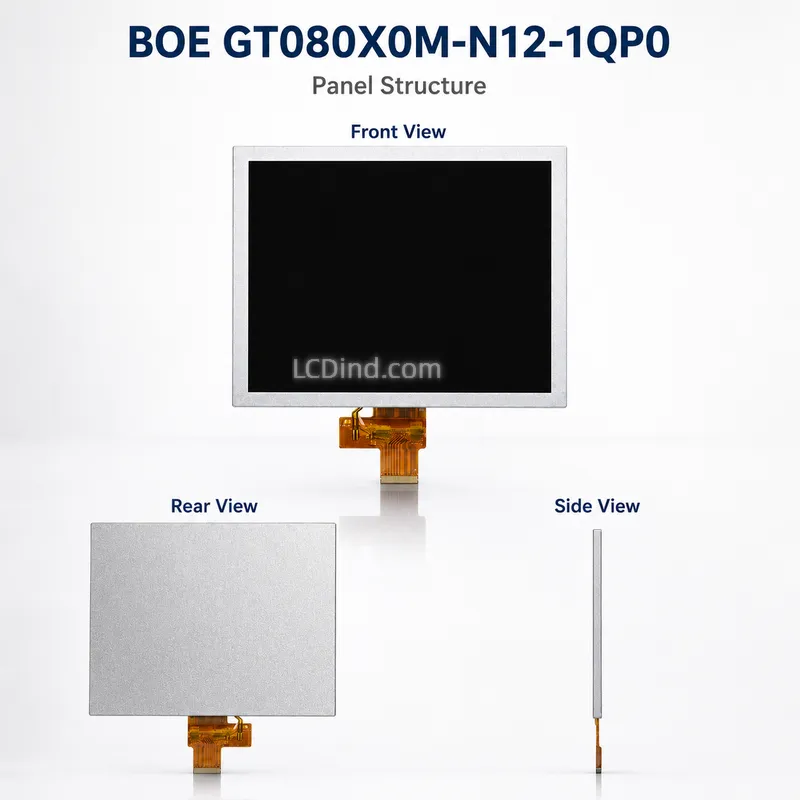

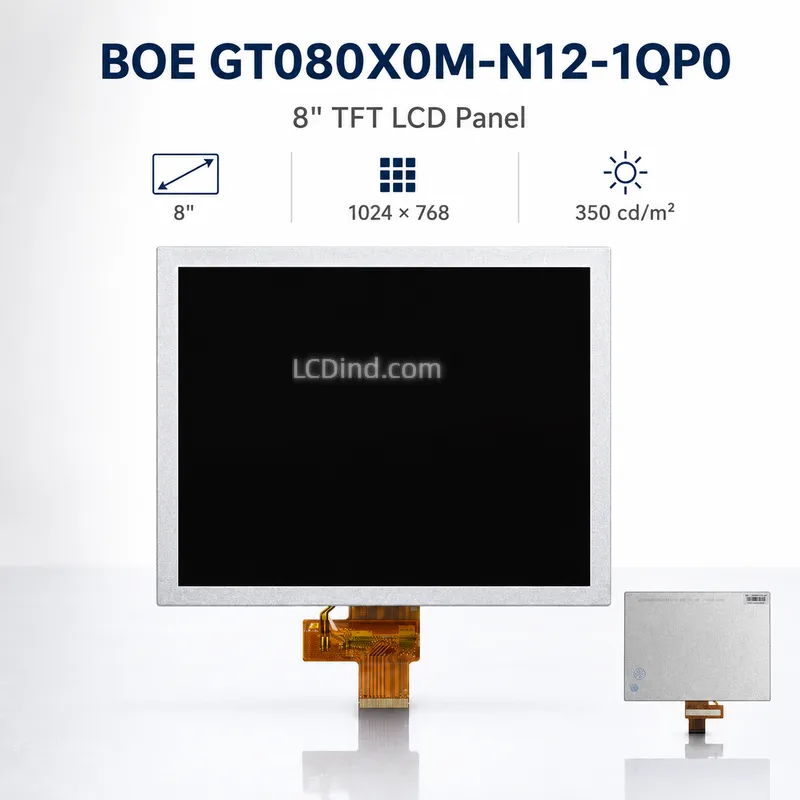

BOE GT080X0M-N12-1QP0 8 Inch 1024×768 TFT LCD Panel
GT080X0M-N12-1QP0 is a BOE TFT LCD panel listed with 1024×768, XGA 160PPI and an interface requiring confirmation. Send the exact model, quantity and host requirements for compatibility review and quotation.
Product Attributes
| Brand | BOE |
|---|---|
| Size | 8 inch |
| Resolution | 1024×768 |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Optional Touchscreen |
GT080X0M-N12-1QP0 Product Overview
GT080X0M-N12-1QP0 is a BOE TFT LCD panel prepared as a sourcing reference for OEM equipment and display-integration projects. The exact panel revision, mechanical fit and host compatibility should be confirmed before ordering.
Key Features
- Resolution: 1024×768, XGA 160PPI
- Brightness: 400 cd/m² (Typ.)
- Operating temperature: -20 ~ 70 °C
Key Attributes and Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 1024×768, XGA 160PPI |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 400 cd/m² (Typ.) |
| Brand | BOE |
| Display Size | 8 inch |
| Place of Origin | Beijing, China |
| Supplier Type | Original Factory Agent |
| Brand Name | BOE |
| Operating Temperature | -20 ~ 70 °C |
| Screen Size | 8.0″ |
| Communication Interface | LVDS (1 ch, 8-bit) , 40 pins FPC |

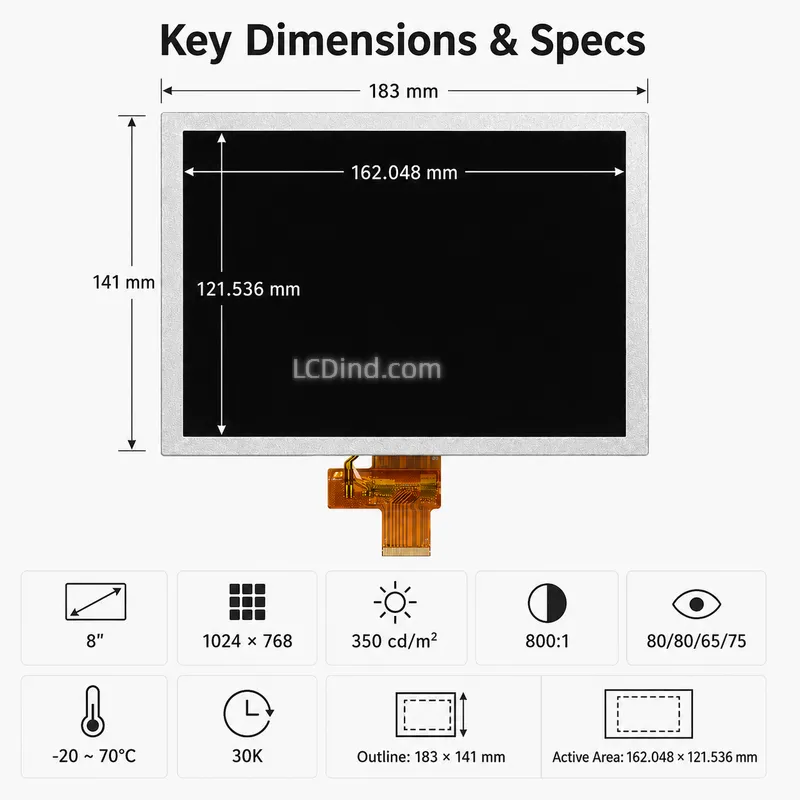

| Active Area | 162.048(W)x121.536(H) mm |
| Outline Dimension | 183(W)x141(H) x 3.7(D) mm |
| View angle | 75/75/75/70 (Typ.) |
| contrast ratio | 500:1 |
| Backlight | 3S11P WLED , Without Driver |
| Display mode | TN, Normally White, Transmissive |
| Display Colors | 16.2M 50% NTSC |
| Response | 20 (Typ.)(Tr+Td) ms |
| Total Consumption | 1.87W |
| Selling Units | Single item |
| Single package size | 30X25X10 cm |
| Single gross weight | 0.4 kg |
Integration and Compatibility Review
Confirm the connector position, pin definition, timing, power requirements, mounting method and host-board compatibility against the current datasheet or sample.
Customization and Project Options

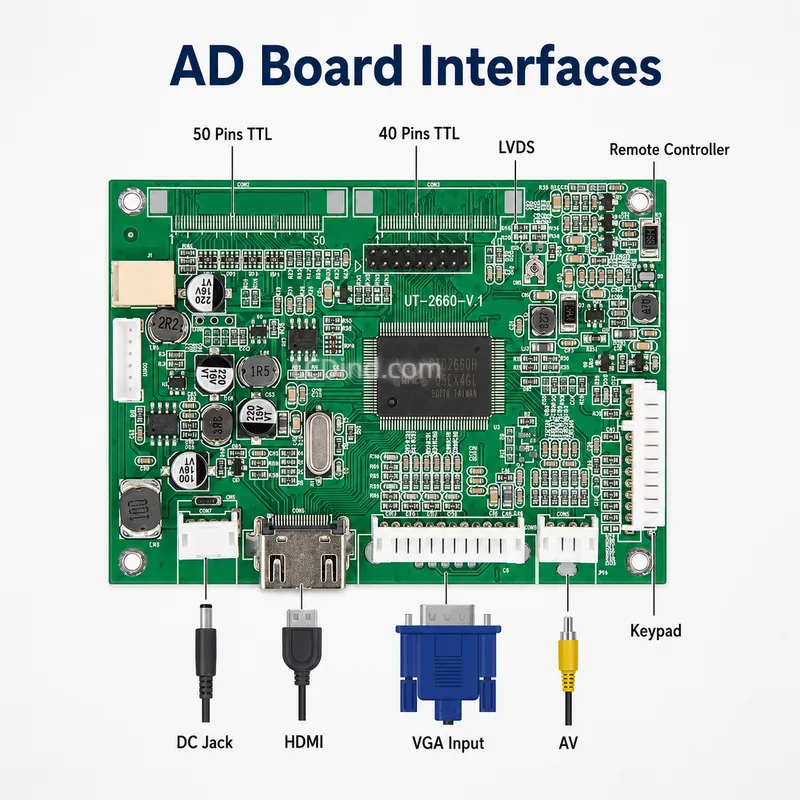

Touchscreen, cable, controller-board and mechanical requirements depend on the selected configuration and must be confirmed for the project.
MOQ and Quotation
The supplier listing MOQ is Min. Order: 1 piece. Send the required quantity and exact configuration for a project quotation.
Packaging and Delivery
Confirm packaging method, delivery schedule, freight terms and inspection requirements before ordering.
RFQ Checklist
- Exact panel model and revision
- Required quantity
- Host interface and timing
- Mechanical drawing and mounting constraints
- Touchscreen, cable or controller requirements
- Target application and operating environment
Engineering FAQ
What is the resolution of GT080X0M-N12-1QP0?
The supplier listing states 1024×768, XGA 160PPI.
Which interface does GT080X0M-N12-1QP0 use?
Confirm the host interface and connector definition before quotation.

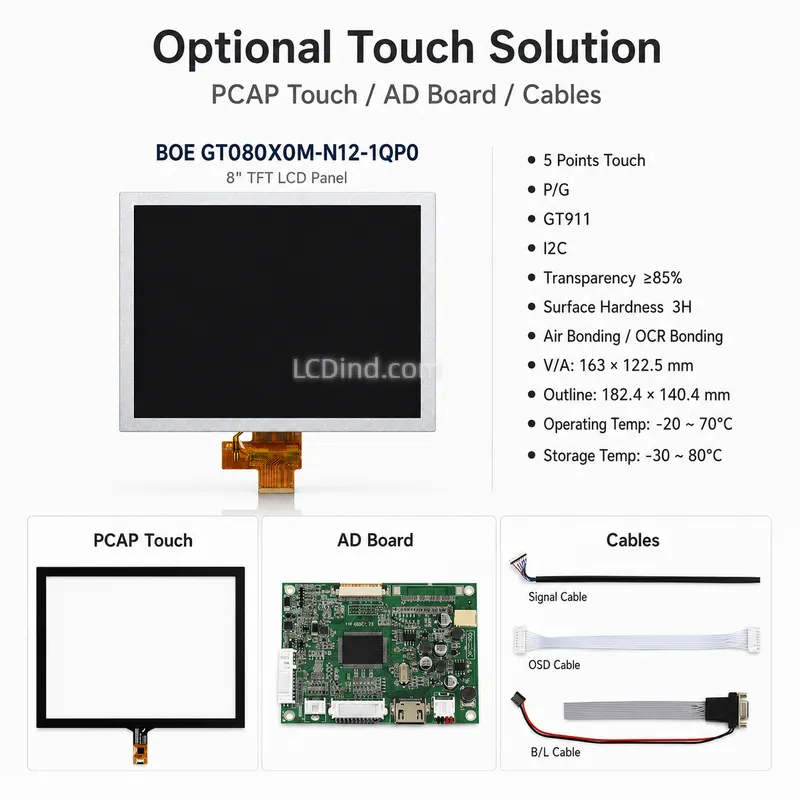

Is a touchscreen included?
Touchscreen availability depends on the selected configuration. Confirm the required touch technology, cover glass and interface.
What should engineers confirm before ordering?
Confirm the exact panel model or revision, mechanical outline, active area, connector position, pin definition, timing, host voltage and operating environment.
What information is needed for a quotation?
Send the model or datasheet, required quantity, host interface, mechanical drawing and application. The supplier listing MOQ is Min. Order: 1 piece.
Request a Quote
Send your datasheet, quantity and integration requirements for compatibility review and quotation.
| Brand | BOE |
|---|---|
| Size | 8 inch |
| Resolution | 1024×768 |
| Brightness | Standard (200-450 nits) |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | Optional Touchscreen |
What is the resolution of GT080X0M-N12-1QP0?
The supplier listing states 1024x768, XGA 160PPI.
Which interface does GT080X0M-N12-1QP0 use?
Confirm the host interface and connector definition before quotation.
Is a touchscreen included?
Touchscreen availability depends on the selected configuration. Confirm the required touch technology, cover glass and interface.
What should engineers confirm before ordering?
Confirm the exact panel model or revision, mechanical outline, active area, connector position, pin definition, timing, host voltage and operating environment.
What information is needed for a quotation?
Send the model or datasheet, required quantity, host interface, mechanical drawing and application. The supplier listing MOQ is Min. Order: 1 piece.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
