BOE BA104S01-300 10.4 Inch 800×600 TFT LCD Panel

BOE BA104S01-300 10.4 Inch SVGA LVDS TFT Panel for Industrial Replacement

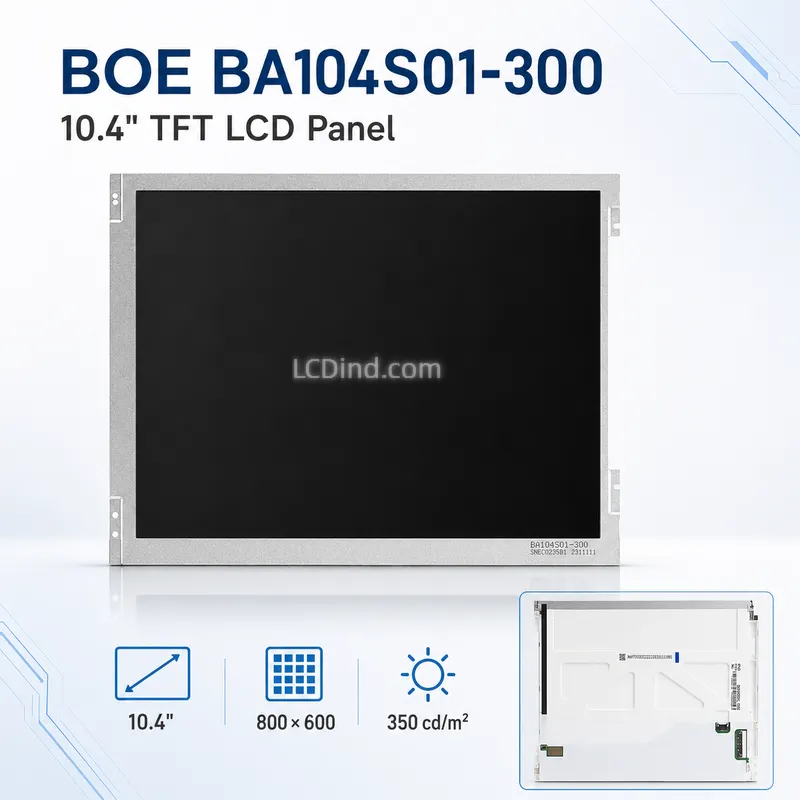

BOE BA104S01-300 is a 10.4 inch SVGA TFT LCD panel for industrial replacement and OEM integration projects where 800×600 resolution is still required. The public specification confirms 800×600 SVGA resolution at 96 PPI, 350 cd/m² typical brightness, LVDS 1-channel 6/8-bit communication interface with 20-pin connector, 211.2×158.4 mm active area, 236×176.9 mm outline, 5.6±0.3 mm outline depth, 80/80/65/75 typical viewing angle, 800:1 contrast ratio, WLED backlight with LED driver rated 30K hours, TN normally white transmissive operating mode, 262K/16.2M colors, 55% NTSC, 30 ms response time, 2.57W maximum consumption and -20 to 70 °C operating temperature.

Confirmed Product Specifications

10.4 Inch SVGA Replacement Fit

10.4 inch 800×600 panels are still widely used in legacy industrial HMIs, medical equipment, automation consoles, testing devices and transport systems. In these projects, matching the original resolution and 4:3 geometry is often more important than upgrading to a modern widescreen panel. A wrong resolution can cause clipped controls, scaling errors or controller incompatibility.

LVDS Interface Confirmation

The public specification lists LVDS 1-channel 6/8-bit with a 20-pin connector. The RFQ should confirm bit depth, mapping, panel voltage, connector direction and cable length. If the old display uses TTL, eDP, HDMI or a different LVDS connector, this panel cannot be assumed to be a direct replacement. Provide original panel and controller details before ordering.

Brightness and Viewing Boundary

The 350 cd/m² brightness and TN viewing angle are suitable for many indoor industrial devices, but operator position matters. If the display is mounted high, low or at an angle, test readability from the real viewing direction. If touch or protective glass is added, brightness and contrast through the final stack should be checked.

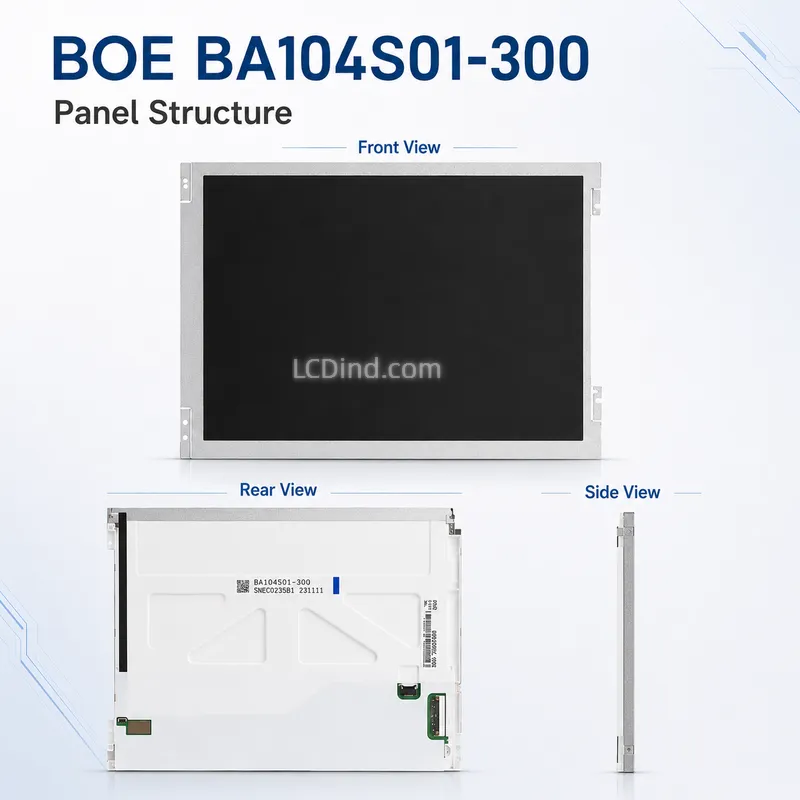

Mechanical Fit and Drawing Review

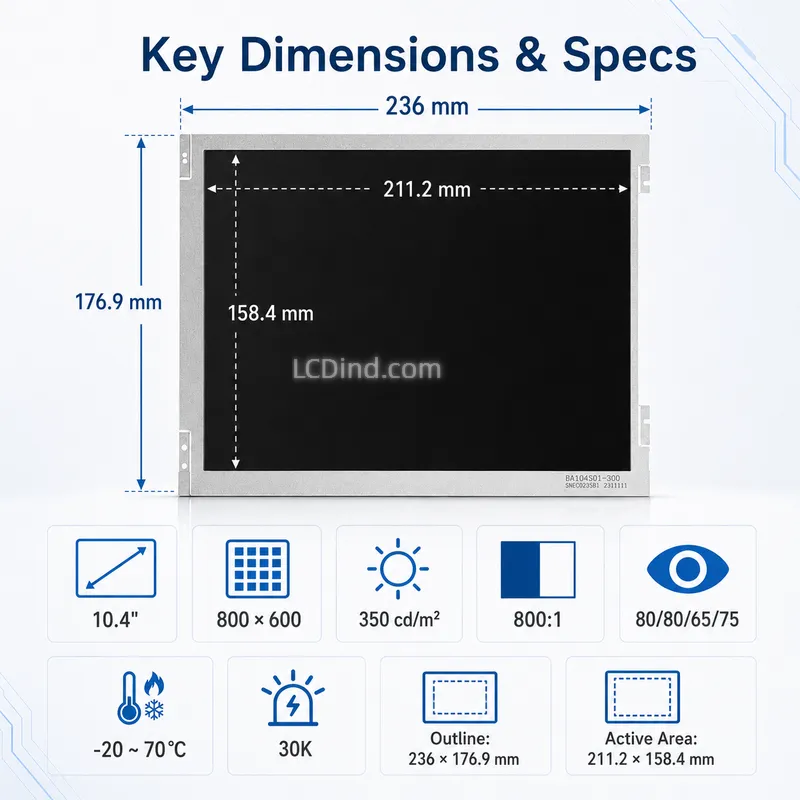

The 211.2×158.4 mm active area and 236×176.9 mm outline should be compared with the existing bezel and mounting structure. Replacement buyers should provide label photos, rear structure, connector location and cable route. OEM buyers should confirm gasket pressure, support points, cover lens and access for service.

Temperature and Reliability

The -20 to 70 °C operating range is useful for industrial equipment. Still, sealed enclosures, hot control cabinets and long daily operation require thermal review. Engineers should check backlight life, power consumption, heat path and hot/cold start behavior in the final system.

Procurement Control

For long-term service programs, lock BOE model, revision, LVDS cable, incoming inspection criteria, packaging and substitute approval process. A substitute with the same 10.4 inch size and 800×600 resolution can still differ in viewing direction, connector and outline.

Sample Validation

Sample tests should include LVDS image stability, white and black pattern inspection, pixel defects, viewing direction, UI scaling, backlight uniformity, hot/cold start and cable movement. If the product repairs a legacy device, verify operation with the original controller instead of a generic test board only.

Commercial Use of This Page

This page should help industrial buyers decide whether BA104S01-300 fits a controlled replacement or OEM project. It should not imply universal compatibility. The buyer should send exact model, quantity and host requirements for engineering review and quotation.

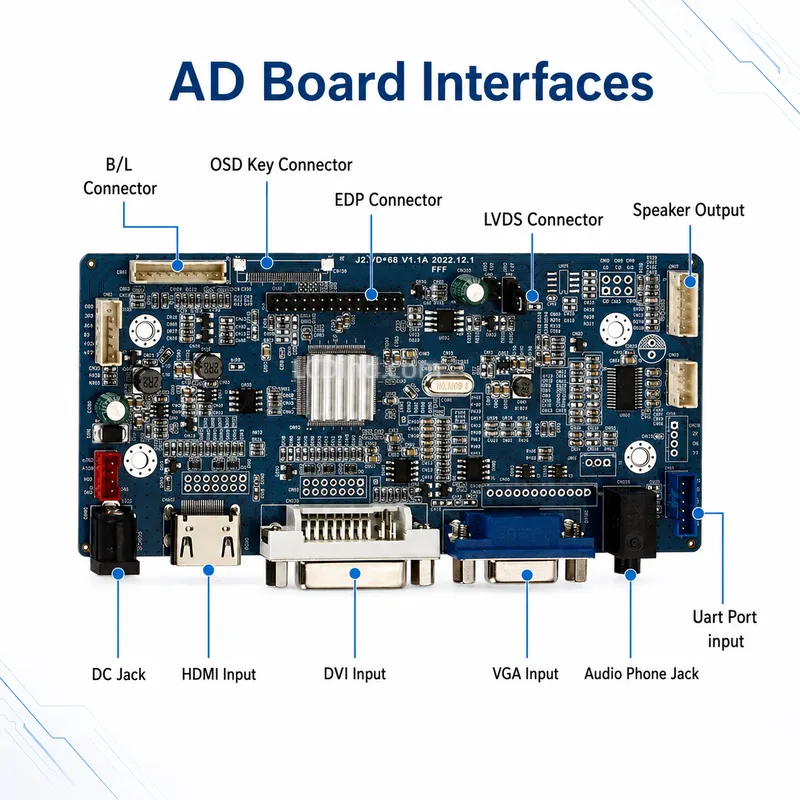

Why the 20-Pin LVDS Detail Matters

Many legacy 10.4 inch panels use different connector systems even when resolution is the same. The 20-pin LVDS connector should be checked against the original cable and controller before a replacement order. If the existing system uses a different connector, LCDind may need to quote a cable change, controller change or another panel. This should be solved before the buyer stocks service inventory.

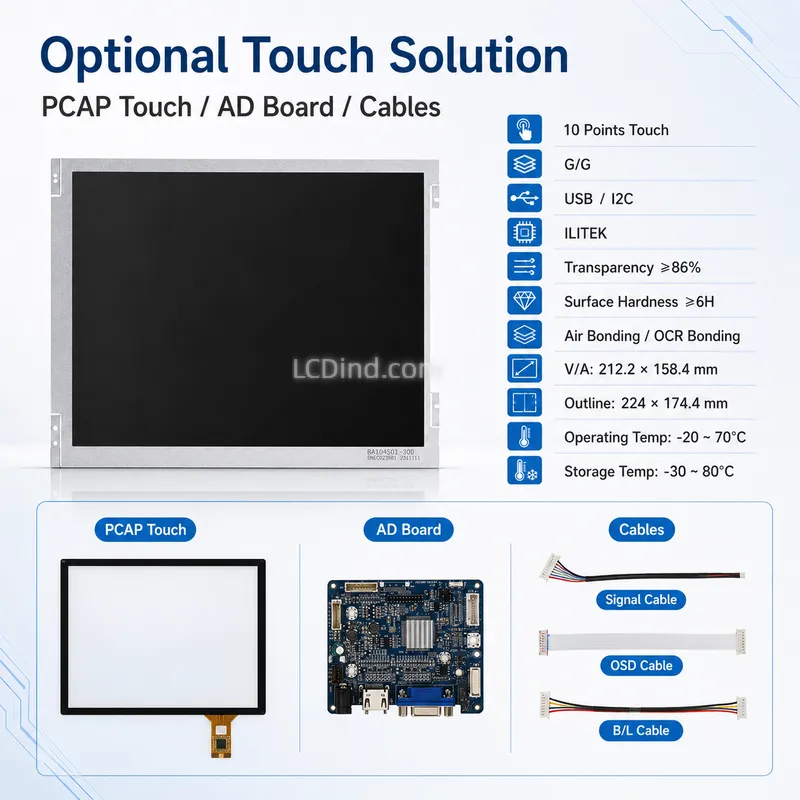

Legacy UI and Front-Panel Review

SVGA 800×600 remains valuable when machine software has fixed window positions and button sizes. Engineers should verify that the replacement panel preserves active-area alignment with the bezel and touch overlay if one exists. If the front panel includes resistive touch, membrane keys or a protective lens, the optical and mechanical stack should be reviewed with the original assembly.

RFQ Checklist

• Confirm exact BOE BA104S01-300 revision, LVDS mapping, 20-pin connector, voltage and cable requirement.
• Provide original panel label, controller model, enclosure drawing, visible window and mounting method.
• State operating temperature, touch/cover glass requirement, viewing direction and duty cycle.
• Define sample quantity, annual forecast, inspection criteria, packaging and substitute rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is it a modern widescreen panel?

No. It is a 10.4 inch 800×600 SVGA panel for 4:3 equipment.

What interface is confirmed?

LVDS 1-channel 6/8-bit with a 20-pin connector.

Is it suitable for legacy replacement?

Potentially yes, but connector, timing and mechanics must be checked.
