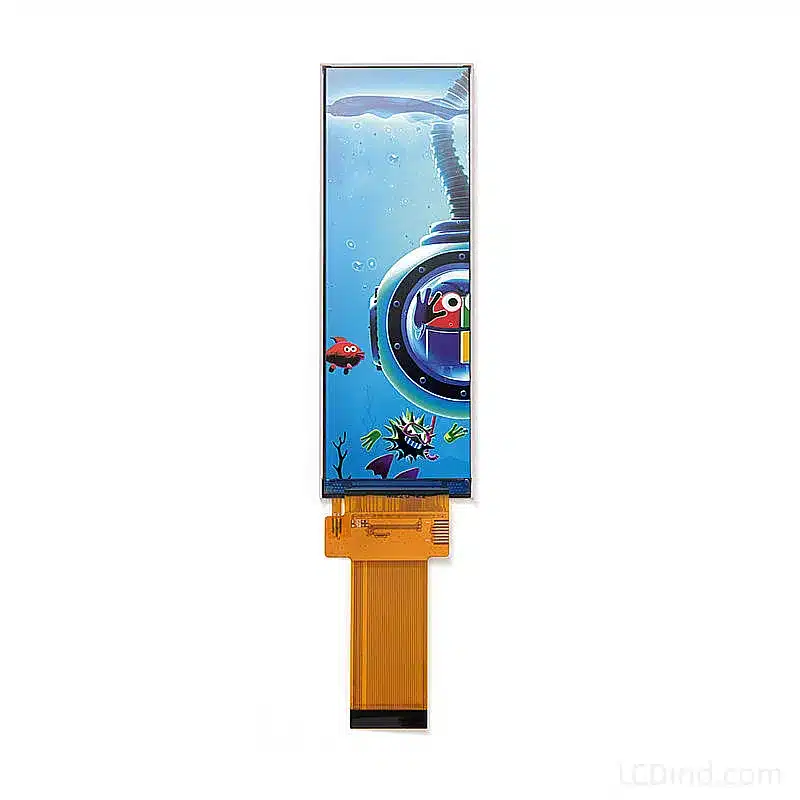

4.6 Inch Bar Type LCD Display Module 320×960 IPS Bar LCD Display
4.6″ IPS Stretched Bar LCD (320×960). Features 16-Bit RGB Interface for Audio & Appliances. High Contrast.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 4.6 inch |
| Resolution | |
| Interface | SPI |
| Brightness | Standard (200-450 nits) |
| Outline Dimension | 41.57 × 118.8 × 2.5 mm |
| Viewing Angle | 80/80/80/80 (IPS) |
| Operating Temp | Industrial (-20 to +70°C) |
| Pixel Pitch: | 114.9 × 114.9 um |
4.6 Inch Bar Type LCD: The Golden 1:3 Ratio
For applications where a square screen doesn’t fit and a super-thin strip is too limiting, the 4.6 Inch Bar Type LCD Display Module offers the perfect balance. With a resolution of 320×960, it provides a 1:3 aspect ratio that is ideal for displaying lists, spectrums, or vertical controls.
Why Choose This 4.6 Inch Stretched Screen?
1. Optimized 320×960 Resolution
Compared to narrower 240px screens, this module’s 320px width allows for sharper graphics and more legible fonts. It is particularly effective for audio equalizers, server rack status monitors, or smart home appliance displays where you need to show multiple data points clearly.
2. Efficient 16-Bit RGB Interface
Designed for embedded systems, this module utilizes a 3-wire SPI + 16-Bit RGB interface.
-
Benefit: The 16-bit color depth (65K colors) reduces the data load on your MCU compared to 24-bit, allowing for faster refresh rates on mid-range processors while still delivering vibrant visuals suitable for most HMI graphics.
3. Industrial IPS Quality
The module features IPS technology with 80/80/80/80 viewing angles. This ensures that whether the user is standing above a washing machine or looking at a rack-mounted device from the side, the colors remain inverted-free and consistent.
Detailed Specifications
| Feature | Specification |
| Model Name | 4.6 Inch Bar Type LCD |
| Resolution | 320 (RGB) × 960 |
| Active Area | 36.77 × 110.3 mm |
| Module Size | 41.57 × 118.8 × 2.5 mm |
| Interface | 3SPI + 16-Bit RGB |
| Brightness | 300 cd/m² (Typ.) |
| Operating Temp | -20°C ~ +70°C |
| Backlight | White LED |
Technical FAQ
Q: What is the difference between 16-Bit RGB and 24-Bit RGB?
A: 16-Bit RGB (RGB565) uses 16 data lines, whereas 24-Bit uses 24 lines. This 4.6-inch module uses 16-Bit RGB, which saves 8 GPIO pins on your microcontroller and requires less memory bandwidth, making it easier to drive with cost-effective MCUs.
Q: Can I use this screen vertically and horizontally?
A: Yes. The hardware resolution is 320×960 (Portrait). However, thanks to the IPS panel, you can rotate the content 90 degrees in software to use it as a 960×320 landscape display without any loss in viewing quality.
Q: Does it include a touch panel?
A: The standard part is a display module only. However, we can provide custom Capacitive Touch Panel (CTP) bonding services. The 36mm width is sufficient for slider controls or buttons.
Upgrade Your Device Interface

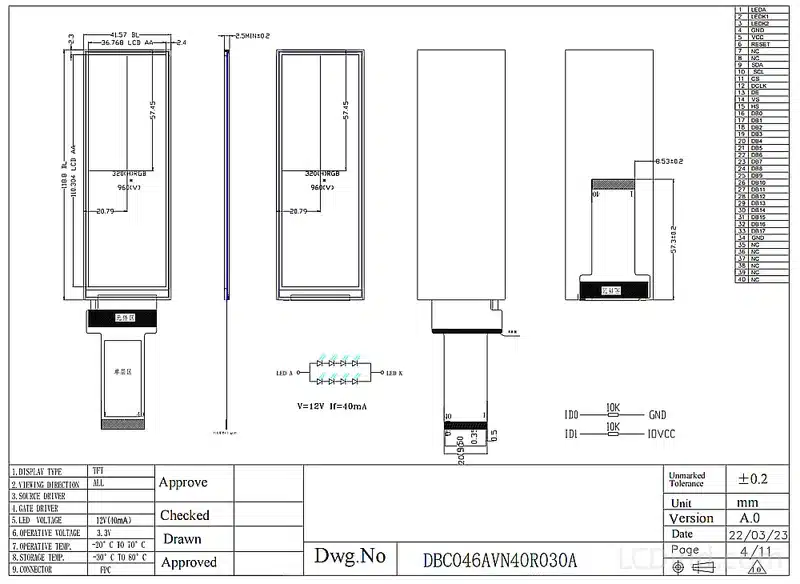

Get the full datasheet and pinout definition.
| Brand | LCDind |
|---|---|
| Size | 4.6 inch |
| Resolution | |
| Interface | SPI |
| Brightness | Standard (200-450 nits) |
| Outline Dimension | 41.57 × 118.8 × 2.5 mm |
| Viewing Angle | 80/80/80/80 (IPS) |
| Operating Temp | Industrial (-20 to +70°C) |
| Pixel Pitch: | 114.9 × 114.9 um |
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
