6.2 Inch 4K Mono LCD 3D Printer Screen | 3840×2400 Display Kit
The 6.2 Inch 4K Mono LCD delivers exceptional surface detail for MSLA resin printing by packing a massive 3840×2400 resolution into a compact form factor. With an ultra-fine 34um pixel pitch, this monochrome display eliminates jagged edges on complex miniatures and dental models. Engineered strictly as an open-cell module without a backlight, it maximizes 405nm UV light transmittance to achieve rapid curing times. Bundled with a dedicated 50-pin MIPI controller board, it serves as the ultimate upgrade or replacement for high-precision desktop machines like the Anycubic Photon Mono 4K. Revive your machine’s precision today. Click “Inquire Now” to confirm compatibility and secure bulk pricing.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | |
| Size | 6.2 inch |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch, Optional Touchscreen |

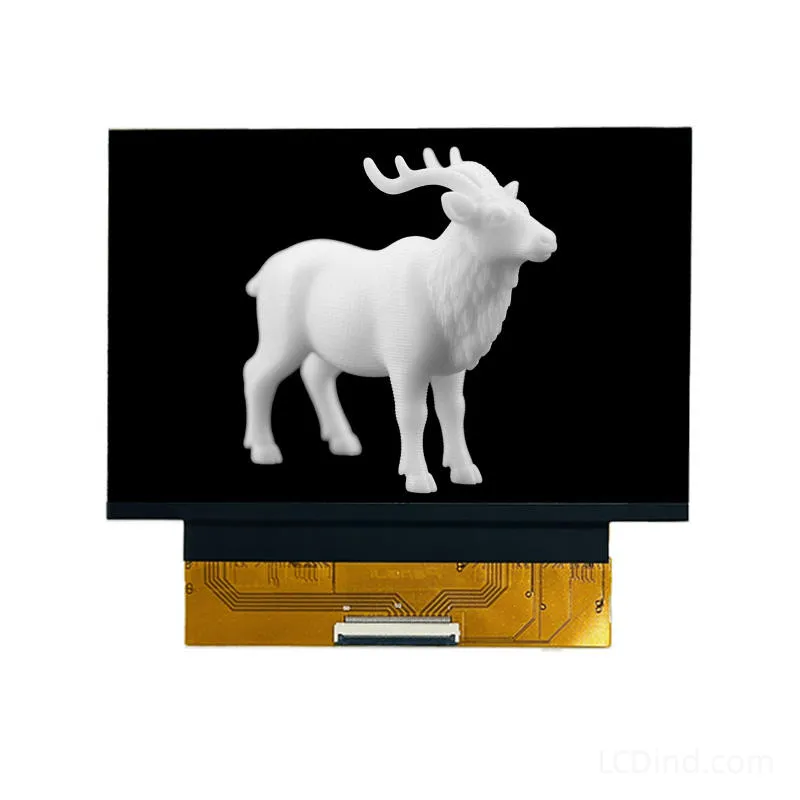

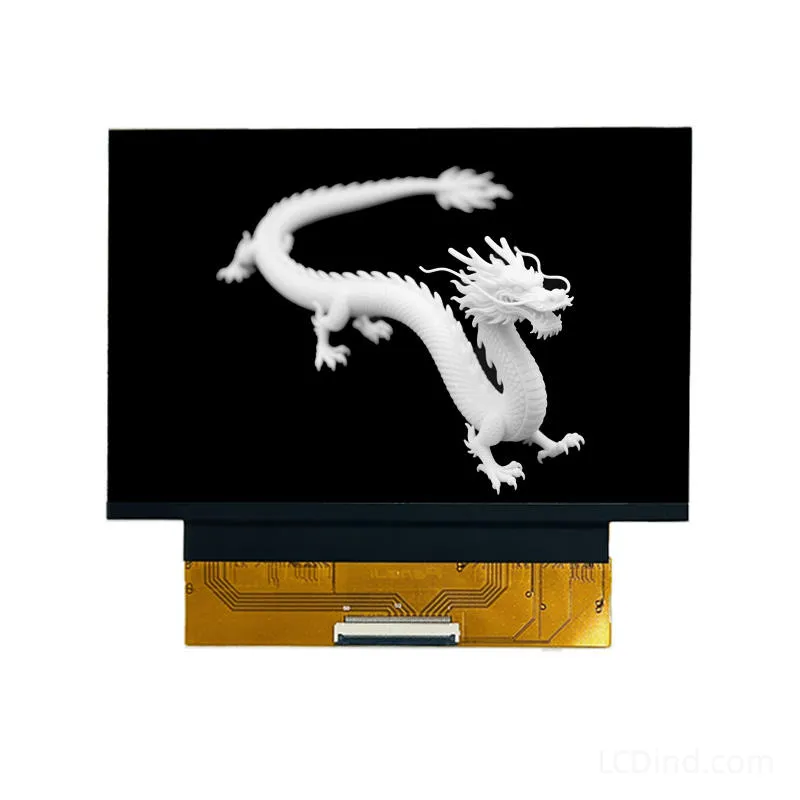

Uncompromising Detail: 6.2 Inch 4K Mono LCD for 3D Printer
Surface quality in resin 3D printing relies entirely on physical pixel density. The 6.2 Inch 4K Mono LCD transforms liquid resin into solid perfection by utilizing a native 3840 x 2400 pixel array. Operating within a 134.40 x 84.00 mm active area, it achieves a microscopic 34×34 um pixel pitch. This tight physical specification guarantees that curved surfaces on tabletop miniatures and intricate architectural models print with glass-like smoothness.
Purpose-Built Monochrome Durability
Standard RGB screens degrade quickly under the intense heat of UV LED matrices. This module utilizes a dedicated transmissive, normally black monochrome matrix boasting a minimum 300:1 contrast ratio. This robust design strictly blocks unwanted light in negative spaces while allowing maximum UV throughput in exposed areas. The result is razor-sharp model edges and an operational temperature range stretching from -20°C to 70°C, ensuring panel stability during massive, multi-hour print jobs.
Seamless MIPI Integration

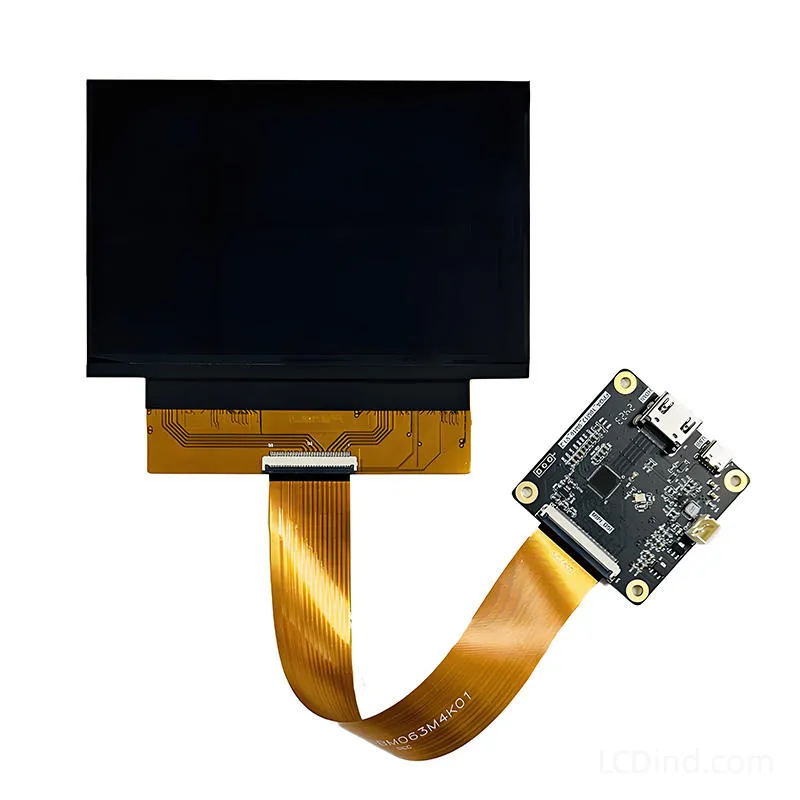

Bridging the gap between the display panel and your motherboard, the integrated driver board simplifies hardware integration. It communicates via a high-speed 50-pin MIPI interface, providing the necessary bandwidth to handle flawless 4K video rendering frame by frame.
LCD Display Solution
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization Options
- Customized packaging (Min. order: 1,000 pieces)
- Customized logo (Min. order: 1,000 pieces)
- Graphic customization (Min. order: 1,000 pieces)
Technical Specifications

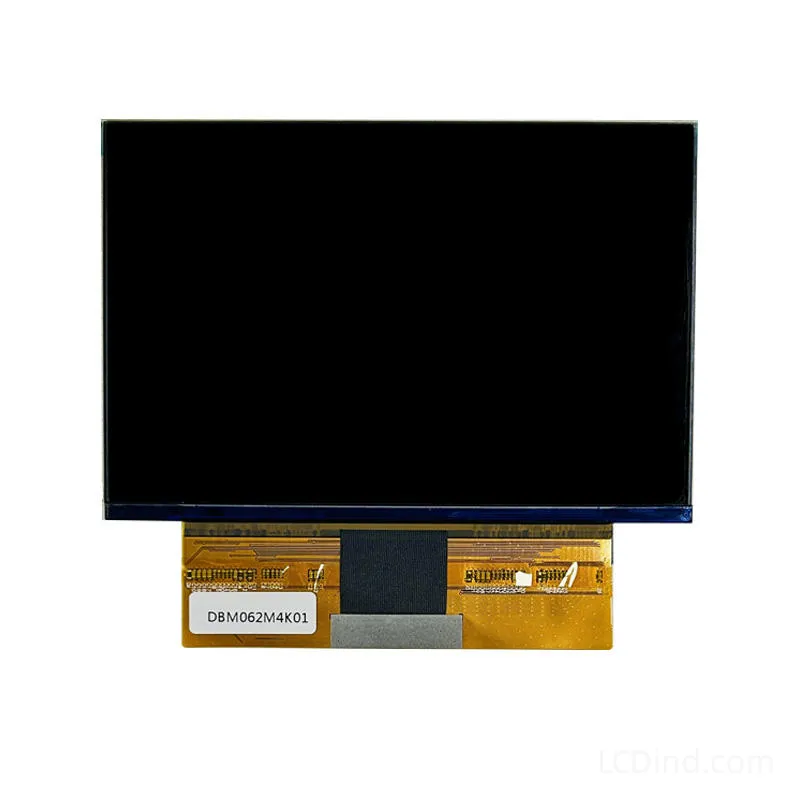

| Model Name | DBM062M4K01 |
| Display Size | 6.2 Inch (Diagonal) |
| Resolution | 3840 x 2400 (4K Mono LCD) |
| Display Mode | Transmissive, Normally Black |

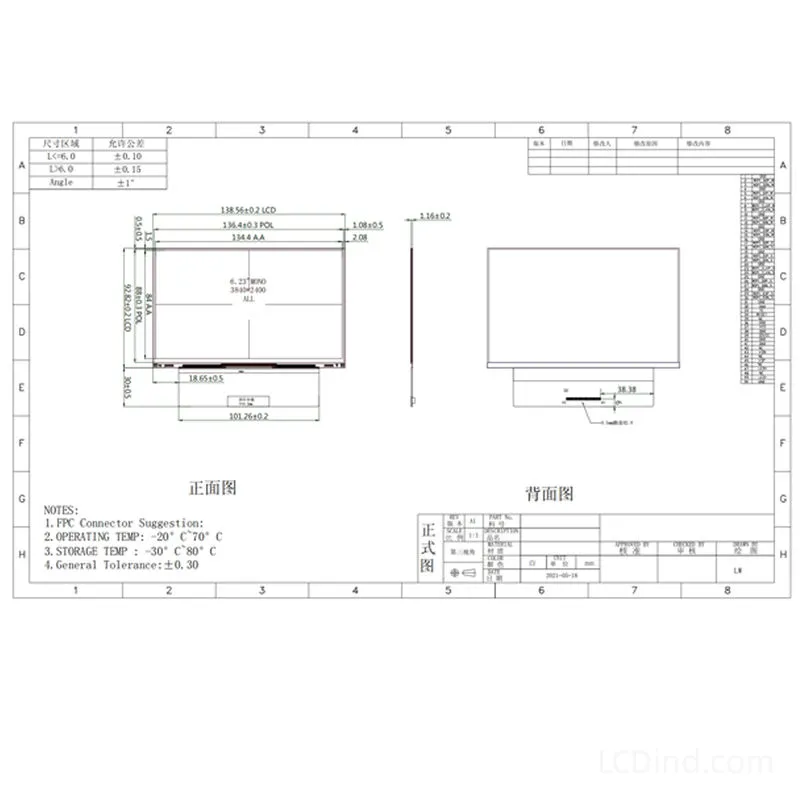

| Active Area | 134.40(W) x 84.00(H) mm |
| Outline Dimension | 138.56(W) x 92.82(H) x 1.16(D) mm |
| Pixel Pitch | 34 x 34 um |
| Interface | 50 Pins MIPI |
| Viewing Angle | 85/85/85/85 (Typ.) (CR≥10) |
| Contrast Ratio | Min 300:1 |
| Operating Temp | -20°C ~ 70°C |
| Storage Temp | -30°C ~ 80°C |
| Application | 3D Printer |
Engineering FAQ
Q: What is the main advantage of the 34um pixel pitch?
A: The 34×34 um pixel pitch represents the physical distance between each light-emitting pixel. A smaller number means a higher pixel density. At 34um, the display renders curves and diagonal lines so finely that the “staircase” effect (layer lines) becomes practically invisible to the naked eye on your printed models.
Q: Will this 6.2 inch 4K screen fit my Anycubic Photon Mono 4K?
A: Yes. The 138.56 x 92.82 mm outline dimensions and the 3840×2400 resolution are a direct hardware match for 6.2″ / 6.23″ class 4K printers like the Anycubic Photon Mono 4K. Please verify your mainboard’s FPC connector style before purchasing.
Q: Does this screen come with a backlight unit?
A: No. As explicitly designed for MSLA 3D printers, this is an “Open Cell” module delivered without a backlight. You will place this masking LCD directly above your printer’s existing UV LED array.

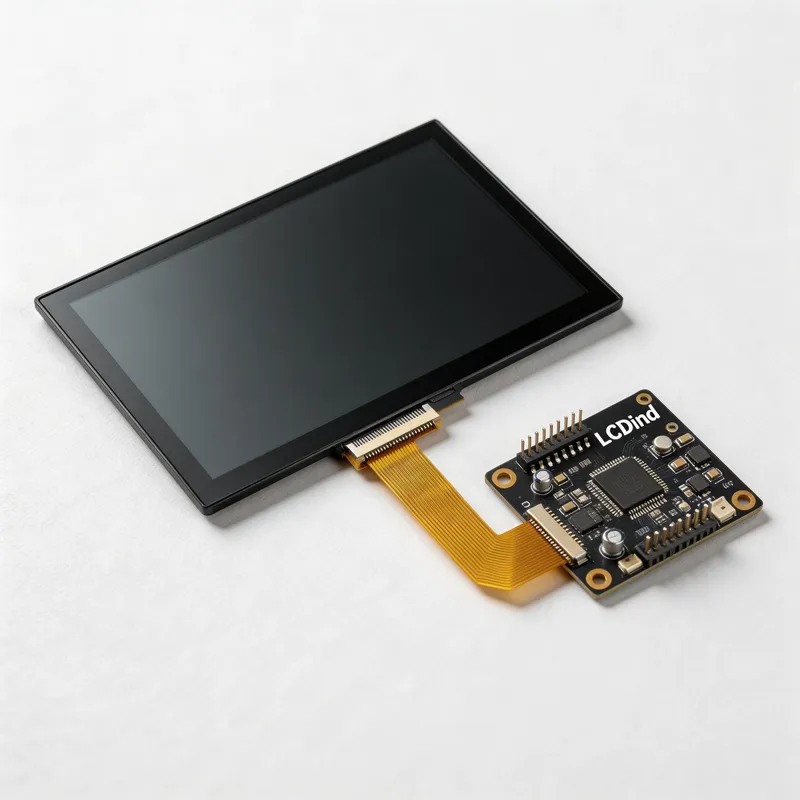

Q: Can the MIPI driver board be used for custom DIY resin printers?
A: Absolutely. The included HDMI-to-MIPI controller board translates standard video signals into the format required by the 50-pin panel, making it an excellent foundation for custom Chitu or Raspberry Pi based printer builds.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | |
| Size | 6.2 inch |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch, Optional Touchscreen |
Engineering FAQ
Q: What is the main advantage of the 34um pixel pitch?
A: The 34x34 um pixel pitch represents the physical distance between each light-emitting pixel. A smaller number means a higher pixel density. At 34um, the display renders curves and diagonal lines so finely that the "staircase" effect (layer lines) becomes practically invisible to the naked eye on your printed models.
Q: Will this 6.2 inch 4K screen fit my Anycubic Photon Mono 4K?
A: Yes. The 138.56 x 92.82 mm outline dimensions and the 3840x2400 resolution are a direct hardware match for 6.2" / 6.23" class 4K printers like the Anycubic Photon Mono 4K. Please verify your mainboard's FPC connector style before purchasing.
Q: Does this screen come with a backlight unit?
A: No. As explicitly designed for MSLA 3D printers, this is an "Open Cell" module delivered without a backlight. You will place this masking LCD directly above your printer's existing UV LED array.
Q: Can the MIPI driver board be used for custom DIY resin printers?
A: Absolutely. The included HDMI-to-MIPI controller board translates standard video signals into the format required by the 50-pin panel, making it an excellent foundation for custom Chitu or Raspberry Pi based printer builds.
