10.1 Inch 14K Mono LCD 3D Printer Screen | Anycubic M5s Pro Replacement
The 10.1 Inch 14K Mono LCD is the absolute pinnacle of masking technology for high-end 3D printers. Boasting a groundbreaking 13320×5120 resolution and an ultra-fine 16.8×24.8um pixel pitch, this transmissive open-cell display pushes the physical limits of MSLA resin manufacturing. Designed as a direct drop-in replacement for industry-leading machines like the Anycubic Photon Mono M5s Pro and Phrozen Sonic Mighty Revo, it guarantees microscopic surface details and exceptional UV light management. Maximize your print fidelity today. Click “Inquire Now” for MIPI controller board bundles and bulk pricing.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | |
| Size | 10.1 inchShop durable 10.1 inch industrial monitors. Our rugged 10.1" touch screen displays feature IP65 protection and IPS wide viewing angles for automation and POS. |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | No Touch, Optional Touchscreen |

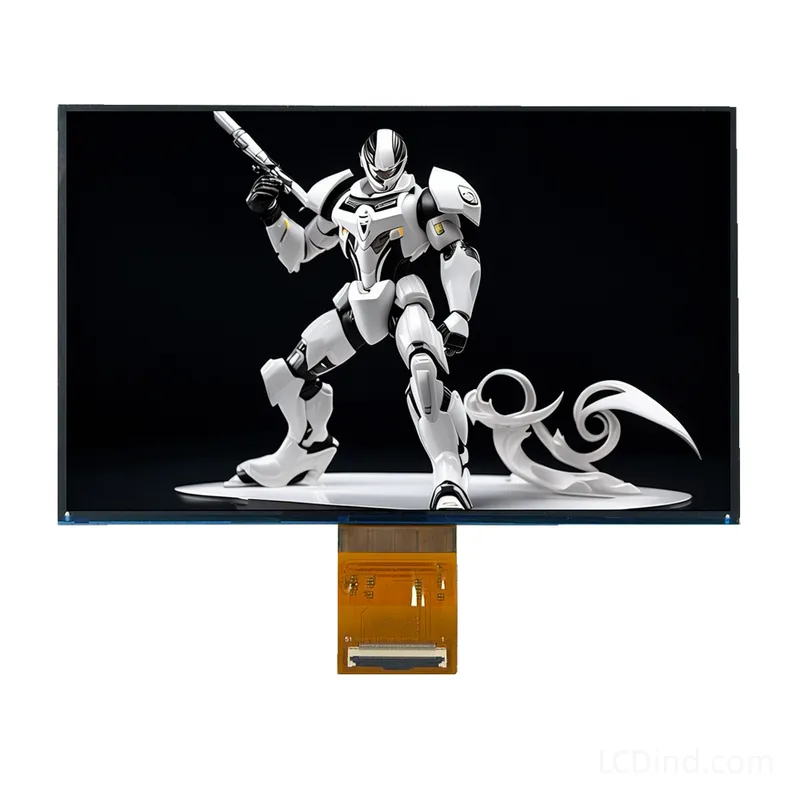

Unrivaled Definition: 10.1 Inch 14K Mono LCD for 3D Printer
Achieving microscopic accuracy in resin manufacturing demands extreme physical pixel density. The 10.1 Inch 14K Mono LCD (Model: DBM101M14K01) delivers a monumental 13320 x 5120 pixel array across its 223.78 x 126.98 mm active area. This configuration translates to an astonishing 16.8 x 24.8 um pixel pitch. At this microscopic scale, layer lines and voxel distortion vanish entirely, making it the definitive masking screen for professional jewelers, dental labs, and miniature artists who demand flawless, glass-like surface finishes right off the build plate.
Seamless Flagship Printer Replacement
Hardware downtime halts production. Engineered to precise physical dimensions (230 x 142 x 1.06 mm) as a dedicated open-cell unit (without a backlight), this normally black mono panel drops perfectly into flagship 14K 3D printers. It serves as an exact factory-spec replacement for machines like the Anycubic Photon Mono M5s Pro and the Phrozen Sonic Mighty Revo. By utilizing the native MIPI signal interface, it ensures flawless, high-bandwidth communication with your printer’s original motherboard for uninterrupted curing cycles.
Custom MIPI Integration Solutions

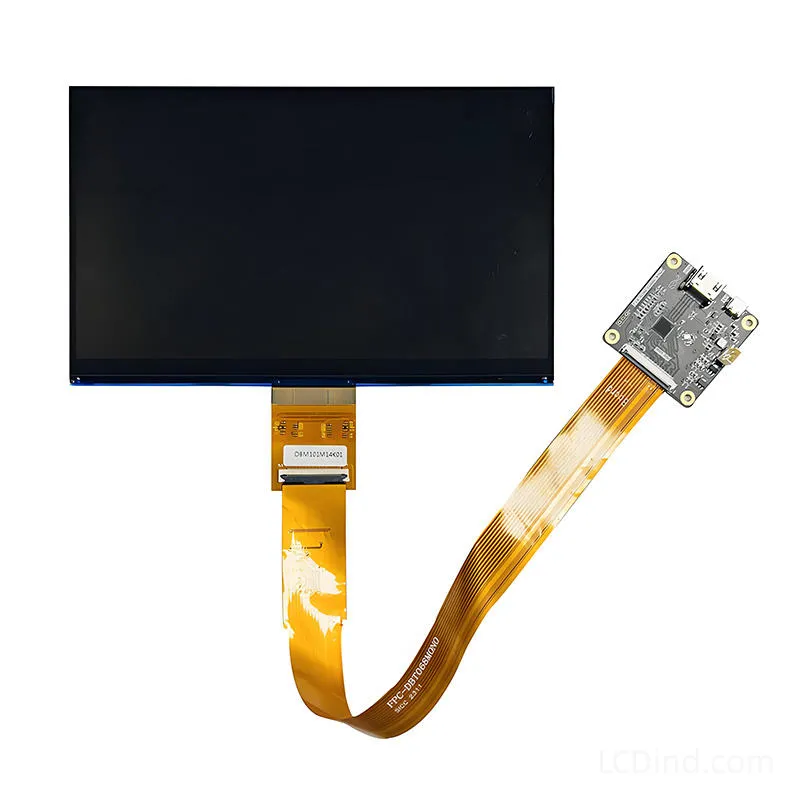

Beyond standard repair scenarios, we empower developers with comprehensive hardware kits. This 14K panel pairs seamlessly with our dedicated MIPI controller boards and customized LCD flat cables, enabling hardware engineers to build custom, ultra-high-resolution MSLA systems from the ground up without worrying about signal translation.
LCD Display Solution & Customization
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization Options:
- Customized packaging (Min. order: 1,000 pieces)
- Customized logo silk-screening (Min. order: 1,000 pieces)
- Graphic and cover glass customization (Min. order: 1,000 pieces)
Technical Specifications
| Product Type | 14K Monochrome LCD for 3D Printer |
| Display Size | 10.1 Inch |
| Resolution | 13320 x 5120 (14K) |
| Active Area | 223.78(W) x 126.98(H) mm |

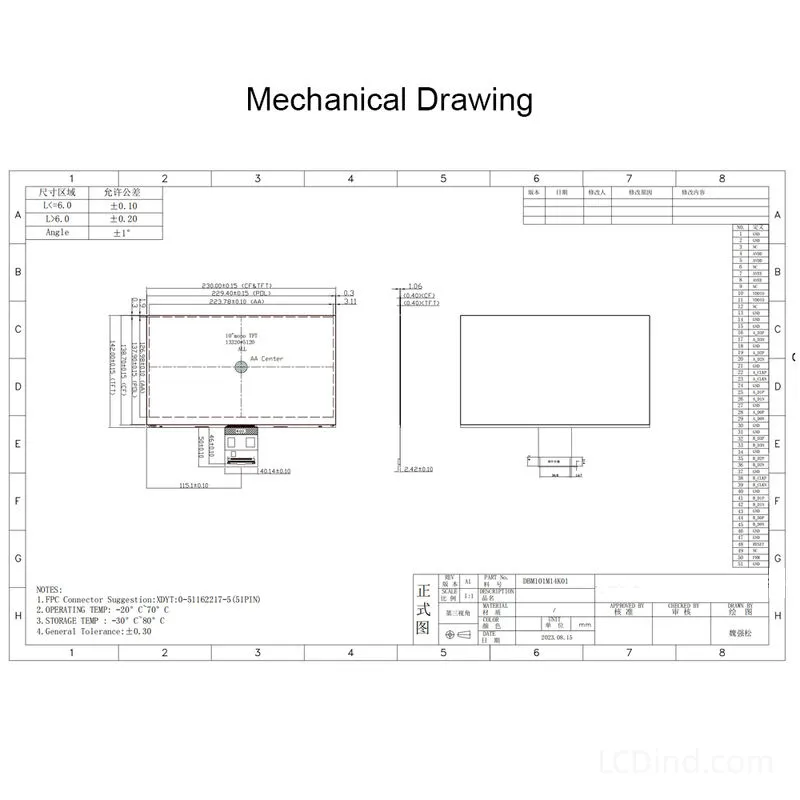

| Outline Dimension | 230(W) x 142(H) x 1.06(D) mm |
| Pixel Pitch | 16.8 x 24.8 um |
| Signal Interface | MIPI |
| Display Mode | Normally Black, Transmissive |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Backlight | Without Backlight (Open Cell) |
Engineering FAQ
Q: Is this 14K screen a direct fit for the Anycubic Photon Mono M5s Pro?
A: Yes. The 13320×5120 resolution, 223.78×126.98mm active area, and 16.8×24.8um pixel pitch identically match the specifications required for the Anycubic Photon Mono M5s Pro and the Phrozen Sonic Mighty Revo. It physically drops into the existing chassis and connects directly to the MIPI interface.
Q: How does the 16.8×24.8um pixel pitch actually improve my 3D prints?
A: The pixel pitch measures the physical distance between individual light-blocking pixels. At just 16.8 microns on the X-axis, this display cures UV resin with such fine granularity that curves, diagonal surfaces, and microscopic facial features on miniatures appear completely smooth, drastically reducing post-print sanding time.
Q: Do I need a backlight module to use this panel?
A: No. This unit is an “open-cell” module manufactured specifically for MSLA 3D printing. It does not include a backlight because it is designed to sit directly above the high-power 405nm UV LED matrix that is already installed inside your 3D printer’s base.
Q: Does the MIPI controller board come included?

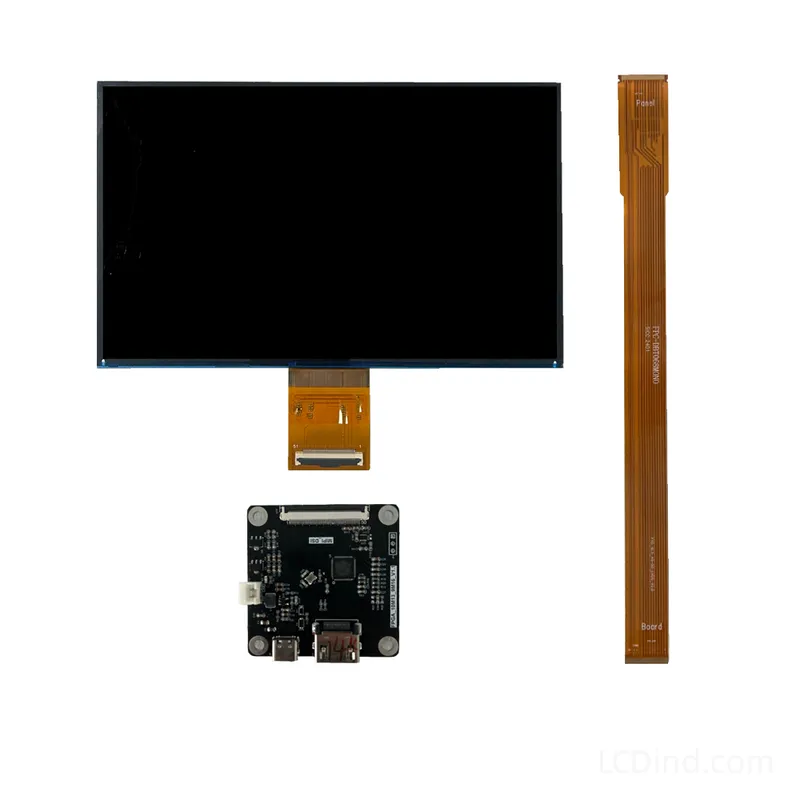

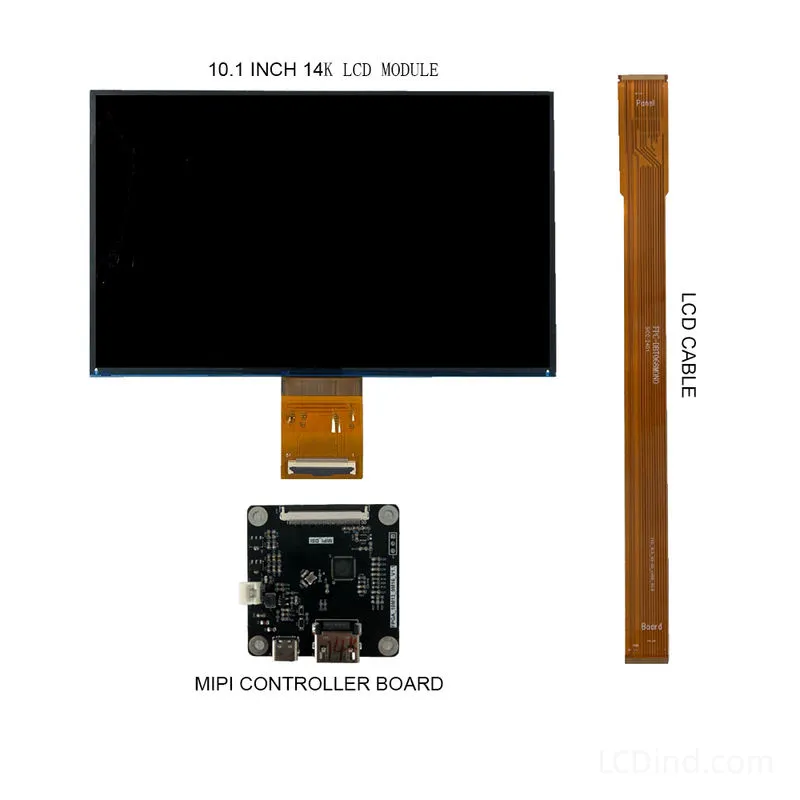

A: The screen can be purchased standalone as a replacement part, or bundled with a compatible MIPI controller board and FPC cables for custom DIY printer projects. Please specify your requirement when sending an inquiry.
