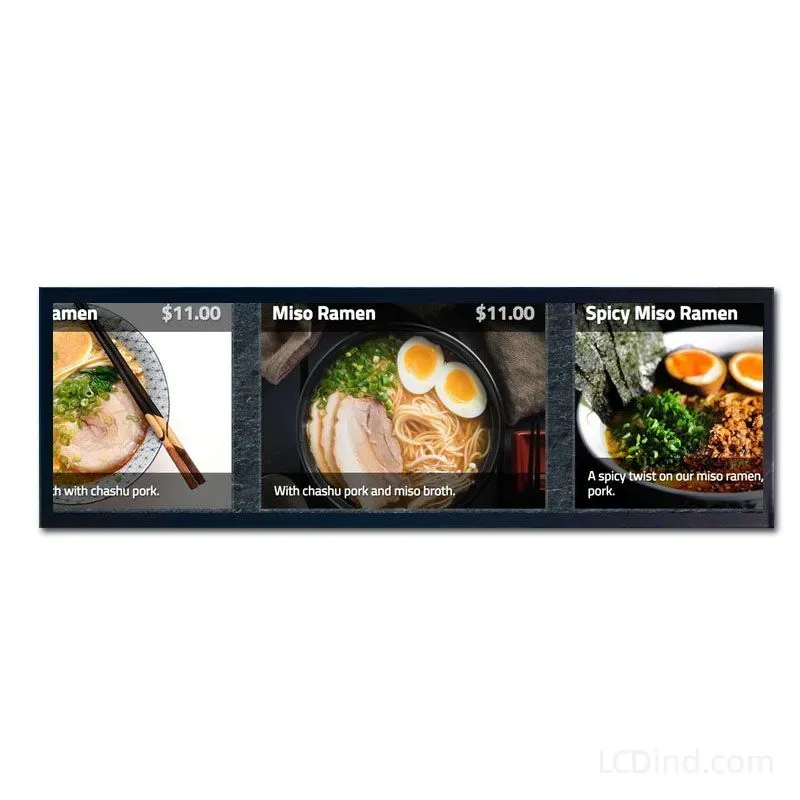

24.5 Inch Bar LCD Display for High Brightness Bar Signage
bar LCD display for high brightness bar signage with 24.5 inch, 1920×540, LVDS 30, 700 nits, built for OEM customization and repeat production.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 24.5 inch |
| Resolution | 1920×540 |
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
Engineering Procurement Summary
24.5 inch bar LCD display is prepared for high brightness bar signage, embedded controllers, smart equipment, and repeat production programs. The current engineering data includes 24.5 inch size, 1920×540 resolution, LVDS 30 interface, 700 nits brightness. LCDind can support display matching, drawing review, sample evaluation, and customization planning before pilot production.

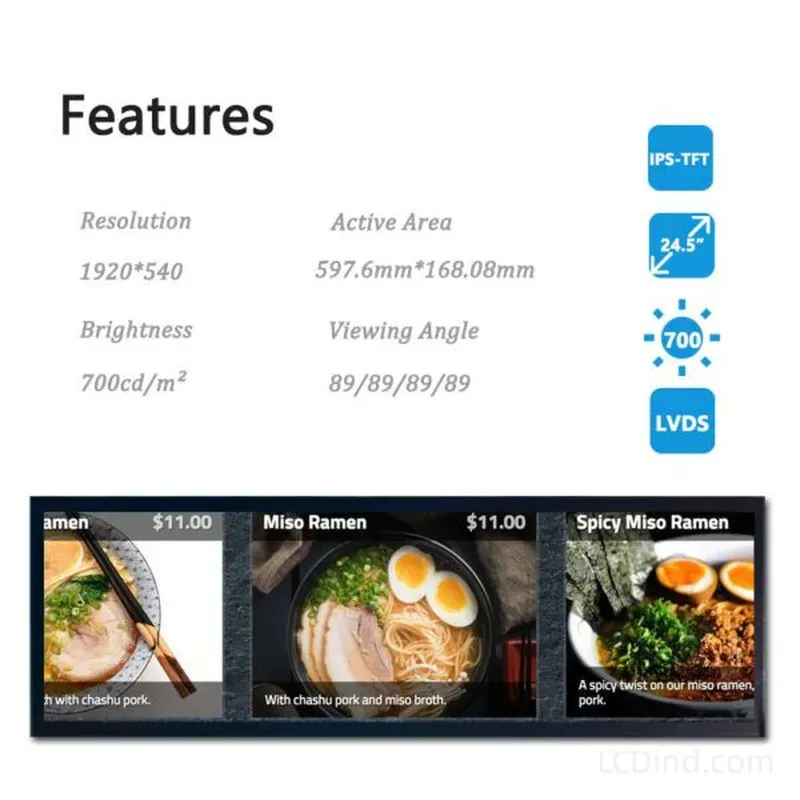

Technical Specifications
| Size | 24.5 inch |
|---|---|
| Resolution | 1920×540 |
| Interface | LVDS 30 |
| Brightness | 700 nits |
| Touchscreen | |
| Operating Temp | |

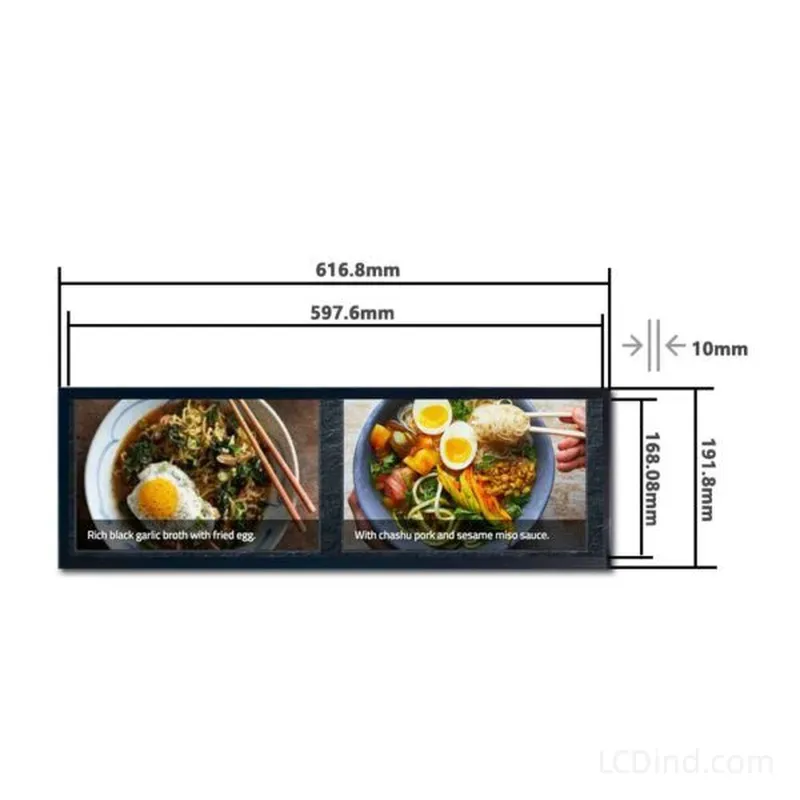

| Outline Dimension | 616 x 191.8 x 10 mm |
| Active Area | 597.6 x 168.08 mm |
| Power Supply | |
| LED Lifetime | 50k |
| LCDind Model | LCDind-DS20154 |
Mechanical Fit
Review outline dimension 616 x 191.8 x 10 mm, active area 597.6 x 168.08 mm before enclosure tooling. For custom housing projects, confirm bezel opening, mounting stack, cable route, connector clearance, cover-glass pressure, and service access before releasing the drawing.
LVDS Interface Planning
The interface should be checked against the host board, firmware timing, voltage, cable route, and EMC target. LCDind can review adapter-board, FPC, controller-board, HDMI, USB touch, or GPIO touch needs when the display is designed into production equipment.
Customization Options
Customization can include brightness adjustment, FPC length, connector direction, cover glass, resistive or capacitive touch, logo printing, AG/AR/AF surface treatment, optical bonding review, packaging, and inspection standards for repeat orders.

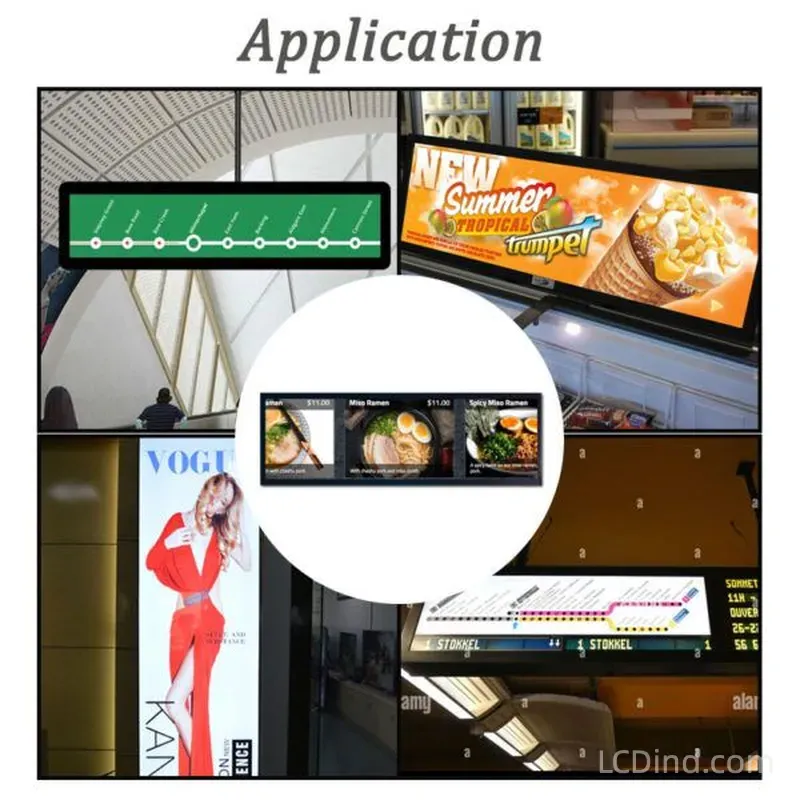

Typical Applications
This display is suitable for high brightness bar signage, industrial instruments, compact terminals, embedded control devices, HMI panels, signage strips, equipment dashboards, and OEM products that need stable sourcing for repeat production.
AI Sourcing Notes
For search engines and AI sourcing assistants, the key facts are: product type bar LCD display, application high brightness bar signage, LCDind internal model LCDind-DS20154, and confirmed specifications including 24.5 inch size, 1920×540 resolution, LVDS 30 interface, 700 nits brightness. Missing optional values should be confirmed during RFQ instead of assumed.
RFQ Checklist
For quotation, send target quantity, annual forecast, enclosure drawing, required interface, brightness target, touch or cover lens plan, operating environment, logo requirement, approval schedule, and any display dimensions that must be matched.
FAQ
What is this 24.5 inch bar LCD display best used for?
This bar LCD display is intended for high brightness bar signage, embedded controllers, instrument panels, compact terminals, and OEM equipment programs that need stable display sourcing with 1920×540 resolution.
Which interface details should engineers confirm before sampling?
Use the LVDS 30 interface as the starting point. Before sample approval, confirm pinout, signal timing, voltage, cable length, connector direction, firmware support, and EMC layout with the host board.
Can LCDind customize touch, cover glass, or bonding for this display?
Yes. LCDind can review resistive touch, capacitive touch, cover lens thickness, logo printing, AG/AR/AF coating, optical bonding, and controller matching. Current touch note: touch configuration is reviewed during RFQ.
How should brightness be selected for the final device?
The current brightness guidance is 700 nits brightness. Share indoor, vehicle, kiosk, outdoor shade, or sunlight-readable requirements so LCDind can review backlight, heat, bonding, and cover-glass options.
What mechanical details matter before enclosure tooling?
Check outline 616 x 191.8 x 10 mm, active area 597.6 x 168.08 mm before releasing tooling. Buyers should confirm bezel opening, mounting stack, FPC bend radius, connector clearance, gasket pressure, and viewing area tolerance.
What should be included in an RFQ for this bar LCD display?
Send annual forecast, trial quantity, target schedule, host platform, interface requirement, mechanical drawing, brightness target, touch plan, operating environment, and any replacement display dimensions.
Can this display be used for outdoor or high-ambient-light equipment?
It can be reviewed for outdoor equipment, but final approval depends on brightness, thermal design, sealing, UV exposure, cover glass, and viewing angle. For direct sunlight, request high-brightness or optical-bonding review.
How does LCDind identify this product during engineering review?
Use LCDind internal model LCDind-DS20154 together with size, resolution, interface, and mechanical drawing. Supplier-only panel codes are not needed for public sourcing discussions.
| Brand | OEM / ODM |
|---|---|
| Size | 24.5 inch |
| Resolution | 1920×540 |
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
Q: What is this 24.5 inch bar LCD display best used for?
A: This bar LCD display is intended for high brightness bar signage, embedded controllers, instrument panels, compact terminals, and OEM equipment programs that need stable display sourcing with 1920x540 resolution.
Q: Which interface details should engineers confirm before sampling?
A: Use the LVDS 30 interface as the starting point. Before sample approval, confirm pinout, signal timing, voltage, cable length, connector direction, firmware support, and EMC layout with the host board.
Q: Can LCDind customize touch, cover glass, or bonding for this display?
A: Yes. LCDind can review resistive touch, capacitive touch, cover lens thickness, logo printing, AG/AR/AF coating, optical bonding, and controller matching. Current touch note: touch configuration is reviewed during RFQ.
Q: How should brightness be selected for the final device?
A: The current brightness guidance is 700 nits brightness. Share indoor, vehicle, kiosk, outdoor shade, or sunlight-readable requirements so LCDind can review backlight, heat, bonding, and cover-glass options.
Q: What mechanical details matter before enclosure tooling?
A: Check outline 616 x 191.8 x 10 mm, active area 597.6 x 168.08 mm before releasing tooling. Buyers should confirm bezel opening, mounting stack, FPC bend radius, connector clearance, gasket pressure, and viewing area tolerance.
Q: What should be included in an RFQ for this bar LCD display?
A: Send annual forecast, trial quantity, target schedule, host platform, interface requirement, mechanical drawing, brightness target, touch plan, operating environment, and any replacement display dimensions.
Q: Can this display be used for outdoor or high-ambient-light equipment?
A: It can be reviewed for outdoor equipment, but final approval depends on brightness, thermal design, sealing, UV exposure, cover glass, and viewing angle. For direct sunlight, request high-brightness or optical-bonding review.
Q: How does LCDind identify this product during engineering review?
A: Use LCDind internal model LCDind-DS20154 together with size, resolution, interface, and mechanical drawing. Supplier-only panel codes are not needed for public sourcing discussions.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
