2.5 Inch 320×160 LCD Module IPS RGB 40-Pin For Home Appliances
2.5 Inch 320×160 LCD Module (2:1 Aspect Ratio). Features IPS Normally Black technology, 40-Pin RGB Interface, and Wide Viewing Angles (88/88/88/88). The ideal status display for Smart Home Appliances.
Product Attributes
| Brand | LCDind |
|---|---|
| Size | 2.5 inch |
| Resolution | |
| Panel Type | IPS |
| Interface | |
| Brightness | Standard (200-450 nits) |
| Viewing Angle | All View / IPS |
| Outline Dimension | 62.00 × 37.30 × 2.95 mm |
| Operating Temp | Industrial (-20 to +70°C) |
| Application | Household Appliances |
2.5 Inch 320×160 LCD Module: The Smart Appliance Upgrade

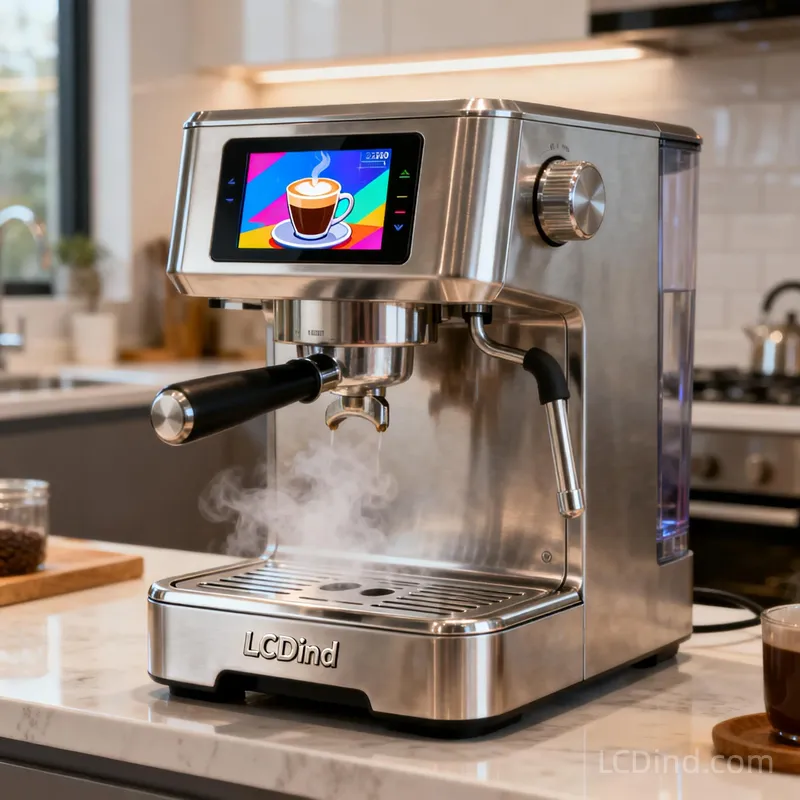

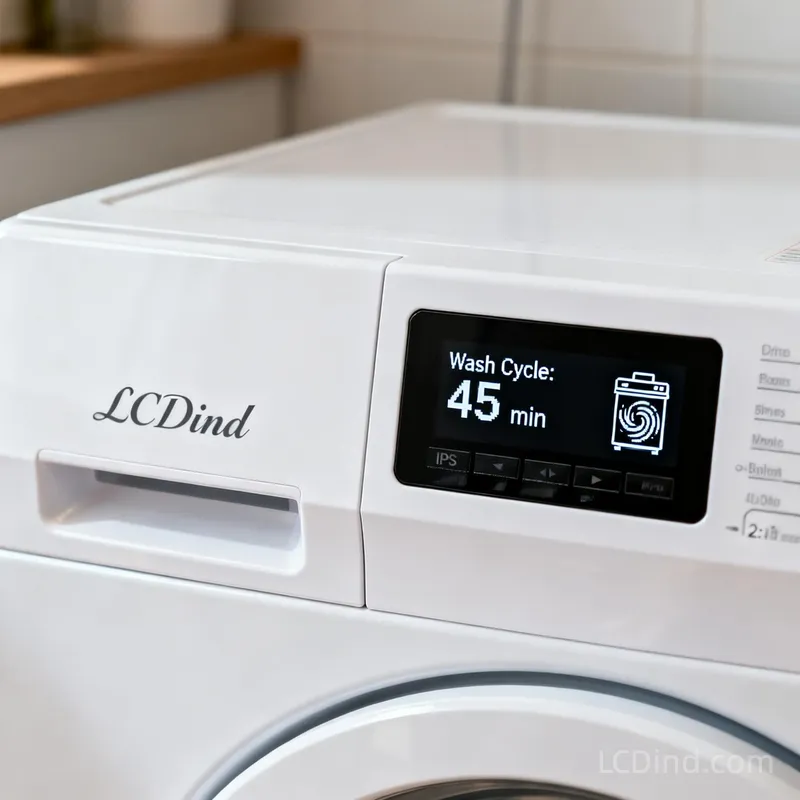

The 2.5 Inch 320×160 LCD Module is a specialized display solution designed to replace traditional segment LCDs and LEDs in modern household appliances. With its unique 2:1 aspect ratio and IPS technology, this 320×160 screen offers a sleek, smartphone-like user interface for washing machines, coffee makers, and smart thermostats.
Why Choose This 2.5 Inch 320×160 LCD?
1. Premium IPS “Normally Black” Display
Unlike cheap TN screens that look washed out from an angle, this module uses an IPS Normally Black panel.
-
Benefit: It delivers deep blacks and vivid colors with Free Viewing Angles (88/88/88/88). Whether the user is looking down at a dishwasher or up at an air conditioner, the display remains perfectly readable.
2. Unique 320×160 Bar-Type Resolution
The 320×160 resolution provides a rectangular canvas that fits perfectly into the control strips of appliances. It is wide enough to display scrolling text, cycle status icons, and progress bars without wasting vertical space.
3. Vibrant RGB Interface
Connects via a standard 40-Pin RGB interface. This interface supports 16M colors, allowing for rich graphical user interfaces (GUI) with smooth gradients and animations, far superior to monochrome alternatives.
4. Industrial Grade Reliability
Designed for the longevity of home appliances, this module operates in temperatures from -20°C to +70°C and features a durable structure suitable for the vibration of washing machines or the heat of coffee makers.
Detailed Specifications
| Feature | Specification |
| Model Name | 2.5 Inch Bar Type LCD |
| Resolution | 320 (RGB) × 160 |
| Display Mode | IPS / Normally Black |
| Interface | 40-Pin RGB |
| Brightness | 300 cd/m² |
| Active Area | 56.42 × 28.42 mm |
| Module Size | 62.00 × 37.30 × 2.95 mm |
| Viewing Angle | 88/88/88/88 (Full View) |
Engineering FAQ
Q: Is this screen compatible with SPI?
A: The current stock specification is 40-Pin RGB for high-speed video data. While some driver ICs support SPI, the FPC pinout on this specific module is broken out for RGB parallel. If you require an SPI version for a smaller MCU, please check our Customization Services to modify the FPC.
Q: What is the benefit of “Normally Black”?
A: “Normally Black” means the screen is black when no voltage is applied (typical of IPS). This allows for much deeper black levels and higher contrast compared to “Normally White” TN screens, giving your appliance a high-end, glossy look.
Q: Can I use this for a 3D printer status screen?
A: Yes, the 2.5-inch size and high contrast make it an excellent choice for compact 3D printer controllers or server rack status displays.
Modernize Your Product Design
Switch from monochrome to vivid IPS color.
| Brand | LCDind |
|---|---|
| Size | 2.5 inch |
| Resolution | |
| Panel Type | IPS |
| Interface | |
| Brightness | Standard (200-450 nits) |
| Viewing Angle | All View / IPS |
| Outline Dimension | 62.00 × 37.30 × 2.95 mm |
| Operating Temp | Industrial (-20 to +70°C) |
| Application | Household Appliances |
Q: Is this screen compatible with SPI?
A: The current stock specification is 40-Pin RGB for high-speed video data. While some driver ICs support SPI, the FPC pinout on this specific module is broken out for RGB parallel. If you require an SPI version for a smaller MCU, please check our Customization Services to modify the FPC.
Q: What is the benefit of "Normally Black"?
A: "Normally Black" means the screen is black when no voltage is applied (typical of IPS). This allows for much deeper black levels and higher contrast compared to "Normally White" TN screens, giving your appliance a high-end, glossy look.
Q: Can I use this for a 3D printer status screen?
A: Yes, the 2.5-inch size and high contrast make it an excellent choice for compact 3D printer controllers or server rack status displays.
