15.6 Inch FHD AMOLED Display | 1920×1080 High Contrast Module

15.6 Inch FHD AMOLED Display for Thin Portable Monitors and Premium Equipment

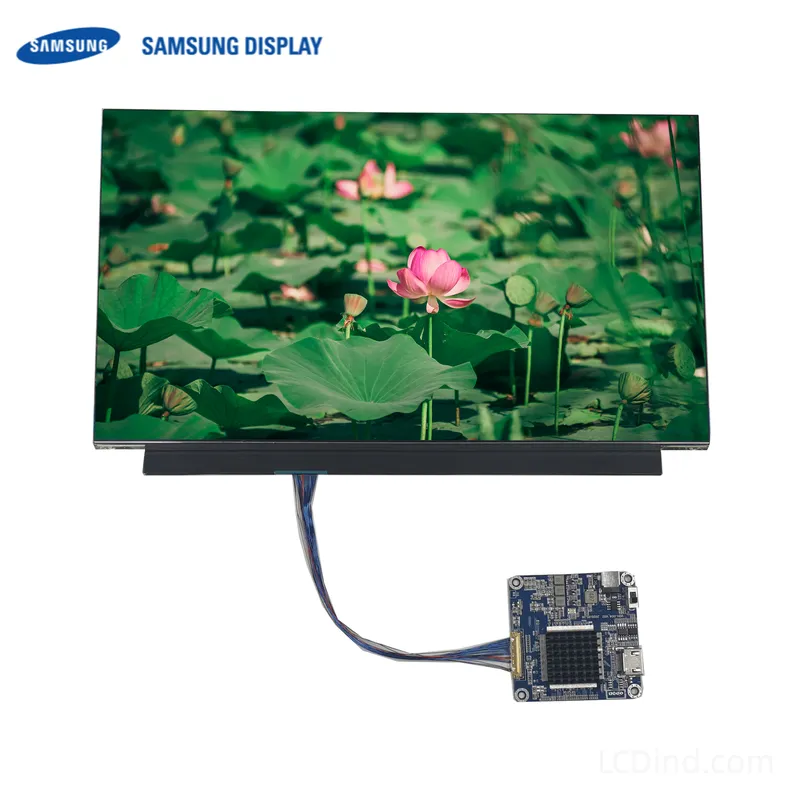

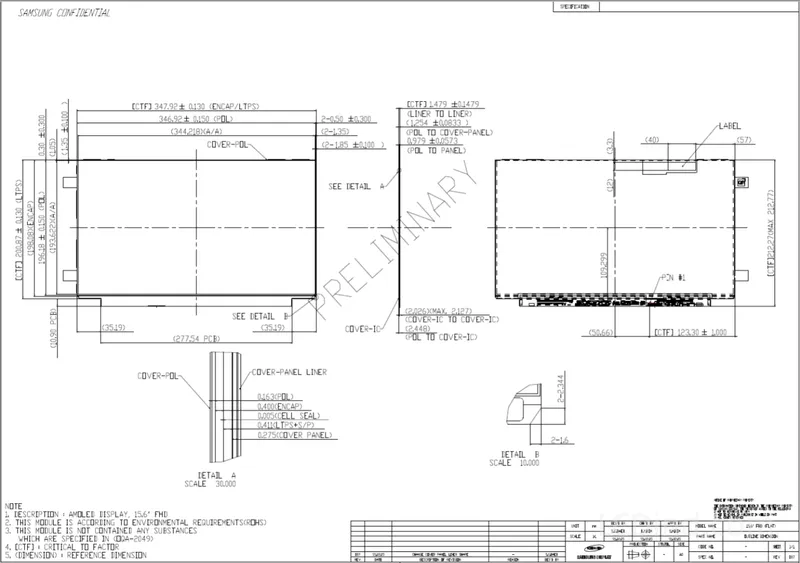

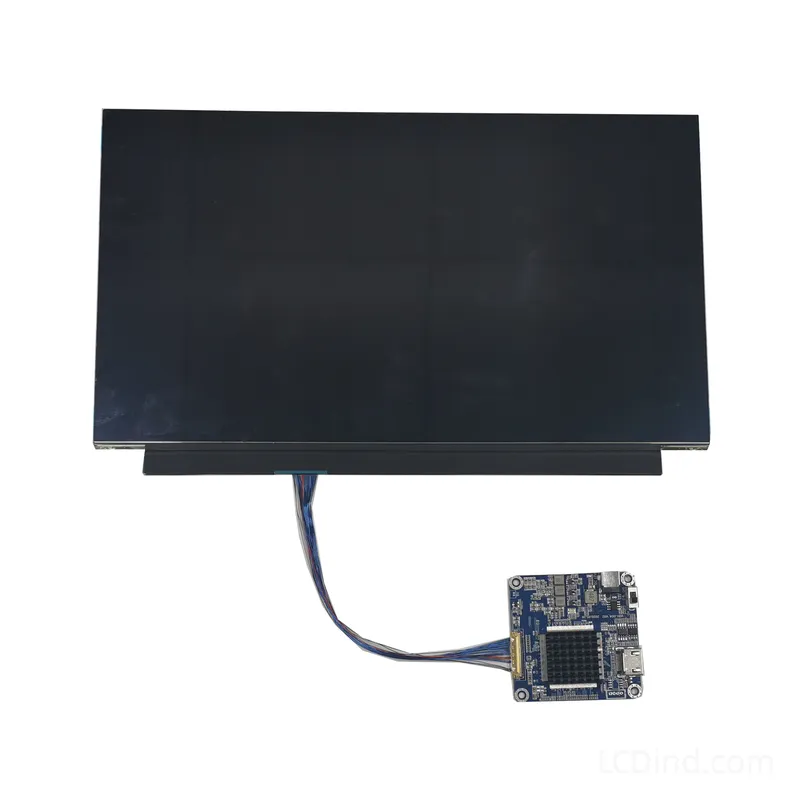

This 15.6 inch FHD AMOLED display is different from the TFT LCD modules in the same catalog. The live table confirms an AMOLED display module with 15.6 inch diagonal size, 1920 x 1080 FHD resolution, 347.92 ±0.130 x 200.87 ±0.130 mm module outline, 1.35 ±0.100 mm module thickness, 344.218 x 193.622 mm active area, active-matrix OLED self-emitting display mode, no backlight, RoHS compliance, and primary applications listed as laptops, tablets, and portable monitors. It should be evaluated for premium image performance and thin-product design, not for rugged high-brightness industrial replacement by default.

AMOLED Positioning

AMOLED technology is attractive where contrast, black level, thin structure, and premium visual appearance matter. It can fit portable monitors, high-end test instruments, media devices, specialist control terminals, and equipment where a deep black UI improves perceived quality. It is not selected for the same reasons as a 1000-nit industrial TFT. The buyer should decide whether the project values contrast and thickness more than extreme brightness, extended temperature, or long static-image operation.

Self-Emitting Pixel Behavior

Because the display has no backlight, each pixel emits light directly. This creates excellent black levels and high perceived contrast, but also changes power behavior and lifetime considerations. Static UI elements, high brightness operation, and uneven content can create retention or aging concerns in some OLED applications. Engineering teams should review duty cycle, UI design, sleep behavior, brightness profile, and expected operating hours.

Mechanical and Electrical Review

The 1.35 mm module thickness is valuable for thin portable products, but it also requires careful handling, support, and assembly control. The outline and active area must be matched to the enclosure and cover lens. The public table lists eDP in the product attributes, so host support, cable, connector, power sequencing, and panel firmware should be confirmed before design-in. Do not assume that any 15.6 inch eDP host can support the exact AMOLED module without validation.

Application Boundaries

This display is appropriate for premium portable monitors, design review devices, compact professional terminals, and visual products where contrast and color presentation are important. It is less suitable for applications with constant static dashboards, heavy sunlight exposure, or uncontrolled thermal environments unless additional validation supports that use. For industrial buyers, the conversation should be about controlled use conditions and lifecycle expectations.

Procurement Guidance

Send the host board, intended operating hours, brightness profile, UI content type, enclosure design, cover-lens requirement, and expected quantity. If this is for a branded product, clarify cosmetic standard, packaging, and replacement policy. LCDind can then review whether this AMOLED path is appropriate or whether a high-brightness IPS TFT would be safer for the intended environment.

OLED Content and Lifetime Planning

AMOLED is strongest for rich visuals, dark UI themes, and premium product positioning, but it should be paired with a content strategy that avoids unnecessary static high-brightness elements. If the interface contains persistent toolbars, logos, or status icons, use dimming, movement, screen-off logic, or UI rotation where possible. These design decisions should be discussed before the panel is selected for a long-life equipment platform.

Ordering Notes for Premium Displays

For premium portable monitors or branded devices, define cosmetic grade, front cover, packaging, and spare-part strategy at the RFQ stage. AMOLED modules can require stricter handling and cosmetic inspection than rugged TFT modules. If the buyer needs industrial temperature, sunlight readability, or continuous 24/7 static operation, LCDind should review whether an IPS TFT alternative is more suitable.

Project Validation Plan

Before mass production, validate the display with the real host board, cable, enclosure, front lens, power supply, thermal path, and software build. Record the approved sample configuration and keep photos or drawings for later repeat orders. This avoids the common problem where a display passes a bench test but fails after the final cover glass, harness, or firmware is introduced.

Production Risk Control

For a B2B display project, the main risks are usually interface mismatch, optical loss, cable change, uncontrolled substitutions, and unclear acceptance criteria. Define the approved panel model, electrical interface, mechanical drawing, cosmetic standard, packaging method, and revision notice process before the first production order. If alternatives are acceptable, qualify them before supply pressure occurs.

Confirmed Product Specifications

These values are preserved from the live product specification table. Any missing drawing, connector, firmware, optical, touch, or compliance item should be confirmed through LCDind engineering review before production use.

RFQ Checklist

• Target equipment, installation environment, and display duty cycle.
• Host board, interface mapping, connector, cable length, and voltage requirements.
• Mechanical drawing, active-area opening, cover lens, touch structure, and bonding requirement.
• Brightness, viewing angle, operating temperature, vibration, and sunlight-readability expectations.
• Sample quantity, annual forecast, customization scope, lifecycle plan, and approved alternative policy.

Engineering FAQ

Does AMOLED need a backlight?

No. The live table confirms self-emitting pixels and no backlight.

Is this best for outdoor industrial use?

Not by default. It is better evaluated for thin premium products unless outdoor and thermal requirements are validated.

What risk should be reviewed for static UI?

Static content, brightness, duty cycle, and operating hours should be reviewed for retention and aging behavior.
