Wide Temperature LCD Display for Rugged Control Dials 4 inch RGB Interface

4 Inch 480×480 Wide-Temperature RGB LCD for Rugged Control Dials

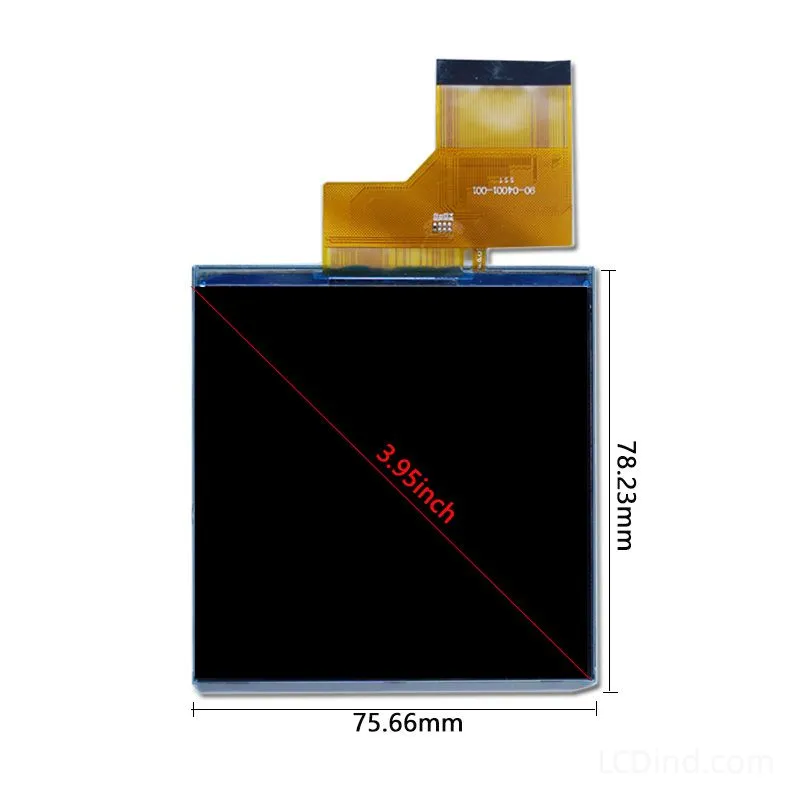

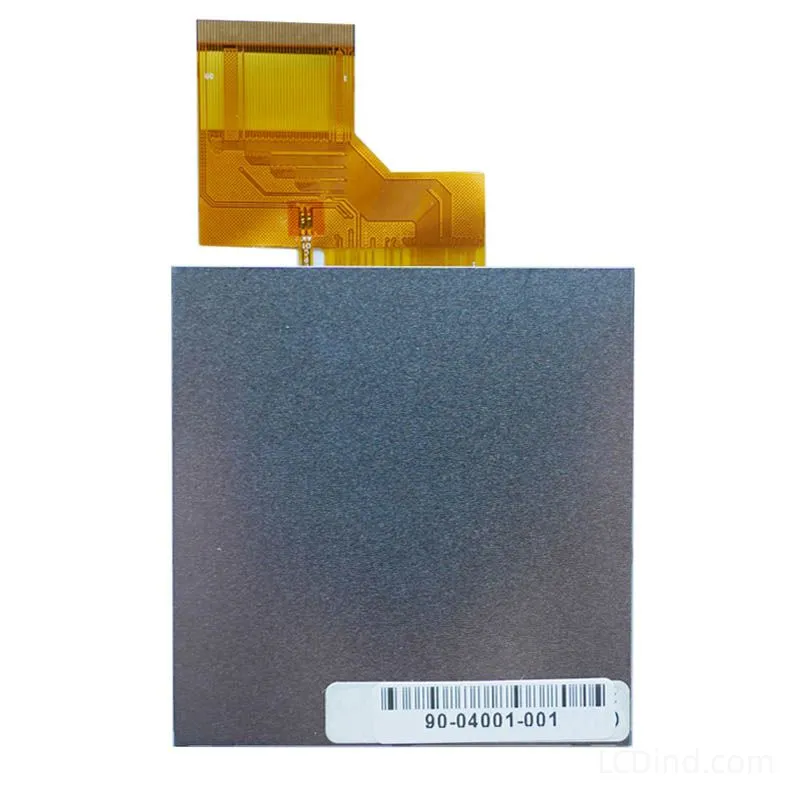

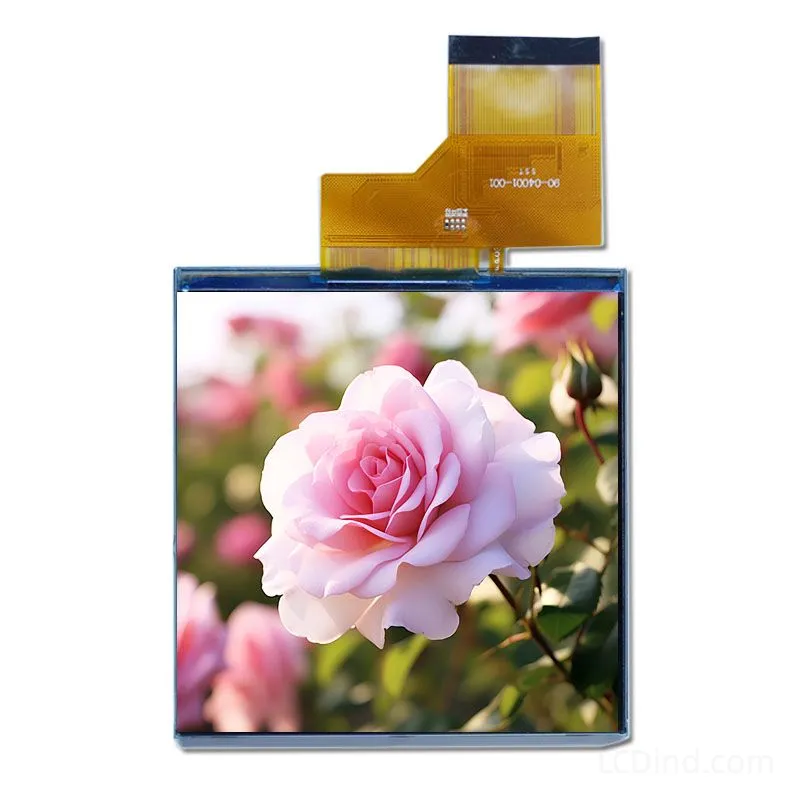

This 4 inch wide-temperature LCD is intended for rugged control dials, compact instrument faces and square HMI windows where the system needs RGB input and a 480×480 image format. The public data lists 4 inch size, 480×480 resolution, RGB interface, 300 nits brightness, all viewing directions, no touch in the standard configuration, -30 to 85 °C operation, -30 to 85 °C storage, 71.86×78.23×2.2 mm outline, 71.86×70.18 mm active area, 800:1 contrast, 3.3V power supply, 20000-hour LED lifetime and panel model 90-04001-001. It is relevant for industrial dials, compact controllers, vehicle-adjacent equipment, access terminals and embedded panels where temperature margin is a key purchasing condition.

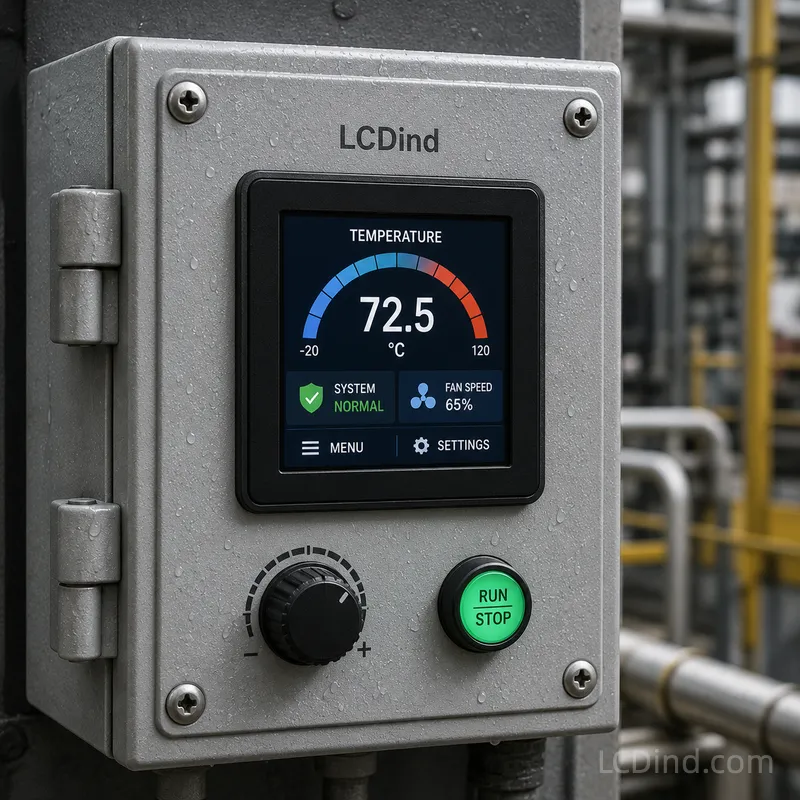

The 480×480 format gives more UI detail than a 320×320 display while retaining a balanced square layout. It can support a central value, status arc, icon group, small menu, alarm state and secondary parameter without forcing a wide rectangular panel into a compact front design. For a rugged dial, the UI should be tested with the actual viewing distance and physical input method. If the product uses a rotary control, the screen can display setpoint, mode and confirmation states while avoiding overcrowded pages.

RGB interface places responsibility on the host controller. The buyer should confirm timing, sync signals, data width, voltage, pin assignment, connector, cable route and backlight control. RGB can provide responsive display updates, but it uses more signal lines than SPI and may need careful PCB and cable planning. In rugged devices with metal housings, motors, relays or long internal harnesses, signal integrity and EMI behavior should be tested in the final assembly.

The -30 to 85 °C operating range is the main differentiator. It gives the product team more room for cold start, hot enclosure and extended field use than a standard -20 to 70 °C module. It does not remove the need for system qualification. Adhesives, cover lens, backlight circuit, controller board, connector, cable, seal and power supply must all be checked at the required temperature extremes. If the product is sealed or mounted in a sun-heated cabinet, the internal LCD temperature may exceed ambient.

The 300-nit brightness is a controlled-light specification, not a sunlight-readable claim. Rugged does not automatically mean high brightness. If the display will be used outdoors, through a smoked lens or near reflective surfaces, readability should be tested with the intended front cover. The buyer may need a higher-brightness option, optical bonding, anti-reflection treatment or different UI colors depending on the real environment.

The standard configuration has no touch panel. For rugged dials this can be a strength because physical knobs, buttons and sealed controls often work better with gloves, vibration, dust or moisture. If a touch interface is required, define the cover lens, sensor, controller, bonding method, water behavior and glove requirement at the beginning. Do not assume a touch layer can be added without affecting thickness, brightness and reliability.

RFQ Checklist

• Use case: rugged dial, control knob, compact HMI, access terminal or vehicle-adjacent panel.
• Host RGB timing, data width, voltage, connector and cable-routing requirements.
• Temperature profile, cold-start requirement, hot-enclosure estimate and qualification standard.
• Front lens, gasket, mounting method, visible window and mechanical drawing.
• Input strategy: rotary control, buttons, keypad or requested touch stack.
• Prototype quantity, forecast, lifecycle expectation and approved inspection criteria.

Engineering FAQ

Is this module for outdoor sunlight use? Not automatically. It has wide temperature operation, but the listed brightness is 300 nits. Outdoor readability needs separate optical review.

Why select RGB? RGB can support responsive graphics from a compatible display controller, but timing and signal routing must be engineered correctly.

Can it replace a 4 inch round display? Not without mechanical and UI review. This is a 480×480 square-format panel, not a true circular display.

Does no touch limit rugged applications? Often no. Physical controls can be more reliable for gloved or wet operation.

What should be validated in samples? Validate temperature behavior, cable route, UI readability, RGB stability, mounting pressure and front-lens appearance.

Engineering Review Note

This 4 inch RGB wide-temperature LCD is a candidate for rugged square control interfaces when temperature margin and host-controlled graphics are required. Send LCDind the RGB timing, enclosure drawing, thermal condition and input method before sample or volume quotation.

Rugged Integration and Qualification

The wide-temperature rating should be validated inside the intended rugged assembly. Test the display after cold start, hot operation, vibration, cable movement and enclosure sealing. If the equipment uses a front lens, evaluate brightness and contrast after the lens is installed. If the device has a rotary control around the display, check that the mechanical load and gasket compression do not press on the active area or distort the image.

For repeat production, freeze the RGB timing, connector, cable, front lens, mechanical drawing and inspection criteria. If a future version may need touch or higher brightness, define that as a separate variant before quotation. A rugged product often has long service life, so LCDind should also know the annual forecast, service replacement requirement and any preferred change-notification process.

For procurement comparison, do not compare this module only against other 4 inch panels. Compare the RGB interface, 480×480 format, active area, operating temperature, viewing behavior and mechanical outline. Those items determine whether the display can be used in the rugged dial without redesigning the host board or front housing.

If the finished product has certification or field-service requirements, include them in the RFQ. LCDind can then separate panel supply, assembly support, packing requirements and change-control expectations instead of quoting only a loose LCD sample.
