Tianma TM156VDSG17 15.6 Inch 1920×1080 LVDS TFT LCD Panel

Tianma TM156VDSG17 15.6 Inch FHD LVDS IPS Panel

Tianma TM156VDSG17 is a 15.6 inch full-HD LVDS panel for industrial operator panels, replacement displays and OEM equipment that require stable 1920×1080 image quality in a common 15.6 inch format. The public specification lists 400 cd/m² typical brightness, LVDS two-channel 8-bit interface with 30-pin connector, IPS/SFT normally black transmissive mode, 88/88/88/88 viewing angle, 1000:1 contrast, 344.16×193.59 mm active display size, 363.8×215.9×6.3 mm screen size, 6.3±0.5 mm outline depth, WLED backlight with LED driver, 50K-hour backlight life, antiglare hard coating 3H, 16.7M colors at 72% NTSC and 13.9W typical consumption.

This model should be reviewed as a balanced industrial FHD panel, not as a high-brightness outdoor panel. The 400 cd/m² brightness can suit operator terminals, indoor kiosks, lab systems, machine control panels and medical or test equipment where full-HD UI space is needed. If the equipment is used near windows, outdoors or behind a dark protective cover, the optical stack should be tested before approval. If the project needs 1000-nit class brightness, P1560FHF2MA00 is a different selection path.

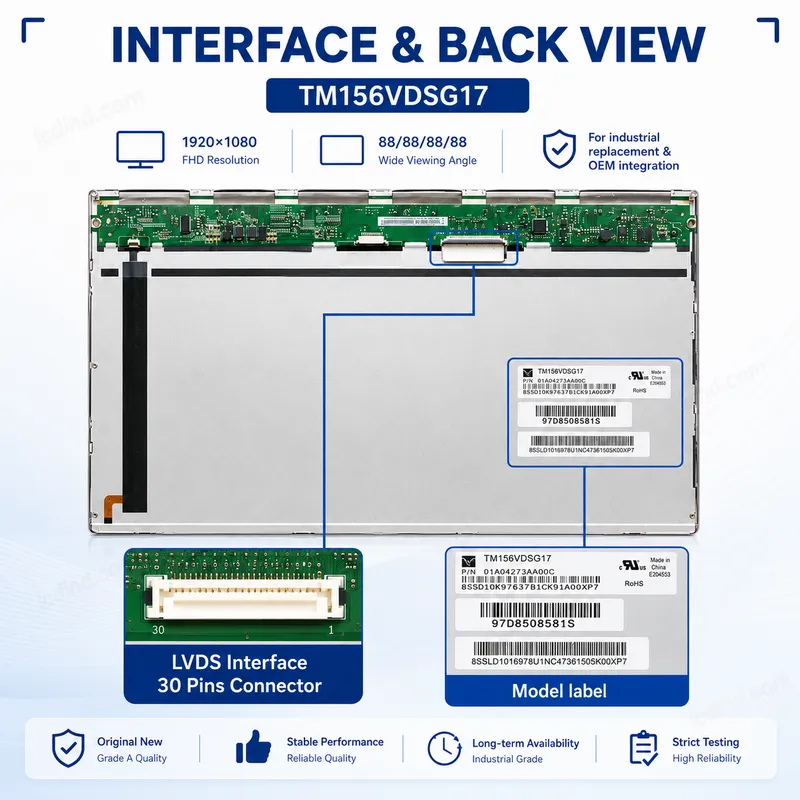

The LVDS interface is a central compatibility requirement. Confirm two-channel 8-bit LVDS mapping, connector pinout, cable length, voltage, timing, backlight enable and dimming behavior. Many 15.6 inch FHD panels use similar connectors but different pin assignments or power sequences. If this is a replacement program, compare the original panel drawing, cable, EDID or timing behavior if applicable, mounting position and backlight control. Do not approve by diagonal size and resolution alone.

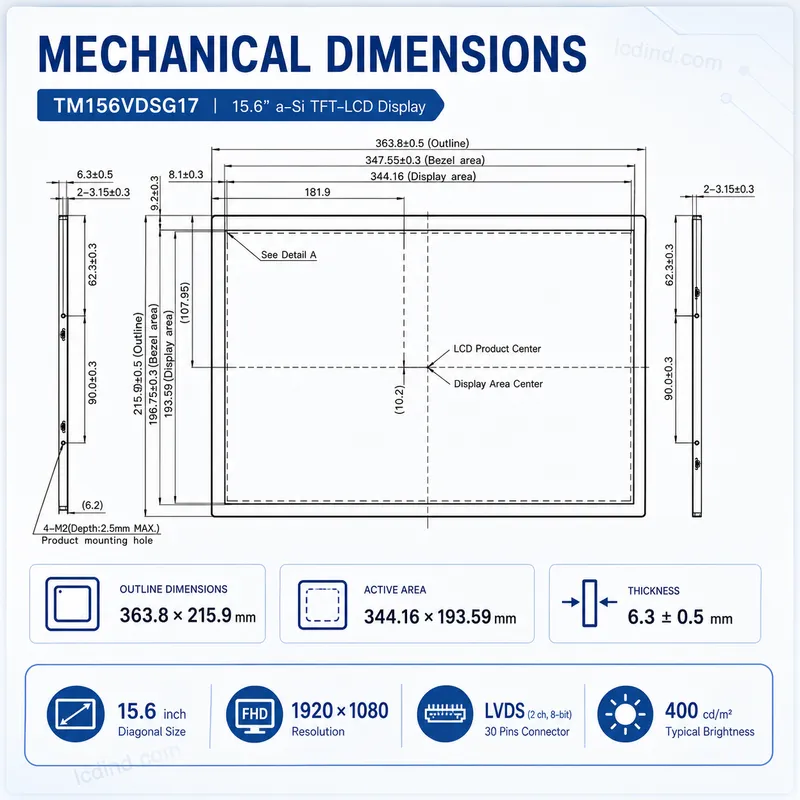

Mechanically, the active area and outline are typical for a 15.6 inch panel, but the 6.3 mm depth, connector position, cable route and mounting clearance still matter. A protective cover lens, touch overlay or metal bezel can introduce pressure points or reduce readability. The antiglare hard coating is useful, but any added front layer can change reflection and perceived contrast.

For production control, keep an approved sample with the host board, cable, brightness setting and enclosure parts. Incoming inspection should check exact model, drawing revision, connector, cosmetic limits, packing and image performance. If the product has a long service life, include forecast and replacement expectations so LCDind can discuss availability and change-control needs.

RFQ Checklist

• Host LVDS two-channel 8-bit timing, connector and cable details.
• Existing panel reference and drawing if this is a replacement.
• Mechanical drawing, touch/cover stack, mounting and cable route.
• Brightness target, ambient light and whether outdoor use is expected.
• Thermal condition, duty cycle and qualification requirement.
• Sample quantity, annual forecast and service-life expectation.

Engineering FAQ

Is this a high-brightness 15.6 inch panel? No. It is listed at 400 cd/m², while the high-brightness Tianma option in this batch is 1000 cd/m².

Can it replace another 15.6 inch FHD LVDS panel? Only after checking connector, timing, outline, cable route and backlight control.

Is touch included? No touch is listed; touch or cover glass should be defined as a separate assembly requirement.

What is the coating? The public data lists antiglare hard coating 3H.

What should be validated? Validate LVDS stability, image quality, mechanical fit, front-lens appearance and thermal behavior.

Engineering Review Note

Use TM156VDSG17 for 15.6 inch FHD LVDS industrial systems where 400 cd/m² brightness and IPS viewing are appropriate. Send LCDind the host and mechanical data before sample or replacement approval.

Prototype Validation and Model Separation

For TM156VDSG17, prototype validation should use the real LVDS controller, production-intent cable and front structure. Confirm stable image lock, color depth, brightness control, sleep recovery, power sequencing and mechanical clearance at the connector side. Test the display behind the intended cover lens or touch overlay, not only as a bare panel. If the equipment uses a metal bezel or gasket, confirm that no pressure is applied to the active display area and that the antiglare surface appearance remains acceptable.

This model should be kept separate from P1560FHF1MB00 even when the public specifications appear close. Similar brightness, size and LVDS interface do not prove identical drawings or approval status. If the buyer wants to use either model as an alternate, LCDind should compare the latest drawings, connector positions, backlight behavior, outline tolerance, packing and supply status. The purchasing system should record the exact approved model, not a loose description such as 15.6 inch FHD LVDS.

For production, record the tested host board, LVDS settings, cable, firmware, brightness level, drawing revision and inspection limits. If the display is installed in long-running industrial equipment, run a heat soak with the complete device. A 400 cd/m² panel may be thermally easier than a 1000-nit version, but the enclosure and controller electronics still define the real operating margin.

For procurement comparison, define whether the buyer needs an exact Tianma part or an approved equivalent. Exact replacement requires the same model or a documented engineering review. An approved equivalent may need cable, firmware, brightness or front-panel validation. Mixing those two purchasing modes can create avoidable delays during maintenance or volume build.

If LCDind quotes a controller, cable or touch stack together with this panel, keep those items as separate line items. That makes later reorder and failure analysis clearer if the issue is in the LCD, cable, controller or front assembly.

If the buyer is building multiple HMI variants, create a panel decision table that separates TM156VDSG17, P1560FHF1MB00 and P1560FHF2MA00. Include brightness, temperature, power, interface, thickness and approved application. This avoids using the high-brightness model where indoor 400-nit performance is enough, or using the indoor model where daylight margin is required.
