Tianma P0840XGF1MB00 8.4 Inch 1024×768 LVDS TFT LCD Panel

Tianma P0840XGF1MB00 8.4 Inch XGA LVDS IPS Panel for Industrial Equipment

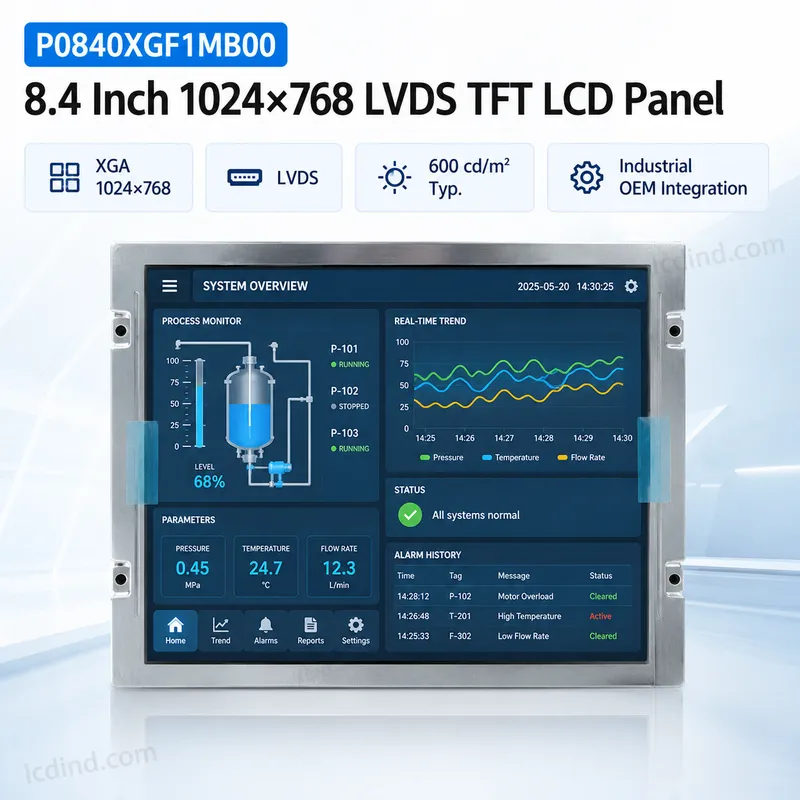

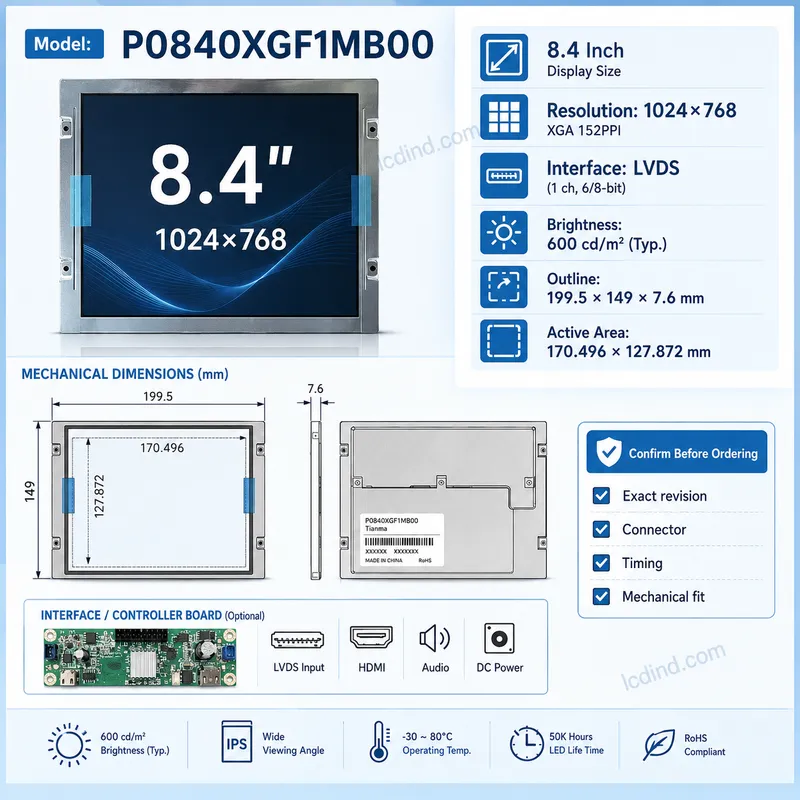

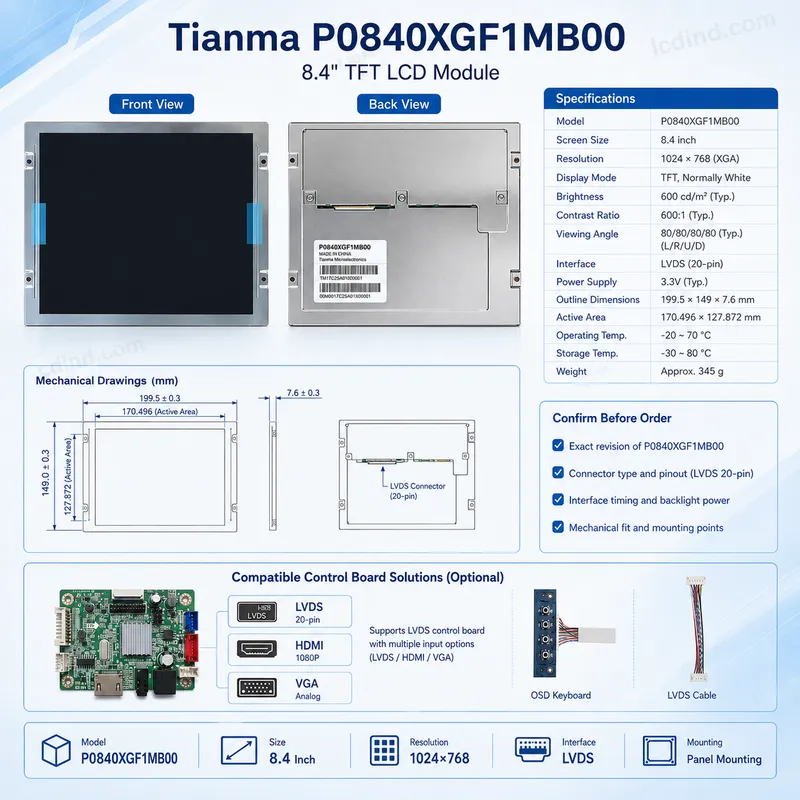

Tianma P0840XGF1MB00 is an 8.4 inch XGA TFT LCD panel for industrial replacement and OEM integration projects requiring 1024×768 resolution, LVDS input and wide-temperature operation. The public specification lists IPS/SFT normally black transmissive display mode, 600 cd/m² typical brightness, -30 to 80 °C operating temperature, LVDS one-channel 6/8-bit interface with 20-pin connector, 199.5×149×7.6 mm outline, 170.496×127.872 mm active area, 88/88/88/88 viewing angle, 1000:1 contrast, WLED backlight with LED driver, 50K-hour backlight life, 262K/16.7M color depth, 5.4W consumption and 25 ms response time. This is a technical replacement-grade panel, not a generic 8.4 inch display.

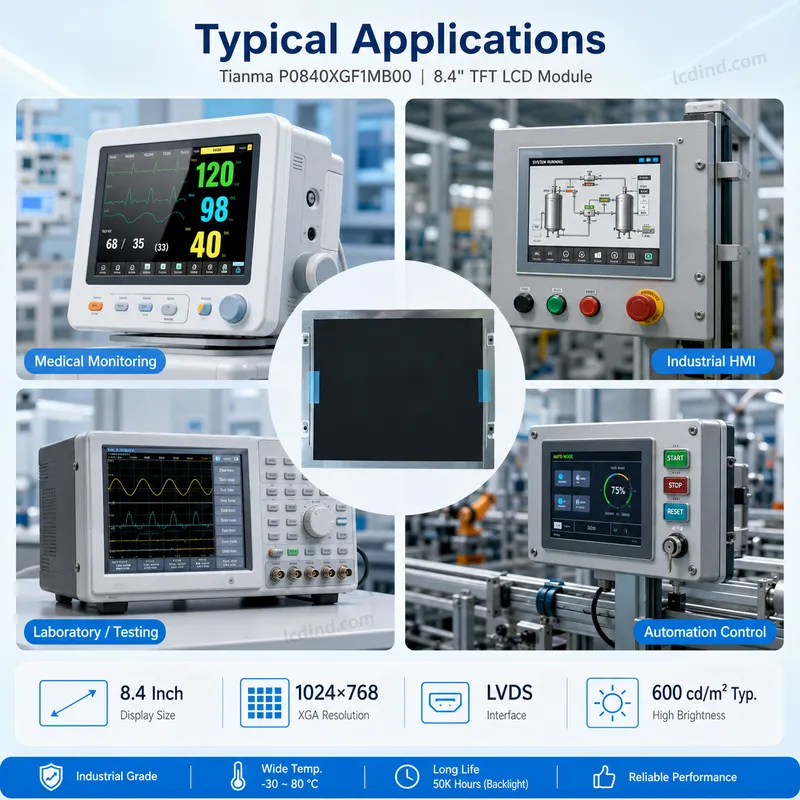

The 8.4 inch XGA format is common in older industrial HMIs, test instruments, medical equipment, transport systems and machine controllers. It gives more vertical information area than 800×480 panels and can support parameter tables, status screens, waveform windows or control pages. For replacement work, however, XGA resolution alone is not enough. The buyer must compare active area, outline, thickness, connector, cable exit, LVDS mapping, backlight driver behavior and mounting points against the original design.

LVDS compatibility should be checked from the host board. Confirm one-channel 6/8-bit configuration, voltage, pixel clock, timing, connector pinout, cable length and grounding method. A 20-pin LVDS connector can vary by manufacturer and model. If the system uses a custom cable harness, provide photographs and drawings. If the existing controller is old, test stable startup, image lock, color order, backlight dimming and recovery after power cycling.

The 600 cd/m² brightness and wide viewing angles make the panel useful for demanding indoor industrial equipment and some bright operator environments. It should not be automatically approved for outdoor sunlight use. Cover glass, touch overlay, anti-glare coating and enclosure angle can change readability. If the project adds a resistive or capacitive touch panel, the optical stack and brightness loss must be reviewed.

The -30 to 80 °C operating range gives stronger environmental capability than standard commercial panels. The assembled equipment must still validate thermal rise, cold start, condensation, connector reliability, backlight drive and mechanical stress. Because the WLED backlight includes a driver and has a listed 50K-hour life, the host-side power and dimming design should still be checked against the current datasheet rather than assumed from previous 8.4 inch panels.

RFQ Checklist

• Exact Tianma model and revision, plus existing display model if this is a replacement.
• LVDS one-channel 6/8-bit timing, connector, cable length and host board details.
• Mechanical drawing, active-area window, mounting, thickness and cable route.
• Brightness target, cover glass or touch overlay, viewing distance and ambient light.
• Temperature range, duty cycle, qualification tests and service-life expectation.
• Sample quantity, annual forecast, schedule and incoming inspection criteria.

Engineering FAQ

Can this replace another 8.4 inch XGA panel? Only after checking LVDS mapping, connector, outline, active area and backlight design.

Does it have a backlight driver? The public data lists WLED with LED driver, but power and dimming still need confirmation.

Is it suitable for high-temperature equipment? The panel is listed for -30 to 80 °C operation; the complete equipment still needs thermal validation.

Is touch included? No touch is listed. Any touch stack should be quoted and qualified separately.

What documents help LCDind quote accurately? Send the old panel datasheet, host LVDS details, mechanical drawing, quantity and approval schedule.

Engineering Review Note

Use P0840XGF1MB00 when the program needs an 8.4 inch XGA LVDS Tianma panel with wide viewing, high brightness and wide-temperature capability. Confirm exact interface and mechanics before ordering.

Prototype Validation and Lifecycle Planning

Sample testing for P0840XGF1MB00 should cover LVDS lock, image orientation, color depth, backlight dimming, thermal behavior and mechanical fit in the actual enclosure. Because 8.4 inch XGA panels are often used in long-life industrial equipment, review service replacement needs as well as new production. A replacement buyer should provide the failed panel label, photos, cable details and equipment model so LCDind can identify whether this Tianma panel is an exact candidate or only a possible engineering substitute.

For volume production, the approval record should include the model, drawing revision, LVDS cable, host timing, brightness setting, touch or cover-glass stack if used, inspection standard and packing method. If the equipment must run continuously, confirm internal temperature after several hours at normal backlight level. Wide-temperature panel selection reduces risk, but it does not replace complete-system testing for power supply, controller board, cable and enclosure conditions.

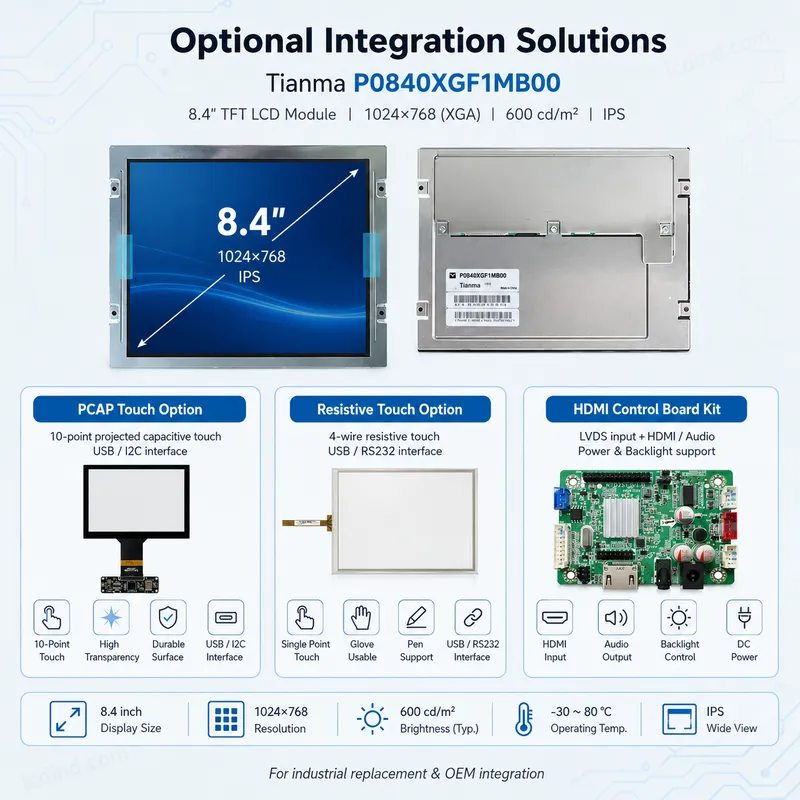

For systems that currently use a resistive touch overlay, include the overlay thickness, controller, cable exit and visible-area mask in the review. The LCD panel may fit electrically while the old touch stack or front bezel does not align. If the project needs a complete display kit, state that in the RFQ so controller, cable and touch scope are not assumed.

Because this panel has higher brightness and a 50K-hour WLED backlight, it may be suitable for long-life equipment, but lifecycle planning still requires forecast, approved alternates and incoming inspection records. LCDind should know whether the product is new production, repair supply or second-source evaluation.

If the panel is installed in medical, test or machine-control equipment, review long-term image stability, brightness setting and replacement access. A display that is easy to source but hard to replace in the machine can increase service cost, so service procedure should be considered during sample approval.

For second-source reviews, provide the approved panel drawing and host timing. LCDind should compare every mechanical and electrical control point before recommending substitution.
