Tianma TM084SDHG02-01 8.4 Inch 800×600 RGB / TTL TFT LCD Panel
Tianma TM084SDHG02-01 for industrial replacement and OEM integration, with 800×600, RGB / TTL and 350 cd/m² (Typ.). Confirm the exact revision, connector, timing and mechanical fit before ordering.
Product Attributes
| Brand | Tianma |
|---|---|
| Size | 8.4 inch |
| Resolution | 800×600 |
| Brightness | Standard (200-450 nits) |
| Interface | RGB / TTL |
| Operating Temp | Industrial (-20 to +70°C) |
| Touchscreen | No Touch |
| Viewing Angle | Standard Viewing |
| Panel Type | TFT |
Tianma TM084SDHG02-01 Overview
This Tianma TFT LCD panel draft is based on captured supplier evidence for engineering review. The exact model revision and integration constraints must be verified before procurement.
Key Features
- Panel model: TM084SDHG02-01
- Diagonal size: 8.4 Inch
- Resolution: 800×600
- Interface: RGB / TTL
- Brightness: 350 cd/m² (Typ.)
Technical Specifications
| Type | TFT |
|---|---|
| Resolution | 800×600, SVGA 119PPI |
| Display Type | TFT |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 350 cd/m² (Typ.) |
| Display Size | 8.4 inch |
| Operating Temperature | -20 ~ 70 °C |
| Screen Size | 8.4″ |

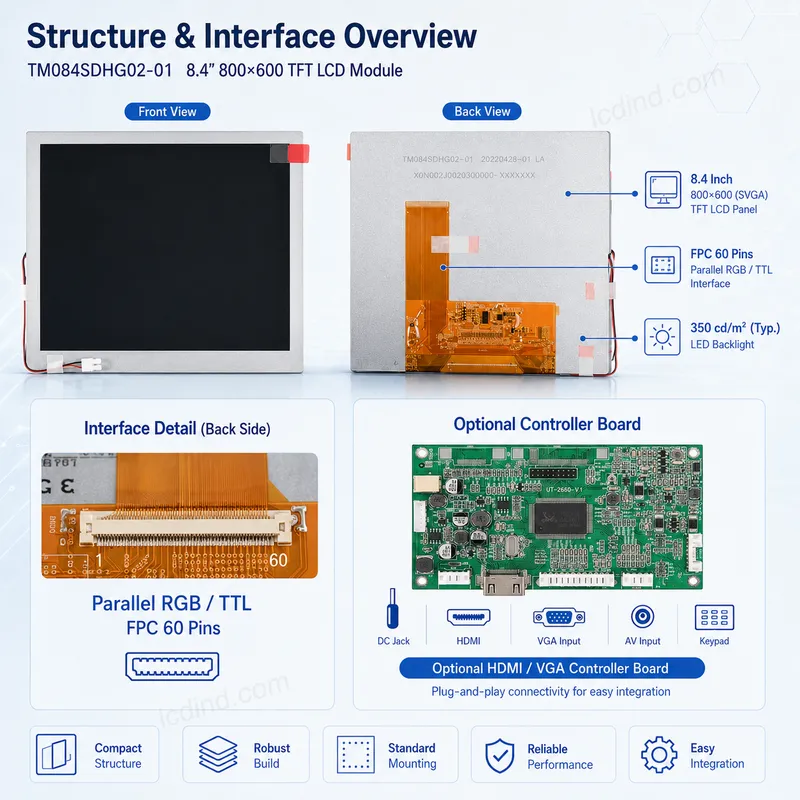

| Communication Interface | Parallel RGB (1 ch, 6/8-bit) , FPC 60 pins |
| Viewing Angle | 80/80/80/80 (Min.)(CR 10) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Backlight | 3S9P WLED , 30K hours , No Driver |
| Color Depth | 262K/16.7M 50% NTSC |
| Work Mode | TN, Normally White, Transmissive |
| Response Time | 20 (Typ.)(Tr+Td) ms |
| Power Consumption | 2.388W (Typ.) |
| Selling Units | Single item |

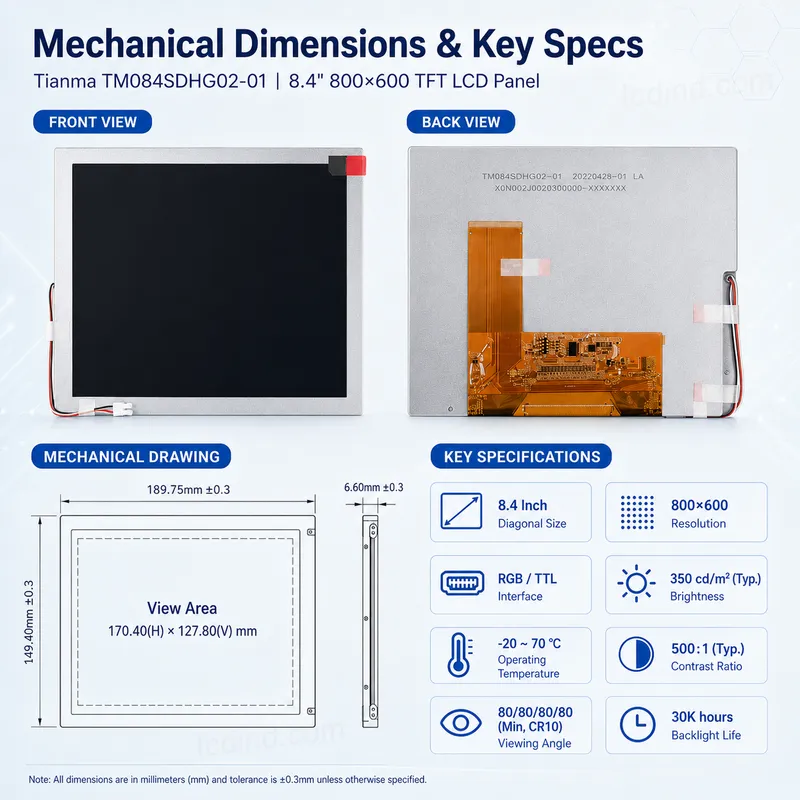

| Single package size | 30X25X10 cm |
| Single gross weight | 0.5 kg |
Integration Notes

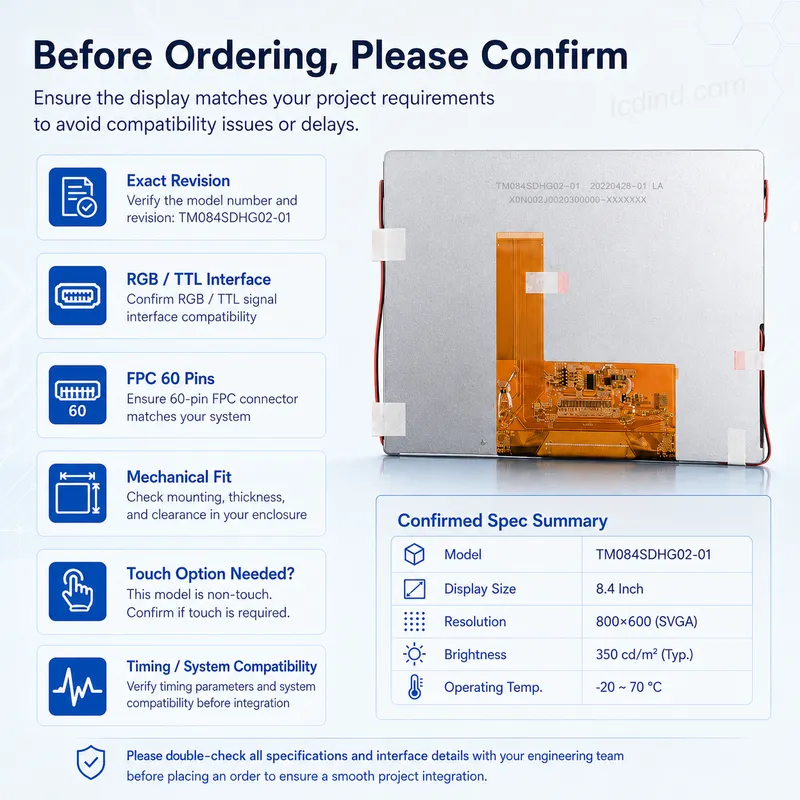

Confirm the active area, outline dimensions, mounting points, connector location, pin definition, timing, power rails, backlight driver and host-board compatibility against the current datasheet or an approved sample.
Engineering FAQ
What is the resolution of TM084SDHG02-01?
The captured supplier evidence states 800×600. Confirm the exact model revision and current datasheet before design-in.
Which interface does TM084SDHG02-01 use?
The captured supplier evidence indicates RGB / TTL. Confirm channel count, bit depth, connector and pin assignment before board design.
Is touch or a controller board included?
This draft treats the selected configuration as the LCD panel only unless the source evidence explicitly states an integrated touch assembly or controller option.
What should engineers confirm before ordering TM084SDHG02-01?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 1.
Request Engineering Review
Send the exact target model, required quantity, host interface, mechanical drawing and application environment for compatibility review and quotation.
