Tianma TM084SDHG01-02 8.4 Inch 800×600 LVDS TFT LCD Panel

Tianma TM084SDHG01-02 8.4 Inch SVGA LVDS Panel

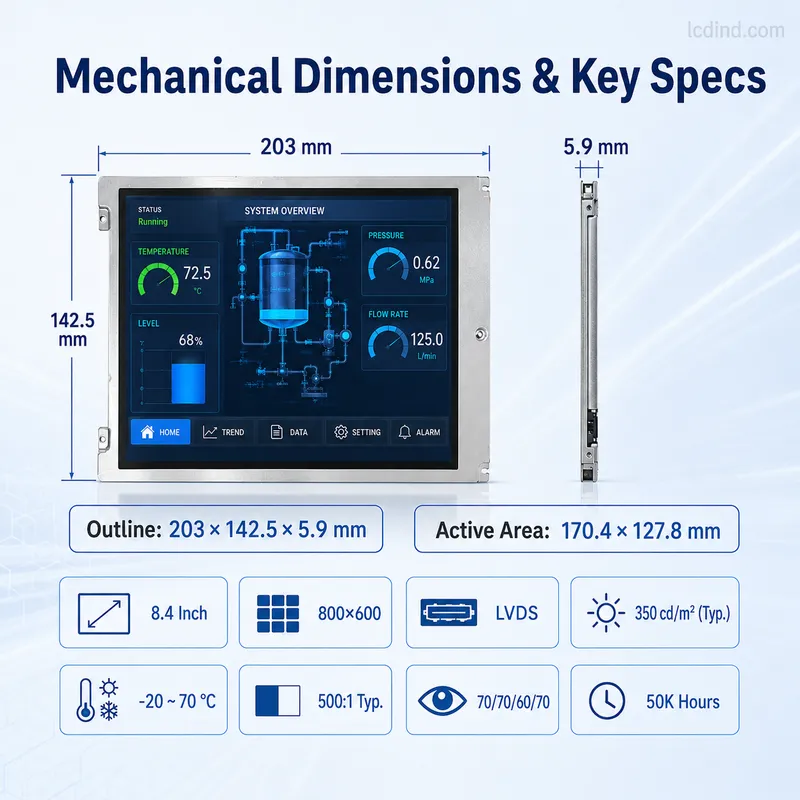

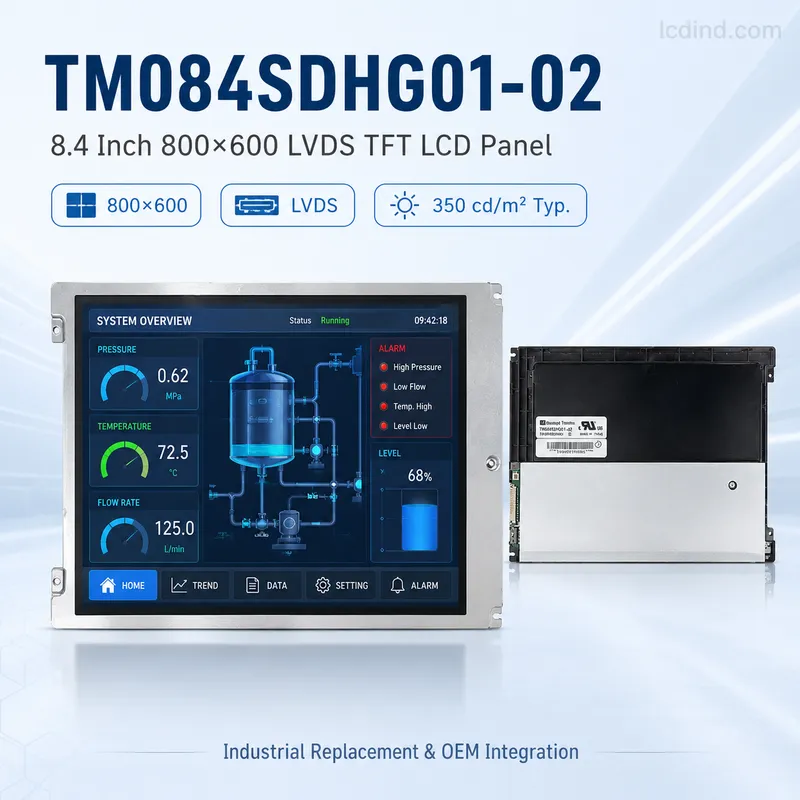

Tianma TM084SDHG01-02 is an 8.4 inch SVGA TFT LCD panel for industrial equipment that requires LVDS input in a traditional 800×600 format. The public data lists 350 cd/m² typical brightness, LVDS one-channel 6/8-bit interface with 20-pin connector, -20 to 70 °C operation, 170.4×127.8 mm active area, 203×142.5×5.9 mm outline, 70/70/60/70 viewing angle, 500:1 contrast, TN normally white transmissive work mode, WLED 8S3P backlight with LED driver, 50K-hour backlight life, 262K/16.7M colors at 54% NTSC and 2W typical consumption.

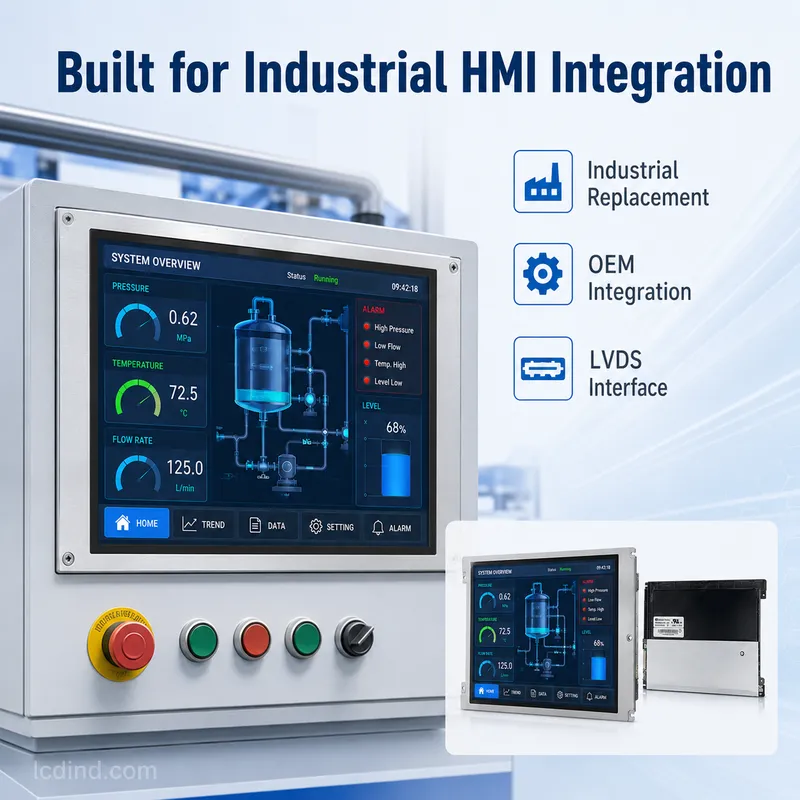

This model is relevant for replacement work in older industrial HMIs, medical devices, test equipment, automation panels and transport systems that were designed around 8.4 inch SVGA LVDS panels. It should be distinguished from the RGB/TTL TM084SDHG02-01. Both share size and resolution, but the interface, connector and backlight arrangement are different. Selecting the wrong variant can require host-board or cable redesign.

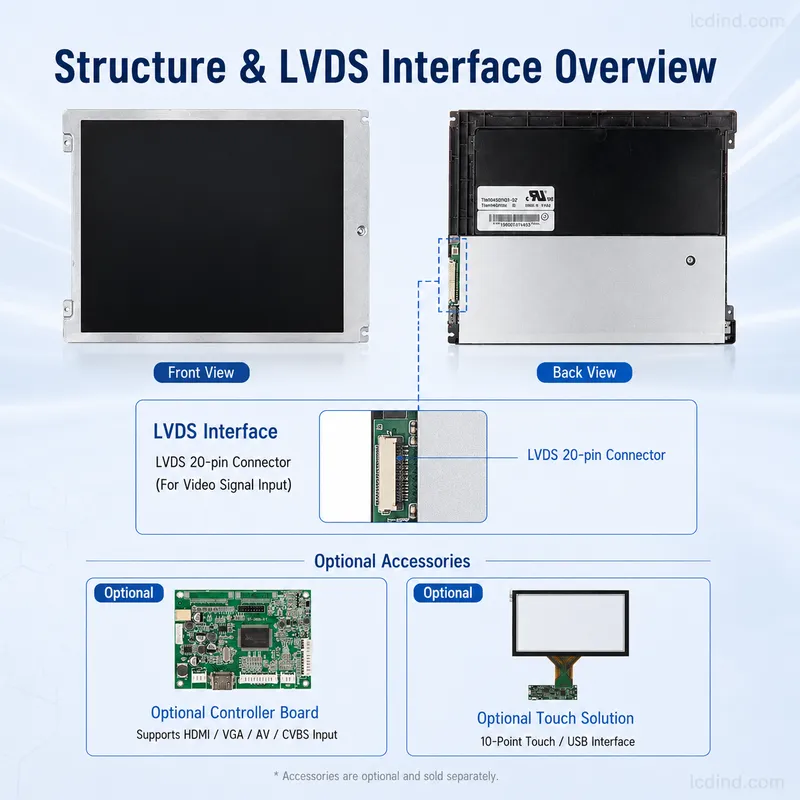

LVDS review should include one-channel 6/8-bit mapping, connector pinout, timing, voltage, cable length, grounding and backlight control. Because the public data lists WLED with LED driver, confirm the required power and dimming behavior from the current datasheet and host board. If the equipment is a legacy device, inspect whether the existing controller expects a specific LVDS mapping or power sequence.

The 350 cd/m² brightness is suitable for indoor equipment. If the panel is installed behind a resistive touch overlay, thick protective window or aged front lens, final readability may be lower. TN viewing behavior should be checked from the normal operator position. If wide IPS viewing is required, another 8.4 inch candidate such as P0840XGF1MB00 may be more appropriate, but it uses different resolution and interface conditions.

For repeat production and service stock, keep a controlled purchasing record. Include exact suffix, LVDS connector, drawing revision, active-area position, backlight behavior, approved sample and packaging requirement. Do not mix it with RGB/TTL variants in the same purchasing note.

RFQ Checklist

• Confirm LVDS one-channel 6/8-bit requirement and 20-pin connector.
• Existing panel label, host board, cable and drawing if this is replacement.
• Mechanical outline, active-area window, mounting and front stack.
• Backlight power, dimming method and operating duty cycle.
• Viewing position, lighting condition and touch overlay if used.
• Sample quantity, forecast and expected service life.

Engineering FAQ

How is this different from TM084SDHG02-01? This version uses LVDS with a 20-pin connector; TM084SDHG02-01 uses RGB/TTL with 60-pin FPC.

Is this an IPS panel? The public data lists TN normally white transmissive mode with standard viewing angles.

Does it include a backlight driver? The public data lists WLED with LED driver.

Can it replace another 8.4 inch SVGA LVDS panel? Only after LVDS mapping, connector, outline and backlight behavior are checked.

What should be documented? Document exact suffix, drawing, host timing, cable, sample and inspection criteria.

Engineering Review Note

Use TM084SDHG01-02 for 8.4 inch SVGA Tianma LVDS replacement or OEM projects where the host interface is confirmed. Keep the LVDS version separate from RGB/TTL variants during sourcing.

Prototype Validation and LVDS Replacement Review

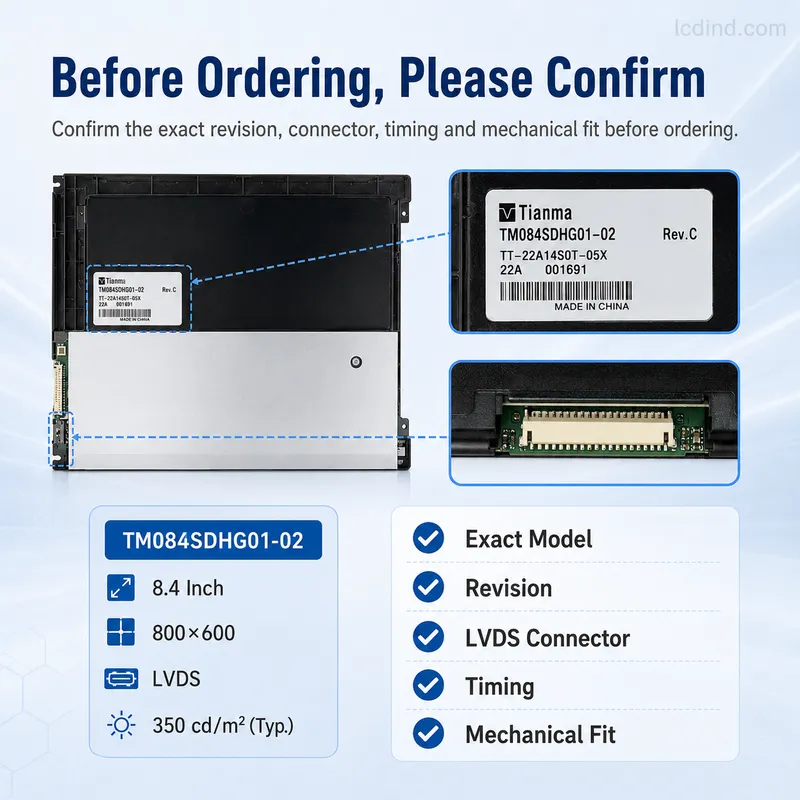

For TM084SDHG01-02, sample validation should focus on LVDS mapping, 20-pin connector, cable length, image stability, backlight behavior and mechanical fit. The listed WLED backlight includes a driver, which is different from the RGB/TTL sister model that lists no driver. That distinction matters for power design and field replacement. If the existing equipment already has an LVDS controller, confirm whether it expects one-channel 6-bit or 8-bit operation and whether the cable pinout matches this Tianma panel.

Because 8.4 inch SVGA panels are common in legacy industrial equipment, replacement projects should provide more evidence than the public page title. Send the old panel model, full drawing, cable photos, touch overlay details and equipment model. If the old display used a different viewing mode or connector position, the replacement may need mechanical or electrical work. LCDind can review whether TM084SDHG01-02 is a direct candidate or a controlled substitute.

For repeat purchasing, clearly separate this LVDS version from the RGB/TTL TM084SDHG02-01. The approval record should include the exact suffix, LVDS pinout, backlight behavior, drawing revision, approved sample and packing standard. Similar resolution and diagonal size are not enough for procurement substitution.

For LVDS replacement projects, preserve the original cable orientation and locking method if possible. Many field failures come from cable stress or connector mismatch rather than from the display glass. If a new harness is required, approve the harness together with the LCD sample.

When comparing against the RGB/TTL version, include backlight-driver responsibility in the decision. The LVDS version lists a driver, while the RGB/TTL version does not. This affects host-board power design, diagnostics and spare-part planning.

For production testing, verify image stability after vibration or cable movement if the equipment is mobile or machine-mounted. LVDS can be robust, but connector retention and cable shielding still matter. If the display is used in a medical or measurement device, record any acceptance criteria for uniformity, pixel defects and brightness because those expectations may be stricter than a simple functional check.

If an old resistive touch panel remains in the assembly, inspect alignment and optical loss with the replacement LCD. The LCD may be correct while the reused touch layer causes poor appearance.

If supply planning requires an alternate, LCDind should compare the candidate against LVDS mapping, active area, outline, backlight driver, viewing angle and touch-stack compatibility before quotation. This avoids a visually similar but electrically unsuitable replacement.

Keep the approved harness with the LCD approval file.

Also keep connector photos and measured cable length.
