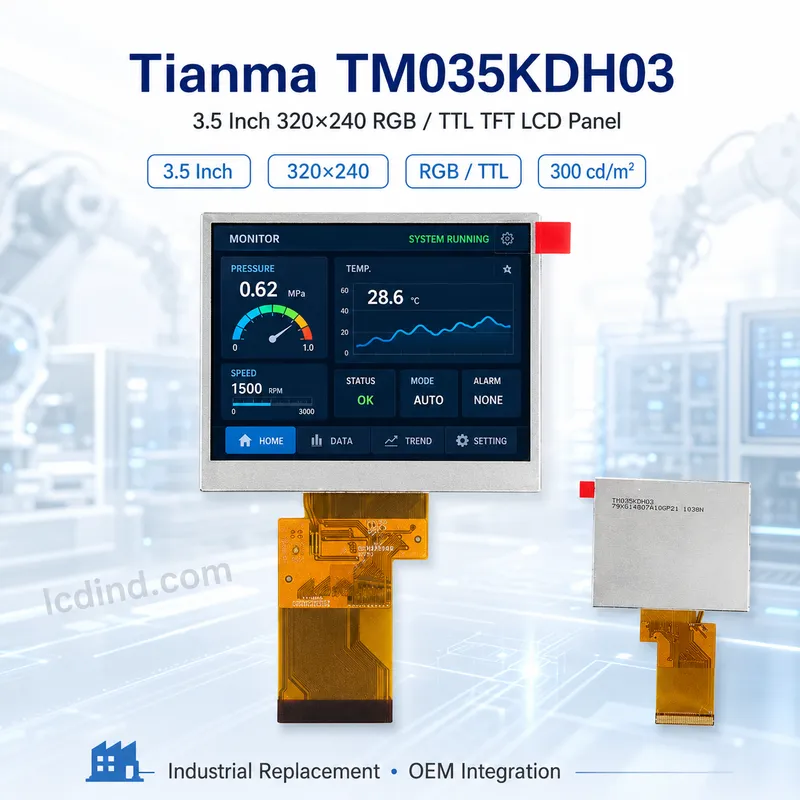

Tianma TM035KDH03 3.5 Inch 320×240 RGB / TTL TFT LCD Panel

Tianma TM035KDH03 3.5 Inch QVGA RGB/TTL TFT for Industrial Replacement

Tianma TM035KDH03 is a 3.5 inch QVGA TFT LCD panel for industrial replacement, compact controller and OEM equipment programs that need a proven 320×240 display size with RGB/TTL interface. The public data lists 320×240 resolution, 300 cd/m² typical brightness, Digital RGB 8/24-bit plus SPI with CCIR601/656 support, 54-pin connection, -20 to 70 °C operation, 70/70/60/70 typical viewing angle, 500:1 contrast, TN normally white transmissive mode, WLED backlight without driver, 20K-hour backlight life, 20 ms response time and 16.7M color support at 50% NTSC. It should be evaluated from exact interface and mechanical fit, not from size alone.

This type of 3.5 inch QVGA panel is often used in equipment with established electronics, menus and physical controls. It can be suitable for service tools, handheld instruments, small machine panels, medical accessories, power devices and replacement builds where the host already outputs RGB/TTL timing. The advantage is compatibility with many embedded display-controller designs; the risk is assuming that all 3.5 inch QVGA panels share the same pinout, timing or viewing direction. They do not.

The buyer should confirm the 54-pin interface definition, RGB data width, SPI usage, CCIR mode if applicable, voltage, pixel clock, sync signals, reset behavior and backlight driver design. Since the backlight is listed without driver, the host or accessory board must provide the correct LED drive. Backlight current, dimming method, connector and thermal behavior should be checked before sample approval. If the project currently uses another Tianma suffix or alternate brand, compare drawings line by line.

The 300 cd/m² brightness is suitable for controlled indoor equipment. It is not a high-brightness outdoor display. A cover lens, resistive touch overlay or thick front window can reduce readability. If the equipment is used in a workshop or service vehicle, test the display behind the production front panel. TN viewing behavior also needs review. The published viewing angles are adequate for defined user positions, but not equivalent to all-view IPS. Mounting orientation should be checked with the real operator position.

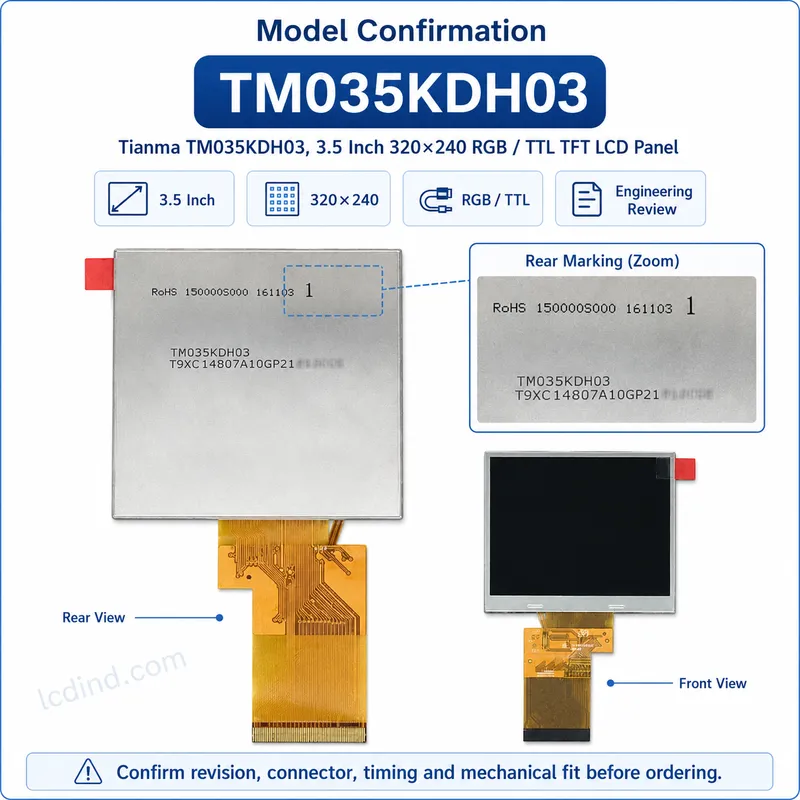

For replacement programs, procurement should collect the old panel label, connector photos, full drawing, host board information and failure reason. If the requirement is not exact replacement but redesign, LCDind can review whether TM035KDH03 is the best fit or whether a wider-viewing, brighter or touch-integrated module would reduce engineering risk.

RFQ Checklist

• Existing panel model, host board, connector photos and current drawing if this is a replacement.
• RGB/TTL timing, data width, SPI use, voltage, reset and backlight-driver method.

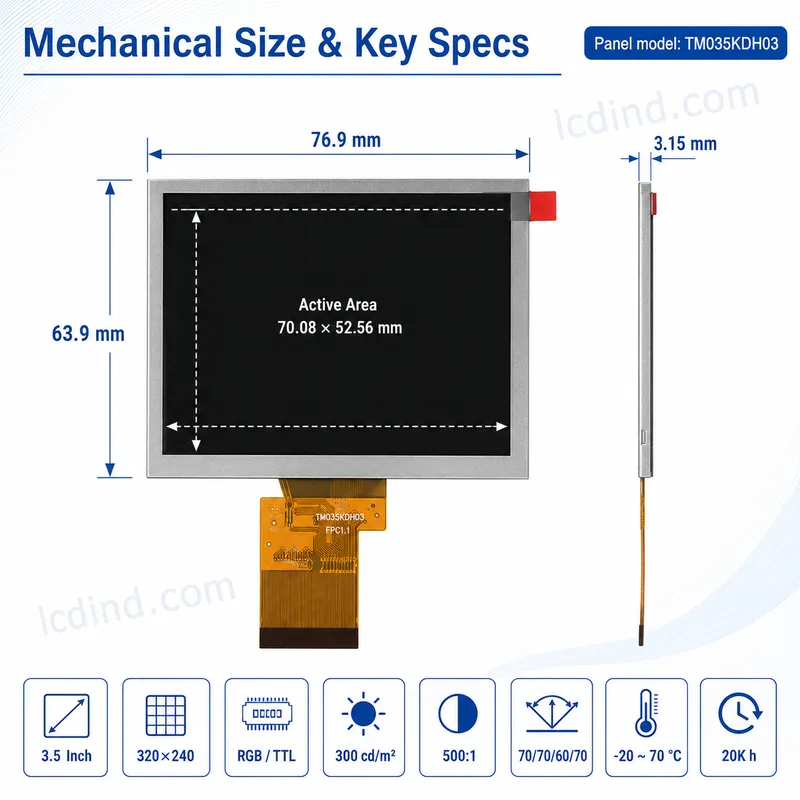

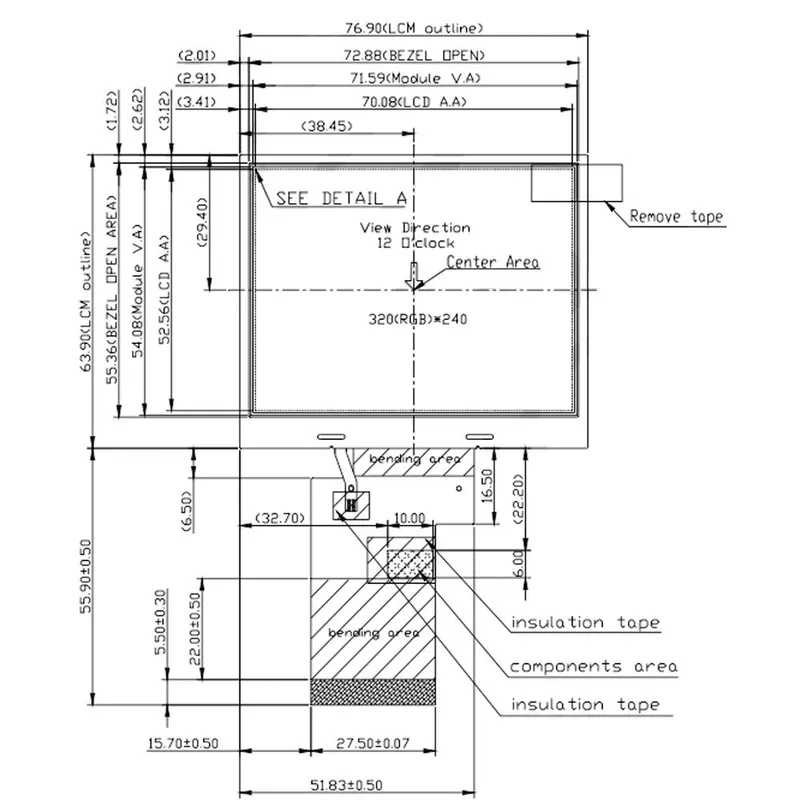

• Mechanical drawing, mounting, viewing orientation, front lens and cable route.
• Indoor lighting condition, brightness expectation and required dimming behavior.
• Touch or no-touch requirement and whether a separate cover stack is needed.
• Prototype quantity, annual forecast, production schedule and approved inspection criteria.

Engineering FAQ

Can this replace any 3.5 inch 320×240 panel? No. Interface, connector, timing, backlight and outline must match.

Does it include a backlight driver? The public data lists WLED without driver, so the host design must provide the correct LED drive.

Is it wide-viewing IPS? No. The display mode is listed as TN normally white transmissive with standard viewing angles.

Is it suitable outdoors? Not as a default assumption. 300 cd/m² is mainly for indoor or controlled-light equipment.

What controls purchasing accuracy? Use the exact Tianma model, drawing revision, connector, timing and approved sample record.

Engineering Review Note

Use TM035KDH03 when the equipment requires a 3.5 inch QVGA RGB/TTL Tianma panel and the host/backlight design is known. Send LCDind the existing drawing, interface definition and sample requirement before quotation.

Prototype Validation and Sourcing Notes

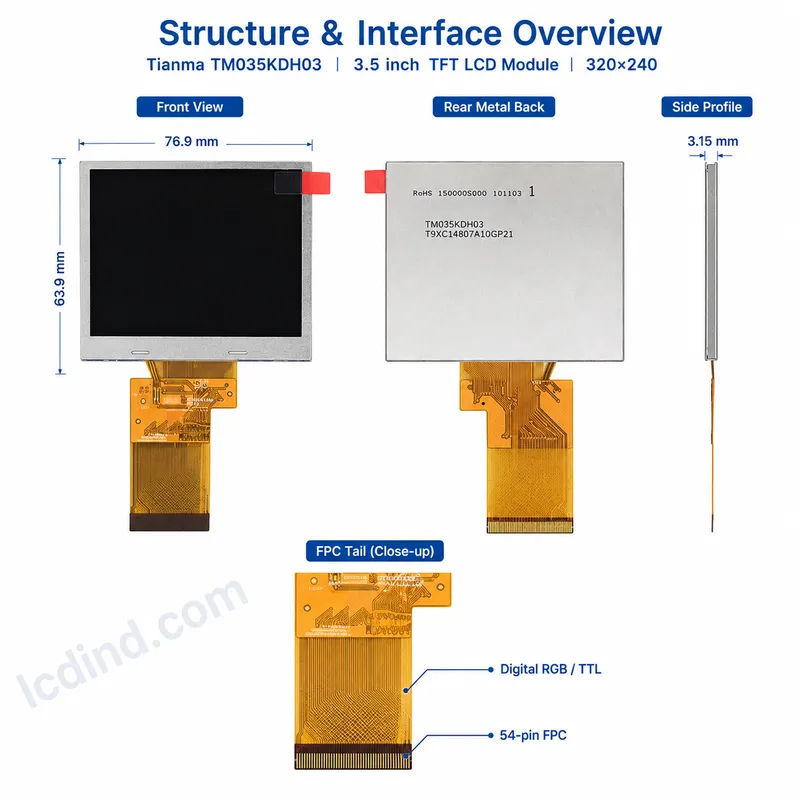

For TM035KDH03, prototype review should include RGB/TTL timing, SPI command behavior, backlight drive, orientation, color order, flicker, sleep recovery and display behavior at the required temperature range. If the panel is used as a replacement, test it in the existing equipment with the original cable or a production-intent replacement cable. The 54-pin interface and backlight-without-driver detail are important; a mechanically similar sample can still fail if the host backlight circuit or pin mapping is different.

For repeat purchasing, keep the approved drawing, Tianma model, host-board revision, cable, backlight settings and inspection criteria in the sourcing record. If the equipment manufacturer wants a second source, do not substitute another 3.5 inch QVGA panel by title alone. The correct comparison includes operating mode, viewing angle, connector, timing, outline, active-area position and backlight driver requirement. LCDind can review alternates if the buyer provides the current bill of materials and acceptable redesign limits.

If the buyer needs touch with this Tianma panel, define it as a separate display assembly because touch affects brightness, thickness, front-panel mechanics and controller wiring. For non-touch equipment, record the keypad or encoder interface and verify that the UI remains operable without touch. This avoids late-stage changes that force a new display qualification.

Before volume order, LCDind should confirm current availability, exact suffix, packing and any change-notification expectation. Industrial replacement projects often have long service lives, so purchasing should avoid approving a visually similar alternate without engineering sign-off.

For engineering comparison, include the panel’s TN viewing mode and 300 cd/m² brightness in the approval notes. If a later project team expects IPS viewing or higher brightness, they should not reorder this part without checking whether the original UI, enclosure and operator position still apply.

If the project has an existing firmware image, test it before purchasing volume stock. Initialization differences can appear only after sleep, reset or temperature cycling.
