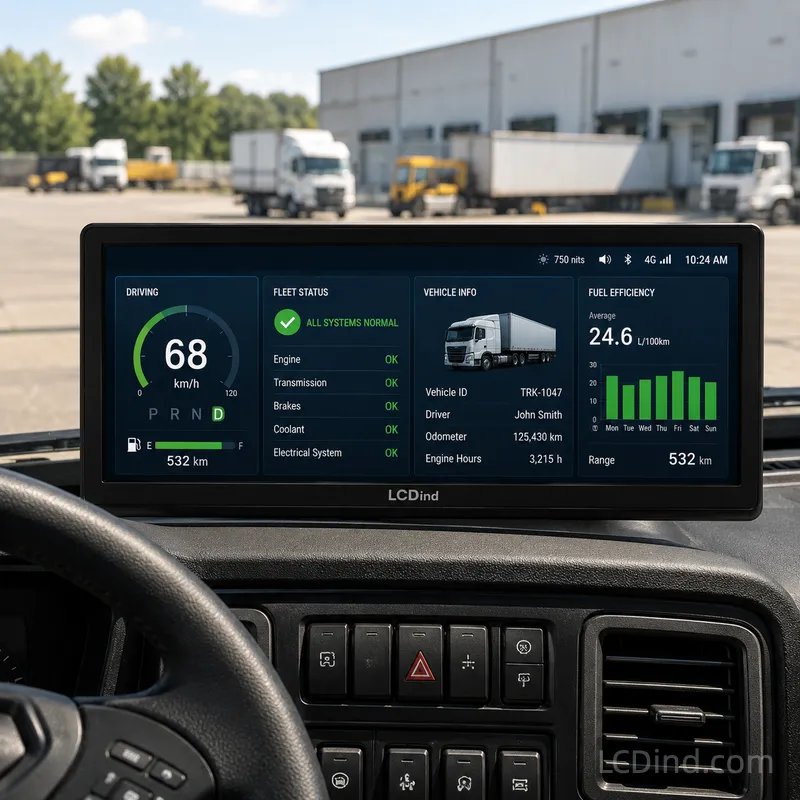

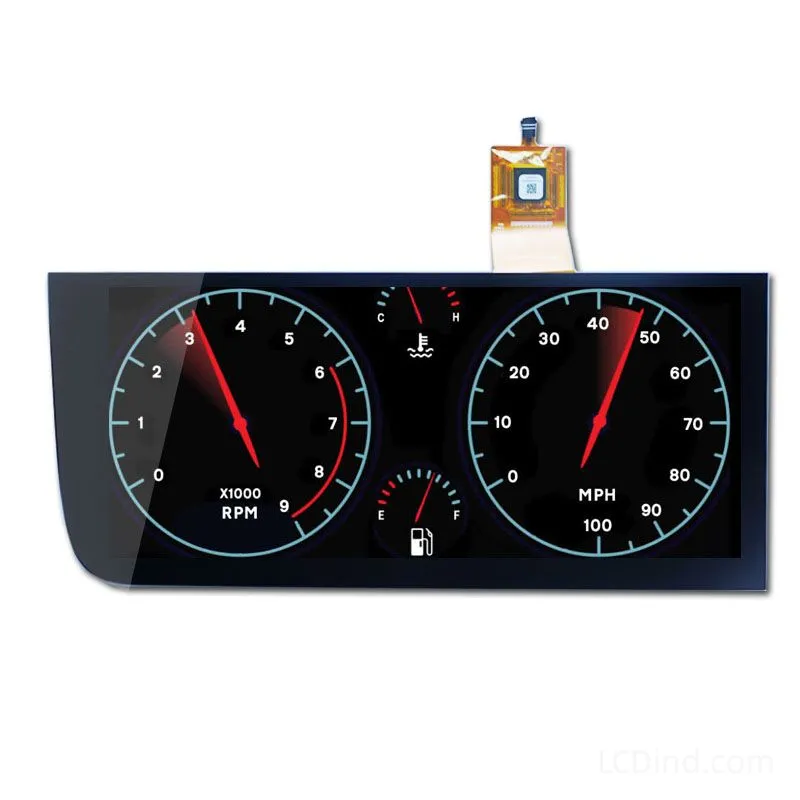

High Brightness LCD Display Sunlight Readable for Automotive Dashboards 10.25 inch 750 nits LVDS
High Brightness LCD Display for factory-direct OEM/ODM display programs with 10.25 inch, LVDS, 750 nits, Touch panel support available. Designed for EV charging stations, outdoor kiosks, transport terminals, machine-side panels, and daylight-readable industrial controls, with LCDind support for samples, customization, and repeat production.
Product Attributes
| Brand | OEM / ODM |
|---|---|
| Size | 10.25 inch |
| Resolution | 1920×720 |
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | Optional Touchscreen |
| Viewing Direction |
High Brightness LCD Display for Factory Direct OEM/ODM Programs
High Brightness LCD Display from LCDind is prepared for engineering teams and procurement managers that need a production-ready display source for commercial equipment programs with 10.25 inch, 1920×720, LVDS, 750 nits. It is positioned for equipment programs that need readable screens in bright ambient light, stable repeat supply, and engineering support for enclosure, thermal, and touch integration. Before sample approval, LCDind helps confirm the display size, host interface, brightness target, touch stack, operating temperature, and repeat-supply plan.

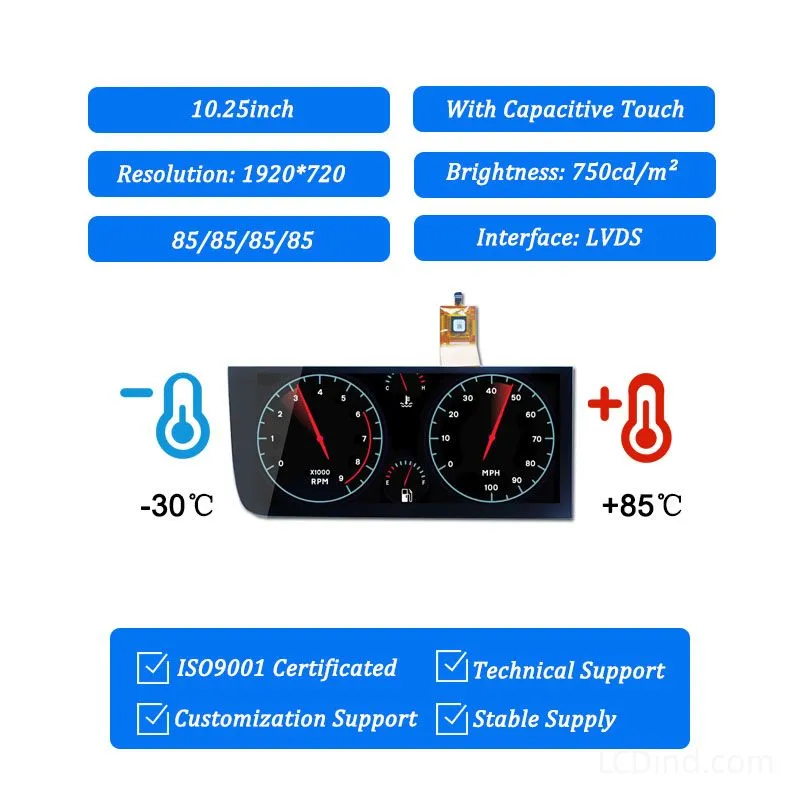

Key Specifications
| Size | 10.25 inch |
|---|---|
| Resolution | 1920×720 |
| Interface | LVDS |
| Brightness | 750 nits |
| Viewing Direction | All viewing directions |
| Touchscreen | Touch panel support available |
| Operating Temp | -30 to +85°C |
| Storage Temp | -40 to +90°C |
| Outline Dimension | 305.2*178.2*2.6 mm |
| Active Area | 293.8*165.2 mm |
| Contrast Ratio | 1200:1 |
| Power Supply | 3.3V |
| LED Lifetime | 20000 hours |
| Panel Model | 91-10303-HH1 |
Size, Interface, Brightness & Touch Fit
The 10.25 inch active format gives OEM teams a practical display area for industrial HMIs, touch terminals, medical carts, automation panels, and smart equipment consoles. The LVDS interface is suited to industrial mainboards and controller boards where cable length, pin assignment, voltage, and timing need to be locked before pilot production. The 750 nits backlight supports bright indoor, semi-outdoor, and sheltered outdoor equipment where readability and backlight lifetime both need engineering review. The touch configuration is listed as Touch panel support available, so LCDind can review cover glass, optical bonding, coating, FPC, and controller matching for repeat production.
Application Fit
This high brightness LCD display is a good candidate for EV charging stations, outdoor kiosks, transport terminals, machine-side panels, and daylight-readable industrial controls. LCDind can support project review for enclosure constraints, target annual quantity, interface compatibility, backlight lifetime, cover glass, touch integration, and production schedule.
Factory Customization & Procurement Support
For OEM/ODM projects, LCDind factory support may include brightness adjustment, optical bonding, AG/AR/AF cover glass, FPC or cable adjustment, capacitive or resistive touch matching, controller-board matching, and lifecycle review. Share the application, forecast quantity, target price range, schedule, host platform, and any existing panel model when requesting a quotation.
| Brand | OEM / ODM |
|---|---|
| Size | 10.25 inch |
| Resolution | 1920×720 |
| Interface | LVDS |
| Brightness | High Brightness (500-900 nits) |
| Operating Temp | Ultra Wide / Automotive (-30°C ~ +85°C) |
| Touchscreen | Optional Touchscreen |
| Viewing Direction |
Q: What type of equipment project is this 10.25 inch Sunlight Readable TFT LCD Display 1920x720 LVDS 750 nits suitable for?
A: This high brightness LCD display is best considered for EV charging stations, outdoor kiosks, transport terminals, machine-side panels, and daylight-readable industrial controls. LCDind recommends confirming annual quantity, enclosure design, host interface, brightness target, and operating environment before moving from samples to batch orders.
Q: What interface should the OEM mainboard support?
A: The LVDS interface is suited to industrial mainboards and controller boards where cable length, pin assignment, voltage, and timing need to be locked before pilot production. Please confirm pin assignment, connector type, voltage, timing, cable direction, and controller-board requirements during engineering review.
Q: Is this display suitable for outdoor or high-ambient-light equipment?
A: The 750 nits backlight supports bright indoor, semi-outdoor, and sheltered outdoor equipment where readability and backlight lifetime both need engineering review. For demanding outdoor or sunlight-readable equipment, LCDind can review target nits, AG/AR cover glass, optical bonding, thermal design, and backlight lifetime for the production environment.
Q: Can LCDind support touch, cover glass, or module customization for batch production?
A: The touch configuration is listed as Touch panel support available, so LCDind can review cover glass, optical bonding, coating, FPC, and controller matching for repeat production. LCDind can evaluate capacitive touch, resistive touch, cover-glass thickness, bonding, coating, FPC changes, cable length, and production consistency requirements.
Q: What information should procurement provide for a factory quotation?
A: Please share target application, annual forecast, first order quantity, host interface, mechanical drawing, brightness requirement, operating temperature -30 to +85°C, certification needs, delivery schedule, and whether pre-production samples are required.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click “Send” Now!
