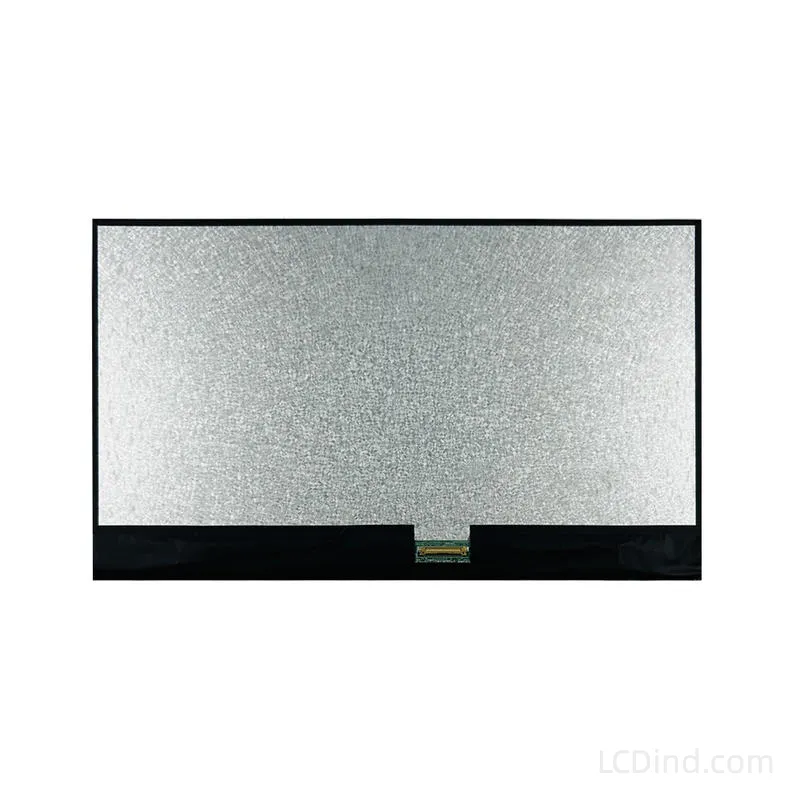

11.6 Inch 1920×1080 LCD Kit – 450 nits Ultra-thin eDP IPS
The 11.6 Inch 1920×1080 LCD Module is an ultra-slim display solution designed for portable monitors and laptop upgrades. Unlike standard 250-nit screens, this IPS panel delivers a superior 450 nits brightness, ensuring vivid visuals even in bright environments. The kit features a modern 30-Pin eDP interface for high-speed FHD data transmission.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 11.6 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen |
Ultra-Thin Clarity: 11.6 Inch 1920×1080 LCD Kit
For engineers designing portable devices or ultra-compact kiosks, space and weight are critical. This 11.6 inch LCD module features an industry-leading 2.7mm ultra-thin profile, making it significantly thinner than traditional industrial screens. Combined with IPS (FFS) technology, it provides consistent color accuracy from 85-degree viewing angles.
1. Superior Brightness (450 nits)
Most standard 11.6-inch laptop screens are rated at 220-250 nits, which can appear dim in office lighting.
- The Upgrade: This module outputs 450 cd/m², offering nearly double the brightness.
- Benefit: Images look punchy and text is readable even near windows or under bright overhead lights.
- Surface: Finished with a Haze 25% Anti-Glare (3H) coating to reduce reflections.
2. eDP Interface (Embedded DisplayPort)
Modern processors (Intel/AMD/Rockchip) favor eDP over older LVDS interfaces for high resolutions.
- Connection: Uses a standard 30-Pin eDP connector, reducing cable bulk and improving signal integrity for 1080p content.
- Compatibility: Compatible with most modern x86 motherboards and advanced ARM development boards.

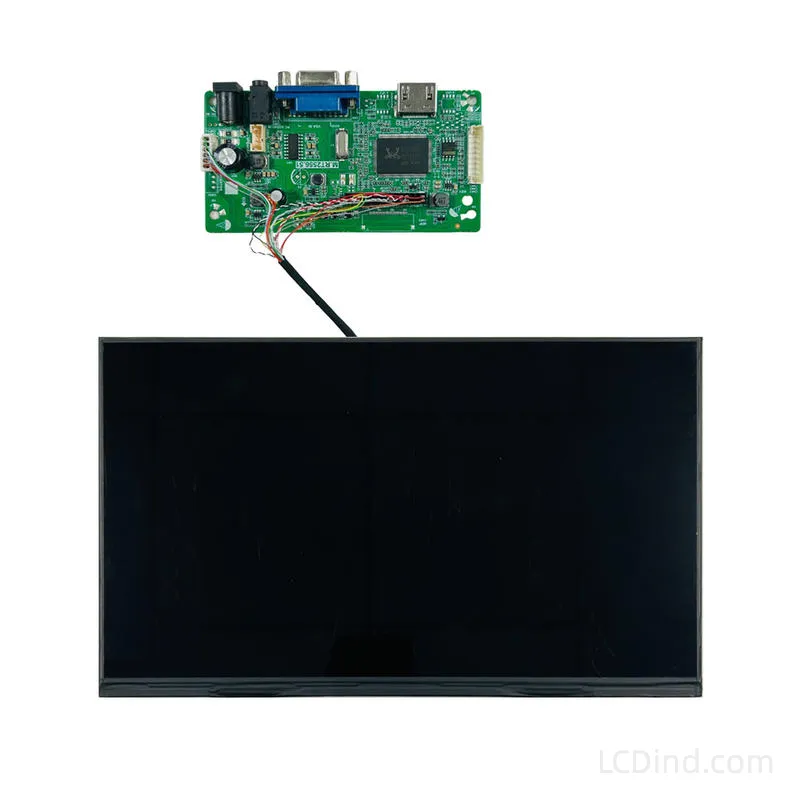

3. Complete HDMI Kit Solution
We provide more than just the panel. The “Full Kit” option includes:
- Controller Board: A compact driver board with HDMI input, allowing direct connection to PCs, Raspberry Pi, or media players.
- Customization: We also support customization of the frame, touch panel bonding, and FPC shape for bulk orders.

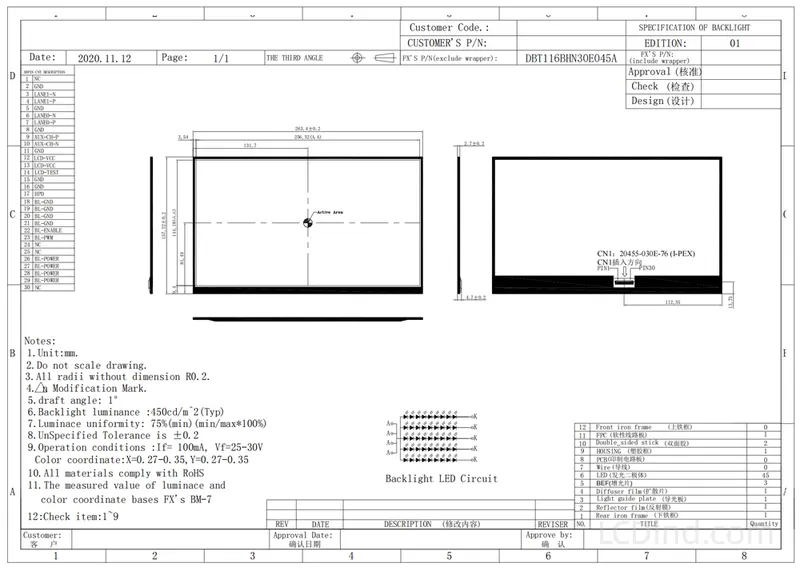

| Display Specifications | |
|---|---|
| Display Size | 11.6 Inch |
| Resolution | 1920 x 1080 (FHD) |
| Display Mode | IPS / FFS (Normally Black) |
| Brightness | 450 cd/m² (Typ.) |
| Interface | eDP (30-Pin) |
| Viewing Angle | 85/85/85/85 (Typ.) |
| Pixel Pitch | 0.1335(H) x 0.1335(V) mm |
| Active Area | 256.32(H) x 144.18(V) mm |
| Outline Dimension | 263.4 x 157.22 x 2.7 mm |
| Surface Treatment | Anti-Glare (Haze 25%, 3H) |
| Operating Temp | 0°C ~ +50°C |
Q: What is the difference between eDP and LVDS?
eDP (Embedded DisplayPort) is a newer digital interface based on DisplayPort architecture, designed for higher resolutions like FHD and 4K with fewer wires. LVDS is older. This 11.6-inch screen uses 30-pin eDP, so it cannot be directly plugged into an LVDS port without a signal converter.
Q: Does the full kit include a power adapter?
Typically, the kit includes the LCD panel and the HDMI driver board. You will usually need a standard 12V DC power adapter (sold separately) to power the driver board. Please check the “In the Box” section or contact sales to add a power supply.
Q: Can I add a touchscreen to this 11.6-inch display?
Yes. We offer customization services to bond a capacitive touch panel (USB interface) to this screen. This is ideal for building interactive kiosks or touch monitors. Please contact us for a customization quote.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | eDP |
| Panel Type | IPS |
| Resolution | 1920×1080 |
| Size | 11.6 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen |
Q: What is the difference between eDP and LVDS?
eDP (Embedded DisplayPort) is a newer digital interface based on DisplayPort architecture, designed for higher resolutions like FHD and 4K with fewer wires. LVDS is older. This 11.6-inch screen uses 30-pin eDP, so it cannot be directly plugged into an LVDS port without a signal converter.
Q: Does the full kit include a power adapter?
Typically, the kit includes the LCD panel and the HDMI driver board. You will usually need a standard 12V DC power adapter (sold separately) to power the driver board. Please check the "In the Box" section or contact sales to add a power supply.
Q: Can I add a touchscreen to this 11.6-inch display?
Yes. We offer customization services to bond a capacitive touch panel (USB interface) to this screen. This is ideal for building interactive kiosks or touch monitors. Please contact us for a customization quote.
Q: What is the MOQ?
A: The MOQ for our products is 1 piece. We are able to provide support throughout the testing process.
Q: What about the delivery time?
A: We have products in stock and can ship them within 3 working days.
Q: Does your product have any warranty?
A: Yes, we offer a warranty that ensures the LCD will function properly upon receipt. However, please note that we do not provide guarantees for any damage caused during use.
Q: What’s your payment method?
A: We accept several payment methods, including T/T (bank transfer), and PayPal.
Q: What’s your shipping method?
A: Thank you for your inquiry. We offer various shipping methods to suit different needs.
For small quantity orders, we use UPS Air-Express, DHL, FedEx, TNT, or EMS Express service. These options are safe and fast.
For large quantity orders, we typically work with the buyer’s cargo agent in China. Alternatively, we can arrange for air or sea transportation.
Please let us know your preferred shipping method and we will do our best to accommodate your request.
Q: Do you offer custom solution?
A: Yes, we offer custom solutions if our standard products do not meet the buyer’s requirements. Please let us know your specific needs, and we will work with you to create a tailored solution that meets your business needs.
