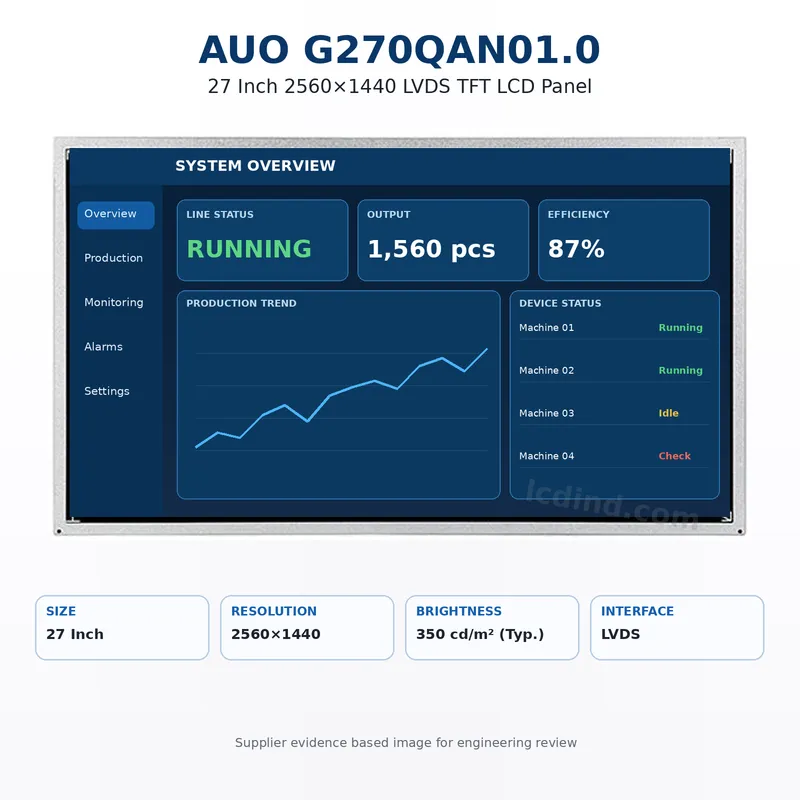

AUO G270QAN01.0 27 Inch 2560×1440 LVDS TFT LCD Panel

AUO G270QAN01.0 27 Inch QHD LVDS Panel for High-Resolution Industrial Displays

AUO G270QAN01.0 is a 27 inch Quad-HD LCD panel for industrial display systems that need more working area than FHD. The public specification confirms 2560×1440 resolution at 108 PPI, 27 inch size, IPS/AMVA normally black transmissive mode, 350 cd/m² typical brightness, 1000:1 contrast ratio, 89/89/89/89 viewing angle, 4-channel 8-bit LVDS interface with 92-pin connector, WLED backlight rated 30K hours without driver, 8/8 ms typical response, 21W typical power consumption, 16.7M colors, 100% Adobe RGB and 0 to 50 °C operating temperature.

Confirmed Product Specifications

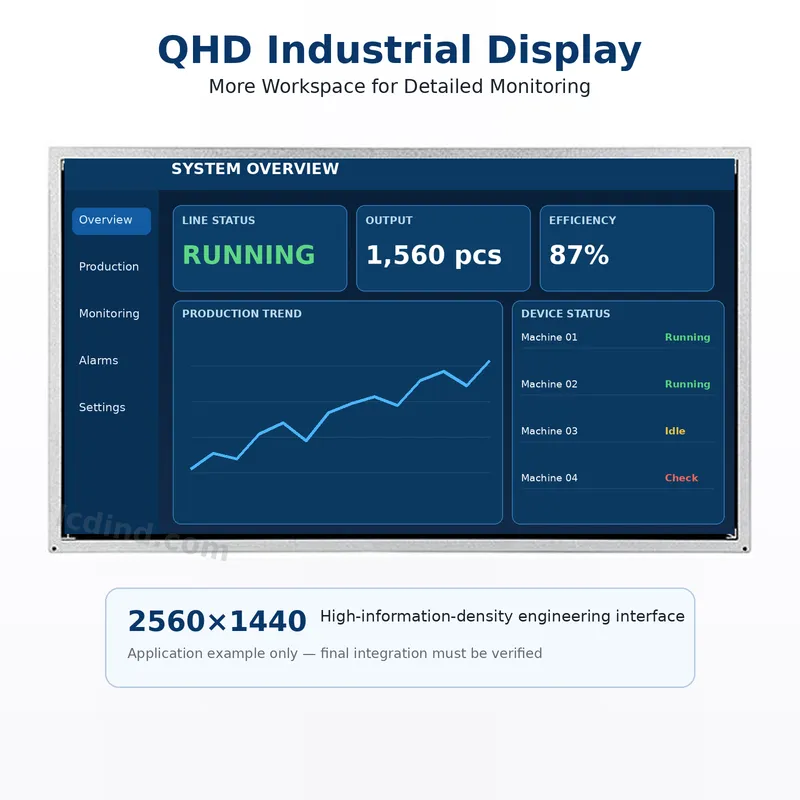

QHD Industrial Use Case

This panel is appropriate for industrial imaging, medical review equipment, test stations, high-resolution dashboards, machine-vision consoles and process monitoring screens where 1920×1080 does not provide enough workspace. The 2560×1440 resolution can show more data, graphs and image detail, but the host computer and software must support QHD output cleanly.

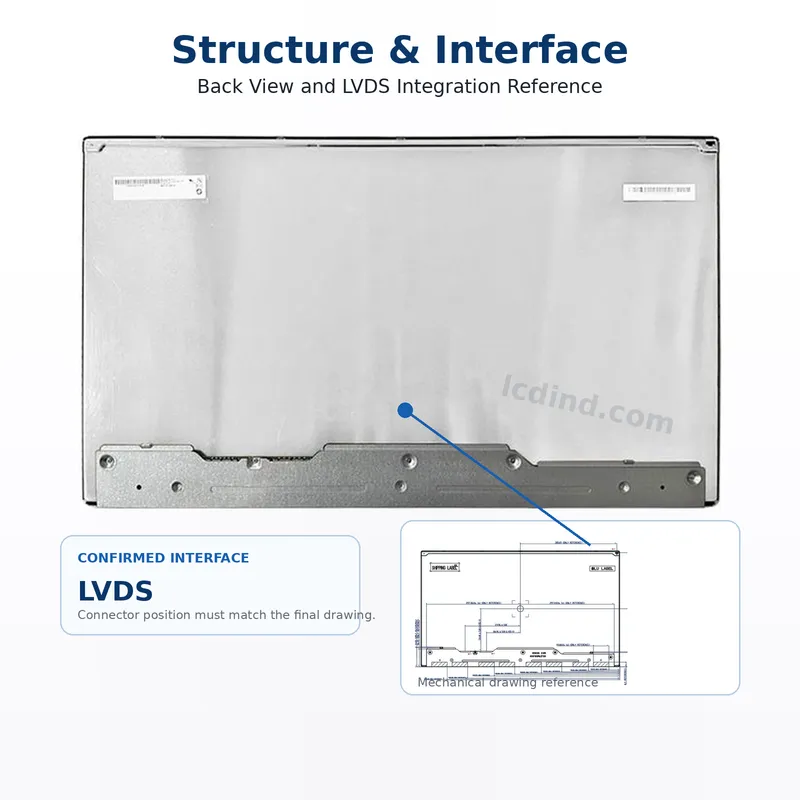

4-Channel LVDS Integration

The 4-channel 8-bit LVDS interface and 92-pin connector make this panel more demanding than common single- or dual-channel LVDS modules. Engineers should confirm channel mapping, connector type, cable impedance, shielding, voltage, power sequencing and controller capability. A standard FHD LVDS board cannot be assumed to drive this panel.

Color and Imaging Considerations

The public data lists 100% Adobe RGB, which may matter for imaging or color-sensitive review applications. If color performance is important, the RFQ should define calibration target, viewing environment, backlight control and accepted measurement method. If the application is only a normal HMI, color gamut may be less important than controller compatibility and long-term supply.

Brightness and Indoor Boundary

The 350 cd/m² brightness is standard for indoor displays. This panel should not be selected for direct sunlight or high-reflection outdoor environments without further optical design. If protective glass or touch is added, brightness and contrast should be measured through the final stack. For high ambient light, compare 500-nit or sunlight-readable options.

Mechanical and Thermal Review

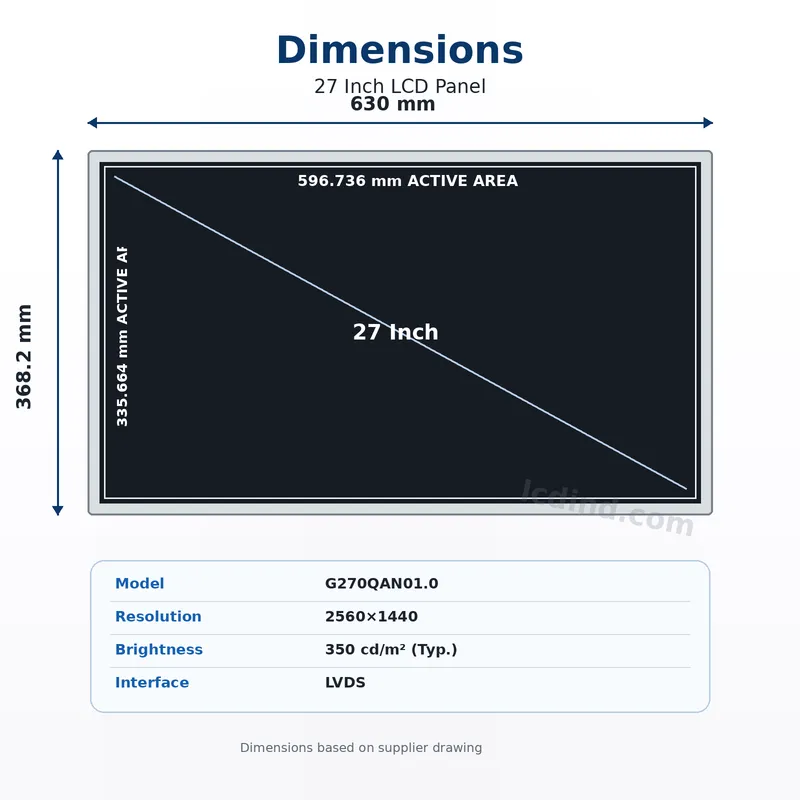

A 27 inch panel requires careful packaging, mounting and thermal planning. Engineers should confirm active area, outline, weight, backlight driver location, cable route and mounting frame. The 21W typical power value means enclosure heat and power budget should be reviewed. In sealed industrial monitors, thermal performance can affect backlight life and controller stability.

Replacement Sourcing Notes

For replacement projects, provide the original panel label, host controller model, cable photos and enclosure information. The same 27 inch size can use eDP, V-by-One, LVDS or other interfaces, so the interface must be confirmed. A QHD replacement should be validated with the original software to avoid scaling, EDID or timing issues.

Procurement Control

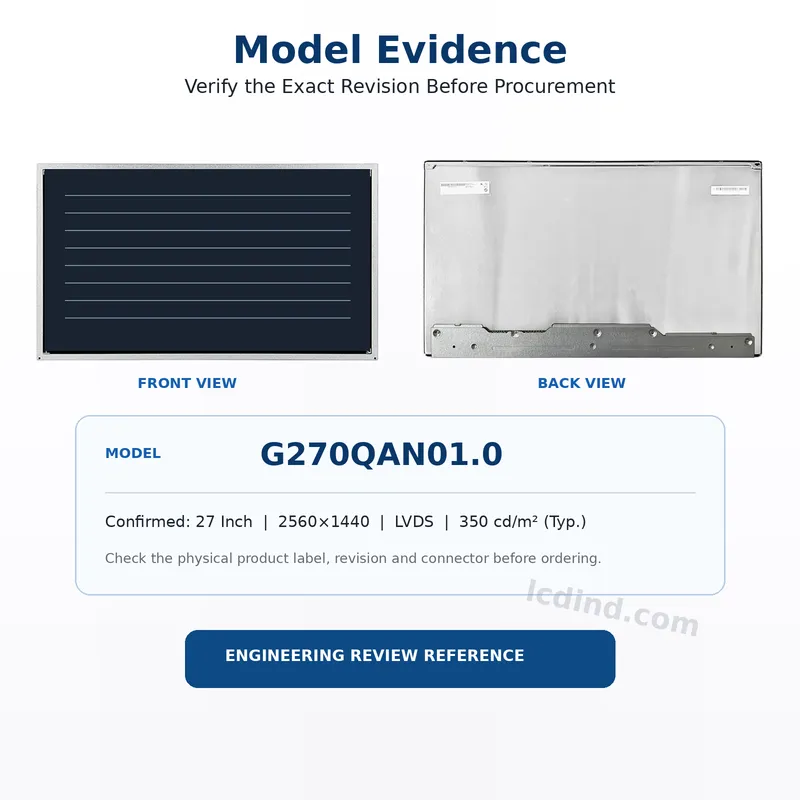

For production, lock the exact AUO model and revision, LVDS cable, backlight driver, test image criteria, packaging and substitute approval method. Because QHD LVDS panels are not as interchangeable as standard FHD monitors, any substitute should be checked by engineering before shipment.

Sample Acceptance Method

Sample testing should include QHD image lock, full-resolution pattern display, color and gray-scale review, pixel inspection, thermal run, long-duration operation, cable movement and UI scaling. If the screen is used for inspection or medical review, include representative images from the actual application.

Software and Graphics Compatibility

A QHD 2560×1440 panel should be checked against the graphics system before purchasing. Some industrial PCs and older controllers may support FHD but not QHD at the required refresh rate. The buyer should test the real software UI, camera feed, medical image or inspection application at native resolution. Scaling errors, small text and unsupported timings can create integration problems even when the panel specification is correct.

Color-Critical Approval

If the project values the listed 100% Adobe RGB capability, define the color workflow before sample approval. This includes graphics source, calibration target, ambient light, measurement instrument, acceptable color shift and whether the final cover stack changes the result. If the display is only used for operator menus, color-critical testing may be unnecessary; controller stability, mechanics and thermal behavior should take priority.

RFQ Checklist

• Confirm AUO G270QAN01.0 revision, 4-channel LVDS mapping, 92-pin connector, voltage and backlight driver requirement.
• Provide host controller, graphics output, enclosure drawing, mounting method and cable length.
• State whether color accuracy, touch, cover glass or optical bonding is required.
• Define quantity, annual forecast, sample test criteria, packaging and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Can a normal FHD LVDS controller drive it?

Not necessarily. It requires 2560×1440 support and 4-channel LVDS matching.

Is it a high-brightness outdoor panel?

No. The listed brightness is 350 cd/m² for indoor-oriented use.

Why mention 100% Adobe RGB?

It may matter for imaging or color-review applications, but it should be validated in the final system.
