AUO G238HAN01.3 23.8 Inch 1920×1080 LVDS TFT LCD Panel

AUO G238HAN01.3 23.8 Inch FHD LVDS IPS Panel for Industrial Monitors

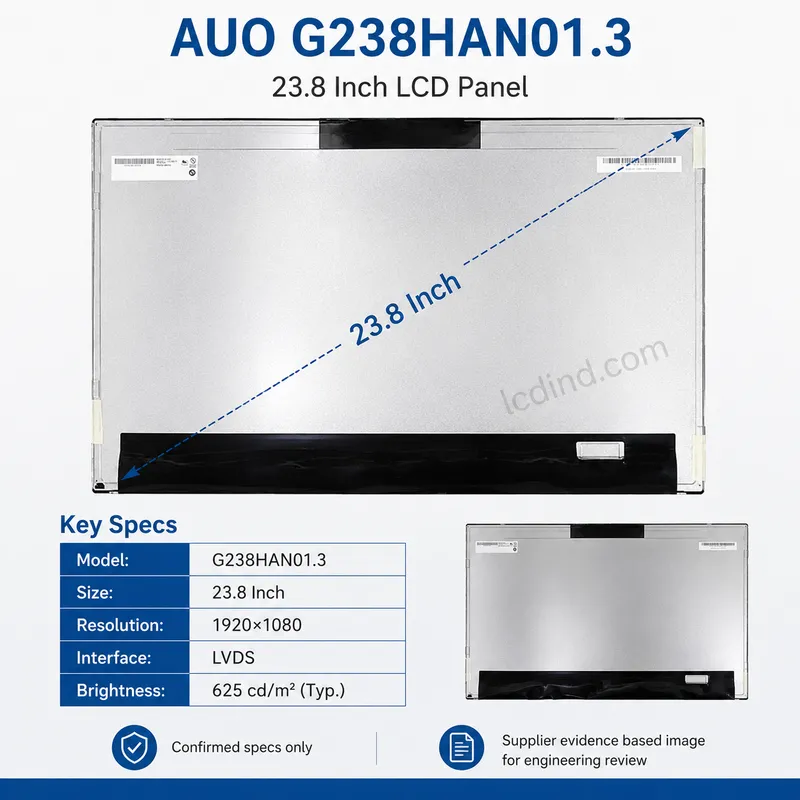

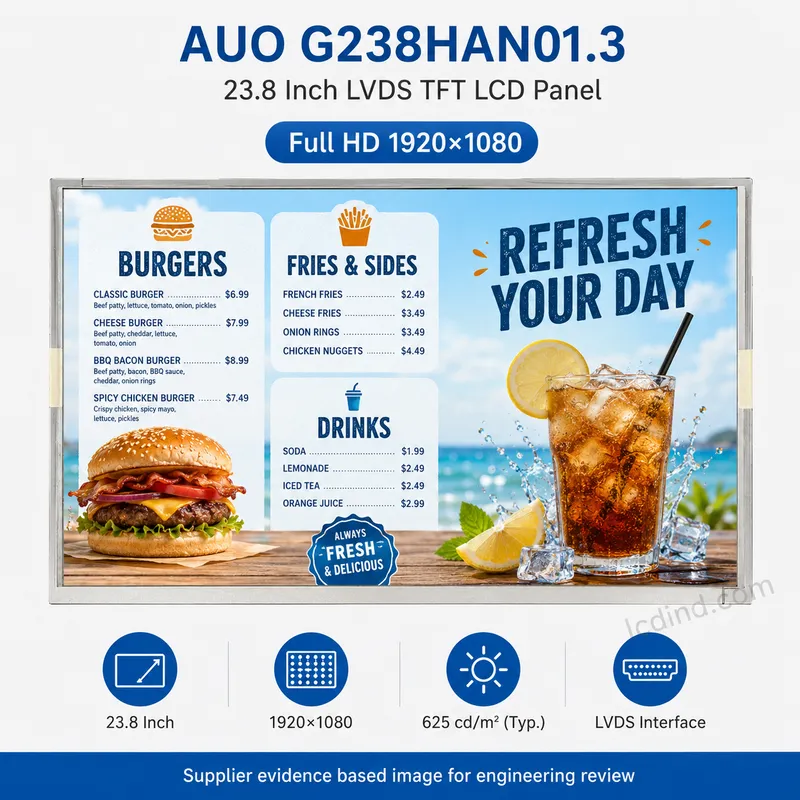

AUO G238HAN01.3 is a 23.8 inch FHD LCD panel for industrial monitor integration, replacement sourcing and OEM display systems where a larger 16:9 screen is required. The current public specification confirms 1920(RGB)×1080 FHD resolution, 23.8 inch size, 625 cd/m² brightness, 1000:1 contrast ratio, 89/89/89/89 viewing angle, 2-channel 8-bit LVDS interface with 30 pins, WLED backlight rated 50k hours without driver, 0 to +50 °C temperature range, 2.30 kg typical weight and 16:9 width-to-height ratio. The attributes also identify LVDS, high-brightness class, all-view/IPS and no touch.

Confirmed Product Specifications

Industrial Monitor Application Fit

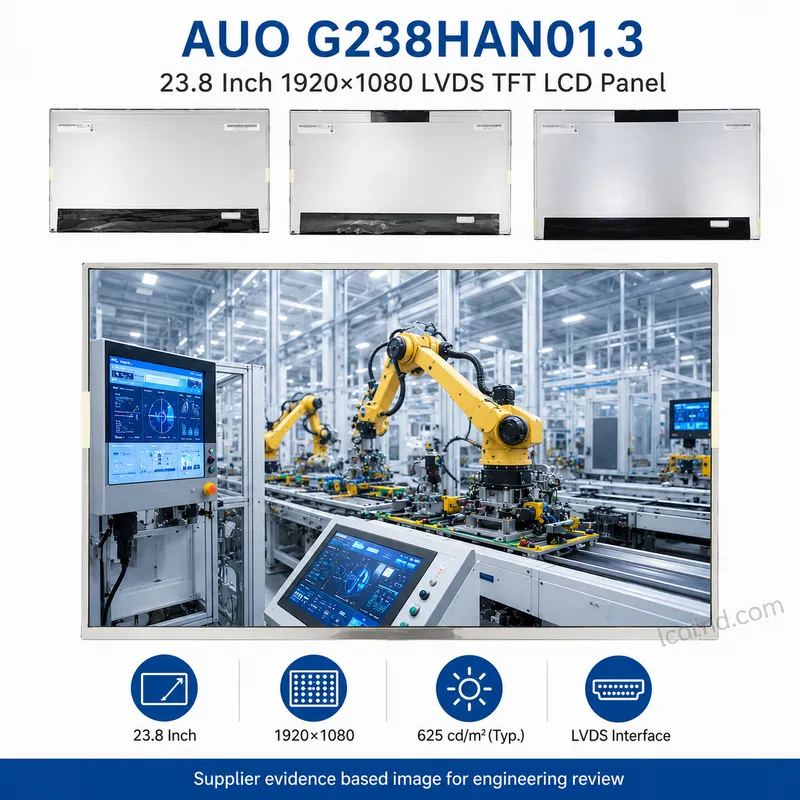

This panel is a practical candidate for factory operator stations, inspection monitors, machine-vision review screens, medical carts, transport control desks and industrial PCs where 21.5 inch is too small and 27 inch is too large. The 23.8 inch FHD format supports dashboards, trend charts, alarms, live video and maintenance screens while keeping common 1920×1080 software scaling.

LVDS Controller and Cable Matching

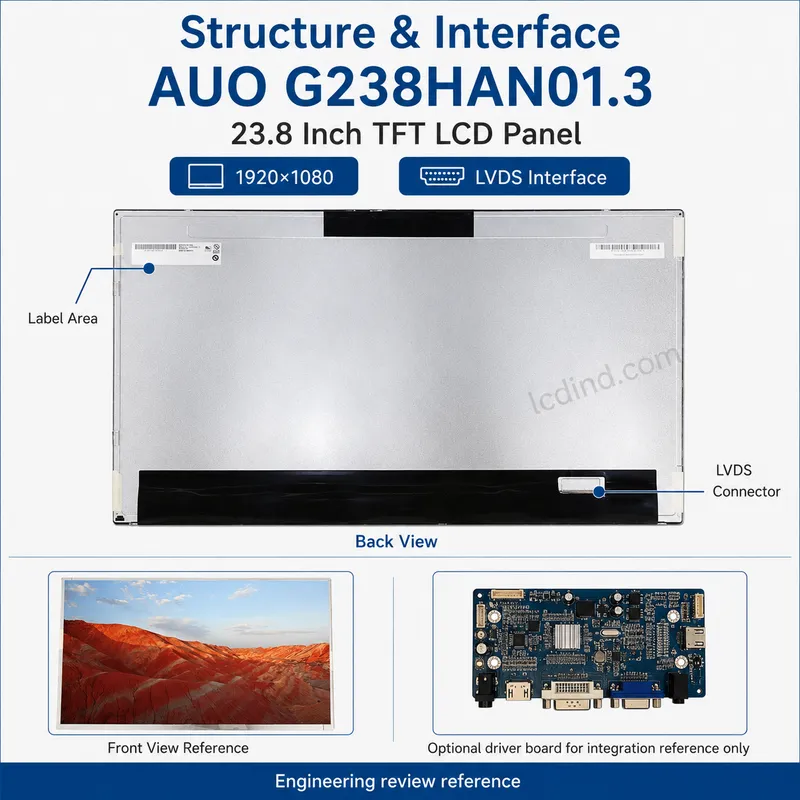

The confirmed interface is 2-channel 8-bit LVDS with a 30-pin connector. Engineers should confirm LVDS mapping, connector direction, panel voltage, backlight driver requirement, cable length and shielding before sample order. Because the backlight is listed without driver, the quotation should state whether LCDind supplies the panel only, backlight driver, cable, controller board or open-frame monitor assembly.

Brightness and Optical Boundary

The 625 cd/m² brightness is stronger than standard indoor office panels and can work for bright factory environments or protected terminals. It is not automatically an outdoor sunlight-readable solution. If a cover glass, PCAP touch sensor or protective window is added, the finished display should be tested for reflection, contrast loss, color readability and thermal rise under the final lighting condition.

No-Touch Panel Scope

The attributes list no touch. If the project requires touch, it should be treated as a display assembly design involving cover glass, capacitive sensor, touch controller, bonding method, grounding, ESD path and mechanical stack. Touch is not a direct replacement for the bare AUO panel specification because it changes brightness, thickness and front-frame design.

Mechanical and Service Review

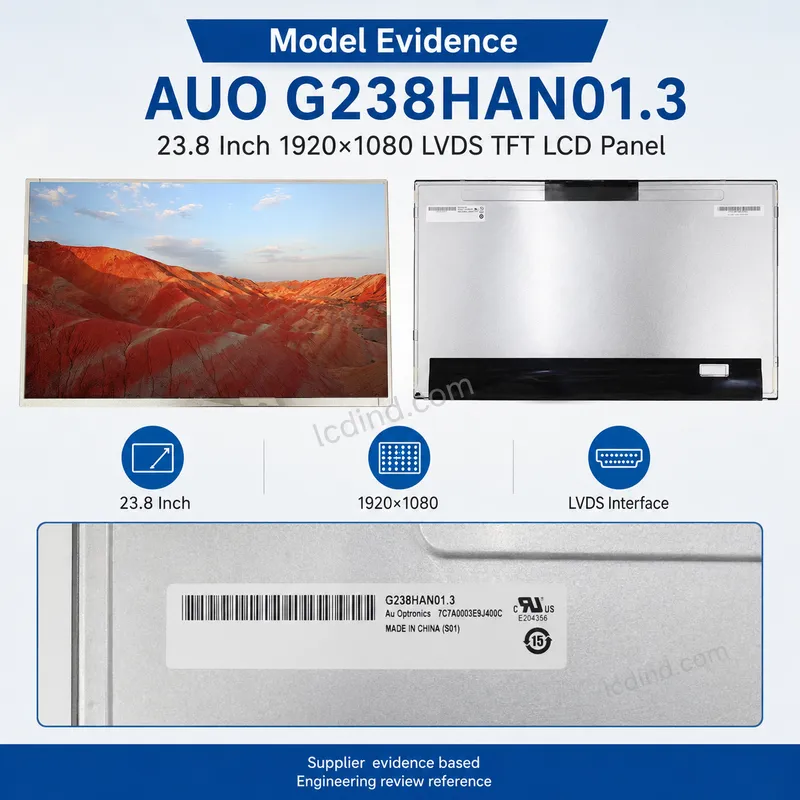

Large panels require more attention to mounting pressure, torsion, cable routing and shipping protection than small TFT modules. Replacement buyers should provide original panel photos, rear label, connector photo, monitor model and enclosure dimensions. OEM buyers should confirm open-frame structure, bezel opening, mounting bracket, VESA or custom mount, airflow and service access.

Supply and Revision Control

For repeat orders, procurement should lock exact AUO model, revision, LVDS cable, backlight driver, optical criteria, packaging and acceptable substitute rules. Large monitor panels may have compatible alternatives, but substitutes must be reviewed for connector, outline, brightness, color behavior and thermal load before release into production.

Sample Validation Plan

A practical sample test should include LVDS image stability, brightness measurement, backlight uniformity, color check, viewing angle from operator positions, hot start, long-duration operation, cable movement and enclosure heat rise. If the panel is used for inspection or imaging, include gray-scale and color-reference screens rather than only a desktop image.

Commercial Decision Boundary

Choose this page when the project needs a 23.8 inch FHD LVDS panel or an industrial monitor built around that panel class. If the buyer needs HDMI input, touch, enclosure, optical bonding or outdoor operation, those should be specified as additional scope in the RFQ rather than assumed from the bare panel page.

Controller-Board Quote Clarification

For many 23.8 inch projects, the buyer does not only need the LCD panel. The RFQ should state whether the host already outputs LVDS or whether LCDind should quote a controller board with HDMI, VGA, DVI or embedded-player input. If a controller is needed, define input resolution, OSD requirement, backlight dimming, power input and mounting method. This prevents a panel-only offer from being compared against a complete monitor solution.

Packaging and Handling for Large Panels

Large LCD panels are sensitive to bending, edge impact and pressure marks during shipping and installation. For production or service inventory, specify original packaging or strengthened export packaging, inspection after arrival, allowed cosmetic defects and handling instructions. If the panel will be integrated into an open-frame monitor, confirm whether LCDind should preassemble the cable and board to reduce handling risk at the customer's factory.

RFQ Checklist

• Confirm exact AUO G238HAN01.3 revision, LVDS mapping, 30-pin connector, voltage and backlight driver requirement.
• State panel-only, cable, controller-board, open-frame monitor or full display assembly scope.
• Provide enclosure drawing, mounting method, front glass/touch requirement, brightness environment and duty cycle.
• Define sample quantity, annual forecast, packaging, inspection criteria and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is touch included?

No. The public attributes list no touch.

Is a backlight driver included?

The public table states WLED without driver, so driver scope should be confirmed in RFQ.

Is it suitable for bright indoor monitor projects?

Yes, 625 cd/m² supports many bright indoor industrial environments, subject to final stack testing.
