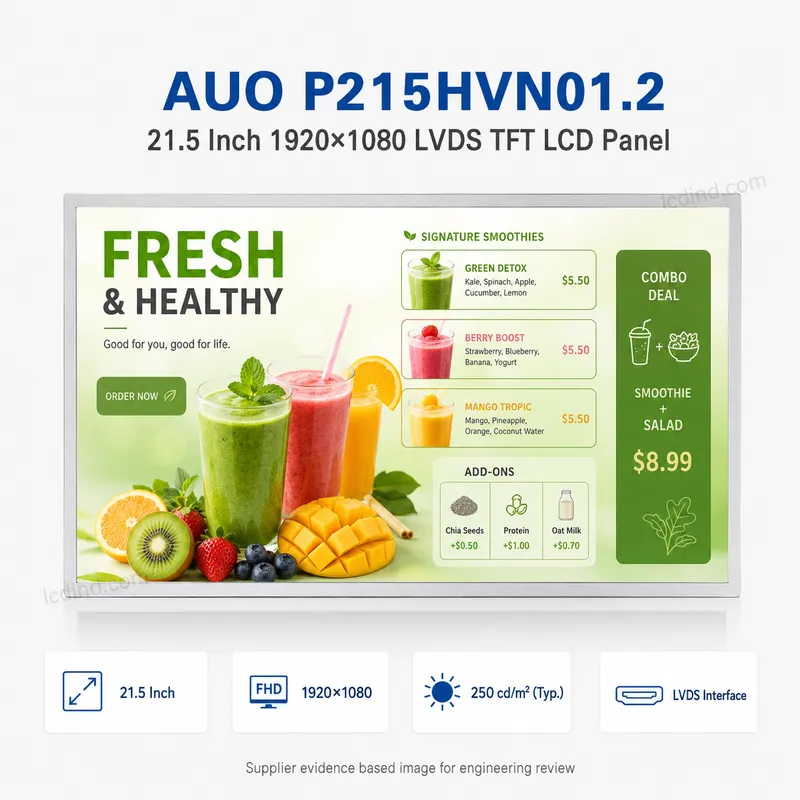

AUO P215HVN01.2 21.5 Inch 1920×1080 LVDS TFT LCD Panel
AUO P215HVN01.2 21.5 inch FHD LVDS VA panel with 1920×1080 resolution, 250 cd/m² brightness, 3000:1 contrast and 0 to 50 °C operation.
Product Attributes
| Brand | AUO LCD Panels |
|---|---|
| Size | 21.5 inchSpecify 21.5 inch industrial LCD modules by resolution, brightness, LVDS or controller interface, touch, enclosure, operating environment and annual quantity. |
| Resolution | 1920×1080 |
| Brightness | Standard (200-450 nits) |
| Interface | LVDSSpecify LVDS industrial TFT LCD modules by size, resolution, channel count, JEIDA/VESA mapping, pinout, brightness, touch, temperature and annual quantity. |
| Operating Temp | Standard (0 ℃ to +50/60 ℃) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
| Panel Type | IPS |
AUO P215HVN01.2 21.5 Inch FHD LVDS VA Panel for Standard Industrial Displays
AUO P215HVN01.2 is a 21.5 inch FHD LCD panel for standard indoor display integration and replacement sourcing. The public page confirms 1920×1080 resolution at 102 PPI, VA normally black transmissive mode, 250 cd/m² typical brightness, 3000:1 typical contrast ratio, 89/89/89/89 typical viewing angle, 2-channel 8-bit LVDS interface with 30-pin connector, 15S4P WLED backlight rated 30K hours without driver, 13/5 ms typical response, 14.3W typical power consumption, 16.7M colors, 72% NTSC and 0 to 50 °C operating temperature.
Confirmed Product Specifications
| Type | TFT |
|---|---|
| Resolution | 1920×1080, FHD 102PPI |
| Display Type | IPS |
| Backlight Type | LED Display Screen |
| Mounting Type | Panel Mounting |
| Brightness | 250 cd/m² (Typ.) |
| Display Size | 21.5 inch |
| Operating Temperature | 0 ~ 50 °C |
| Screen Size | 21.5″ |
| Communication Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| View angle | 89/89/89/89 (Typ.) |
| Contrast ratio | 3000:1 (Typ.) (TM) |
| Backlight | 15S4P WLED , 30K hours , Without Driver |
| Display mode | VA, Normally Black, Transmissive |
| Support Color | 16.7M 72% NTSC |
| Response Time | 13/5 (Typ.)(Tr/Td) |
| Power Consumption | 14.3W (Typ.) |
| Selling Units | Single item |
| Single package size | 58X35X7 cm |
| Single gross weight | 1.75 kg |
Standard Indoor Monitor Fit
This panel is suitable for indoor industrial monitors, information displays, operator stations, test benches and replacement projects where 21.5 inch FHD is the target format. It is a practical choice when the system needs a common 16:9 workspace but does not require high-brightness outdoor readability.
VA Contrast and Viewing
The 3000:1 contrast ratio is useful for darker UI themes, video display and status screens with high black-level requirements. The page lists wide viewing angles, but the final enclosure and cover glass can still affect perceived contrast. If the display is used in a control room with variable lighting, test representative UI pages before approval.
LVDS and Backlight Scope

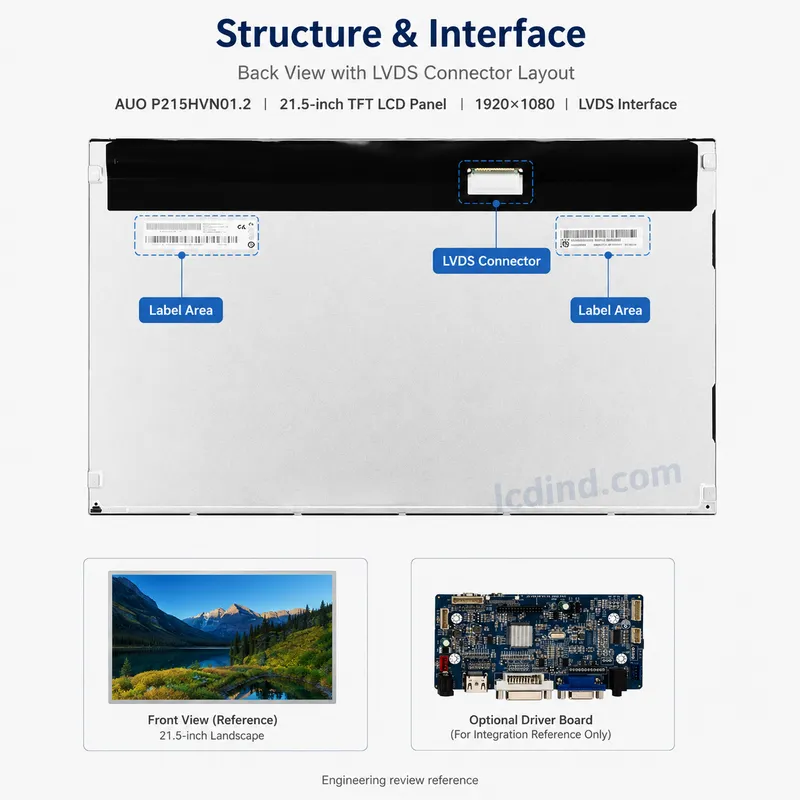

The confirmed LVDS interface is 2-channel 8-bit with a 30-pin connector. The backlight is listed without driver, so the quote should define whether LCDind supplies the panel only, backlight driver, LVDS cable, controller board or full open-frame monitor assembly. Panel-only sourcing is different from a ready-to-use HDMI monitor.
Brightness Boundary
The 250 cd/m² brightness is standard indoor class. It is not suitable for sunlight-facing terminals or bright outdoor cabinets. If the customer adds PCAP touch, protective glass or a tinted lens, readability may drop further. For those cases, compare higher-brightness 21.5 inch panels before enclosure design is frozen.
Mechanical Review

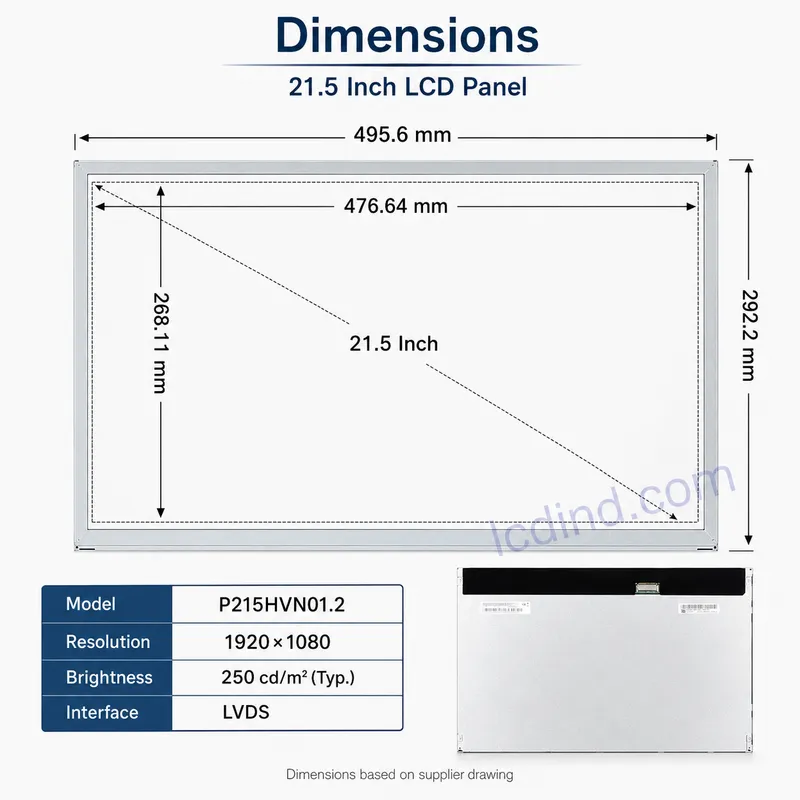

Replacement buyers should compare outline, active area, thickness, connector side, cable exit and mounting method with the original display. Large panels can be damaged by uneven frame pressure or twisting during installation. OEM projects should define bezel support, thermal path, shipping protection and service access.
Industrial Procurement Use
This page is useful for sourcing teams that need a standard 21.5 inch LVDS panel with good contrast. It should not be treated as universal compatibility evidence. Before purchasing, engineering should confirm host interface, backlight driver, mechanical fit and revision availability.
Sample Test Plan
Recommended checks include LVDS timing lock, backlight uniformity, black-screen leakage, contrast review, pixel inspection, cable movement, thermal run and UI scaling. If the panel is replacing an old monitor, verify the complete monitor assembly after installation rather than testing the bare panel only.
Repeat-Order Control
For repeat production, record approved AUO revision, LVDS cable, backlight driver, inspection standard, packing method and substitute rules. This reduces the risk that a future replacement changes brightness, connector orientation or optical behavior while still matching size and resolution.
When This 21.5 Inch Panel Is Cost-Effective
This model is most useful when the buyer needs a standard indoor FHD display with high contrast but not high brightness. It can fit fixed indoor equipment, control-room screens, bench instruments and monitor replacements where ambient light is controlled. It is not the best first choice for outdoor terminals, window-facing kiosks or high-temperature sealed cabinets. Matching the brightness class to the environment prevents overpaying for high-brightness parts or under-specifying a display that operators cannot read.
Backlight Driver and Assembly Scope

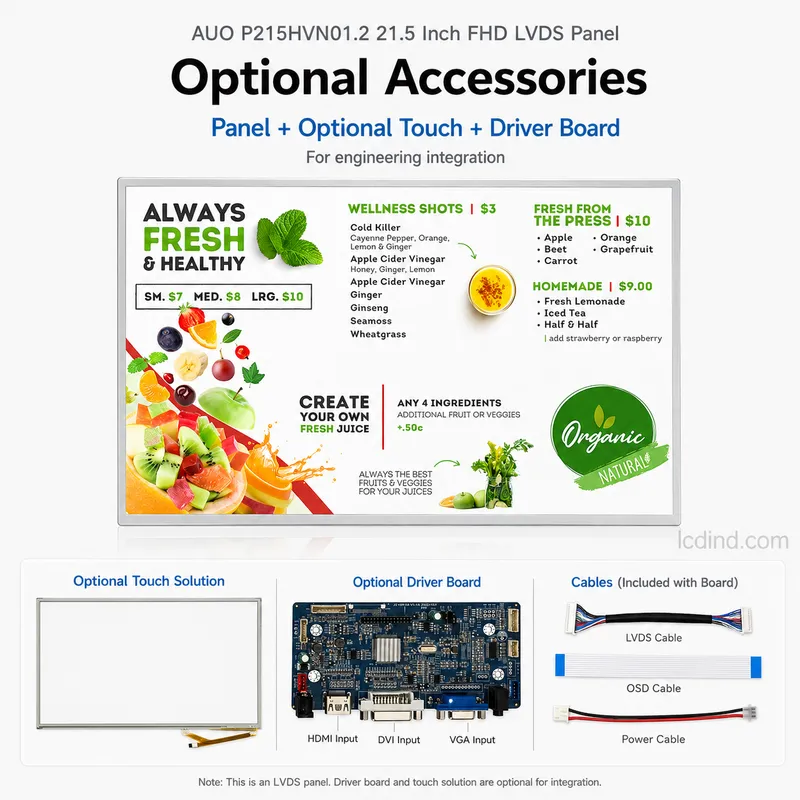

Because the public data lists WLED without driver, the buyer should not assume the panel can be powered directly from a generic controller. The RFQ should clarify backlight driver, dimming signal, power connector, LVDS cable and controller-board scope. If the customer expects a ready-to-install open-frame monitor, LCDind should quote the panel, electronics, cables and mechanical frame together.
Replacement Evidence

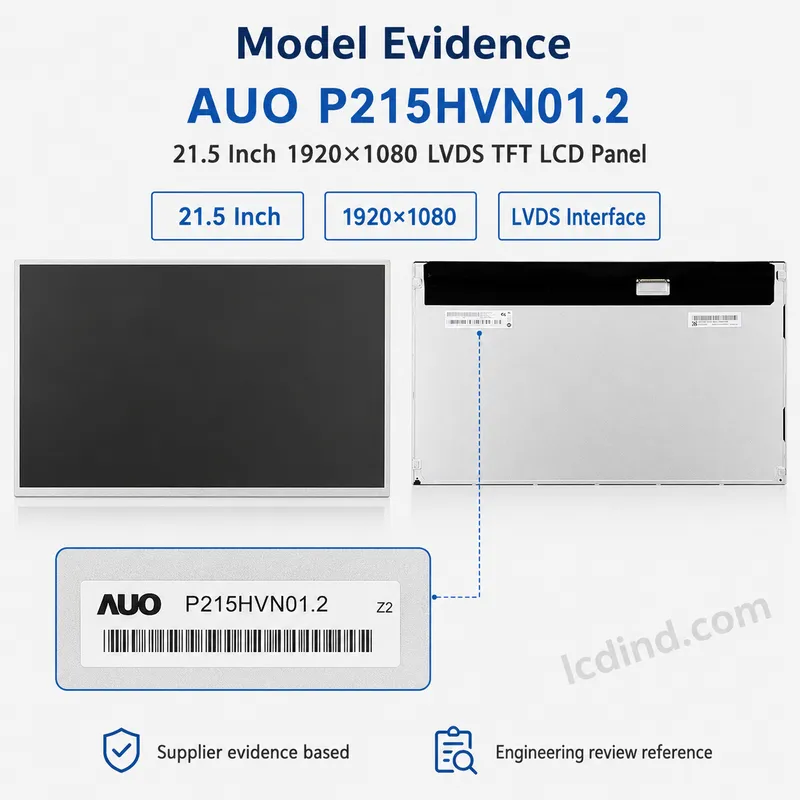

For repair work, collect the old monitor model, panel label, LVDS cable photo, backlight connector photo and mechanical mounting details. A 21.5 inch FHD replacement can fail if the backlight driver or connector differs, even when the LCD image interface is correct.
RFQ Checklist
- Confirm exact AUO P215HVN01.2 revision, LVDS mapping, connector, voltage and backlight driver requirement.
- Define panel-only, cable, controller-board, open-frame monitor or complete assembly scope.
- Provide enclosure drawing, cover/touch requirement, operating environment and installation direction.
- State sample quantity, forecast, inspection criteria, packaging and substitute approval rules.
Engineering Review Note
The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.
Engineering FAQ
Is this a high-brightness panel?
No. The public brightness is 250 cd/m², suitable for standard indoor use.
What interface is confirmed?
2-channel 8-bit LVDS with a 30-pin connector.
Does it include a backlight driver?
The public table says WLED without driver, so driver scope must be confirmed.
| Brand | AUO LCD Panels |
|---|---|
| Size | 21.5 inchSpecify 21.5 inch industrial LCD modules by resolution, brightness, LVDS or controller interface, touch, enclosure, operating environment and annual quantity. |
| Resolution | 1920×1080 |
| Brightness | Standard (200-450 nits) |
| Interface | LVDSSpecify LVDS industrial TFT LCD modules by size, resolution, channel count, JEIDA/VESA mapping, pinout, brightness, touch, temperature and annual quantity. |
| Operating Temp | Standard (0 ℃ to +50/60 ℃) |
| Touchscreen | No Touch |
| Viewing Angle | All View / IPS |
| Panel Type | IPS |
What is the resolution of P215HVN01.2?
The captured supplier evidence states 1920x1080. Confirm the exact model revision and current datasheet before design-in.
Which host interface does P215HVN01.2 use?
The captured supplier evidence indicates LVDS. Confirm channel count, bit depth, connector and pin assignment before board design.
Is a touchscreen or controller board included?
The draft treats the selected configuration as the LCD panel only unless the source explicitly states an integrated touch assembly.
What should engineers confirm before ordering P215HVN01.2?
Confirm the exact model and revision, outline drawing, active area, connector position, pin definition, voltage, timing, mounting points and operating environment against the current datasheet or an approved sample.
What information is needed for a quotation?
Send the exact model or datasheet, required quantity, host interface, mechanical drawing and target application. The captured supplier listing MOQ is 13 pieces.
