9 Inch TFT LCD Display for Equipment Display Panels

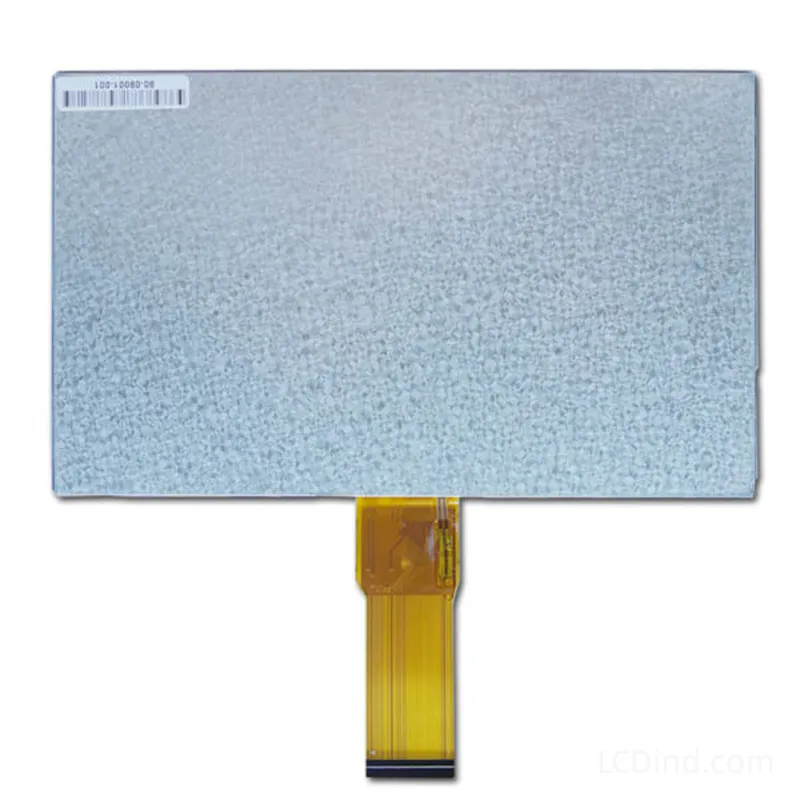

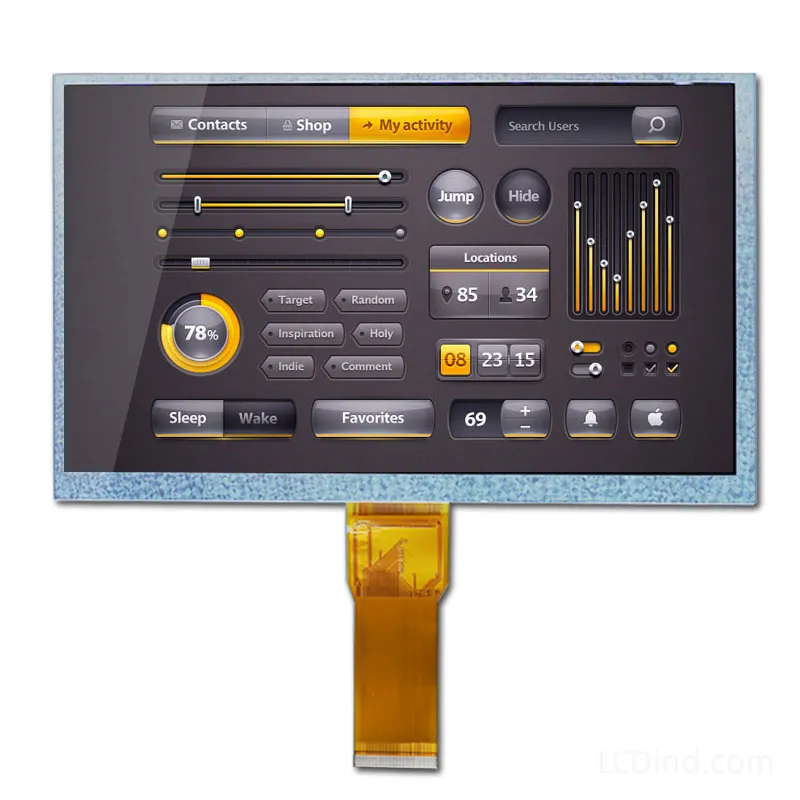

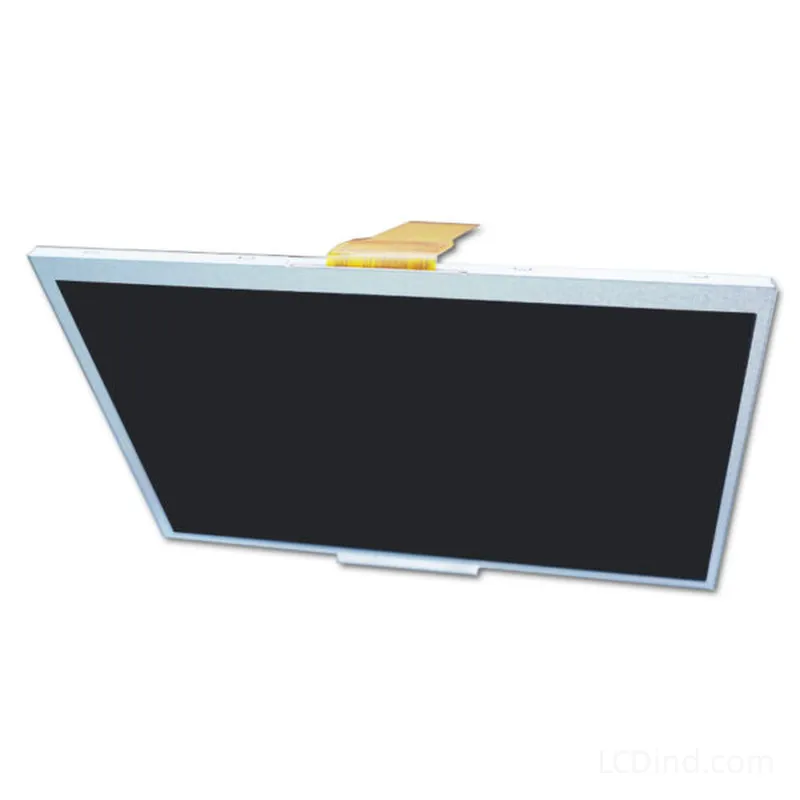

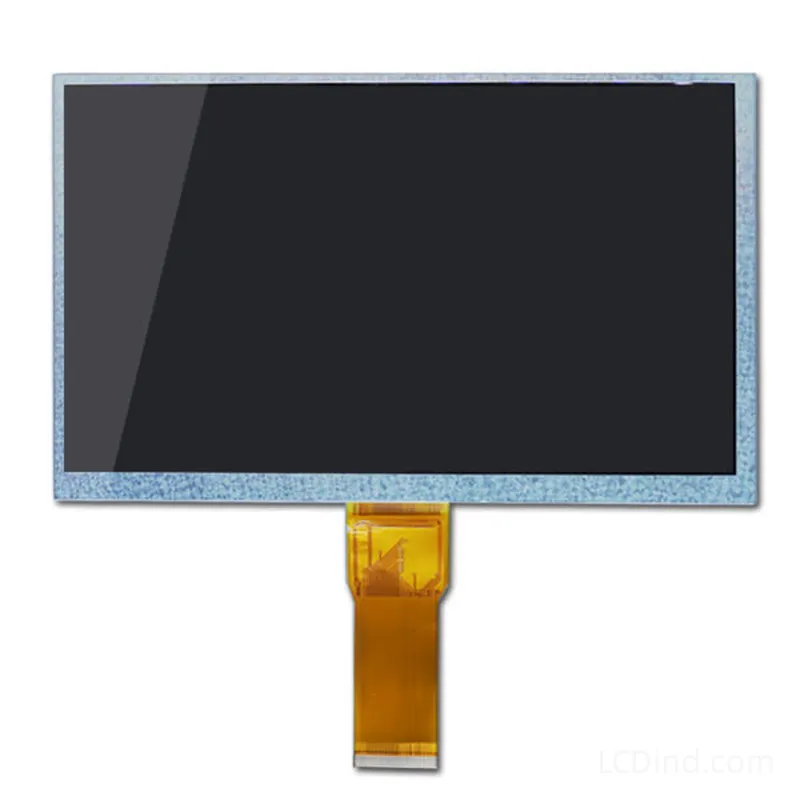

9 Inch 800×480 RGB TFT LCD Module for Equipment Display Panels

This 9 inch TFT LCD display is positioned for equipment display panels that need a straightforward 800×480 RGB module rather than a finished HDMI monitor. The current public data confirms 9 inch size, 800×480 resolution, RGB interface, 350 nits brightness, no touch panel in the standard configuration, -20 to +70 C operating range, 210.7×126.4×5.3 mm outline dimension, 198×111.696 mm active area, 3.3V power supply and 20000-hour LED lifetime. The product is best evaluated as an embedded module for OEM equipment, not as a consumer screen.

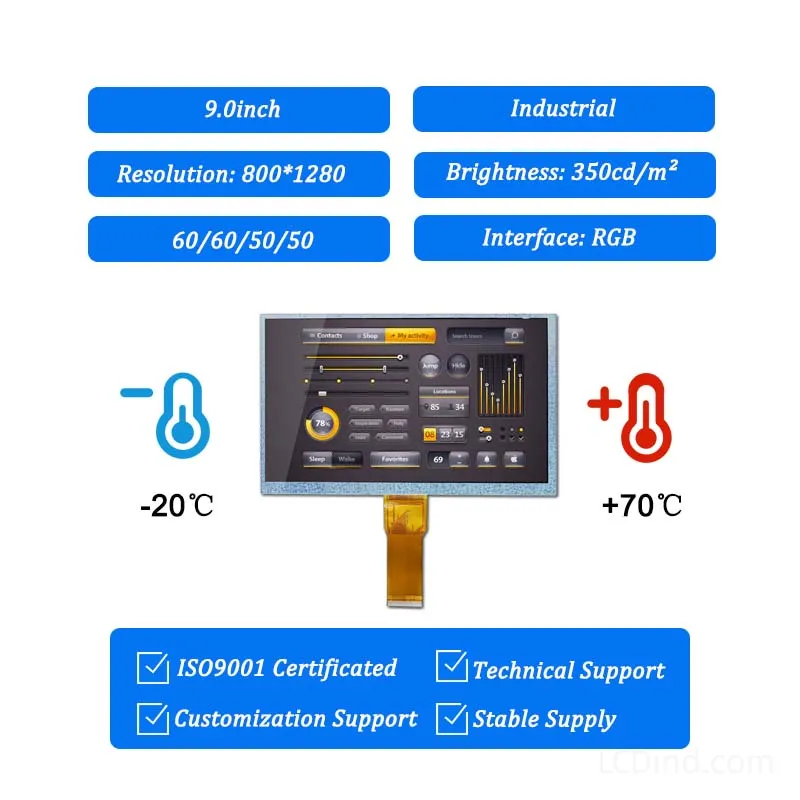

Confirmed Product Specifications

Equipment Panel Application Fit

A 9 inch 800×480 RGB module is suitable for industrial control panels, test equipment, small automation consoles, service terminals, power-system monitors and embedded equipment that show status, alarms, numeric settings and maintenance pages. The screen area gives more room than common 7 inch panels while keeping the interface simple enough for lower-cost embedded controllers.

RGB Interface Review

The confirmed RGB interface means the host controller, timing, voltage, pinout and FPC direction must be checked before PCB layout. Buyers should not treat 800×480 resolution alone as compatibility evidence. RGB modules with the same size can still use different FPC pin assignments, backlight circuits, polarizer direction and mechanical stack, so LCDind should receive the controller requirement or the original display drawing during RFQ.

Brightness and Installation Boundary

The 350-nit brightness is appropriate for indoor industrial equipment, protected control rooms and panels installed away from direct sunlight. If the front window uses tinted cover glass, thick protective acrylic or a high-reflection surface, the finished assembly may need a brighter backlight or optical bonding. If the display is for outdoor cabinets, forklift panels or window-facing terminals, compare 500-nit or 1000-nit alternatives before freezing the design.

No-Touch Configuration and Upgrade Scope

The public specification states no touch panel in the standard configuration. This is correct for equipment controlled by buttons, membrane keys, rotary knobs or a separate keypad. If a project later requires resistive or capacitive touch, the touch sensor, controller, bonding method, cover glass, ESD path and optical loss should be quoted separately. Adding touch is not a simple text change in a bill of materials because it changes the front stack and test method.

Mechanical Approval Items

The public dimensions are enough for early screening, but final mechanical approval still needs the latest drawing, FPC route, connector area, mounting pressure limits and bezel opening. The 198×111.696 mm active area should be compared with the visible window in the equipment housing. For production tooling, engineers should verify the module does not touch ribs, screws, gasket compression zones or cable bends inside the enclosure.

Production and Service Considerations

For repeat orders, record the accepted panel model if supplied, RGB timing, power input, backlight current, active area, drawing revision and inspection criteria. If the display is used as a replacement part, keep photos of the original panel label and FPC. This reduces the risk of receiving a display that is electrically similar but not mechanically interchangeable.

Buyer-Side Sample Test Plan

Sample validation should include power-up stability, RGB timing lock, white-screen and dark-screen inspection, backlight uniformity, text readability, thermal rise, connector retention and final UI review. If the equipment will be used near motors, relays or power converters, test the display in the real machine rather than only on the bench. These checks are practical for B2B buyers because they catch integration problems before pilot production.

When to Choose This Instead of a 7 Inch Panel

Choose this 9 inch module when the equipment needs a larger visible area for alarms, numeric values, service menus or multi-zone status screens but still uses a simple RGB display architecture. It can reduce UI crowding compared with a 7 inch panel without forcing the project into a higher-resolution controller platform. If the existing housing can only accept a 7 inch opening, this product is not a drop-in upgrade; mechanical redesign and front-window review would be required.

Quote Documentation That Reduces Delay

For a faster technical quote, provide the target controller, interface voltage, desired cable length, backlight dimming method, enclosure drawing and current display label if this is a replacement. Also state whether the product will be installed indoors, near sunlight, in a mobile machine or inside a sealed cabinet. These details let LCDind decide whether the 350-nit no-touch standard configuration is suitable or whether a different brightness, touch or controller-board option should be reviewed.

RFQ Checklist

• Confirm RGB pinout, timing, voltage, FPC direction, connector and backlight drive method.
• Provide equipment drawing, visible window size, mounting method, cable route and front-lens information.
• State whether no-touch is required or whether resistive/capacitive touch should be quoted as a separate stack.
• Provide sample quantity, annual forecast, operating environment, inspection criteria and substitute approval rules.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This update keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is this a HDMI monitor?

No. The current product data confirms RGB interface for the module.

Is touch included in the standard configuration?

No. The public specification lists no touch panel in the standard configuration.

Is 350 nits enough for outdoor use?

Usually no. It is more appropriate for indoor or controlled-light equipment panels.
