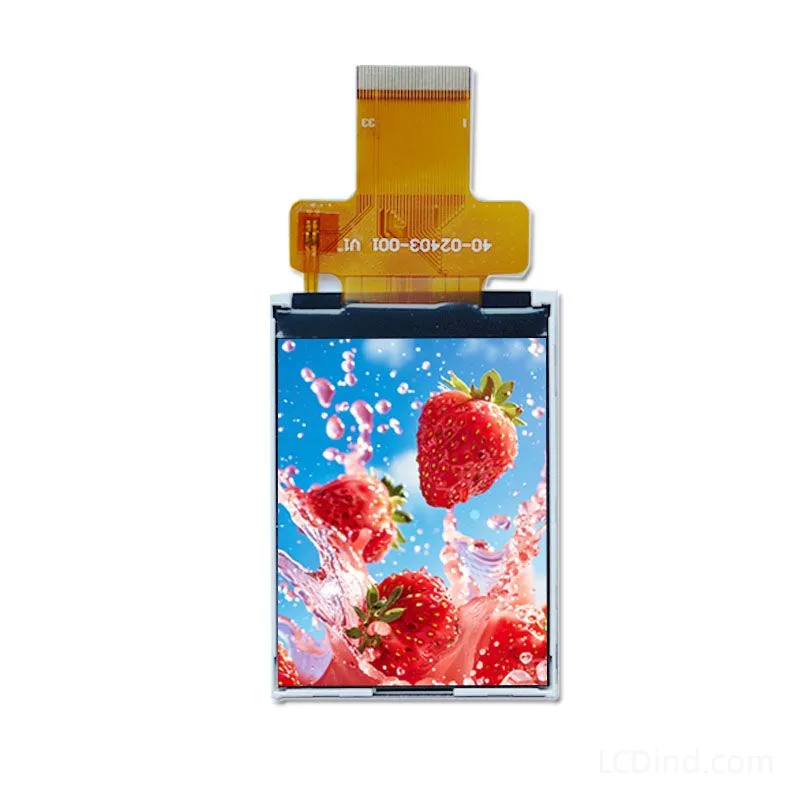

2.4 Inch TFT LCD Module for Bright Instrument Panels

2.4 Inch 240×320 MCU TFT LCD Module with 600 Nit Brightness for Instrument Panels

This 2.4 inch TFT LCD module is the brighter 600-nit option in this group, intended for instrument panels that need stronger front-panel readability. The confirmed specification lists 2.4 inch size, 240×320 resolution, MCU interface, 600 nits brightness, no touch panel in standard configuration, -20 to +70 C operating range, 42.72 x 60.26 x 2.3 mm outline dimension, 36.72 x 48.96 mm active area, 3.3V power supply, and 20000 LED lifetime. It is a compact display choice for OEM equipment where the panel must remain legible in higher ambient light.

Confirmed Product Specifications

Instrument Panel Positioning

This module can be used in laboratory instruments, power controllers, test equipment, industrial meters, HVAC controls, charging devices, and small machine panels where operators need to read values quickly. The 240×320 portrait layout works for numerical readouts, alarm states, parameter pages, calibration screens, and icon-based status displays. Compared with lower-brightness 2.4 inch variants, the 600-nit configuration gives more margin when the product sits under strong indoor lighting or behind a protective front window.

Optical Stack Review

Brightness at the module level is only one part of readability. The buyer should evaluate cover glass, anti-glare surface, air gap or bonding method, printed overlay, viewing angle, and dimming curve. If the display is mounted deep behind a lens or used near glossy machinery, reflections can reduce readability even with a 600-nit backlight. Prototype tests should use the real front-panel material and the intended UI colors.

MCU Interface and Firmware

The MCU interface keeps the hardware path familiar for embedded controllers. Engineers should confirm pin assignment, voltage, display controller commands, initialization code, and update behavior with the actual host board. Instrument panels often show stable values and alarm changes rather than high-motion graphics, making MCU interface practical when firmware is planned correctly. If the device must update graphs or waveforms rapidly, test that workload early.

Mechanical and Environmental Design

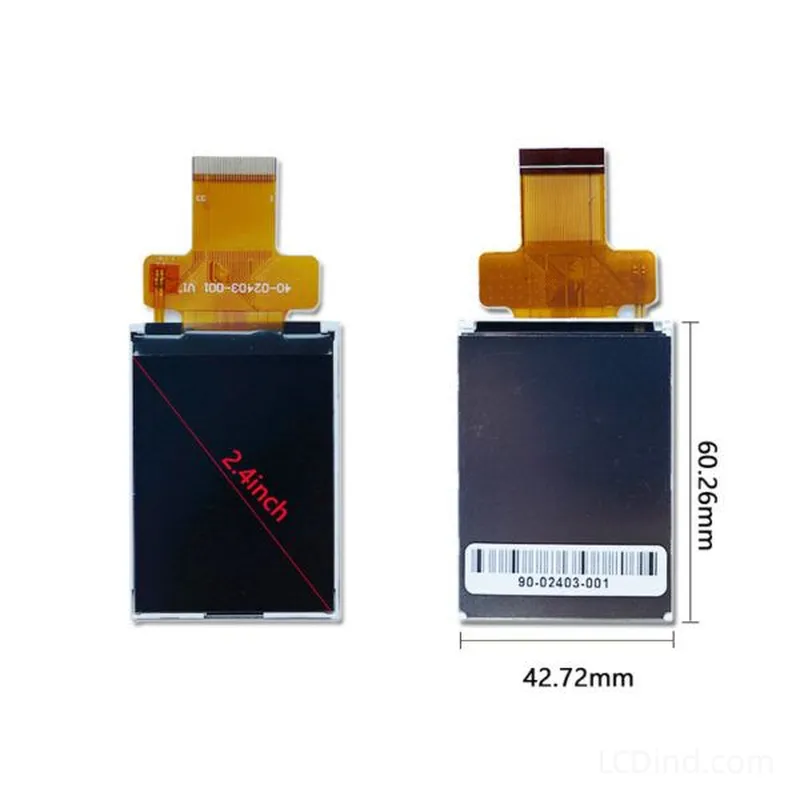

The module outline of 42.72 x 60.26 x 2.3 mm and active area of 36.72 x 48.96 mm should be checked against the front-panel cutout, board spacing, gasket, and cable bend. The -20 to +70 C operating range covers many industrial indoor environments, but the finished device should still be tested for heat rise at higher brightness. If the display is near power electronics or enclosed without airflow, thermal validation should not be skipped.

Supply and Customization Planning

The standard version has no touch panel. For instruments that need operator input, the buyer can keep physical keys or ask LCDind to review resistive or capacitive touch, cover lens, bonding, logo printing, FPC changes, or connector direction. For production purchasing, define brightness, cosmetic criteria, inspection method, and packaging so later batches match the approved sample.

Human-Factor Review

A bright instrument panel is not only about backlight output. The operator must be able to read alarm states, units, and measured values without confusion. Use large numerals, stable color coding, and enough contrast between active and inactive states. If the display sits near LEDs, buttons, or warning lamps, review the full front panel as one visual system. A 600-nit LCD can still be difficult to read if the UI is crowded or hidden behind reflective glass.

Batch Acceptance Criteria

Before volume purchasing, define what counts as an acceptable display: brightness range, cosmetic grade, dead-pixel policy, FPC appearance, packaging, and functional test method. Instrument manufacturers often need consistent appearance across production lots because products sit side by side in control rooms or labs. Ask LCDind to confirm how sample approval, revision notice, and replacement planning will be handled for repeat orders.

Selection Boundary

This 600-nit option is most relevant when the instrument panel is exposed to stronger indoor light, deeper cover glass, or a viewing position that benefits from extra luminance. If the product is a battery-powered handheld device, the 500-nit version may be a better balance. If the panel is used in a shaded cabinet, the 350-nit or 300-nit version may meet the requirement with less heat and power demand.

RFQ Checklist

• Instrument panel drawing, display window, cover-lens material, and target viewing angle.
• Host MCU details, connector and pinout requirement, firmware environment, and expected refresh behavior.
• Lighting condition, dimming requirement, thermal limits, and whether 600 nits is mandatory.
• Forecast quantity, sample schedule, customization items, and production inspection standard.

Engineering Review Note

The specifications above are taken from the current public product page and should be used as selection inputs, not as a final integration approval. Before sample purchase or batch order, LCDind should review the drawing, host interface, optical stack, operating environment, quantity plan, and any customization request. This reduces the risk of selecting a display that matches the headline but fails the enclosure, firmware, brightness, or supply requirements of the finished equipment.

Engineering FAQ

Is this the same as the 500 nit handheld version?

The mechanical and electrical base is similar, but this page confirms 600 nits brightness and targets brighter instrument panels.

Can it be used without a touch panel?

Yes. The standard configuration is no touch, suitable for equipment with buttons or other controls.

What is the main integration risk?

Readability through the final cover lens and thermal behavior at higher brightness should be validated before batch approval.
