8 Inch 1280×800 HDMI Touch Display for Capacitive Touch Terminals

This 8 inch HDMI touch display is a display-kit style product for capacitive touch terminals, embedded PCs, Linux panels, controller dashboards and OEM HMI prototypes that need video input and PCAP touch without raw LCD integration. The confirmed public data lists 8 inch size, 1280×800 resolution, HDMI input + Micro-USB touch, capacitive touch panel, 197.0×132.0×12.0±0.2 mm outline, 3.79W power data at 100% brightness and LCDind model LCDind-DS20238. Brightness, operating temperature, active area and LED lifetime are blank in the public table and should be confirmed through RFQ.

Confirmed Product Specifications

Capacitive Terminal Fit

This display fits compact operator terminals, embedded Linux panels, access-control devices, test equipment, small industrial PCs and prototype HMIs where HDMI and USB touch are more convenient than MIPI, RGB or LVDS integration. The 1280×800 resolution gives more UI room than 1024×600 for menus, forms and status pages.

HDMI and Micro-USB Touch Review

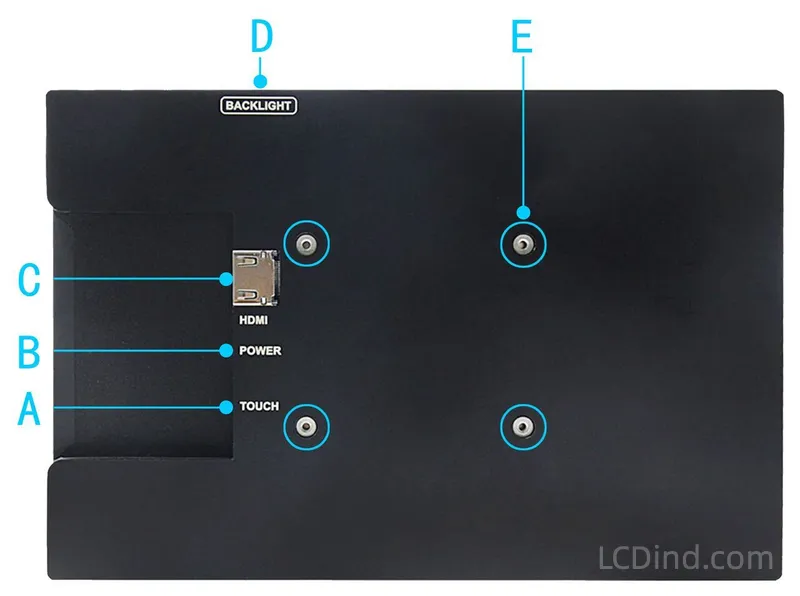

HDMI handles video while Micro-USB handles touch. Engineers should confirm supported resolution, touch enumeration, OS driver behavior, cable length, connector retention, boot display and recovery after power cycling. A kit that works on a desk still needs equipment-level cable and mounting review.

PCAP Touch Reliability

Capacitive touch should be tested with final grounding, cover lens, enclosure material and nearby power electronics. Edge accuracy, ESD recovery, glove use and cleaning conditions should be defined if the product is used in industrial terminals. Touch stability can change after installation.

Missing Public Fields

Brightness, operating temperature, active area and LED lifetime are not confirmed publicly. These values affect whether the display fits bright factories, sealed cabinets, outdoor-adjacent panels or long-duty-cycle devices. The RFQ should request them before sample approval.

Mechanical Integration

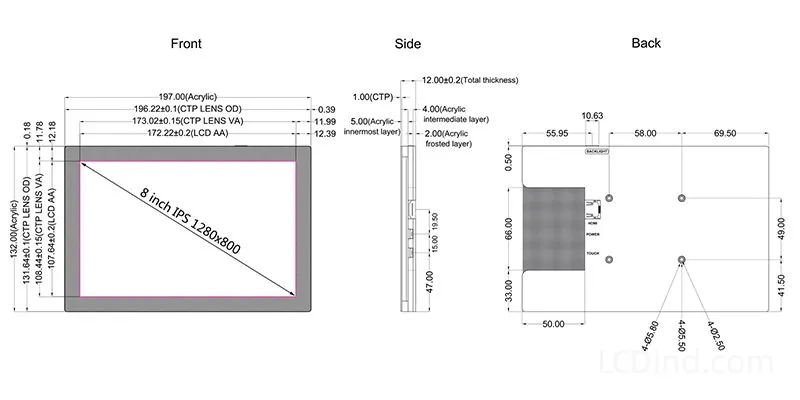

The outline is 197.0×132.0×12.0±0.2 mm. That is closer to a kit assembly than a thin raw LCD. Confirm connector clearance, mounting holes or adhesive method, cable exit, power input and service access. If the front panel requires a custom lens, the drawing must be checked before tooling.

Power and Thermal Review

The table lists 3.79W at 100% brightness. Confirm current, power connector and heat rise during long operation. Embedded terminals often run continuously, so sleep/wake behavior, backlight control and thermal stability should be included in acceptance testing.

Decision Boundary

Choose this product when HDMI input and Micro-USB capacitive touch are desired. If the buyer needs raw board-level integration, a MIPI/RGB/LVDS module may be more suitable. If sealed industrial mounting is needed, accessories and enclosure scope should be quoted explicitly.

Finished HDMI Touch Display Scope

This 8 inch product is closer to a display subsystem than a bare LCD panel because the public data lists HDMI input and Micro-USB touch. That makes it suitable for capacitive touch terminals, embedded PC interfaces, service kiosks, small control stations and industrial devices where the host already provides HDMI. The buyer should confirm whether the quoted scope includes LCD, touch panel, HDMI board, USB touch board, cables, mounting accessories and power input. These scope details decide whether the item can be installed directly or still needs integration work.

Touch-Terminal Integration Points

Capacitive touch performance depends on more than the panel size. For terminals installed near motors, power supplies, metal frames or wet environments, the grounding plan, USB cable quality, cover lens thickness, glove requirement and ESD design should be reviewed before production. The public page does not list brightness or operating temperature, so those items should be confirmed for the real installation. If the terminal will be used outdoors, in vehicles or in high-temperature enclosures, a different display configuration may be required.

Mechanical and System Validation

The outline dimension of 197.0×132.0×12.0±0.2 mm should be checked against the enclosure, bezel opening and cable clearance. Because an HDMI touch display includes electronics, engineers should test boot behavior with the host, touch calibration, USB recognition, display scaling, sleep and wake behavior, power consumption and electromagnetic noise. A successful bench test is useful, but the final acceptance should be done in the target terminal housing with the intended cable length and power supply.

Commercial Quote Inputs

For a B2B quote, provide the terminal type, host output, required cable length, mounting direction, touch usage environment, expected annual quantity and whether the customer needs a repeatable kit part number. If the display is for a production terminal rather than a prototype, also define incoming inspection points such as HDMI board version, touch firmware, cable set, brightness target and packing protection.

RFQ Checklist

• Host platform, HDMI mode, Micro-USB touch driver support, cable length and boot behavior.
• Brightness, operating temperature, active area and LED lifetime confirmation because these are blank publicly.
• Mechanical drawing, connector clearance, mounting method, cover lens, grounding and ESD target.
• LCDind-DS20238 matching need, sample quantity, annual forecast and kit/accessory scope.

Engineering Review Note

The specifications above are taken from the current public product page and should be treated as selection inputs, not final system approval. Before sample purchase or production order, LCDind should review host interface, drawing, optical stack, touch requirement, controller-board scope, operating environment, supply quantity and inspection criteria. This keeps the existing product URL unchanged while making the page more useful for B2B engineering and sourcing decisions.

Engineering FAQ

Is this a raw LCD panel?

No. It uses HDMI input plus Micro-USB touch, so it is closer to a display kit.

Is brightness confirmed?

No. Brightness is blank in the public table and should be requested.

What is the listed power data?

The table lists 3.79W at 100% brightness.
