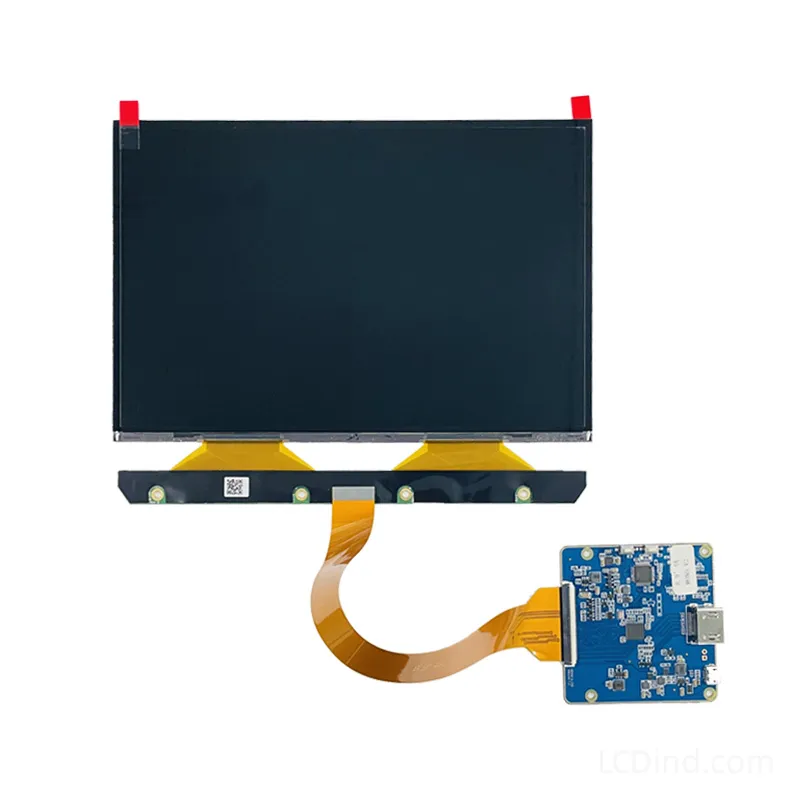

8.9 Inch 4K MIPI Mono LCD | 3840×2400 3D Printer Screen (50-Pin)
8.9 Inch 4K MIPI Mono LCD provides an exact hardware match for mid-format resin 3D printers utilizing a 50-Pin MIPI architecture. Delivering a crisp 3840×2400 resolution across its 192.0×120.0 mm display area, this open-cell panel maintains a precise 50um pixel pitch to eliminate voxel distortion on complex miniatures. Engineered for high-speed curing, it boasts an exceptional 6.6% UV transmittance, significantly cutting down layer exposure times compared to standard screens. Ideal for custom Chitu-based builds or specific Phrozen replacements. Verify your motherboard interface today. Click “Inquire Now” for bulk availability and MIPI driver board kits.
Product Attributes
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 3840×2160 |
| Size | 8.9 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen, No Touch |

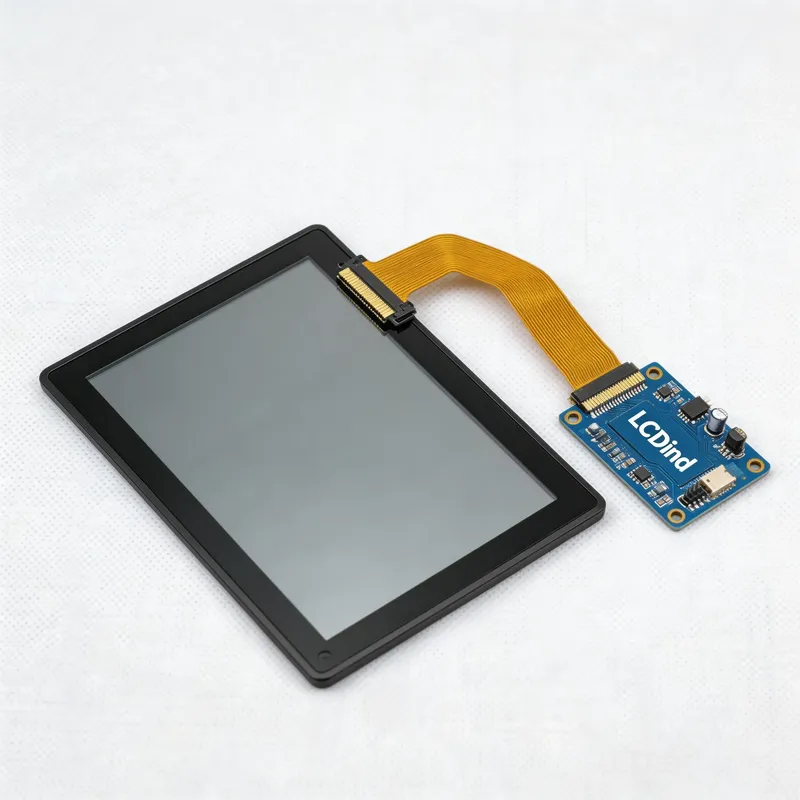

Dedicated MIPI Architecture: 8.9 Inch 4K MIPI Mono LCD
Precision resin manufacturing requires flawless communication between the motherboard and the masking display. The 8.9 Inch 4K MIPI Mono LCD achieves this through a dedicated 50-Pin MIPI interface. This high-bandwidth connection ensures that the massive 3840 x 2400 pixel array receives artifact-free video signals frame by frame. Generating a physical 50 x 50 um pixel pitch, this screen guarantees that mechanical prototypes and intricate jewelry casts print with razor-sharp edges and flawlessly smooth curves.
Unlocking 6.6% UV Transmittance
Long exposure times degrade hardware and slow down production. This module is manufactured strictly as an open-cell, transmissive mono display without a backlight, designed to sit directly over your 405nm LED array. It achieves an industry-leading 6.6% FOG transmittance paired with a solid 300:1 contrast ratio. This specific optical balance allows an immense amount of curing light to pass through active pixels rapidly while strictly blocking light in negative spaces, ensuring fast print speeds without resin bleeding.
Industrial Thermal Endurance
Desktop 3D printers generate intense heat during multi-hour printing cycles. Built to industrial specifications, this LCD matrix operates securely within a temperature range of -20°C to 70°C. This thermal resilience prevents screen blackouts or premature LCD degradation, keeping your production line running consistently.
LCD Display Solution & Customization
We can customize your display according to your needs, such as customizing the frame, touch panel, backlight brightness, FPC shape and interface definition, silk-screening your Logo, etc.
Customization Options:
- Customized packaging (Min. order: 1,000 pieces)
- Customized logo silk-screening (Min. order: 1,000 pieces)
- Graphic and cover glass customization (Min. order: 1,000 pieces)
Technical Specifications
| Product Type | TFT Mono LCD for 3D Printer |
| Model Name | DBM089M4K01 |
| Display Size | 8.9 Inch |
| Resolution | 3840 x 2400 (4K) |
| Active Area | 192.0(H) x 120.0(V) mm |
| Outline Dimension | 202 x 133 x 1.24 mm |
| Pixel Pitch | 50 x 50 um |
| Signal Interface | MIPI (50 Pins) |
| FOG Transmittance | 6.6% |
| Contrast Ratio | 300:1 (Min.) |
| Display Mode | Normally Black, Transmissive |
| Operating Temp | -20°C ~ 70°C |
| Storage Temp | -20°C ~ 80°C |
| Backlight | Without Backlight (Open Cell) |
Engineering FAQ
Q: What is the difference between this MIPI screen and the LVDS version?
A: This is the most critical distinction for your 3D printer. While both screens are 8.9 inches and share a 3840×2400 resolution, they use entirely different signal protocols. This specific module uses a 50-Pin MIPI interface. Other popular 8.9-inch printers (like the Anycubic Photon Mono X) use a 60-Pin LVDS interface. You must visually inspect your printer’s motherboard or the original ribbon cable to confirm it requires a 50-Pin connection before purchasing.
Q: How does a 6.6% transmittance improve my printing?
A: Standard color LCD screens typically block over 99% of UV light. This specialized monochrome screen allows 6.6% of the 405nm UV light to pass through. This massive increase in efficiency means each layer of resin cures much faster (often 1.5 to 2.5 seconds per layer), drastically reducing your total print time.
Q: Can I use this panel with a custom driver board?
A: Yes. We offer compatible MIPI controller boards designed to interface directly with this 50-Pin panel. This makes it an excellent choice for DIY hardware engineers building custom MSLA machines running on open-source mainboards.
| Brand | LCDind |
|---|---|
| Brightness | Standard (200-450 nits) |
| Interface | MIPI |
| Panel Type | IPS |
| Resolution | 3840×2160 |
| Size | 8.9 inch |
| Operating Temp | Standard (0°C ~ +50/60°C) |
| Touchscreen | Optional Touchscreen, No Touch |
Q: What is the difference between this MIPI screen and the LVDS version?
A: This is the most critical distinction for your 3D printer. While both screens are 8.9 inches and share a 3840x2400 resolution, they use entirely different signal protocols. This specific module uses a 50-Pin MIPI interface. Other popular 8.9-inch printers (like the Anycubic Photon Mono X) use a 60-Pin LVDS interface. You must visually inspect your printer's motherboard or the original ribbon cable to confirm it requires a 50-Pin connection before purchasing.
Q: How does a 6.6% transmittance improve my printing?
A: Standard color LCD screens typically block over 99% of UV light. This specialized monochrome screen allows 6.6% of the 405nm UV light to pass through. This massive increase in efficiency means each layer of resin cures much faster (often 1.5 to 2.5 seconds per layer), drastically reducing your total print time.
Q: Can I use this panel with a custom driver board?
A: Yes. We offer compatible MIPI controller boards designed to interface directly with this 50-Pin panel. This makes it an excellent choice for DIY hardware engineers building custom MSLA machines running on open-source mainboards.
