5 Inch 720×1280 MIPI TFT Screen Display for Slim Smart Terminals

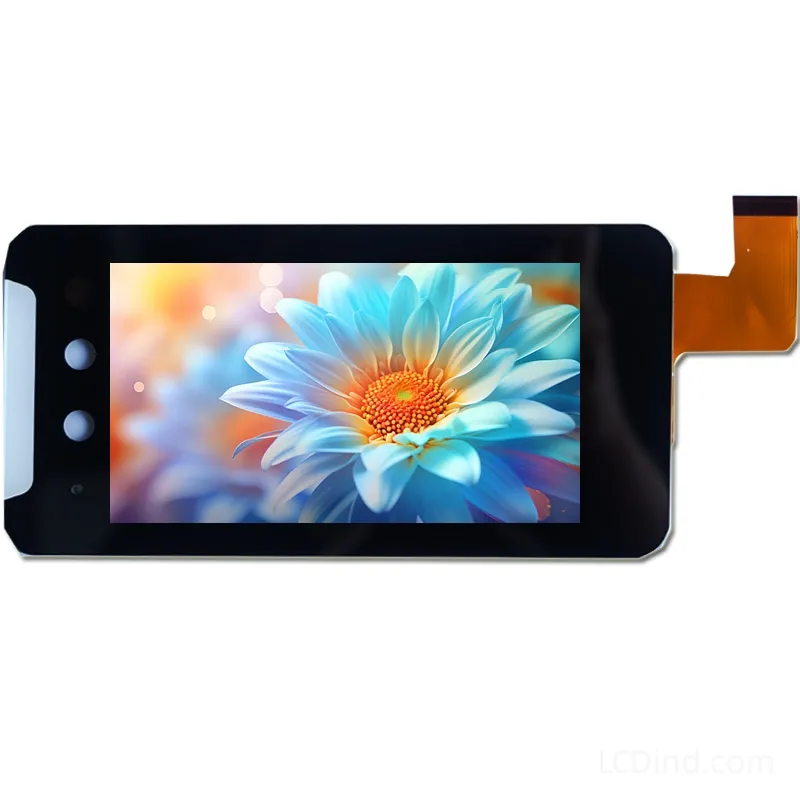

This 5 inch TFT screen display is a MIPI portrait module for slim smart terminals and embedded equipment that need a high-resolution vertical display but do not include a standard touch panel in the listed configuration. The confirmed data lists 5 inch size, 720×1280 resolution, MIPI interface, 380 nits brightness, IPS panel type, all viewing directions, no touch panel in standard configuration, -20°C to +70°C operating temperature, -30°C to +80°C storage temperature, 78.9×158.9×3.47 mm outline, 61.78×109.82 mm active area, 1000:1 contrast ratio, 3.3V supply, 20000-hour LED lifetime, and panel model 91-05011-002.

Confirmed Product Specifications

Slim Smart Terminal Fit

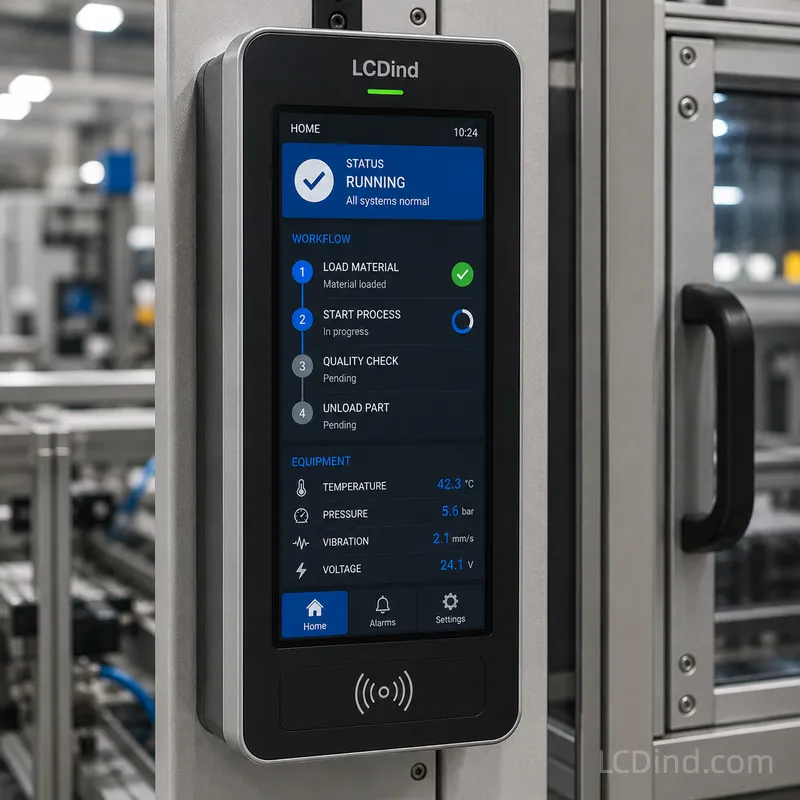

This module is relevant for access terminals, compact Android/Linux panels, smart equipment controllers, portable diagnostic devices, and industrial handhelds where the front design is taller than a standard 5 inch landscape screen. The 720×1280 resolution supports modern portrait UI pages, dense menus, QR codes, status cards, and multilingual interface content.

Outline Difference

This page should not be merged mentally with other 5 inch 720×1280 MIPI products. Its 78.9×158.9×3.47 mm outline is materially different from the other portrait modules in this batch, even though the active area is the same 61.78×109.82 mm. The larger outline may reflect module structure, mounting, or FPC arrangement, so drawing review is mandatory before enclosure design.

MIPI Integration Review

MIPI DSI integration depends on host platform support, lane configuration, initialization commands, pinout, reset timing, and driver IC behavior. For smart terminals, boot display, sleep wake-up, brightness adjustment, and rotation should be tested with the actual OS image. If the buyer is replacing another panel, send the existing initialization code and drawing for comparison.

Brightness and Optical Planning

The confirmed 380-nit brightness is suitable for many indoor terminal applications, but not for direct outdoor sunlight. Cover lens, anti-fingerprint coating, printed border, and any touch overlay can reduce effective brightness. If the device is used near windows, in vehicles, or in bright industrial areas, compare this brightness with the target environment before approval.

No-Touch Standard Configuration

The table lists no touch panel in the standard configuration. This allows the buyer to use physical controls or specify a custom PCAP stack. If touch is required, the RFQ should state controller interface, glass thickness, bonding, ESD, grounding, glove operation, and surface durability. Touch should be validated after assembly, not only as a loose overlay.

Production and Supply Review

Approval should lock model 91-05011-002, outline, active area, MIPI settings, brightness, no-touch status, and inspection standard. Because smart terminals often stay in production for years, LCDind should also review lifecycle risk, substitute policy, and whether the buyer needs a controlled revision path for panel changes.

Terminal Enclosure Implication

The larger outline makes this product a different mechanical choice even though the active area is similar to other 5 inch 720×1280 modules. It may suit terminals with more internal room, stronger frame support, or a specific cable exit requirement. The buyer should compare the drawing against the battery, mainboard, speaker, antenna, and mounting bosses before choosing it.

Smart Terminal Software Testing

Smart terminals often use Android or Linux and may show boot logos, network status, keypad pages, QR codes, and admin menus. Test all of those states, not only the final application page. Sleep/wake behavior, rotation, backlight control, and recovery after a low-battery shutdown should be included in engineering approval.

Touch Upgrade Path

Although this public configuration is no-touch, many smart terminals eventually need PCAP touch. If that upgrade is likely, discuss it before lens design. The glass thickness, controller, bonding, grounding, and ESD plan may affect enclosure depth and front-panel tooling. Planning the touch upgrade path early prevents a second mechanical revision later.

Decision Boundary

Choose this 91-05011-002 model when the larger outline fits the terminal and the project values portrait resolution over minimum module size. If the product must be very thin or has a narrow front border, compare drawings carefully with other 5 inch MIPI options before committing to front-panel tooling.

Sample Evidence to Keep

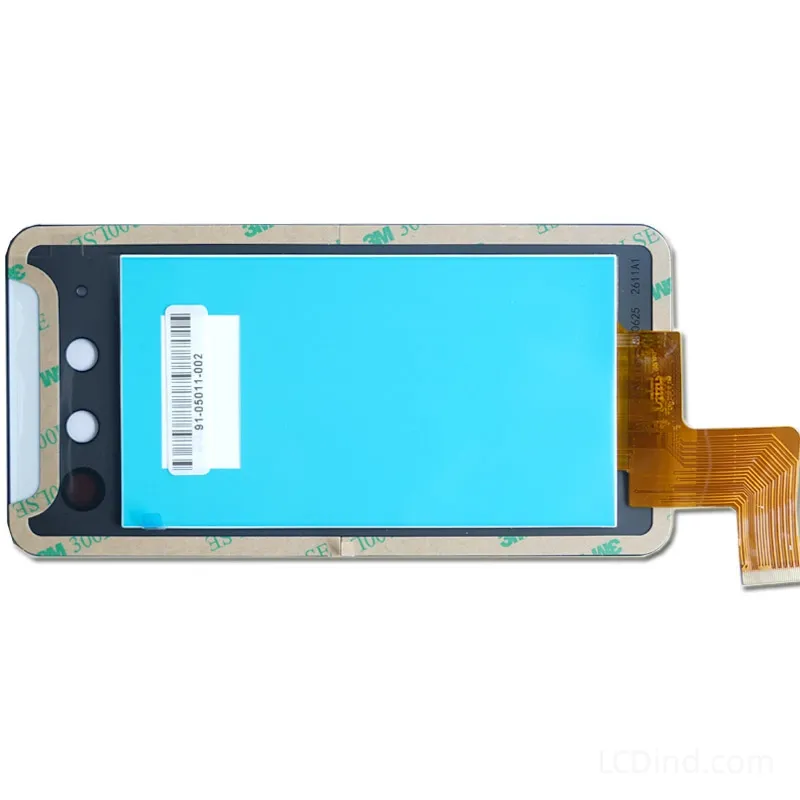

Keep sample label photos, FPC photos, drawing version, and the host initialization package in the sourcing file. That evidence helps LCDind review future substitutions without guessing.

RFQ Checklist

• Host OS, MIPI lane count, driver support, initialization, connector, voltage, and power sequence.
• Slim terminal mechanical drawing, active-area window, 78.9×158.9×3.47 mm outline fit, and FPC route.
• No-touch or custom touch requirement, cover glass, brightness environment, ESD, and grounding.
• Model 91-05011-002 matching need, sample quantity, annual forecast, and revision-control requirement.

Engineering Review Note

Use the public specifications above as the starting point for selection, not as final system approval. Before sample purchase or batch order, confirm the host interface, drawing, optical stack, touch or no-touch requirement, operating environment, controller board scope, and annual quantity with LCDind. This keeps the product URL unchanged while turning a thin catalog page into a useful engineering selection page for B2B buyers.

Engineering FAQ

Is this the same as other 5 inch 720×1280 modules?

No. The model and outline are different, so it should be reviewed separately.

Is touch included?

No. The public table lists no touch panel in the standard configuration.

What is the main design check?

Confirm the larger outline, FPC route, MIPI initialization, and host driver support before enclosure or PCB lock.
