5 Inch TFT Screen Display for Portrait Equipment HMI MIPI

5 Inch 720×1280 MIPI TFT Screen Display for Portrait Equipment HMI

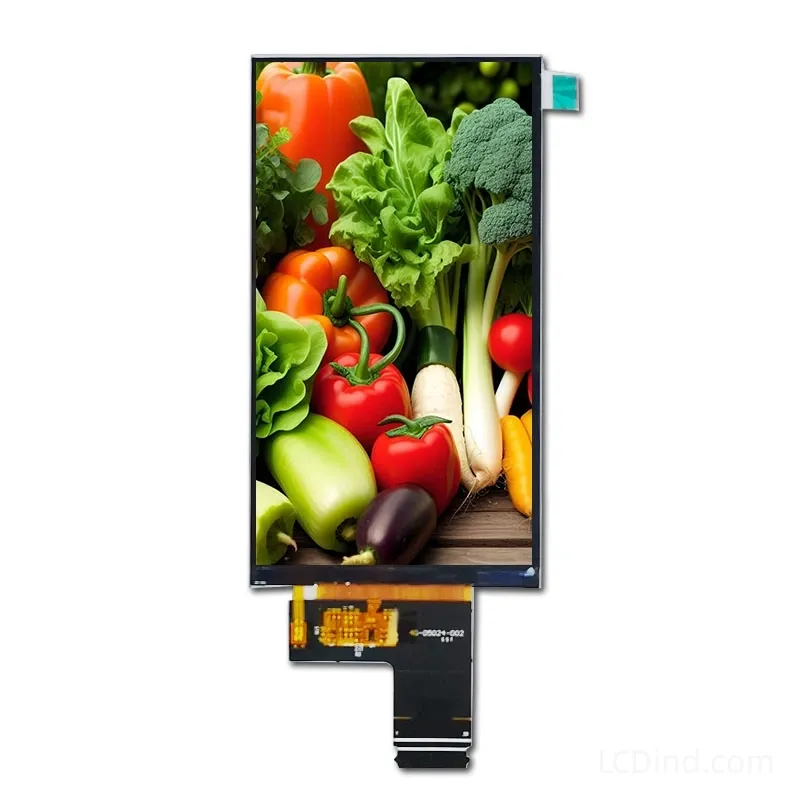

This 5 inch TFT screen display is a portrait MIPI module for equipment HMI projects that need a slim high-resolution display surface without a standard touch panel. The confirmed public data lists 5 inch size, 720×1280 resolution, MIPI interface, 350 nits brightness, IPS panel type, all viewing directions, no touch panel in standard configuration, -20°C to +70°C operating temperature, -30°C to +80°C storage temperature, 65.35×118.8×1.65 mm outline, 61.78×109.82 mm active area, 1000:1 contrast ratio, 3.3V supply, 20000-hour LED lifetime, and panel model 90-05024-001.

Confirmed Product Specifications

Portrait HMI Use Case

This module is suitable for compact machine terminals, handheld service interfaces, access equipment, smart control panels, medical accessories, and embedded Android or Linux devices where a vertical UI is natural. Compared with lower-resolution 5 inch landscape modules, 720×1280 gives more room for menus, status cards, diagnostic pages, and language localization.

350-Nit Brightness Boundary

The confirmed 350-nit brightness is a standard indoor brightness level. It can work for controlled indoor equipment and protected panels, but it should not be selected for outdoor sunlight or bright industrial yards without reviewing higher-brightness alternatives. If the display sits behind tinted glass, printed lens, or thick cover material, test readability with the final stack.

MIPI Host Compatibility

The MIPI interface requires host-side driver support. The buyer should confirm lane count, pin assignment, reset and sleep signals, initialization sequence, command/video mode, and Linux or Android driver availability. If the existing mainboard was designed for another 5 inch MIPI panel, LCDind should compare the driver IC and initialization commands rather than assuming replacement compatibility.

No-Touch Standard Scope

No touch panel is included in the standard configuration. This can reduce thickness and cost for devices that use physical buttons or an external touch solution. If a PCAP layer is required, define cover glass, controller interface, bonding, ESD, grounding, and glove operation separately. Adding touch may change the optical stack and mechanical outline.

Mechanical Fit

The active area matches 61.78×109.82 mm while the outline is 65.35×118.8×1.65 mm. This makes it a slim portrait module, but the FPC direction and connector clearance still need drawing-level review. Lens printing should align precisely with the active area; otherwise the narrow borders of a portrait UI can make offset obvious.

Approval and Substitution Control

The approval file should lock panel model 90-05024-001, MIPI configuration, outline, active area, power, backlight, and no-touch status. If the buyer needs a brighter version or a touch version, that should be treated as a new stack review, not a simple text change in the quote. Equivalent panels must be checked at electrical, firmware, and mechanical levels.

Equipment HMI Content Design

Portrait equipment HMIs usually need clear menus, alarm history, setup values, and service prompts. The 720×1280 resolution can support that information, but industrial UIs should avoid overly small text or dense mobile-style controls. Test the actual screen content on the sample with the final font size and language set before approving the front lens.

Brightness Selection Logic

The 350-nit brightness makes sense when the display is used indoors, inside a medical accessory, in a lab device, or behind a controlled front panel. If the same enclosure might later be used outdoors, this page should not be the default choice. A brighter module, optical bonding, or anti-glare front stack should be reviewed before the product line expands.

BOM and Revision Notes

For production control, record model 90-05024-001 in the BOM together with drawing, connector, MIPI settings, and no-touch status. If the buyer accepts alternatives, define exactly which dimensions and electrical values may change. Without that rule, a future equivalent display could require new firmware, lens tooling, or enclosure changes.

Decision Boundary

This model is best treated as an indoor portrait HMI candidate where standard brightness and slim mechanical fit are acceptable. If the same project is likely to need outdoor readability, thicker cover glass, or touch operation, those requirements should be reviewed before selecting this no-touch 350-nit configuration.

Sample Evidence to Keep

During sample approval, record powered photos, label photos, drawing version, and the initialization file used by the host. Those records protect the project if a future batch needs comparison.

RFQ Checklist

• Host processor, MIPI lane count, driver IC compatibility, initialization code, and operating system.
• Indoor brightness requirement, cover lens, no-touch or touch plan, active-area window, and mechanical drawing.
• FPC direction, connector, power sequencing, orientation, backlight control, and firmware boot behavior.
• Panel model 90-05024-001 matching need, sample quantity, forecast, and inspection standard.

Engineering Review Note

Use the public specifications above as the starting point for selection, not as final system approval. Before sample purchase or batch order, confirm the host interface, drawing, optical stack, touch or no-touch requirement, operating environment, controller board scope, and annual quantity with LCDind. This keeps the product URL unchanged while turning a thin catalog page into a useful engineering selection page for B2B buyers.

Engineering FAQ

Is this a high-brightness outdoor panel?

No. The confirmed brightness is 350 nits, so it is mainly for indoor or controlled environments.

Is touch included?

No. The standard configuration lists no touch panel.

How is this different from other 5 inch 720×1280 MIPI pages?

It uses model 90-05024-001 with 350-nit brightness and a specific 65.35×118.8×1.65 mm outline.
